Cantilever crane
BZ Type Workshop 360-Degree Rotating Jib Crane
Product Overview

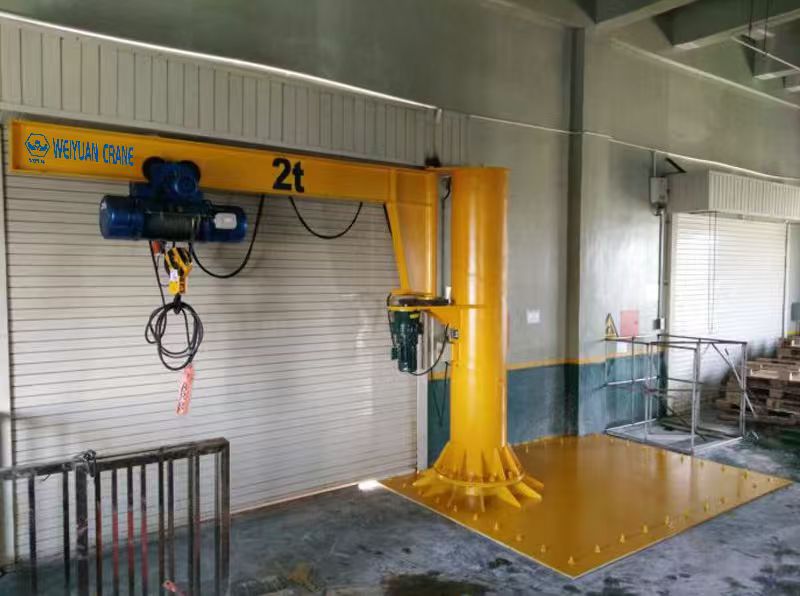

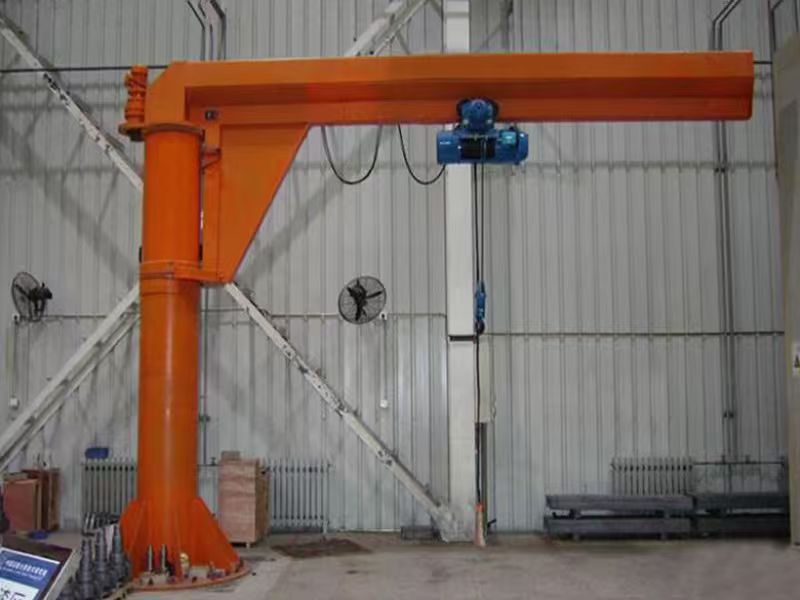

The Weiyuan BZ Type Workshop Jib Crane is an essential lifting solution, expertly designed for modern, fast-paced production environments. This freestanding, pillar-mounted crane offers full 360-degree rotation, providing unparalleled flexibility and efficiency for localized material handling. It is an ideal choice for workshops, assembly lines, and machine-tending applications where repetitive lifting is required within a specific radius. By creating a dedicated, circular work envelope, the BZ Type Jib Crane helps streamline operations, reduce reliance on overhead cranes, and significantly boost workplace safety and productivity.
Product Advantages
Complete Rotational Coverage
Engineered for maximum reach, the BZ Type Jib Crane provides a full 360-degree rotation. This allows a single crane to serve multiple workstations, load and unload materials from various angles, and cover an entire work cell without repositioning, drastically improving workflow efficiency.
Space-Saving Freestanding Design
The crane is mounted on its own pillar and anchored to a solid concrete foundation, operating independently of any building structures. This compact footprint saves valuable floor space and makes it a perfect addition to both open-plan workshops and crowded production areas.
Robust and Reliable Construction
Built from high-grade steel, the pillar and jib arm are designed for exceptional strength and rigidity. This sturdy construction minimizes deflection under load, ensuring stable, safe, and precise lifting operations for a long and reliable service life.
Smooth and Adaptable Operation
The swing arm can be equipped with either manual or motorized rotation to match your specific application and budget. When paired with a high-performance electric hoist, it delivers smooth, controlled movements for lifting, transporting, and positioning loads with minimal effort.
Customized for Your Lifting Needs
Every Weiyuan jib crane can be fully tailored to your requirements. We offer customization of lifting capacity (from 0.5 to 10 tons), arm length (effective radius), lifting height, and hoist type (electric chain or wire rope), ensuring you receive a lifting solution that is perfectly optimized for your facility.
Application Scenarios
Manufacturing and Assembly
Ideal for repetitive lifting tasks on production and assembly lines. It enables operators to quickly move components, tools, and finished parts between stations, reducing manual handling and accelerating the production cycle.
Machining and Fabrication Shops
Perfectly suited for loading heavy workpieces, molds, and dies onto CNC machines, lathes, and presses. It provides a safe and efficient way to manage heavy materials right at the point of use.
Warehouse and Logistics Hubs
An effective tool for managing goods in a dedicated sorting, packing, or shipping area. Its 360-degree rotation makes it easy to move items from shelves to pallets or conveyor belts.
Maintenance Bays and Repair Shops
Provides essential lifting support for servicing heavy equipment and vehicles. It allows technicians to safely and precisely lift engines, gearboxes, and other large components for repair or replacement.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5-10t (Customizable) |
| Arm Length (Effective Radius) | 1-12m (Customizable) |
| Lifting Height | 1-10m (Customizable) |
| Rotation Angle | 360° (180° and 270° also available) |
| Work Level | A3-A5 |
| Hoisting Mechanism | Electric Chain Hoist / Wire Rope Hoist |
| Rotation Mechanism | Electric Motor / Manual |
| Control Method | Wireless Remote Control / Pendant Control |
| Power Supply | 380V, 50Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider/ABB |
| Motor Brand | ABB/SIEMENS |
| Operating Temp. | -25°C to +40°C |
Features at a Glance
✓ Full 360° Rotation: Provides complete coverage within the crane’s radius for maximum utility.
✓ Customizable Capacity: Available in capacities from 0.5 to 10 tons to suit your lifting needs.
✓ Adaptable Dimensions: Arm length and height are engineered to fit your specific workspace.
✓ Freestanding Pillar Design: Saves floor space and requires no structural support from the building.
✓ Flexible Hoist Choice: Compatible with both electric chain and wire rope hoists.
✓ Motorized or Manual Rotation: Choose the rotation method that best fits your application and budget.
✓ Advanced Safety Controls: Offered with user-friendly pendant or wireless remote-control options.
FAQ
Q: What is the benefit of a 360-degree rotating jib crane?
A: The primary benefit is maximum workspace coverage. A 360-degree rotation allows the crane to access any point within its circular operating area, making it possible to serve multiple machines or workstations and handle materials with greater flexibility compared to wall-mounted or limited-rotation models.
Q: What kind of foundation is required for this crane?
A: The BZ Type Jib Crane is a freestanding unit that requires a properly engineered reinforced concrete foundation. The depth and dimensions of the foundation are critical for stability and depend on the crane’s load capacity, arm length, and soil conditions. Weiyuan provides complete foundation drawings and technical guidance for a safe and secure installation.
Q: Can I install this crane outdoors?
A: Yes, we can design and manufacture our BZ Type Jib Cranes for outdoor use. These versions include specialized weather-resistant paint, protective covers for the hoist and electrical systems, and other weatherproofing measures to ensure durability and reliable performance in outdoor environments.
Q: What is the difference between an electric chain hoist and a wire rope hoist on a jib crane?
A: Electric chain hoists are generally more compact, cost-effective, and suitable for most general-purpose lifting with true vertical lift. Wire rope hoists are often preferred for higher capacities, faster lifting speeds, and applications requiring a longer lifting height. We can help you select the best hoist for your specific needs.
Q: How does Weiyuan ensure the quality of its cranes?
A: As a manufacturer with nearly four decades of experience, Weiyuan operates under a strict ISO-certified quality management system. Every component is carefully selected and inspected, and each completed crane undergoes rigorous load testing and operational checks before shipment. We provide a detailed quality inspection report with every crane to guarantee its safety and performance.
