Fixed Type Electric Wall Mounted Swing Jib Crane
Product overview

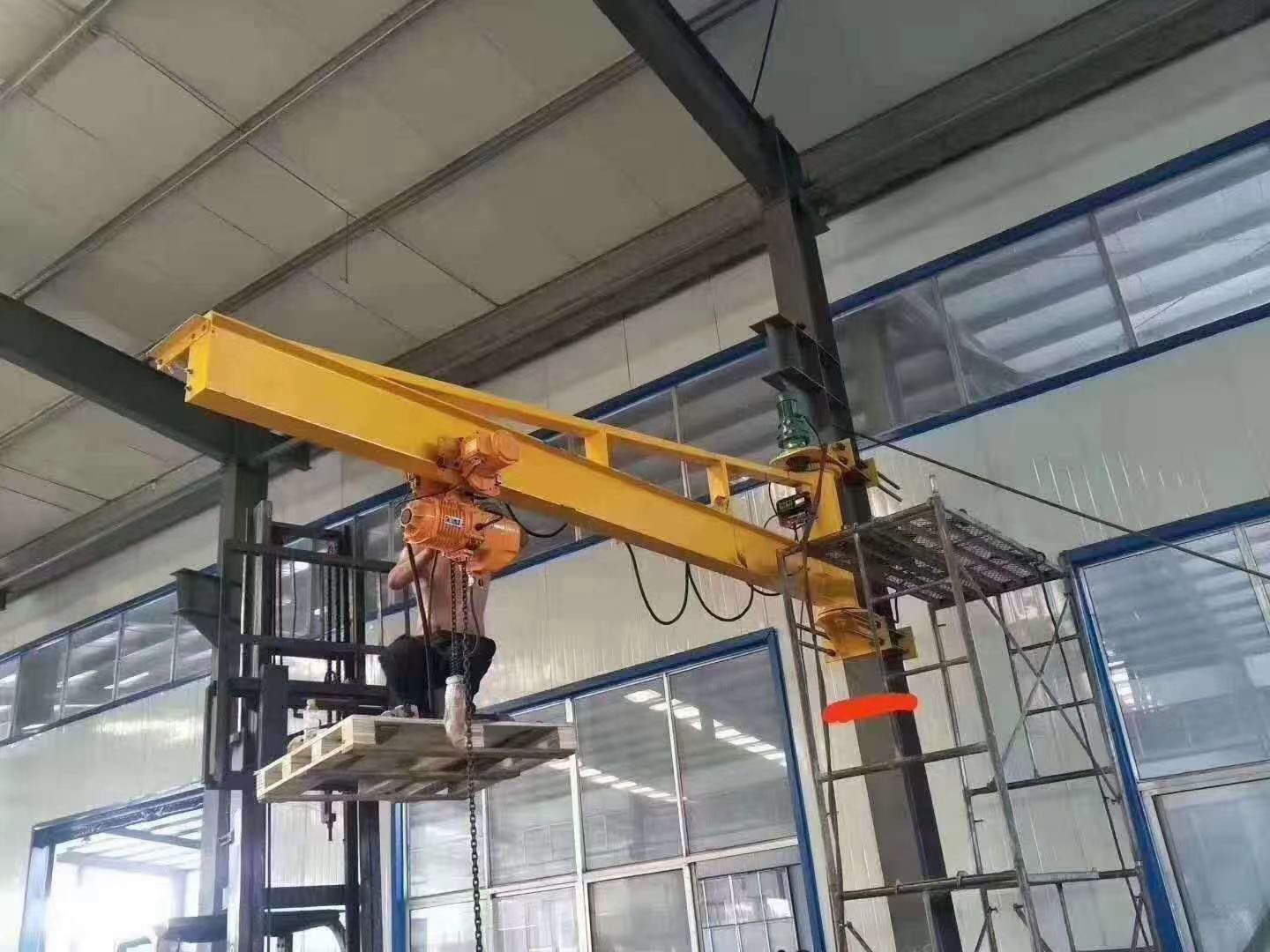

A wall-mounted fixed jib crane is a type of lifting equipment designed to be securely mounted on a vertical wall or column. It features a horizontal jib arm that extends outward, providing a stable and efficient solution for lifting, moving, and positioning loads within a defined work area. Unlike freestanding or mobile cranes, this type of crane is fixed in place, making it ideal for applications where space is limited or where a permanent lifting solution is required. Wall-mounted fixed jib cranes are commonly used in workshops, warehouses, and production facilities, offering reliable performance, precise load handling, and efficient use of space.
Product advantages
Here are the key advantages of a wall-mounted fixed jib crane:
1. Space-Saving Design
- Mounted directly on a wall or column, it does not require floor space, leaving the ground area free for other operations.
- Ideal for facilities with limited space or where floor-mounted equipment is impractical.
2. Cost-Effective Solution
- Requires no additional foundation or floor support, reducing installation costs.
- Minimal maintenance needs, resulting in lower long-term operational expenses.
3. Efficient Load Handling
- Provides a dedicated lifting solution for specific workstations or production lines.
- Enables quick and precise load positioning, improving workflow efficiency.
4. High Stability and Safety
- Fixed installation ensures stable operation, even when handling heavy loads.
- Equipped with safety features such as overload protection and limit switches to ensure safe usage.
5. Customizable and Versatile
- Can be tailored to specific operational needs, including arm length, load capacity, and rotation angle.
- Suitable for a wide range of applications, such as assembly lines, maintenance tasks, and material handling.
6. Durable and Reliable
- Built with robust materials to withstand heavy-duty use in industrial environments.
- Long service life ensures consistent performance over time.
In summary, wall-mounted fixed jib cranes are a practical, efficient, and cost-effective lifting solution, particularly suited for environments where space optimization and precise load handling are critical.
Product specifications and dimensions
| Model | Unit | 0.5 | 1 | 2 | 3 | 5 |
| Rated capacity | t | 0.5 | 1 | 2 | 3 | 5 |
| Max. Lifting height | m | 6 | 9 | |||
| Valid cantilever L2 | m | 5 | 6 | |||
| Valid cantilever L1 | m | 1.0 | 1.2 | |||
| Working class | / | A 3(intermediate) | ||||
| Rotation angle | ° | 180 | ||||
| Lifting speed | m/min | 8;8/0.8 | ||||
| Trolley travelling speed | m/min | 20 | ||||
| Crane travelling speed | m/min | 8~40 | ||||
| Power supply | Three phase AC 380 V 50 Hz | |||||
FEATURES AT A GLANCE
1.It has two kinds according to the primary structural member: single girder
and double girder.
2. This product can be designed and manufactured according to workshop rail requirements of user.
3. Load capacity from 0.5 t to 16 t.
4.It is useful where overhead hoists are neither practical nor feasible.
5.This machine utilize 180 degree floor coverage, allowing unrestricted placement of machinery and equipment.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
