Heavy-Duty Column Swing Jib Crane
Product Overview

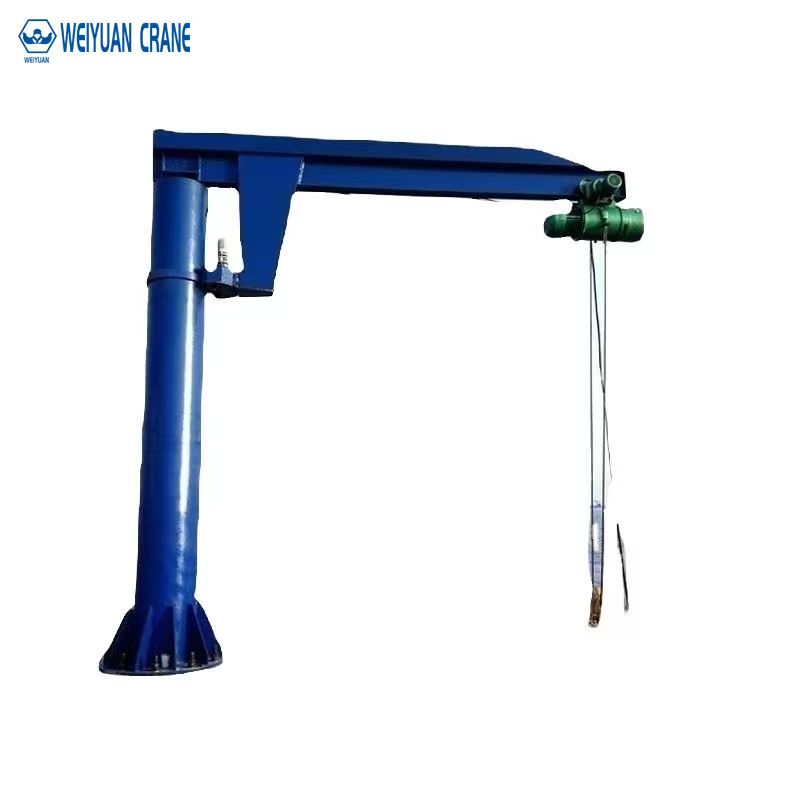

The Weiyuan Column Swing Jib Crane, also known as a pillar-mounted jib crane, is a highly adaptable and robust lifting solution designed for a multitude of industrial applications. This floor-mounted crane provides localized material handling, making it an indispensable tool for workshops, warehouses, assembly lines, and loading docks. Its ability to rotate up to 360 degrees allows it to service multiple workstations within its radius, efficiently transporting materials and reducing reliance on larger, overhead cranes. The Column Swing Jib Crane is engineered to improve workflow, enhance safety, and boost productivity in fast-paced environments.
Product Advantages
Maximum Space Utilization
This freestanding crane is anchored directly to a concrete foundation, requiring no support from the building’s structure. Its pillar design occupies minimal floor space while offering an extensive circular coverage area, making it perfect for open areas and complementing existing overhead crane systems.
Durable and Stable Structure
Forged from high-strength steel, the crane’s pillar and cantilever arm are built for maximum durability and stability under load. The robust construction ensures safe and reliable operations, minimizing deflection and providing a secure lifting platform for your valuable materials and equipment.
Precision and Flexibility in Handling
The swing arm provides smooth rotation, available in both manual and motorized options, to suit your operational needs and budget. Paired with an electric hoist, it allows for precise lifting and placement of loads, reducing manual effort and improving the accuracy of material handling tasks.
Low-Maintenance and Cost-Effective
Designed with simplicity and reliability in mind, the Weiyuan Column Swing Jib Crane features standardized components that require minimal maintenance. This leads to reduced downtime and a lower total cost of ownership, making it a smart investment for any facility.
Fully Customizable Solutions
We understand that every lifting task is unique. That’s why we offer complete customization of our jib cranes. You can specify the lifting capacity, arm length, lifting height, and rotation angle. Choose between an electric chain hoist or a wire rope hoist to create a crane that perfectly matches your application’s demands.
Application Scenarios

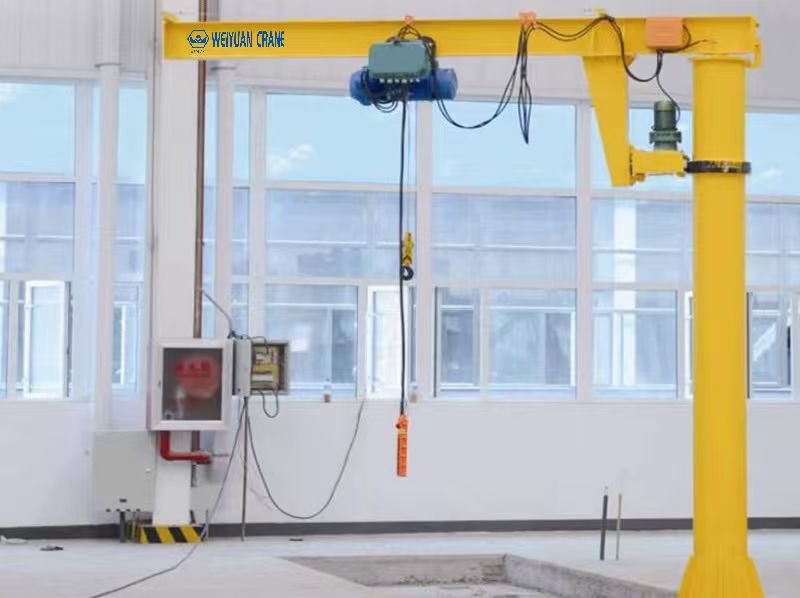

Workshop and Manufacturing Floors
Excellent for lifting heavy parts, dies, and fixtures for machining centers or assembly stations. It provides a dedicated lifting resource for a specific work cell, increasing efficiency and ensuring operator safety.
Loading and Unloading Bays
Streamlines the process of moving goods between trucks, docks, and storage areas. Its wide rotational arc allows a single crane to serve multiple loading positions with speed and precision.
Warehouse and Storage Yards
Ideal for stacking materials, organizing inventory, and handling goods in a localized area. It works effectively in spaces where gantry or bridge cranes are not feasible or necessary.
Maintenance and Repair Facilities
Provides critical lifting power for removing and installing engines, motors, and other heavy components in repair shops. It makes maintenance tasks safer and more efficient for technicians.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5-10t (Customizable) |
| Arm Length (Effective Radius) | 1-12m (Customizable) |
| Lifting Height | 1-10m (Customizable) |
| Rotation Angle | 180°, 270°, 360° (Customizable) |
| Work Level | A3-A5 |
| Hoisting Mechanism | Electric Chain Hoist / Wire Rope Hoist |
| Rotation Mechanism | Manual / Electric Motor |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 380V, 50Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider/ABB |
| Motor Brand | ABB/SIEMENS |
| Operating Temp. | -25°C to +40°C |
Features at a Glance
✓ Wide Capacity Range: Customizable from 0.5 to 10 tons to handle various loads.
✓ Tailored Dimensions: Arm length and lifting height are fully adaptable to your workspace.
✓ Complete Rotational Freedom: Offers up to 360-degree rotation for unparalleled work area coverage.
✓ High-Strength Steel Pillar: Ensures a rigid, stable, and long-lasting structure.
✓ Versatile Hoist Integration: Compatible with both electric chain and wire rope hoists.
✓ Flexible Rotation Control: Available with either cost-effective manual or efficient electric rotation.
✓ Advanced Control Options: Choose between pendant control or a wireless remote for safe operation.
FAQ
Q: What foundation is needed to install a Column Swing Jib Crane?
A: A freestanding pillar jib crane requires a reinforced concrete foundation to ensure stability and safety. The size and specification of the foundation depend on the crane’s capacity, height, and arm length. Weiyuan provides detailed foundation drawings and technical requirements to assist with proper installation.
Q: Can this jib crane be used outdoors?
A: Yes, our Column Swing Jib Cranes can be manufactured for outdoor applications. Outdoor models are treated with special anti-corrosion paint and can be equipped with protective covers for the hoist, motor, and electrical components to withstand various weather conditions.
Q: Should I choose manual or electric rotation?
A: Manual rotation is a simple and economical choice for lighter loads and shorter arm lengths, where the operator can easily push or pull the arm into position. Electric rotation is recommended for higher capacities (typically over 2 tons) or longer arm lengths, as it provides effortless, precise control and reduces operator fatigue.
Q: What is the lead time for a customized jib crane?
A: Lead times can vary based on the complexity of the customization. However, as a manufacturer with extensive experience, we pride ourselves on efficient production schedules. Typically, a standard customized crane can be manufactured and ready for shipment within 15-30 days.
Q: How does Weiyuan guarantee the quality and safety of its cranes?
A: With nearly 40 years of manufacturing expertise, Weiyuan adheres to a stringent, ISO-compliant quality control system. Each crane is subject to rigorous inspections at every stage of production and is fully tested for performance and safety before leaving our factory. We provide a complete quality assurance report and certification with every order.
