Versatile 3 Ton Jib Crane for Efficient Workshop Lifting
Product Overview
The Weiyuan 3 Ton Jib Crane is a compact, highly efficient lifting solution designed for modern production lines, assembly operations, warehouses, and workshops. Engineered for versatility and reliability, this crane provides a flexible lifting range within a fixed area, making it perfect for repetitive lifting tasks and precise material handling. Its robust design is ideal for loading and unloading machine tools, moving parts along an assembly line, and supporting maintenance operations in various industrial settings. The 3 Ton Jib Crane significantly enhances workflow, reduces manual labor, and boosts operational safety and productivity.
Product Advantages
Space-Saving and Efficient Design

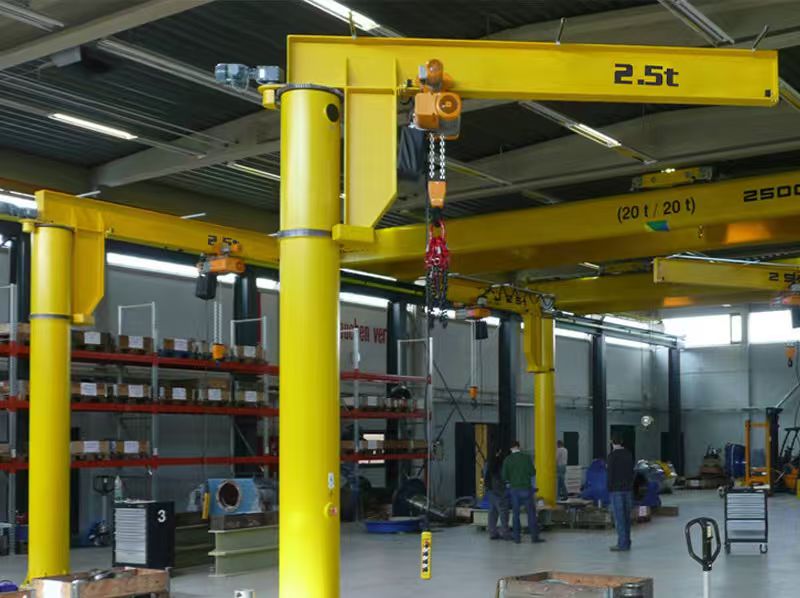

With its compact structure, the pillar-mounted jib crane occupies minimal floor space while providing a 360-degree rotation. This maximizes the operational area without obstructing other activities, making it an excellent choice for crowded workshops or areas where a large overhead crane is impractical.
Robust and Precise Construction
Constructed from high-quality steel, the crane features a sturdy pillar and a durable cantilever arm. The structure is designed for stability and longevity, ensuring smooth and precise load handling. This reduces product damage and enhances workplace safety.
Flexible and Smooth Operation
The crane’s arm can be rotated manually or electrically, offering flexibility to suit different operational needs and budgets. The hoisting mechanism travels along the jib arm, allowing for precise positioning of loads with minimal effort, making it easy for a single operator to manage heavy lifting tasks.
Low Maintenance and High Durability
Built with standardized, high-quality components, the Weiyuan Jib Crane requires minimal maintenance. Its simple structure and durable finish protect it from wear and corrosion, ensuring reliable performance and a long service life, which translates to a lower total cost of ownership.
Customizable for Specific Needs
We offer full customization to meet your unique requirements. The arm length, lifting height, rotation angle, and hoist type (electric chain hoist or wire rope hoist) can all be tailored to your specific application, ensuring you get the perfect lifting solution for your facility.
Application Scenarios
Manufacturing and Assembly Lines
Ideal for lifting components and positioning them accurately on assembly lines. It streamlines the production process by providing quick and easy access to parts, reducing wait times and improving efficiency.
Machine Shops and CNC Centers
Perfect for loading and unloading heavy workpieces, dies, or tools onto lathes, milling machines, and other CNC equipment. This improves safety and reduces the physical strain on operators.
Warehousing and Logistics
An effective tool for lifting goods from one station to another within a specific work cell. It facilitates sorting, packing, and preparing items for shipment in a localized area.
Maintenance and Repair Workshops
Provides essential lifting support for vehicle maintenance, equipment repair, and other heavy-duty tasks. It allows technicians to safely lift engines, transmissions, and other heavy components.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5-10t (3 Ton Standard, Customizable) |
| Arm Length (Span) | 1-10m (Customizable) |
| . | Lifting Height |
| Rotation Angle | 180°, 270°, 360° (Customizable) |
| Work Level | A3-A5 |
| Hoisting Mechanism | Electric Chain Hoist / Wire Rope Hoist |
| Rotation Mechanism | Manual / Electric Motor |
| Control Method | Pendant Control / Remote Control |
| Power Supply | 380V, 50Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider/ABB |
| Motor Brand | ABB/SIEMENS |
| Operating Temp. | -25°C to +40°C |
Features at a Glance
✓ Optimized Lifting: Standard 3-ton capacity, customizable from 0.5 to 10 tons.
✓ Customizable Reach: Arm length and lifting height tailored to your workspace.
✓ Full Rotational Coverage: Offers up to 360-degree rotation for maximum area coverage.
✓ Durable Steel Build: High-strength construction ensures stability and longevity.
✓ Flexible Hoist Options: Compatible with electric chain hoists and wire rope hoists.
✓ Smooth Operation: Available with manual or electric rotation for ease of use.
✓ Versatile Control: Choose between pendant and remote-control options for safety and convenience.
FAQ
Q: What is the main difference between a pillar jib crane and a wall-mounted jib crane?
A: A pillar jib crane is a freestanding unit mounted to the floor, offering up to 360-degree rotation. A wall-mounted jib crane is fixed to a wall or column, typically providing 180-degree rotation. The choice depends on your building structure and required coverage area.
Q: Can the 3 Ton Jib Crane be used outdoors?

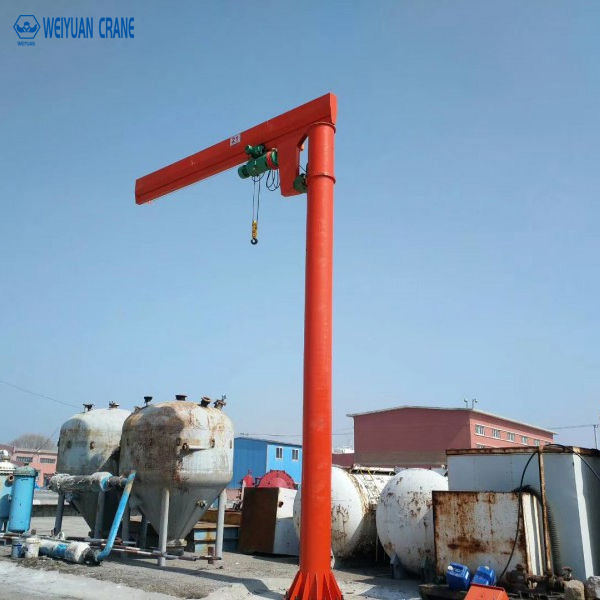

A: Yes, we can manufacture jib cranes for outdoor use. These models include special paint finishes, protective covers for the hoist and motor, and other weatherproofing features to ensure durability against the elements.
Q: What type of foundation is required for a pillar jib crane?
A: A pillar jib crane requires a specific concrete foundation to ensure stability. We will provide you with detailed foundation drawings and specifications based on the crane’s capacity and dimensions to ensure a safe installation.
Q: Is electric or manual rotation better?
A: Manual rotation is a cost-effective solution for lighter loads and shorter arms where the operator can easily position the jib. Electric rotation is recommended for heavier capacities, longer arms, or when more precise and frequent movement is required, as it reduces operator fatigue and improves efficiency.
Q: How does Weiyuan ensure the quality of its jib cranes?
A: Weiyuan leverages nearly 40 years of manufacturing experience and a strict quality control system. Every crane undergoes thorough inspections and testing during production and before shipment. We provide a comprehensive test report and quality certificate with every purchase to guarantee performance and safety.
