Weiyuan 1-5 Ton Column Mounted Slewing Jib Crane
Product Overview

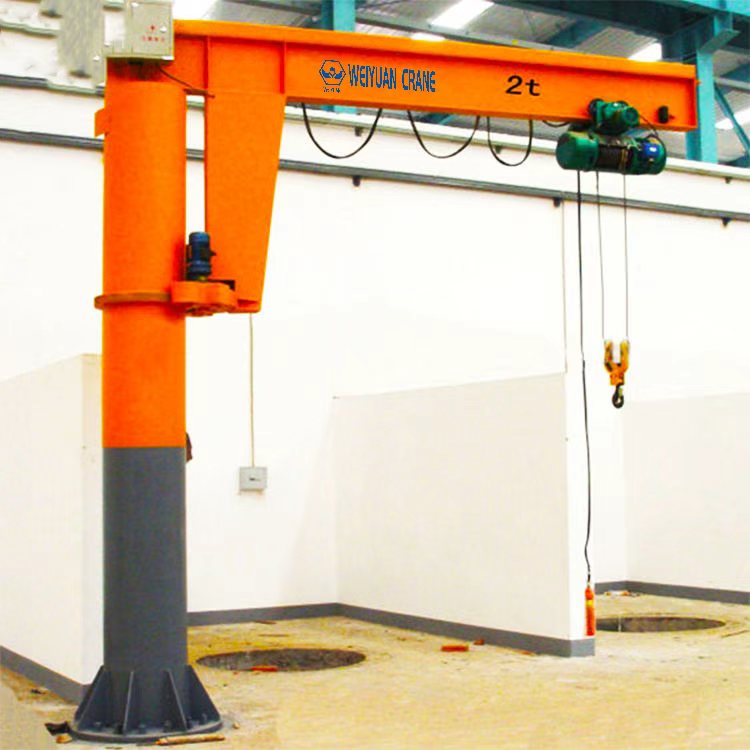

The Weiyuan 1-5 Ton Column Mounted Slewing Jib Crane is an economical and highly efficient lifting solution, perfect for supplementing larger overhead crane systems or for providing dedicated lifting in a specific work area. This BZ-type pillar crane features a robust column mounted directly to the floor, providing a solid, stable base for the slewing jib arm. It offers a versatile lifting capacity from 1 to 5 tons and a full 360-degree rotation, making it ideal for repetitive, localized lifting tasks in workshops, manufacturing plants, and assembly lines. Paired with a reliable electric hoist, this jib crane enhances productivity by making material handling faster, safer, and more precise.
Product Advantages
- High Efficiency and Low Cost: Provides a dedicated lifting solution for a specific zone at a much lower cost than a full overhead bridge crane. It improves workflow by freeing up larger cranes for heavier lifts.
- 360-Degree Work Area Coverage: The slewing arm can rotate a full 360 degrees around the pillar, providing complete and flexible access to the entire circular work area beneath the crane, boosting operational efficiency.
- Sturdy, Freestanding Structure: As a column-mounted design, it is completely self-supporting and does not rely on any building structures. This allows for flexible placement anywhere a suitable concrete foundation can be laid.
- Customizable for Your Application: Weiyuan can tailor the crane to your exact needs, with options for lifting capacity (1-5 tons), arm length, lifting height, and choice of electric hoist (chain or wire rope) and controls.
- Durable and Reliable Performance: Engineered with a high-strength steel pillar and I-beam, along with quality motors and gearboxes, this jib crane is built for durability and requires minimal maintenance for a long service life.
Application Scenarios
- Assembly Lines: An excellent choice for lifting and transferring components along an assembly line, reducing manual effort and speeding up the production cycle.
- Machine Loading: Ideal for positioning next to lathes, mills, or other machine tools to load and unload heavy workpieces or change out tooling and dies.
- Fabrication and Welding Bays: Allows for the easy lifting and rotation of heavy parts for welding, grinding, or assembly, improving both safety and ergonomics.
- Packing and Shipping Areas: Streamlines the process of lifting finished goods from the production floor and placing them into crates or onto pallets for shipping.
- General Workshops: Serves as a versatile lifting tool for various tasks in repair shops, maintenance departments, and small manufacturing facilities.
Product Specifications
| Parameter | Details |
|---|---|
| Rated Lifting Capacity | 1 Ton, 2 Ton, 3 Ton, 5 Ton (Customizable) |
| Maximum Lifting Height | Up to 18m (Customizable) |
| Span (Arm Length) | Up to 12m (Customizable) |
| Slewing Mechanism | Electric Motor or Manual |
| Rotation Angle | 360 Degrees |
| Hoisting Mechanism | Electric Wire Rope Hoist or Chain Hoist |
| Control Method | Pendant Control / Wireless Remote Control |
| Working Duty | A3-A5 (Light to Medium Duty) |
| Power Supply | 3-phase AC, 380V/50Hz (Customizable) |
| Core Components | Pillar, Jib Arm, Motor, Gearbox, Electric Hoist |
| Certification | CE, ISO Certified |
Features at a Glance
- Heavy-Duty Steel Column: Provides a robust and stable mast for the entire crane structure, ensuring safe load handling.
- Solid-Web I-Beam Arm: Offers high strength and rigidity, minimizing deflection and allowing for a high usable hook height.
- Smooth Rotation Drive: Equipped with a quality slew drive and bearing system for smooth, controlled rotation, available in manual or motorized configurations.
- Versatile Hoist Options: Can be fitted with either a CD/MD wire rope hoist for speed and long lifts or an electric chain hoist for compact, precise applications.
- Comprehensive Safety Features: Includes hoist limit switches, a reliable braking system, and optional overload protection to ensure safe operation.
