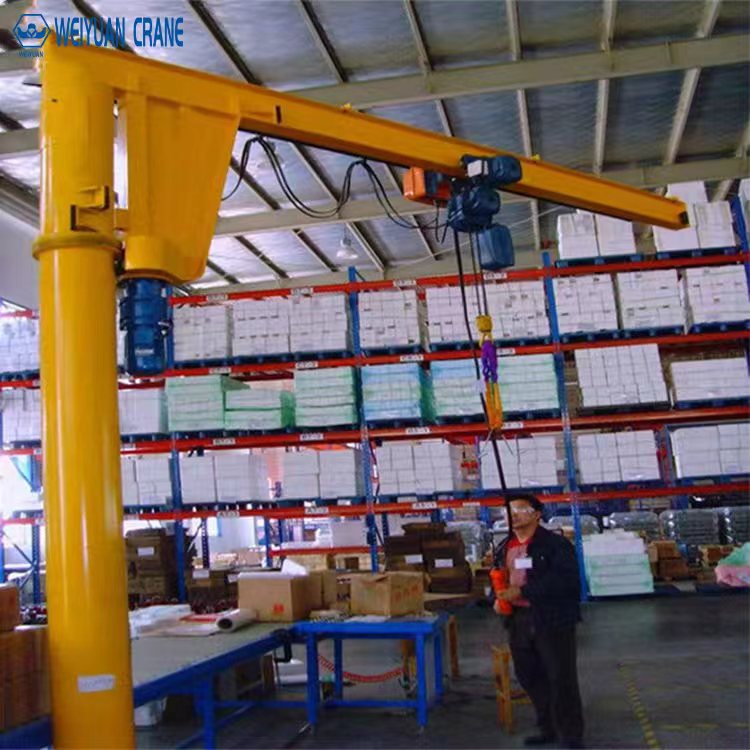

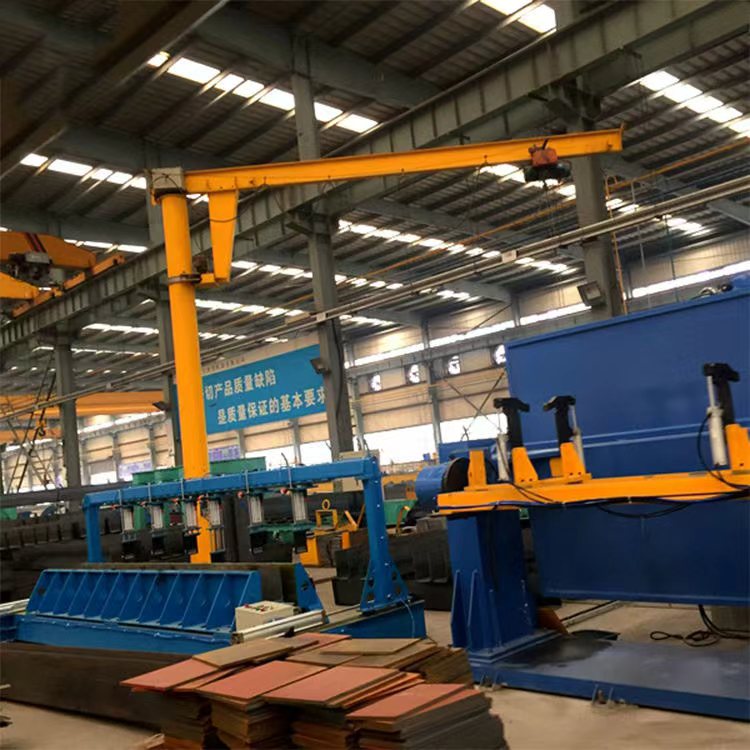

Weiyuan 500kg-5 Ton Floor Mounted Jib Crane
Product Overview
The Weiyuan 500kg-5 Ton Floor Mounted Jib Crane is a versatile and robust lifting solution designed to maximize efficiency in workshops, manufacturing plants, and assembly lines. This freestanding pillar crane provides a localized material handling system that operates independently of overhead building structures. With its full 360-degree slewing capability, it offers complete circular coverage within its radius, allowing for precise lifting and positioning of loads. Available in capacities from 500kg to 5 tons, this jib crane can be equipped with an electric chain hoist or wire rope hoist, making it a highly adaptable and indispensable tool for improving workflow and safety.
Product Advantages
- Full 360-Degree Rotation: The ability to slew a full 360 degrees provides unrestricted access to the entire circular work area, enabling operators to move loads seamlessly between workstations without repositioning the crane.
- Space-Saving Freestanding Design: As a floor-mounted unit, it requires no support from the building’s structure, making it ideal for open areas, outdoor use, or inside buildings where overhead cranes are not feasible. It creates a dedicated work cell without occupying valuable floor space.
- Wide Range of Capacities: With customizable capacities from 500kg for lighter tasks up to 5 tons for heavy-duty lifting, this jib crane can be tailored to handle a diverse array of materials, parts, and equipment.
- Durable and Low Maintenance: Built with high-strength steel and quality components, including a robust pillar and a solid I-beam jib arm, this crane is engineered for long-term durability and requires minimal maintenance, ensuring reliable performance.
- Cost-Effective Lifting Solution: This jib crane provides a highly effective lifting solution for a localized area at a fraction of the cost of a larger overhead crane system, offering an excellent return on investment by boosting productivity and reducing manual strain.
Application Scenarios
- Manufacturing Workstations: Perfect for serving individual or multiple workstations, lifting raw materials, heavy components, and finished parts to and from CNC machines, presses, and assembly tables.
- Machine Shops and Fabrication Bays: Ideal for loading and unloading heavy stock, positioning weldments, or assisting in the assembly of large mechanical parts.
- Warehouse Loading/Unloading Areas: Can be installed near loading docks or in specific bays to assist with lifting heavy items that are difficult to handle with a forklift.
- Automotive Repair Shops: Excellent for lifting engines, transmissions, and other heavy vehicle components, allowing a single mechanic to perform tasks safely and efficiently.
- Assembly Lines: Facilitates the smooth transfer of products from one stage of the assembly process to the next, improving workflow and reducing production bottlenecks.
Product Specifications
| Parameter | Details |
|---|---|
| Rated Lifting Capacity | 500kg, 1 Ton, 2 Ton, 3 Ton, 5 Ton (Customizable) |
| Maximum Lifting Height | 1m to 10m (Customizable) |
| Span (Arm Length) | 2m to 12m (Customizable) |
| Slewing Mechanism | Manual or Motorized |
| Rotation Angle | 180 / 270 / 360 degrees |
| Hoisting Mechanism | Electric Chain Hoist or Wire Rope Hoist |
| Control Method | Pendant Control / Wireless Remote Control |
| Working Duty | A3 (Light to Medium Duty) |
| Power Supply | 3-phase AC, 380V/50Hz (Customizable) |
| Core Components | Pillar Column, Jib Arm, Motor, Gearbox, Bearing |
| Certification | CE, ISO Certified |
Features at a Glance
- Heavy-Duty Pillar: A thick, high-strength steel column provides a solid foundation for stable and secure lifting operations.
- Robust I-Beam Jib Arm: The cantilever arm is constructed from a standard I-beam to support the hoist and trolley, minimizing deflection under load.
- Smooth Slewing System: Features high-quality bearings for effortless manual rotation or a powerful motorized drive for controlled slewing.
- Versatile Hoist Compatibility: Designed to be paired with a range of electric hoists to suit different lifting speeds and duty requirements.
- Secure Base Plate Mounting: A large, thick base plate with multiple anchor bolt points ensures the crane is securely fastened to a suitable concrete foundation.
FAQ
1. What kind of foundation is required to install a floor mounted jib crane?
The crane must be installed on a reinforced concrete foundation of a specific thickness and size, designed to counteract the lifting forces and moments. A structural engineer must approve the foundation design based on the crane’s capacity and soil conditions.
2. Is the 360-degree rotation manual or motorized?
Both options are available. For lighter capacities and shorter spans, manual rotation is often sufficient and cost-effective. For heavier loads or longer arms, a motorized slewing drive is recommended for easier and more precise control.
3. Can this jib crane be used outdoors?
Yes, it can be designed for outdoor use. This typically includes a special paint finish for weather resistance and protective covers for the motor, gearbox, and electrical components.
4. What is the difference between this and a wall-mounted jib crane?
A floor-mounted jib crane is a freestanding structure bolted to the floor, offering 360-degree rotation. A wall-mounted jib crane is attached to a building column or wall, which typically limits its rotation to 180 degrees and requires a structurally sound wall for support.
5. How do I get a quote for a jib crane customized to my needs?
Please contact our sales team with your specific requirements, including the desired lifting capacity, arm length (span), lifting height, and whether you prefer manual or motorized rotation. We will provide a comprehensive quote for a solution tailored to your application.
