Weiyuan 500kg Wall-Mounted Jib Crane
Product Overview

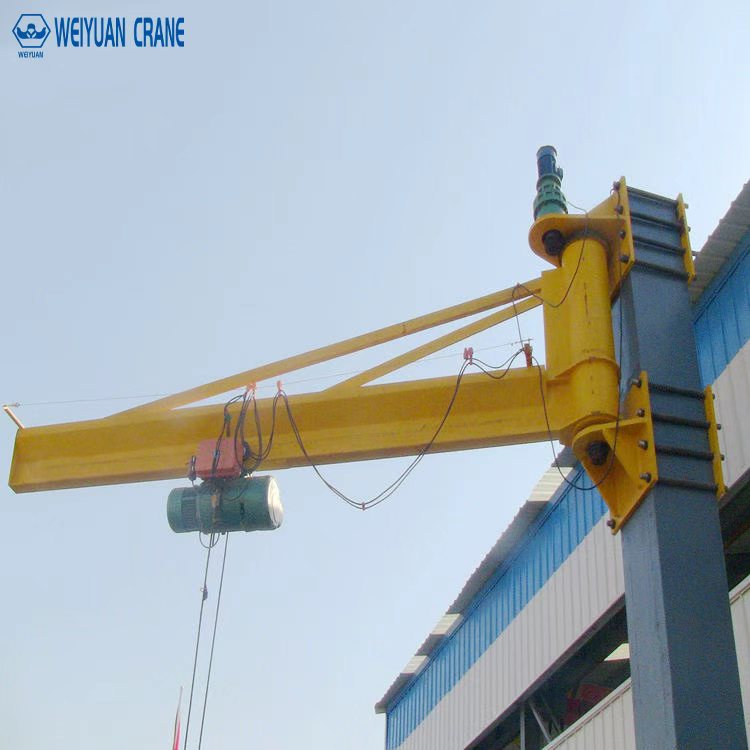

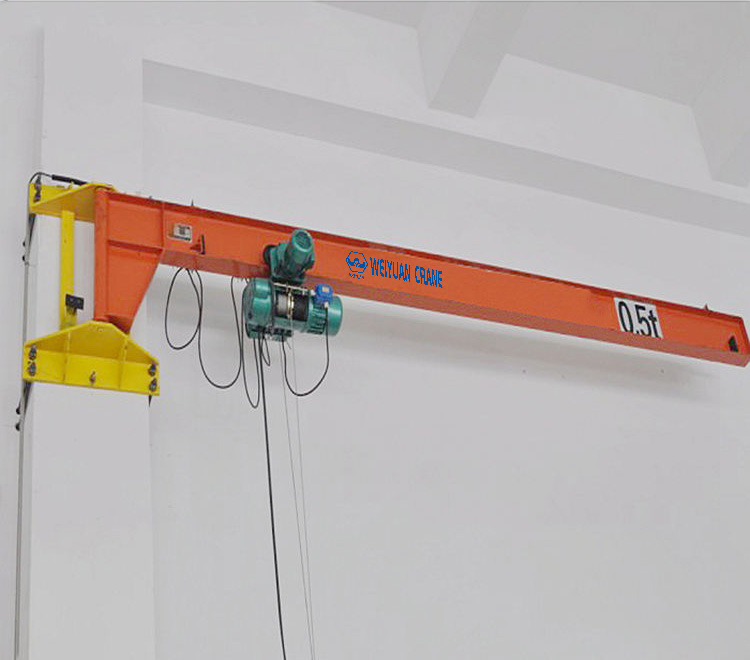

The Weiyuan 500kg Wall-Mounted Jib Crane is a compact and highly efficient lifting solution designed for modern workshops, production lines, and areas where floor space is at a premium. This crane mounts directly onto a solid concrete wall or a sufficiently strong steel structure, providing a dedicated lifting station without obstructing ground-level activities. Featuring a jib arm that can rotate up to 180 degrees, it offers exceptional versatility for lifting and moving loads up to 500kg within its circular service area. Paired with a mini electric hoist, this wall-mounted crane is an economical and space-saving choice for improving workflow efficiency and safety.
Product Advantages
- Ultimate Space Saver: By mounting directly to a wall or existing column, this jib crane liberates valuable floor space, making it perfect for crowded workshops, garages, and assembly stations where floor-based cranes are impractical.
- Targeted Workstation Efficiency: It creates a highly effective, localized lifting zone. The 180-degree slewing arm allows an operator to easily lift, move, and position materials within a specific work cell, dramatically reducing manual handling and increasing productivity.
- Cost-Effective Lifting Solution: This crane provides significant lifting capability without the high cost and extensive structural requirements of larger overhead bridge cranes, offering an excellent return on investment for small to medium-sized lifting tasks.
- Lightweight and Simple Installation: The straightforward design and lightweight components make installation relatively simple on any structurally sound vertical surface, minimizing downtime and setup costs.
- Enhanced Workplace Safety: It eliminates the need for manual lifting of heavy objects, reducing the risk of musculoskeletal injuries. The simple controls and reliable operation provide a secure method for handling loads up to 500kg.
Application Scenarios
- Machine Shops and CNC Centers: Ideal for loading and unloading workpieces, chucks, and heavy tooling onto lathes, milling machines, and other equipment.
- Assembly and Fabrication Stations: Perfect for positioning components during assembly or holding parts in place for welding and fabrication, improving precision and reducing operator fatigue.
- Warehouse Packing and Shipping Areas: An excellent tool for lifting goods from a packing table onto a pallet or into a shipping container in a specific, designated area.
- Automotive Repair Bays: Useful for lifting smaller engines, transmissions, and other heavy vehicle components in a service bay where floor space is limited.
- Dockside and Loading Platforms: Can be installed on a structural column near a loading dock to assist with moving goods between different levels or onto vehicles.
Product Specifications
| Parameter | Details |
|---|---|
| Rated Lifting Capacity | 500kg (0.5 Ton) |
| Arm Length (Span) | 3m to 6m (Customizable) |
| Lifting Height | 1m to 10m (Determined by installation height) |
| Slewing Angle | 180 Degrees (Standard) |
| Slewing Mechanism | Manual Push |
| Lifting Mechanism | Mini Electric Hoist (Wire Rope or Chain) |
| Control Method | Pendant Control |
| Lifting Speed | 8 m/min (or customized) |
| Working Duty | A3 (Light Duty) |
| Power Supply | 3-phase AC, 380V/50Hz (Customizable) |
| Core Components | Jib Arm, Wall Bracket, Slewing Mechanism, Electric Hoist |
| Certification | CE, ISO Certified |
Features at a Glance
- Robust Wall Bracket: A heavy-duty mounting plate ensures a secure connection to the supporting structure for maximum stability.
- High-Strength Jib Arm: The I-beam arm is engineered for optimal strength and rigidity while remaining lightweight.
- Smooth Manual Slewing: The arm rotates easily with a simple push, allowing for precise placement of the load.
- Compact Electric Hoist: Provides reliable and efficient vertical lifting with a simple push-button pendant control.
- Durable Construction: Made from high-quality steel and finished with a protective coating for a long service life.
FAQ
1. What kind of wall is required to install this 500kg jib crane?
Installation requires a solid, reinforced concrete wall or a sufficiently strong steel support column. You must have a qualified structural engineer assess and approve the mounting location to ensure it can safely handle the forces exerted by the crane and its load.
2. Is the rotation of the arm powered?
This model features manual (push/pull) rotation, which is easy and intuitive for a 500kg capacity and shorter arm lengths. For longer spans or applications requiring powered rotation, please contact our sales team to discuss custom options.
3. What is the difference between a wall-mounted and a pillar-mounted jib crane?
A wall-mounted jib crane attaches to a vertical building structure, saving floor space. A pillar-mounted jib crane has its own vertical column bolted to a concrete foundation, typically offering 360-degree rotation but requiring dedicated floor space.
4. Can this crane be installed outdoors?
Yes, the crane can be configured for outdoor use. This involves using special weather-resistant paint and ensuring the electric hoist has an adequate IP rating and a protective rain cover.
5. What information do I need to provide to get a quote?
To provide an accurate quote, we need to know your required lifting capacity (500kg), the desired arm length (span), your required lifting height, and your facility’s power supply details (Voltage, Hz, Phase).
