Weiyuan BZ Type 360-Degree Pillar Jib Crane
Product Overview

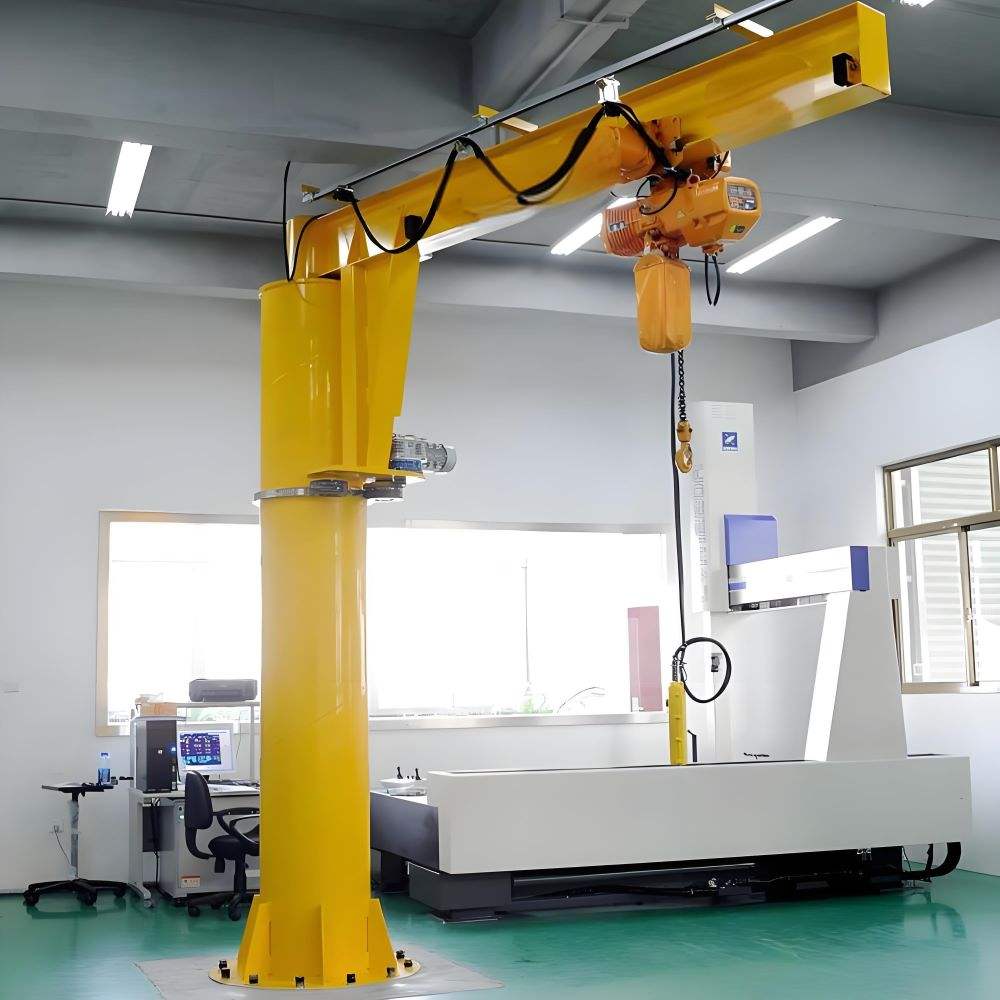

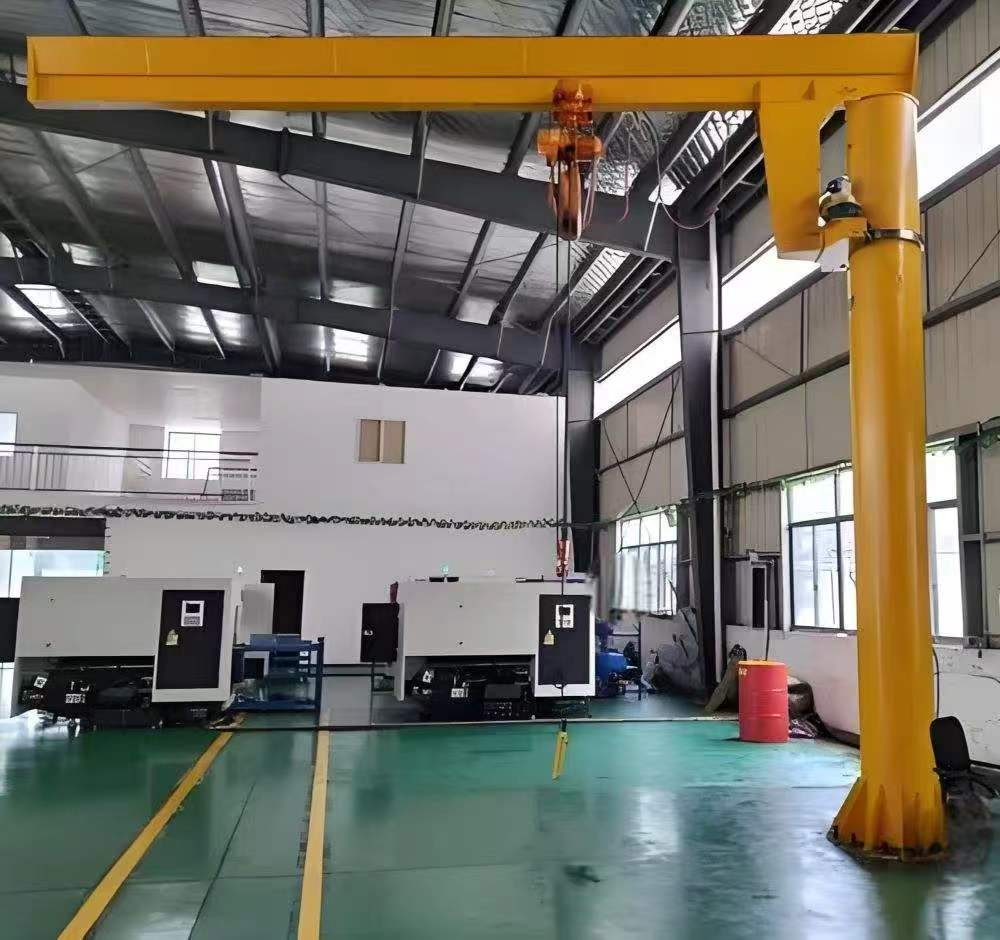

The Weiyuan BZ Type 360-Degree Pillar Jib Crane is the ultimate solution for creating a highly flexible and efficient lifting workstation. This freestanding crane features a vertical pillar securely mounted to the floor, supporting a cantilevered jib arm that rotates a full 360 degrees. This provides complete, unobstructed hook coverage within its entire working radius. Combined with a reliable electric wire rope or chain hoist, this crane is an economical and powerful tool designed to intensify workflow, reduce manual labor, and significantly boost productivity in nearly any industrial setting.
Product Advantages
Complete 360-Degree Work Area Coverage
Unrestricted rotation gives your operators the ability to serve multiple workstations, pick and place materials anywhere within a full circle, and transfer loads between adjacent areas without limitation. This maximizes the crane’s utility and the efficiency of your floor space.
Robust Freestanding Structure
Engineered for stability, the heavy-duty steel pillar is securely anchored to a dedicated concrete foundation. This design does not rely on any building support structures, allowing it to be installed virtually anywhere in your facility, both indoors and outdoors, where you need a dedicated lifting point.
Enhanced Productivity and Workflow
By providing instant, on-demand lifting power at a specific point, this jib crane eliminates the need to wait for an overhead crane or forklift. This drastically reduces downtime, speeds up production cycles, and empowers a single operator to safely handle loads that would otherwise require multiple personnel.
Economical and High-Value Investment
The BZ Type Jib Crane offers a significant operational upgrade for a relatively low initial cost. Its simple, efficient design and standard components make it an affordable solution that delivers immediate improvements in safety and productivity with a rapid return on investment.
Customized for Your Lifting Needs
Weiyuan tailors every jib crane to the customer’s exact specifications. We work with you to determine the ideal lifting capacity (from 1 to 5 tons), arm length, lifting height, and hoist type to ensure the crane is a perfect match for your application and budget.
Application Scenarios
- Machine Shops & Fabrication: The perfect lifting partner for loading heavy workpieces into CNC machines, presses, and welding stations, providing 360-degree access around the equipment.
- Assembly & Production Lines: Creates an efficient circular work cell, allowing an operator to lift and add heavy components to a product as it moves through the assembly process.
- Storage & Staging Areas: Facilitates the efficient loading and unloading of materials from pallets, racks, and transport vehicles within a specific, high-traffic zone.
- Foundries and Forging Plants: Provides robust, reliable lifting for moving molds, dies, and hot metal pieces within a localized work area.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1t, 2t, 3t, 5t (or as required) |
| Span (Arm Length) | 4m – 8m (Customizable) |
| Lifting Height | 4.5m, 5m, 6m (Customizable) |
| Work Level | A3 |
| Rotation Angle | 360° |
| Rotation Method | Motorized Electric |
| Hoist Type | Wire Rope Hoist or Electric Chain Hoist |
| Lifting Speed | Single Speed / Dual Speed |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 380V/415V/440V, 50/60Hz, 3-Phase |
Features at a Glance
✓ Full 360° Motorized Rotation: Provides maximum accessibility and ease of use.
✓ Freestanding Pillar Design: Install it anywhere without structural support.
✓ Versatile Capacities: Lifts loads from 1 ton up to 5 tons.
✓ Increases Workplace Efficiency: Speeds up handling and reduces downtime.
✓ Durable, Low-Maintenance Build: Engineered for a long, reliable service life.
✓ Fully Customizable: Designed to your specific span and height requirements.
FAQ
Q: What is the main benefit of a 360-degree jib crane?
A: The primary benefit is complete, unrestricted access to the entire circular work area. Unlike a wall-mounted jib or one with a smaller rotation angle, a 360-degree model allows the operator to pick up and place loads anywhere around the pillar, serving multiple machines or stations seamlessly.
Q: Does this crane require a special foundation?
A: Yes. A freestanding pillar jib crane requires a properly designed reinforced concrete foundation to counteract the forces generated during lifting. Weiyuan provides the necessary foundation plans and engineering data to ensure your installation is safe and secure.
Q: Is the rotation powered or manual?
A: For 360-degree jib cranes, especially those with longer arms or higher capacities, motorized electric rotation is standard. This provides smooth, controlled movement and is operated conveniently from the hoist’s pendant control or a wireless remote.
Q: Can I install this crane myself?
A: The installation involves pouring a concrete foundation and precisely erecting the column and arm. While it can be done by a qualified local engineering team, we highly recommend using an experienced crane installation crew. We can provide complete installation services or technical supervision to ensure it is done correctly.
Q: How do I get a quote for a 3-ton, 360-degree jib crane?
A: To receive a detailed proposal, please contact us with the following information: 1) 3-ton lifting capacity, 2) The required arm length (span), 3) The desired lifting height, and 4) Your facility’s power supply details (Voltage, Hz, Phase).
