Weiyuan BZ Type Column Jib Crane
Product Overview

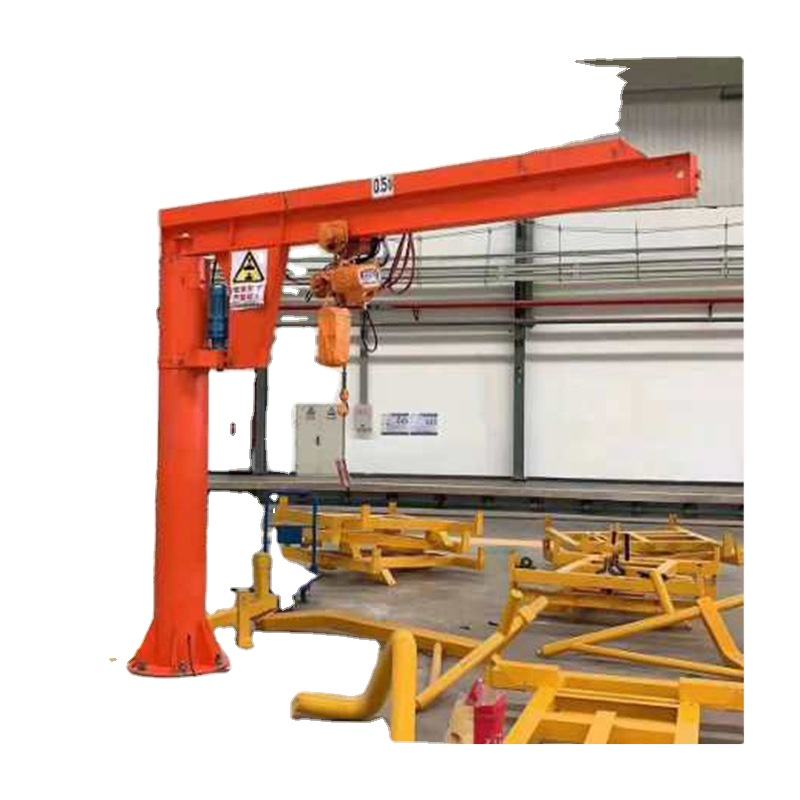

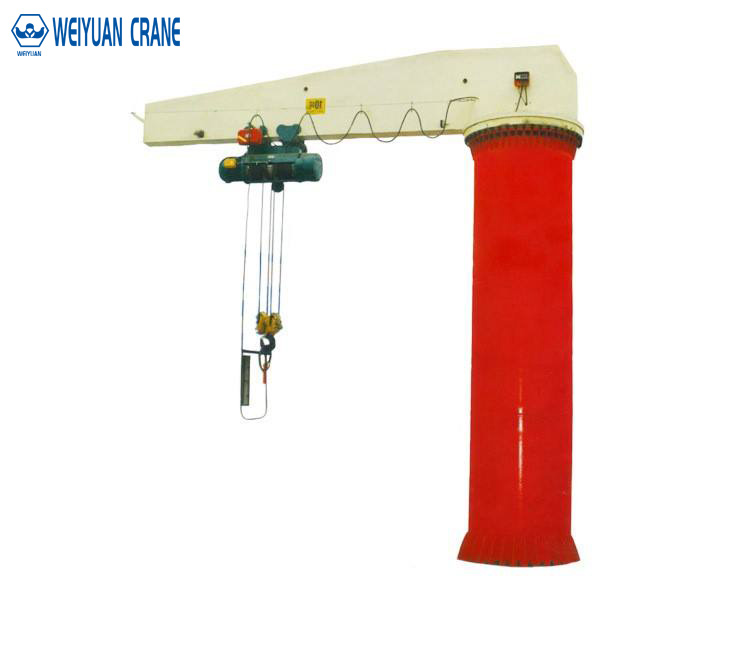

The Weiyuan BZ Type Column Jib Crane is a modern, highly efficient lifting solution designed for localized material handling. This freestanding cantilever crane offers exceptional performance for short-distance, repetitive lifting tasks. Anchored by a robust column fixed to a concrete foundation, its jib arm rotates to serve a circular work area, providing unparalleled agility. Paired with a high-performance electric hoist, the BZ type jib crane from Weiyuan is a compact, economical, and indispensable tool for boosting productivity in workshops, assembly lines, and loading bays.
Product Advantages
Space-Saving and Efficient
With its compact, single-column design, the BZ Type Jib Crane occupies minimal floor space while providing maximum hook coverage within its rotation area. This design allows you to create dedicated, efficient lifting workstations without disrupting the overall facility layout or workflow.
Cost-Effective Lifting Solution
This crane represents a low-cost investment for a significant increase in productivity and safety. Its simple structure requires less material and a more straightforward installation compared to larger overhead crane systems, offering an excellent return on investment for small to medium-duty lifting needs.
Flexible and Agile Operation
The jib arm can rotate up to 360 degrees, providing full access to the entire working radius. This flexibility allows a single operator to effortlessly lift, move, and position materials with precision, reducing wait times for mobile equipment and streamlining production processes.
Durable and Low-Maintenance Design
Constructed from high-strength steel and utilizing standardized, reliable components, the Weiyuan BZ Jib Crane is built for durability and a long service life. The simple mechanics and robust engineering ensure minimal maintenance is required, maximizing uptime.
Fully Customizable to Your Needs
Weiyuan manufactures each jib crane to meet your specific requirements. You can customize the lifting capacity, arm length (span), rotation angle, and lifting height. Choose from manual or motorized rotation and pair it with the ideal electric hoist to create the perfect lifting tool for your application.
Application Scenarios
- Manufacturing Workshops: Perfect for serving individual machine tools, such as lathes or CNC machines, by loading raw materials and unloading finished parts.
- Assembly Lines: Provides a dedicated lifting station for assembling heavy components, improving ergonomics and increasing production speed.
- Warehousing and Loading Docks: An ideal solution for lifting goods from pallets and loading them onto trucks or into staging areas, especially where space is limited.
- Maintenance Bays: Assists in lifting and positioning engines, motors, and other heavy parts during repair and maintenance operations.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5t, 1t, 2t, 3t, 5t (Customizable) |
| Span (Arm Length) | 4m – 8m (Customizable) |
| Lifting Height | 3m, 4.5m, 5m, 6m (Customizable) |
| Work Level | A3 |
| Rotation Angle | 180°, 270°, 360° (or as required) |
| Rotation Method | Manual or Motorized |
| Hoist Type | Wire Rope Hoist or Electric Chain Hoist |
| Lifting Speed | Single Speed / Dual Speed |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 380V/415V/440V, 50/60Hz, 3-Phase |
Features at a Glance
✓ Freestanding Column Design: Stable, robust, and requires no building support.
✓ 360-Degree Rotation: Provides full hook coverage in the work area.
✓ Highly Economical: Low initial cost and minimal maintenance.
✓ Compact Footprint: Saves valuable factory floor space.
✓ Simple and Reliable: Easy to operate with intuitive controls.
✓ Fully Customizable: Tailored capacity, span, and height for your job.
FAQ
Q: What kind of foundation is required for a column jib crane?
A: A BZ type jib crane requires a reinforced concrete foundation to safely anchor the column and handle the load moments. Weiyuan provides detailed foundation drawings and specifications based on the crane’s capacity and soil conditions to ensure a safe installation.
Q: Should I choose manual or motorized rotation?
A: Manual rotation is a cost-effective choice for lighter loads (typically under 2 tons) and shorter arm lengths, where the operator can easily push the load. Motorized rotation is recommended for heavier capacities, longer spans, or high-frequency use, as it provides effortless, precise control via the pendant or remote.
Q: What is the difference between a jib crane and a gantry crane?
A: A jib crane is fixed in one location (either to a column or a wall) and rotates to cover a circular area. A gantry crane is a mobile structure on wheels that can travel over a much larger rectangular area. A jib crane is ideal for a fixed workstation, while a gantry crane offers more mobility.
Q: Can this jib crane be used outdoors?
A: Yes, with appropriate preparations. For outdoor use, we apply a special weather-resistant paint finish and can provide rain covers for the motor and hoist to protect them from the elements, ensuring a long and reliable service life.
Q: How do I get a quote for a 2-ton jib crane?
A: Simply contact us with your key requirements: 1) 2-ton capacity, 2) Required arm length (span), 3) Desired lifting height, and 4) The rotation angle you need (e.g., 270° or 360°). We will promptly provide a customized proposal for your project.
