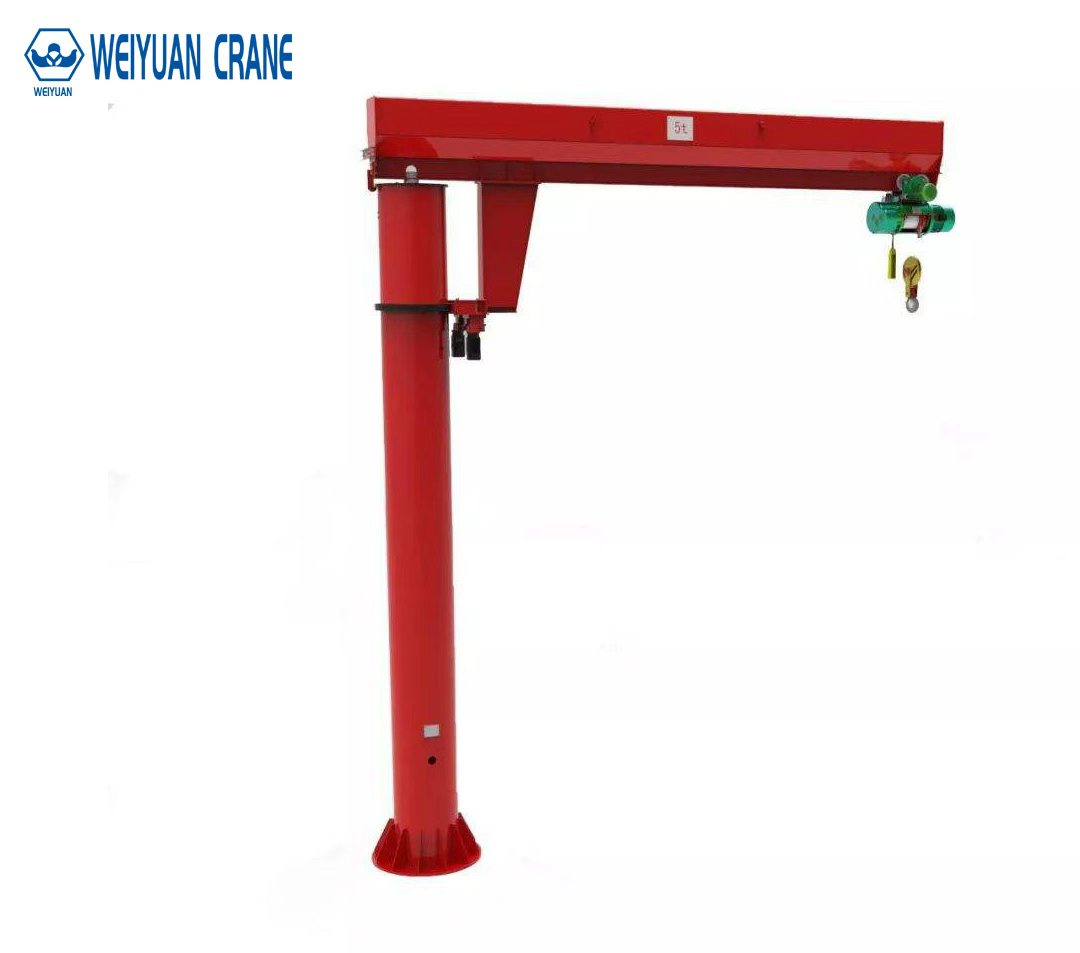

Weiyuan BZ Type Fixed Column Jib Crane
Product Overview
The Weiyuan BZ Type Fixed Column Jib Crane is a robust and reliable lifting solution, engineered to create highly efficient, localized workstations. As a staple in modern industry, this freestanding crane features a high-strength steel column that is securely fixed to a concrete foundation, supporting a rotating jib arm. This simple yet powerful design allows for the swift and safe handling of materials within a specific radius, making it an essential asset for improving workflow. Paired with a dependable electric hoist, the BZ Type from Weiyuan delivers exceptional performance and value for countless factory applications.
Product Advantages
High-Quality, Durable Construction
Built for performance and longevity, this jib crane is manufactured from high-grade steel, ensuring maximum structural integrity and durability. The robust column and precisely engineered rotating mechanism are designed to withstand the demands of daily industrial use, providing a reliable lifting solution you can count on for years.
Optimized for Factory Efficiency
Create a focused point of productivity. By providing dedicated lifting capability at a specific workstation, the BZ jib crane eliminates production bottlenecks and reduces the time operators spend waiting for a shared overhead crane. This leads to a smoother, faster, and more efficient workflow.
Economical and High-Value
Achieve significant operational improvements with a modest investment. The BZ Type jib crane’s straightforward design and standardized manufacturing process make it a highly cost-effective solution. It provides the lifting power you need without the expense and complexity of a larger crane system.
Safe and Simple Operation
Designed with the user in mind, this crane is easy and intuitive to operate. The arm rotates smoothly, and the electric hoist can be controlled via a simple pendant or an optional wireless remote. Integrated safety features ensure that loads are handled with precision and security.
Fully Customizable Design
Weiyuan manufactures each crane to order, ensuring it perfectly fits your operational needs. We customize key parameters, including lifting capacity (up to 5 tons), arm length, lifting height, and rotation angle, to create a purpose-built solution for your facility.
Application Scenarios
- Manufacturing & Assembly: An ideal tool for feeding materials to production lines, moving components between workstations, and supporting assembly processes.
- Machine Loading: Perfect for loading and unloading heavy workpieces, dies, and tools from CNC machines, lathes, and injection molding equipment.
- Warehouse Operations: Streamlines the process of moving goods from racking to staging areas or preparing orders for shipment.
- Maintenance Workshops: Provides safe and precise lifting for removing and installing heavy motors, pumps, and other machinery components during repairs.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5t, 1t, 2t, 3t, 5t (Customizable) |
| Span (Arm Length) | 3m – 5m (Customizable) |
| Lifting Height | Up to 5m (Customizable) |
| Work Level | A3 |
| Crane Type | Fixed Column Jib Crane |
| Rotation Angle | 180°, 270°, 360° (as required) |
| Hoist Type | Electric Wire Rope Hoist or Electric Chain Hoist |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 380V/415V/440V, 50/60Hz, 3-Phase |
| Foundation | Requires reinforced concrete foundation |
Features at a Glance
✓ Robust Fixed Column: Provides excellent stability for safe lifting.
✓ High-Quality Factory Standard: Built for reliability and a long service life.
✓ Flexible Rotation: Available up to 360° for wide work area coverage.
✓ Cost-Effective Solution: Increases productivity with a low initial investment.
✓ Customizable Parameters: Tailored to your specific capacity and dimensional needs.
✓ Easy to Operate: Simple controls for efficient material handling.
FAQ
Q: What is the main difference between a fixed column and a wall-mounted jib crane?
A: A fixed column (BZ Type) jib crane is a freestanding unit with its own column anchored to the floor, allowing for up to 360° rotation. A wall-mounted (BX Type) jib crane attaches to an existing building column or wall, saving floor space but typically limited to 180° rotation.
Q: What kind of foundation is needed for this crane?
A: A solid, reinforced concrete foundation is essential to anchor the crane and safely manage the lifting forces. We provide detailed foundation plans based on your crane’s specific capacity and arm length for your civil engineering team to execute.
Q: Should I choose an electric chain hoist or a wire rope hoist?
A: For most light to medium-duty applications with a BZ jib crane (up to 5 tons), an electric chain hoist is a compact, reliable, and cost-effective choice. A wire rope hoist may be preferred for higher lifting speeds or environments requiring very high-frequency use.
Q: Is motorized rotation necessary?
A: For lighter loads and shorter arms, manual rotation is often sufficient and more economical. We recommend motorized rotation for capacities of 2 tons or more, longer arm lengths, or in applications requiring frequent, precise positioning, as it reduces operator fatigue and improves control.
Q: How do I get a quotation for a 5-ton fixed column jib crane?
A: To get a fast and accurate quote, please contact us with these details: 1) 5-ton capacity, 2) Required arm length (span), 3) Desired lifting height from the floor, and 4) The rotation angle you need. We’ll send a customized proposal right away.
