KBK light crane system

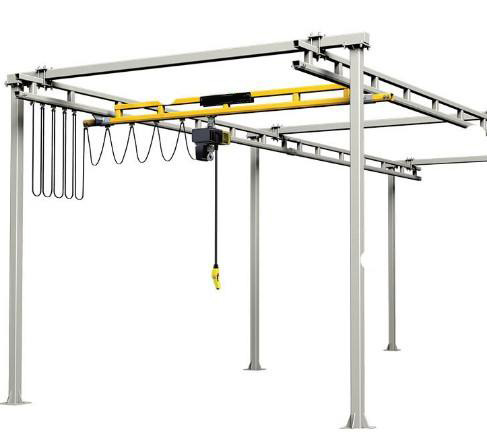

KBK Light-Duty Overhead Crane System
Product Overview
The Weiyuan KBK Light-Duty Overhead Crane System is a highly flexible and modular solution for light-duty material handling. Designed for simplicity and efficiency, this single-girder crane is engineered for lifting capacities from 0.5 to 20 tons. It is an excellent choice for various settings, including workshops, warehouses, and assembly lines, where precise and reliable lifting of goods is required. The KBK system consists of standardized components, including parallel runways and a traveling bridge, allowing a hoist to move smoothly across the work area. Its straightforward structure, ease of installation, and low cost make it a popular and effective choice for modern industrial applications.
Product Advantages
Modular and Flexible Design
The KBK system is built with standardized components, allowing for easy customization, extension, and modification. This modularity ensures the crane system can adapt to evolving production needs and fit complex workshop layouts.
Lightweight and Cost-Effective
The crane’s simple, lightweight structure makes it easy to install and reduces the overall load on the building structure. This results in lower initial investment and installation costs compared to heavier crane systems.
Smooth and Precise Operation
Engineered for effortless movement, the KBK crane provides smooth, low-resistance travel for both the bridge and hoist. This allows for precise positioning of loads, improving workplace ergonomics and reducing physical strain on operators.
Wide Range of Applications
This system is highly versatile and can be configured as a single girder, double girder, or suspension crane. Its adaptability makes it suitable for a wide array of tasks, from simple lifting in a small workshop to complex material flow on a production line.
Enhanced Safety and Reliability
Equipped with essential protection devices and built from high-quality components, the KBK system ensures safe and reliable operation. Each part undergoes rigorous testing to meet strict quality standards, guaranteeing long-term performance.
Application Scenarios
Workshops and Assembly Lines
Ideal for manufacturing and assembly environments where frequent and precise movement of components is necessary. Its smooth operation enhances workflow efficiency and supports lean manufacturing principles.
Warehousing and Logistics
Perfect for warehouses and storage facilities to handle the lifting and moving of goods. The system can be configured to cover specific work cells or entire storage bays, improving logistical operations.
Maintenance and Repair Shops
Provides a reliable lifting solution for maintenance bays and repair shops, allowing technicians to safely lift and position heavy parts like engines and machinery components.
Light Industrial Facilities
An excellent choice for any light industrial setting that requires a flexible and economical lifting solution, such as in the automotive, plastics, or woodworking industries.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1 to 20 ton load range |
| Span Coverage | 3m to 30m maximum span |
| Lifting Height | Up to 20m vertical range |
| Work Level Classification | A3 to A6 duty cycle rating |
| Lifting Mechanism | Electric Hoist |
| Power Supply | 220V-480V, 3-Phase (Customizable) |
| Control System | Pendant Control, Remote Control, Cabin Control |
| Operating Temperature | -25°C to +40°C |
Features at a Glance
- Lifting capacity: 1–20 tons
- Modular, space-saving layout
- Fast and easy installation
- Low self-weight for reduced building load
- Multiple control options: pendant, remote, or cabin
- Smooth and accurate load movement
- Safe operation with integrated protective devices
- Customizable for uniq
FAQ
Q: What is the main benefit of a KBK crane system?
A: The primary benefit is its exceptional flexibility. The modular design allows the system to be easily configured and adapted to almost any space or application, and it can be expanded or modified as your operational needs change over time.
Q: Can the KBK system be installed in a building with a low ceiling?
A: Yes. The KBK system, particularly in a suspension (underslung) configuration, is an excellent solution for facilities with limited headroom. It maximizes the available vertical space by running on tracks mounted directly to the ceiling structure.
Q: What kind of hoist is typically used with a KBK crane?
A: KBK cranes are most commonly paired with electric chain hoists or compact wire rope hoists. The choice depends on the specific lifting capacity, speed, and duty cycle required for your application.
Q: Is it difficult to install a KBK crane system?
A: No, installation is relatively simple compared to heavier overhead cranes. The system uses high-strength bolted connections and standardized components, which allows for quick and straightforward assembly with the help of a professional installation team.
Q: How do I determine the right configuration for my needs?
A: Our engineering team can help you design the perfect system. By understanding your lifting capacity, span, lifting height, and workflow requirements, we can recommend the ideal configuration, whether it’s a single girder, double girder, or a more complex monorail layout.
