General purpose overhead crane
Electric Hoist Overhead Crane
Product Overview

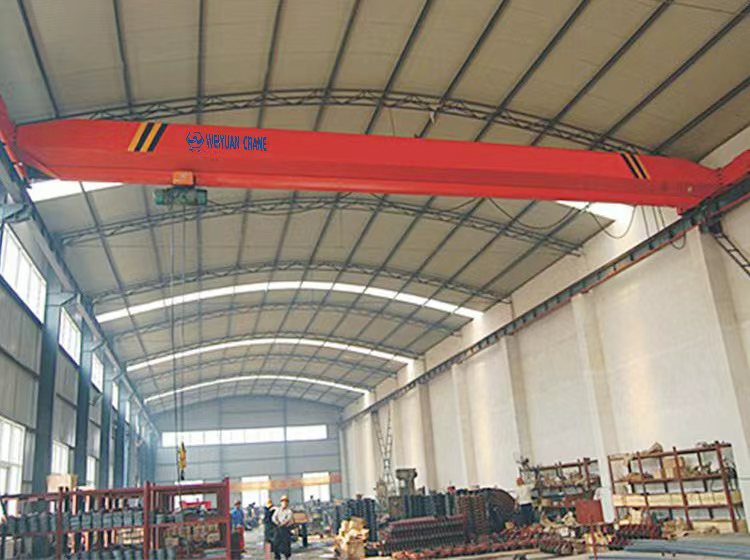

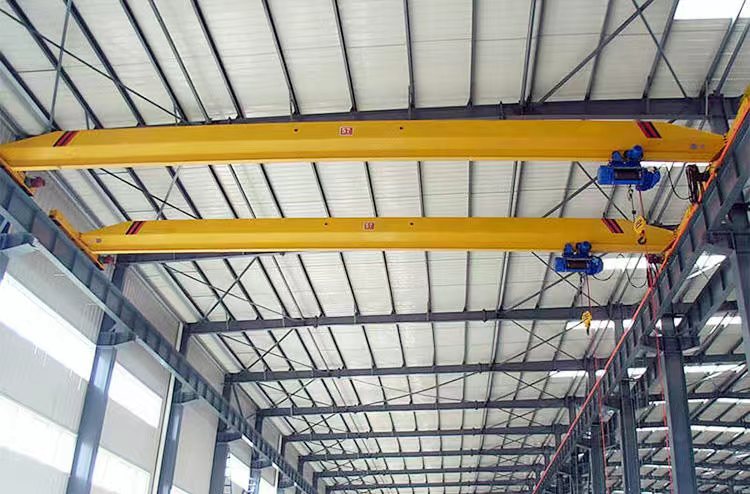

This Electric Hoist Single Girder Overhead Crane is a complete lifting package, combining a robust single girder crane structure with a high-performance electric hoist. Designed for efficiency and reliability, this system is ideal for a wide range of industrial lifting tasks. With popular capacities of 5 and 10 tons, the crane features a durable main girder, end carriages, and a powerful electric hoist that ensures smooth and precise material handling. It travels along an elevated runway, maximizing floor space and providing comprehensive lifting coverage for your facility.
Product Advantages
- Integrated Hoist Performance: The system is built around a reliable and powerful electric hoist (CD/MD or European type), ensuring stable lifting, long service life, and minimal maintenance requirements.
- Precision Control: Standard two-speed controls and optional Variable Frequency Drives (VFDs) on the hoist and travel motors allow for both rapid movement and gentle, precise positioning of loads, enhancing safety and reducing product damage.
- Cost-Effective and Space-Saving: The efficient single girder design is economical to purchase and install, placing less load on your building structure. Its overhead operation keeps the workspace clear and unobstructed.
- Versatile and Adaptable: Fully customizable from 1 to 20 tons, this crane package can be configured with the exact span, lifting height, and control system to perfectly match your operational needs and facility layout.
- Durable Construction: Manufactured with high-grade Q235/Q355B steel and equipped with quality electrical components from trusted brands, this crane is built to withstand demanding industrial environments.
Application Scenarios
- Manufacturing and Assembly: Ideal for lifting and moving components, sub-assemblies, and finished products throughout the production process.
- Warehousing and Storage: Streamlines the handling of heavy goods, dies, and molds, facilitating efficient inventory management and loading/unloading operations.
- Maintenance Workshops: A reliable solution for lifting heavy machinery, engines, and equipment for service and repair with precision and safety.
- Steel and Metal Fabrication: Easily handles steel plates, coils, and structural elements, improving workflow and operational safety.
- General Purpose Lifting: A versatile workhorse for any facility requiring a dependable and efficient overhead lifting solution for loads up to 20 tons.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 5t / 10t (Other capacities 1–20t available) |
| Span | 7.5 m to 31.5 m (Customized to your facility) |
| Max. Lifting Height | 6 m to 30 m (Customized as per request) |
| Work Duty | A3–A5 (Light to Medium Duty) |
| Lifting Speed | 4–8 m/min (Two-speed) or VFD Controlled |
| Trolley Traveling Speed | 2–20 m/min (Two-speed or VFD) |
| Crane Traveling Speed | 20–60 m/min (Two-speed or VFD) |
| Hoist Type | CD/MD Electric Wire Rope Hoist or European Low Headroom Hoist |
| Hoist Motor | Dual-speed conical rotor brake motor or VFD motor |
| Travel Motors | Dual-speed or VFD-controlled gear motors |
| Control Methods | Pendant Control (Standard), Wireless Remote Control (Optional) |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent brand |
| Safety Devices | Overload limiter, emergency stop, anti-collision system |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 |
| Paint/Finish | Industrial anti-corrosion primer and polyurethane topcoat |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Wheel/End Carriage | Forged steel wheels; Box-section end carriages |
| Rail Size (typical) | P24, P38, QU70 (Recommended based on crane specs) |
| Braking | Electromagnetic disc brakes for all movements |
| Limit Switches | Included for hoisting, cross travel, and long travel |
| Documentation | Certificate of Conformity, Test Reports, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 25–35 days (negotiable for specific configurations) |
Features at a Glance
- Popular capacities of 5 and 10 tons for versatile applications.
- Integrated high-performance electric hoist for reliable lifting.
- Two-speed or VFD options for precise load handling.
- Fully customizable capacity, span, and height.
- CE-compliant design with a full suite of safety features.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
