Roap hoist
D3 series intelligent workstation chain hoist
Product overview

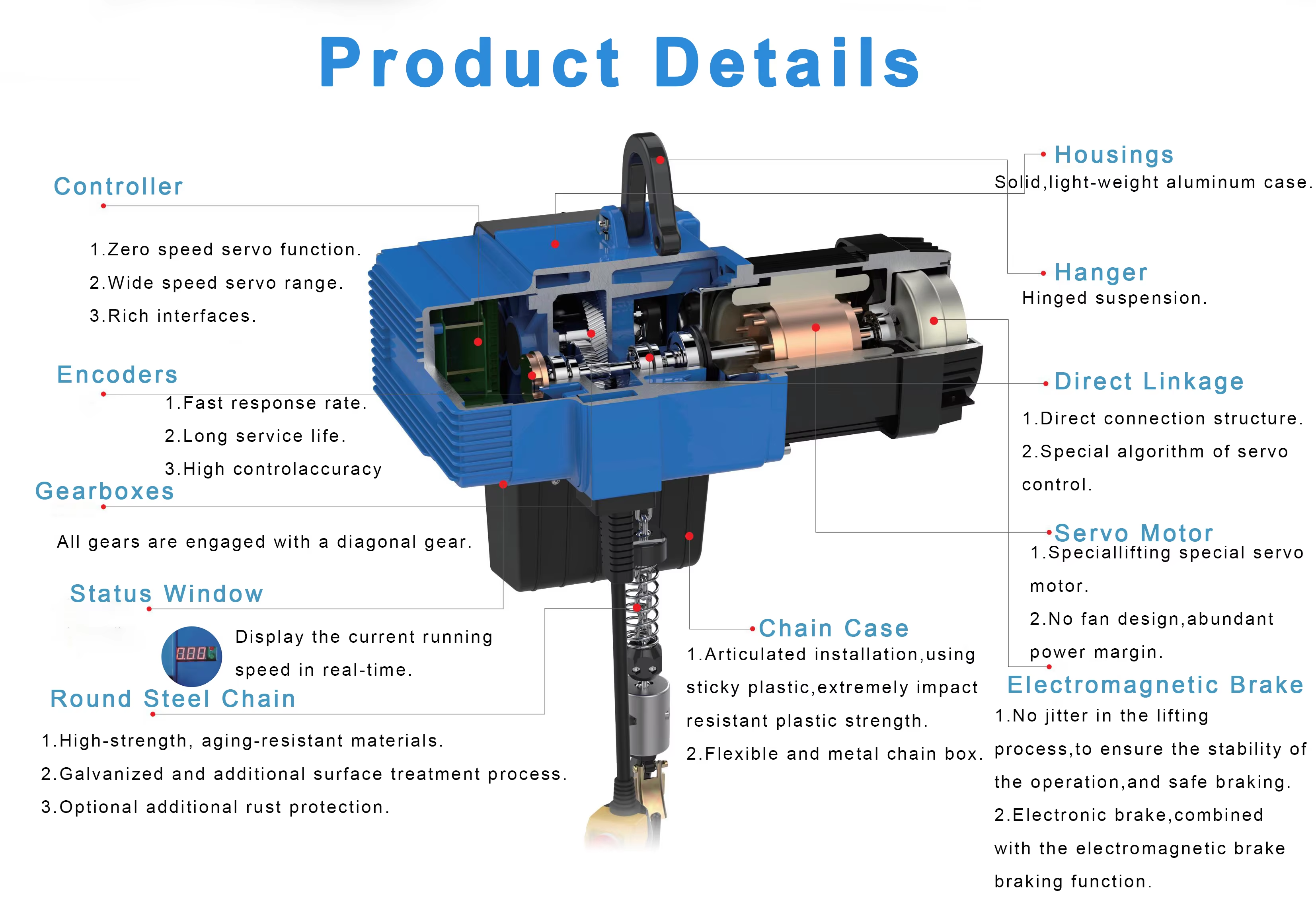

The D3 series workstation intelligent machine adopts an aluminum shell, which is lightweight and sturdy, and has unique patented technology. It uses an industrial processor controlled servo drive system to achieve unparalleled improvement in handling speed and assembly accuracy. It combines advanced technology with human motion commands, like an extended arm of an operator, making it easy to lift and move heavy objects. The intelligent lifting machine at the Golden Axis workstation maximizes production efficiency, reduces the physical exertion of production personnel, lowers product damage rates, and minimizes the occurrence of work-related accidents.
Product advantages
1.Lightweight and Durable:
Aluminum shell design ensures a lightweight yet sturdy structure, enhancing portability and durability.
2.Patented Technology:
Incorporates unique patented innovations for superior performance and reliability.
3.High-Precision Servo Drive System:
Industrial processor-controlled servo system delivers exceptional handling speed and assembly accuracy.
4.Human-Centric Design:
Mimics human motion commands, acting as an operator’s extended arm for effortless lifting and moving of heavy objects.
5.Enhanced Efficiency:
Maximizes production efficiency by streamlining material handling and assembly processes.
6.Reduced Physical Strain:
Minimizes the physical exertion of workers, improving comfort and productivity.
Product specifications and dimensions
| Project Namemodel | D3L012 | D3L025 | D3L050 |
| Maximum load (Kg) | 125 | 250 | 500 |
| Lifting speed (m/min) | 0-16 | 0-16 | 0-10 |
| Rated power (KW) | 0.75 | 0.75 | 1.1 |
| Maximum vertical travel (m) | 2.8 (customizable) | ||
| Control Mode | Coaxial sliding handle | ||
| Weight (Kg) | 27 | 27 | 36 |
| Chain specifications (mm) | 5.0 | 5.0 | 5.0 |
| power supply | Standard 380V (optional 220V) | ||
| Institutional work level | 3m/M6 | 3m/M6 | 3m/M6 |
| Operating temperature (℃) | -10℃~55℃ | ||
FEATURES AT A GLANCE
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
