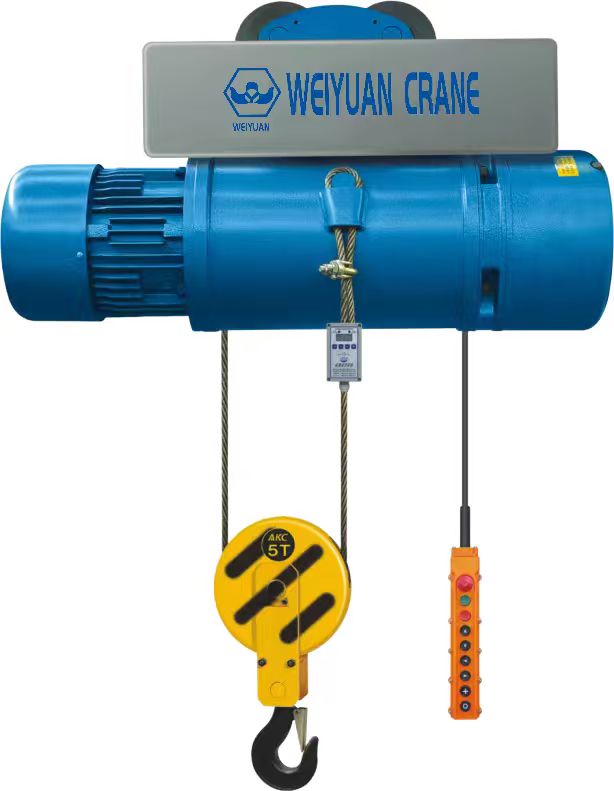

Weiyuan CD Type Wire Rope Electric Hoist
Product Overview
The Weiyuan CD Type Wire Rope Electric Hoist is the industry-standard workhorse for reliable and efficient lifting in a vast range of industrial applications. Renowned for its simple, robust design and cost-effectiveness, the CD hoist is a versatile lifting solution perfect for manufacturing plants, warehouses, workshops, and construction sites. It features a powerful motor, a high-strength wire rope, and a compact, easy-to-maintain structure. Whether integrated into a single-girder overhead crane, a gantry crane, or used on a fixed monorail, the Weiyuan CD hoist delivers consistent performance and durability, making it the go-to choice for businesses needing a powerful and economical lifting tool.
Product Advantages
Proven Reliability and Durability
The CD hoist has a time-tested design that is trusted globally for its dependability. Built with high-quality materials, including a robust cast-iron gear housing and a powerful conical rotor brake motor, it is engineered to withstand the daily rigors of industrial environments and provide years of reliable service.
Cost-Effective and High-Value
Offering an exceptional balance of performance and price, the Weiyuan CD hoist is a highly economical lifting solution. Its straightforward design minimizes manufacturing complexity, allowing us to pass the cost savings on to you without compromising on quality or safety. It represents an excellent return on investment for any operation.
Simple Structure for Easy Maintenance
The hoist is designed with maintenance in mind. Its components, such as the motor, gearbox, and drum, are easily accessible. This simple, modular construction reduces downtime and makes routine inspections and service straightforward, keeping your operations running smoothly.
Versatile and Adaptable
The CD hoist’s compact design allows for incredible versatility. It can be easily mounted on I-beam tracks as part of a single-girder crane, under-slung on a monorail system, or fixed in a specific location for stationary lifting tasks, adapting to the unique layout of your facility.
Comprehensive Safety Features
Safety is built into every Weiyuan CD hoist. It comes standard with essential safety features, including an upper and lower limit switch to prevent over-travel of the hook, a reliable electromagnetic braking system, and an optional overload limiter to prevent lifting beyond its rated capacity.
Application Scenarios
General Manufacturing and Workshops
The workhorse of countless workshops, the CD hoist is perfect for lifting raw materials, moving heavy parts between workstations, and loading finished goods. Its reliability ensures production lines keep moving.
Warehousing and Logistics
An ideal solution for lifting and moving heavy inventory, loading and unloading trucks, and organizing storage areas. It provides a powerful alternative to manual lifting, improving both efficiency and worker safety.
Construction Sites
Provides essential lifting power on construction sites for moving building materials, tools, and structural components. Its robust nature makes it suitable for tough job site conditions.
Assembly Lines
In assembly operations, the CD hoist is used to lift and position heavy components with reliability. The optional MD model with dual speeds offers greater precision for more delicate placement tasks.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20t (Customizable) |
| Lifting Height | 6m, 9m, 12m, 18m, 24m, 30m (Customizable) |
| Hoist Type | CD (Single Speed) / MD (Dual Speed) Wire Rope Hoist |
| Work Level | A3 (M3) |
| Lifting Speed | 3.5 m/min to 8 m/min (Varies by capacity) |
| Travel Speed | 20 m/min (30 m/min optional) |
| Control Method | Pendant Control (Standard) / Wireless Remote Control (Optional) |
| Power Supply | 380V/415V/440V, 50/60Hz, 3-Phase or Customized |
| Motor Type | ZD Conical Rotor Brake Motor |
| Wire Rope | High-strength, anti-tensile steel wire rope |
| Operating Temp. | -20°C to +40°C |
Features at a Glance
✓ Industry-Standard Design: A proven and reliable choice for general lifting.
✓ Cost-Effective: High performance at an affordable price point.
✓ Durable and Robust: Built with high-quality components for a long service life.
✓ Easy Maintenance: Simple structure allows for quick access and service.
✓ Versatile Installation: Suitable for overhead cranes, gantry cranes, and monorails.
✓ Integrated Safety: Equipped with limit switches and a dependable braking system.
✓ Wide Capacity Range: Available from 0.5 to 20 tons to suit various needs.
FAQ
Q: What is the difference between the CD model and the MD model hoist?
A: The main difference is speed. The CD model is a single-speed hoist, which is ideal for general lifting tasks where speed is a priority. The MD model is a dual-speed hoist, featuring a normal speed and a slow speed (typically a 10:1 ratio). The slow speed allows for much more precise and gentle positioning of loads, making it better for delicate or precision assembly tasks.
Q: Can the CD hoist be used frequently throughout the day?
A: Yes, the CD hoist is designed for regular industrial use and is rated for an A3 (or M3) duty cycle. This makes it suitable for moderate, intermittent use in most manufacturing and workshop environments. For extremely high-frequency or continuous use, a higher duty cycle hoist may be recommended.
Q: What information do I need to get the right CD hoist for my crane?
A: To ensure a perfect fit, please provide: 1) The required lifting capacity (in tons), 2) The lifting height needed, 3) Your power supply details (Voltage, Hz, Phase), and 4) The model of I-beam your hoist will run on (e.g., 25b).
Q: Is a wireless remote control worth the extra cost?
A: For many users, yes. A wireless remote allows the operator to stand at a safe distance from the load, offering better visibility and greater mobility. This can significantly improve both safety and operational efficiency compared to a standard wired pendant control.
Q: How does Weiyuan ensure the quality of its CD hoists?
A: As a manufacturer with nearly 40 years of experience, Weiyuan produces every hoist under a strict ISO-certified quality control process. We use high-grade steel, reliable motors, and durable components. Each hoist undergoes a comprehensive inspection and full-load test before shipment to guarantee it meets our high standards for performance, safety, and durability.
