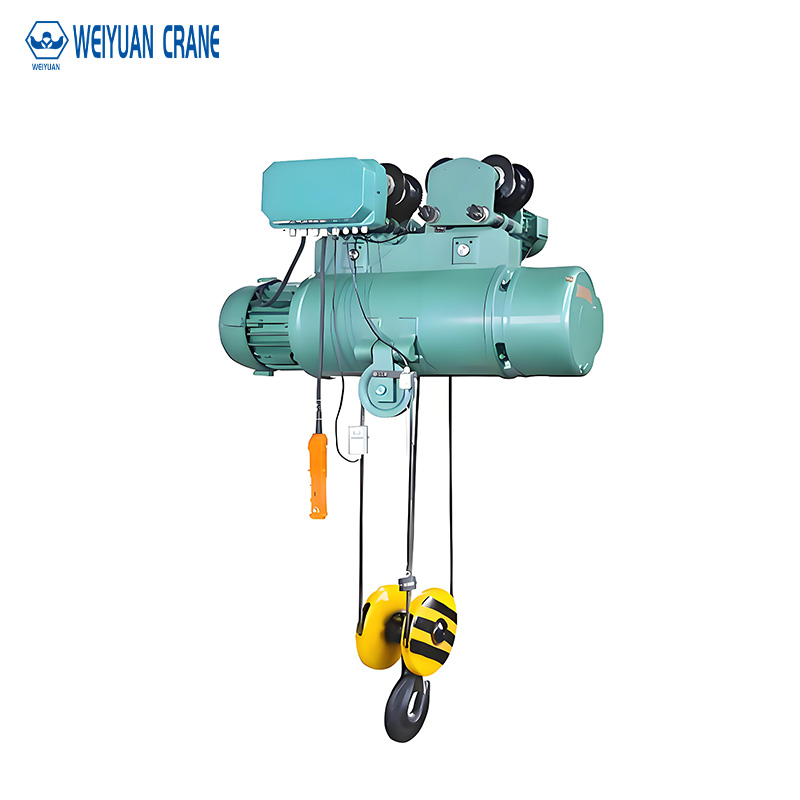

In high-density industrial environments where ceiling height is a premium commodity, standard lifting equipment often falls short—literally. A heavy-duty low-headroom electric hoist is a specialized solution designed to maximize vertical lifting space by minimizing the distance between the runway beam and the load hook. By shifting the hoist body to the side of the beam rather than suspending it directly beneath, facilities can gain up to 100 cm of additional lifting height.

At WEIYUAN, we provide integrated design, production, and installation services to help workshops and warehouses overcome these structural limitations. Our low-headroom systems are built to ensure your facility remains productive without the need for expensive roof or ceiling renovations.

---

Product Description: Precision Lifting in Restricted Spaces

The low-headroom electric hoist is specifically engineered for facilities with ceilings as low as 8 to 15 feet where traditional hoists would be inoperable. This design is not just a spatial compromise; it is a high-performance material handling tool that improves workflow by allowing for taller storage racks and larger machinery underneath the crane path.

Whether you are managing a busy automotive assembly line or a high-capacity logistics warehouse, our electric hoists deliver smooth, reliable vertical movement with millimeter precision. This precision is vital for the safety of both the operator and the valuable components being moved.

Key Features and Advantages

Our professional-grade lifting solutions focus on durability, safety, and modern efficiency:

• Maximized Lift Height: The compact trolley and side-mounted motor assembly significantly reduce the spatial footprint, reclaiming vital overhead clearance.
• Variable Frequency Drive (VFD): Every unit supports stepless speed regulation, which eliminates “jerking” during starts and stops, protecting the hoist electric chain from sudden stress.
• Three-in-One Drive System: We utilize an integrated motor, brake, and reducer with hardened gear surfaces for quiet, maintenance-free operation and high positioning accuracy.
• Safety Voltage Controls: Control circuits operate at a safe voltage (under 50V) to protect staff during high-frequency use.
• Wireless Flexibility: Operators can use an electric hoist with wireless remote to stand at an optimal vantage point, avoiding blind spots and improving onsite safety.

Technical Specifications

Feature	Specification Details
Lifting Capacity	1 Ton to 80 Tons (Customizable up to 400T)
Span Length	7.5 meters to 34 meters
Lifting Height	6 meters to 50 meters (Tailored to site needs)
Duty Class	A4 or A5 (Intermediate to Heavy Industrial Duty)
Power Source	380V / 400V / 415V, 50-60Hz, 3-Phase
Standard Safety	Overload protection, dual limit switches, motor brakes

---

Customization and Design by WEIYUAN

We understand that industrial challenges are unique. WEIYUAN offers free plant structure analysis to optimize your layout before any equipment is manufactured.

Our customization options include:

• Environment-Specific Finishes: Explosion-proof or acid-resistant coatings for chemical plants, metallurgy, or paper mills.
• Bespoke Dimensions: Custom span lengths to fit narrow or unusually shaped workshops.
• Advanced IoT Integration: Real-time monitoring for predictive maintenance and Industry 4.0 safety compliance.

Application Fields

Our low-headroom systems are preferred across multiple industries:

• Automotive Plants: For loading stamping molds in restricted clearance zones.
• Steel Metallurgy: Moving heavy materials in high-temperature, dense workspaces.
• Logistics Warehousing: Maximizing vertical storage rows by lifting goods closer to the ceiling.
• Power Plants: Maintenance of heavy turbines and equipment in underground or cramped galleries.

Safety and Operational Excellence

Every electric hoist we produce meets rigorous safety standards, including CE and UL certifications. We integrate redundant limit switches for both upper and lower hook travel to prevent over-travel and structural damage. Furthermore, our load limiters act as a “covenant of safety,” automatically cutting power if the weight exceeds the rated capacity.

---

Case Study: Efficiency Gain in Automotive Logistics

In a recent collaboration with a major automotive parts factory, WEIYUAN installed five 10-ton double-girder bridge cranes with low-headroom hoists. The facility faced a 15-foot ceiling limit that previously caused frequent load collisions. By implementing our VFD-controlled systems, the client achieved:

• An 8% reduction in production cycle rhythm.
• Over 8,000 hours of safe operation with zero accidents.
• The ability to add an extra row of storage, increasing warehouse capacity significantly.

Pricing, Delivery, and Support

• Pricing: We provide personalized quotes based on your specific lifting capacity and customization needs.
• Delivery: Standard models typically ship within 3 to 5 business days, while bespoke systems require 2 to 4 weeks.
• Support: We offer detailed online manuals and video tutorials. For international projects, our senior engineers provide on-site installation guidance and staff training.
