In the demanding world of outdoor industrial operations, moving heavy loads efficiently across large areas is a constant challenge. Whether you manage a freight yard, a construction site, or a precast concrete facility, the limitations of indoor overhead cranes become apparent the moment you step outside the building. This is where the heavy-duty single girder gantry crane proves its worth.

This specialized lifting solution offers the power and reach needed for substantial outdoor tasks without the massive infrastructure costs associated with erecting a permanent building structure. This article explores how these rail-mounted giants can transform your material handling capabilities, offering a blend of durability, precision, and cost-effectiveness.

Product Description: Extending Your Reach Outdoors

A single girder gantry crane is a type of crane built atop a gantry, which is a structure used to straddle an object or workspace. Unlike bridge cranes that rely on the walls of a building for support, these cranes stand on their own legs and move along ground-level rails.

The “single girder” design features one main beam that supports the hoist mechanism. This configuration is particularly advantageous for outdoor industrial lifting because it reduces wind resistance and overall deadweight compared to double girder models, making it a more economical choice for many heavy-duty applications. It is the workhorse of outdoor logistics, capable of lifting materials ranging from steel beams to shipping containers with ease.

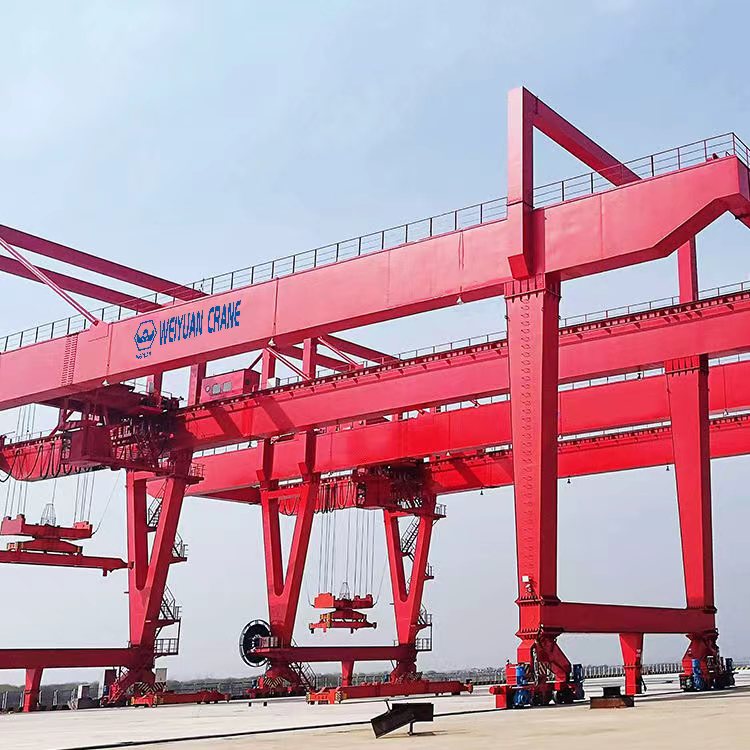

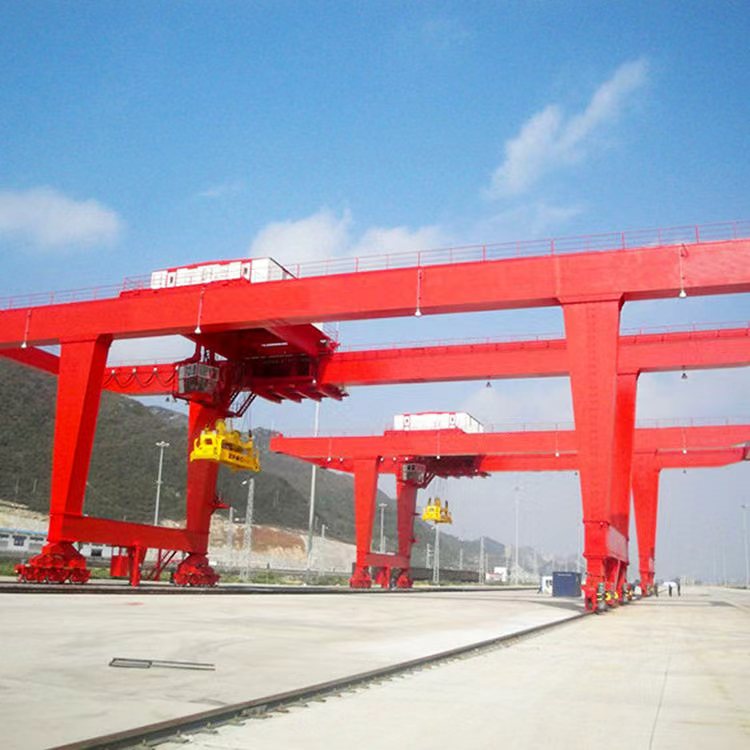

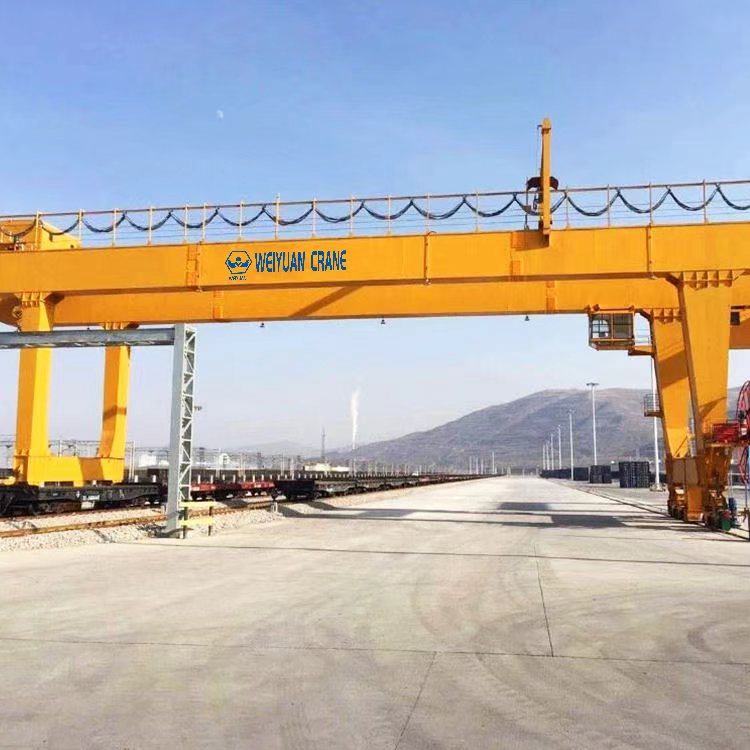

By utilizing a rail mounted gantry crane system, businesses can create a dedicated lifting corridor that extends for hundreds of meters, maximizing the usable area of their yard. This setup significantly improves workflow efficiency, allowing for the rapid loading and unloading of trucks or railcars without the bottlenecks common with forklift operations.

Key Features and Advantages

When evaluating lifting equipment for harsh outdoor environments, durability and reliability are non-negotiable. Our single girder gantry cranes are engineered to withstand the elements while delivering precise performance.

• Rail-Mounted Precision: The crane travels along fixed rails, ensuring stable, straight-line movement over long distances, which is critical for consistent repetitive tasks.
• Cost-Effective Structure: The single girder design uses less material than double girder options, offering a lower initial investment while still handling significant loads (typically up to 20 tons or more).
• Weather-Resistant Design: Built with high-grade structural steel and finished with corrosion-resistant coatings, these cranes are ready to face rain, wind, and sun.
• Cantilever Options: Many models feature cantilevers (overhangs) on one or both sides, extending the trolley’s reach beyond the rail tracks to easily load trucks parked on the side.
• Versatile Hoisting: Compatible with various lifting mechanisms, including a portable gantry crane with electric hoist setup for smaller auxiliary tasks or heavy-duty wire rope hoists for the main lift.

Technical Specifications

To ensure the equipment meets your specific operational demands, we provide robust technical configurations.

• Load Capacity: Standard models range from a 5 ton gantry crane up to 32 tons. For lighter needs, a mini gantry crane configuration is available, while heavier industrial needs can be met with custom engineering.
• Span Length: Variable spans from 10 meters to 35 meters to cover wide working areas.
• Lifting Height: Typically 6 to 12 meters, with options for higher lifts depending on wind load calculations.
• Power Supply: 3-phase industrial power (e.g., 380V/50Hz) via cable reel or busbar systems.
• Working Class: ISO A5 (FEM 2m) ratings ensure durability under frequent usage cycles.
• Control Methods: Options include pendant control, wireless remote control, or a fully enclosed cabin for operator comfort.

Customization Options: Weiyuan’s Engineering Expertise

Every industrial site has unique constraints—whether it’s a specific rail gauge, a height restriction due to power lines, or a need for a motorized gantry crane with specialized speeds. Weiyuan provides comprehensive, free design consultations to tailor the crane to your exact environment.

Our customization capabilities include:

• Custom Rail Span: We engineer the legs to fit your existing ground rails or design a new track system for you.
• Environmental Adaptations: We offer explosion-proof motors for hazardous areas or special paint systems for marine environments.
• Hoist Integration: Whether you need a standard hook, a magnetic lifter for steel, or a grab bucket for bulk materials, we integrate the right tool for the job.
• Telescoping Legs: For uneven terrain or changing height requirements, a telescoping gantry crane feature can be engineered into specific portable models.

Application Areas

The versatility of the rail-mounted single girder crane makes it a staple in numerous sectors across Europe and Asia.

• Logistics and Freight Yards: Rapidly moving containers and heavy crates from rail to truck.
• Construction and Precast: Lifting concrete beams, pipes, and panels in outdoor casting yards. A 10 ton gantry crane is a standard asset in these facilities.
• Steel Stockyards: Handling long steel plates, beams, and coils with magnetic attachments.
• Shipbuilding: Moving smaller sub-assemblies and materials alongside dry docks.
• Energy Sector: Maintenance of turbines and heavy machinery in open-air plants.

Safety and Compliance

Operating heavy machinery outdoors introduces unique risks, from wind loads to ground stability. Safety is our primary design philosophy. Our cranes are manufactured in strict accordance with international safety standards, including CE certification for European clients and ISO 9001 quality management systems.

Standard safety features include:

• Wind Locks and Rail Clamps: Prevents the crane from moving unintentionally during high winds.
• Overload Limiters: Automatically cuts power if the load exceeds the rated capacity, such as attempting to lift 6 tons with a gantry crane 5 ton unit.
• Emergency Stop Systems: Located on all control points for immediate shutdown.
• Travel Limit Switches: Prevents the crane from running off the end of the tracks.
• Audible and Visual Alarms: Warns ground personnel when the crane is in motion.

Case Studies: Outdoor Efficiency in Action

Precast Concrete Facility, Southeast Asia
A growing infrastructure company needed to expand its production capacity but lacked indoor space. They utilized an outdoor yard but struggled with slow forklift transport.

• Solution: Weiyuan designed and installed two 10-ton single girder gantry cranes with a 20-meter span and 5-meter cantilevers.
• Result: The cantilevers allowed trucks to load directly from the side of the rails without entering the crane’s primary travel path. Production efficiency increased by 40%, and the damage rate to concrete products dropped to near zero.

Railway Logistics Hub, Eastern Europe
A logistics center required a reliable solution to transfer steel coils from trains to storage.

• Solution: A rugged rail mounted gantry crane equipped with a specialized C-hook for coil handling. The system included a heated operator cabin for winter operations.
• Result: The facility can now operate year-round regardless of weather conditions, significantly reducing train turnaround times.

Installation and Support

Installing a rail-mounted system requires precision to ensure smooth travel and prevent premature wear. Weiyuan supports you at every step.

• Foundation Guidance: We provide detailed civil engineering drawings for the rail foundation to ensure ground stability.
• On-Site Installation: Our expert team can supervise the rail laying and crane assembly to guarantee compliance with tolerance standards.
• Operator Training: We train your staff on safe operation and daily maintenance checks.
• After-Sales Service: We offer lifetime technical support and rapid spare parts delivery, ensuring your electric gantry crane remains operational for decades.

Pricing and Quotes

Investing in a heavy-duty crane is a significant decision. Prices vary based on span, capacity, and customization. While you might find a cheap used gantry crane for sale, these often lack the specific span or safety documentation required for modern compliance.

We offer competitive factory-direct pricing on new, custom-engineered units. By buying directly from the manufacturer, you ensure the equipment fits your exact needs without the markup of a middleman.

Contact us today for a personalized quote. Please provide your required load capacity, span, and lifting height for the most accurate estimate.

Delivery Timeline

We understand that project schedules are tight.

• Design Phase: 3-5 days for custom drawings and approval.
• Manufacturing: Typically 25-35 days for single girder gantry cranes.
• Shipping: We manage global logistics to deliver to major ports worldwide efficiently.

FAQ

Q: Can a single girder gantry crane be used indoors?
A: Yes, absolutely. While they excel outdoors, they are also a great indoor solution if your building structure cannot support a bridge crane or if you are in a rented facility where installing runway beams is not permitted.

Q: What is the difference between a rail-mounted and a rubber-tired gantry crane?
A: A rail mounted gantry crane travels on a fixed track, offering high stability and lower maintenance for defined paths. A rubber tired gantry crane (RTG) runs on tires, allowing it to change lanes and move freely around a yard, though it requires a reinforced flat ground surface.

Q: Do you offer portable options?
A: Yes, for smaller loads, we offer rolling gantry crane models (often called A-frames). These are manually pushed or motorized and are ideal for maintenance workshops.

Q: What if I have a limited budget?
A: We can discuss cost-effective configurations. For example, a 5 ton overhead gantry crane with manual travel might suit low-frequency maintenance tasks, whereas a fully motorized system is better for high-volume production.

Q: Is it difficult to build a homemade gantry crane?
A: We strongly advise against a home built gantry crane for industrial loads. Engineered cranes undergo rigorous stress testing and welding inspections that DIY projects lack. The risk of structural failure with heavy loads is simply too high.

Q: Can I rent a crane instead of buying?
A: While gantry crane rentals exist for small portable units, large rail-mounted cranes are almost always permanent installations due to the specific rail and span requirements. Purchasing is the standard approach for heavy-duty needs.
