In the industrial world, “How much is an overhead gantry crane?” is often the first question a facility manager asks. However, unlike buying a standard forklift, pricing a crane is not about looking up a fixed sticker price. It is about engineering a solution.

The cost of an overhead crane varies significantly based on specifications, from the span of the girders to the sophistication of the control systems. As a professional manufacturer integrating production, sales, design, and installation, WEIYUAN helps clients navigate these costs to find the most efficient lifting solution.

Key Factors That Determine Crane Pricing

When you request a quote from overhead crane companies, the final figure is driven by several hard technical parameters. Understanding these will help you budget accurately and avoid paying for unnecessary features.

1. Capacity and Span Specifications

The primary cost drivers are the weight you need to lift and the width of your facility.

• Lifting Capacity: Standard models typically range from 1 ton to 80 tons. For heavy industrial requirements, custom units can be engineered up to 400 tons. Naturally, a 10 ton overhead crane will have a different structural cost basis than a lighter duty unit.
• Span Length: Standard spans range from 7.5 meters to 34 meters. Wider spans require more robust steel structures to maintain rigidity, which influences the price.

2. Structural Design and Space Efficiency

The design of the girder affects not just the crane price, but the construction cost of your building. We utilize an optimized box-shaped main girder or I-beam design.

• Why this matters: This design results in a lighter dead weight and reduced wheel pressure.
• The Value: Lower wheel pressure means you can optimize the design of your factory columns and beams, saving on total construction investment while maximizing available workspace.

3. Drive and Control Systems

The “brain” and “muscle” of the crane are where quality variations occur. A basic overhead crane system might be cheaper upfront but costlier to maintain.

• Advanced Drive: High-quality systems employ a “three-in-one” reducer, combining a hard-tooth gear reducer with a variable frequency braking motor.
• VFD Technology: Variable Frequency Drive (VFD) technology allows for stepless speed regulation. This ensures smooth operation and high positioning accuracy, which drastically reduces mechanical shock to overhead crane hoist parts, extending the equipment’s lifespan.

Customization: Matching the Machine to the Environment

No two factories are identical. A reputable overhead crane supplier will offer customization that affects the final investment but guarantees operational success.

Configuration Options

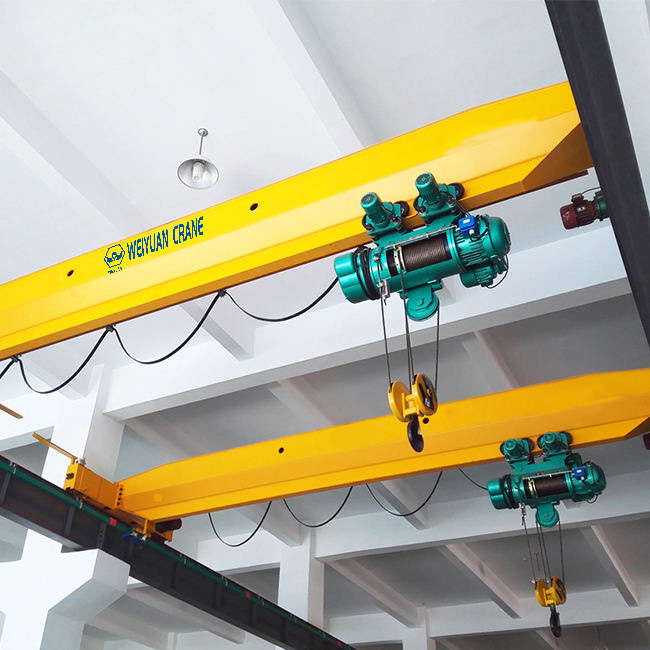

• Girder Type: You can choose between a single girder or a double girder overhead crane depending on stability requirements and ceiling clearance.
• Special Environments: For hazardous industries, cranes can be customized with explosion-proof or anti-corrosion designs.
• Attachments: To meet 100% of working conditions, units can be equipped with specialized spreaders like grabs or electromagnetic chucks.

Lifting Height and Power

Standard lifting heights range from 6 meters to 50 meters, customizable based on your building’s vertical clearance. The system is compatible with standard industrial power supplies (380V, 400V, 415V, 3-Phase AC).

The Hidden ROI: Efficiency and Safety

When looking at overhead cranes for sale, smart buyers look beyond the initial purchase price to the Return on Investment (ROI).

Operational Efficiency

Properly implemented lifting systems optimize workshop space utilization and can improve material handling efficiency by over 20%.

• Case Study: In a project for a General Assembly Workshop of a large automotive parts manufacturer, WEIYUAN deployed 5 sets of 10-ton double girder cranes.
• The Result: The facility achieved an 8% reduction in production line cycle time.

Safety and Compliance

Safety features are non-negotiable. Our equipment strictly complies with national and industry standards (such as TSG Q0002-2008).

• Critical Devices: Every crane features a weight limiter that automatically cuts off lifting power if the load exceeds rated capacity.
• Operator Safety: The control circuit voltage for suspended control devices is kept below the safe voltage of 50V.
• Track Record: The automotive project mentioned above has operated safely for over 8,000 hours with zero safety accidents.

Installation, Training, and After-Sales

The price of a crane should also include the support needed to keep it running. We provide comprehensive support, from free factory structure analysis to overhead crane operator training guidance.

• Installation: We offer detailed installation manuals, video tutorials, and can provide professional on-site installation assistance.
• Maintenance: We provide a one-year warranty and support for repair and parts replacement.

FAQ: What You Need to Know Before Buying

What information should I provide for a quote? To get an accurate price, please provide the Lifting Capacity, Span, Lifting Height, Hook Travel, Material to be lifted, and Power Source.

What operation methods are available? You can choose from Pendant Control, Wireless Remote, or Cabin Control.

Can this equipment work in hazardous environments? Yes, we can customize acid-proof or explosion-proof cranes to suit specific industrial needs.

How long does delivery take? Standard models typically ship in 3-5 working days. Customized models, such as a specialized 5 ton overhead gantry crane configuration, typically require 2-4 weeks.

Can I visit the factory? Yes, WEIYUAN welcomes visits. We can arrange pickup from the train station or airport and assist with hotel bookings.
