Jib Crane Cost Guide: How Much Does a Jib Crane Cost to Buy & Install in 2026?

Press release

Published by: [Your Brand] Engineering Team | Last Updated: March 2026 | Reading Time: 9 min

Introduction

“How much does a jib crane cost?” is one of the most frequently searched questions in the industrial lifting market — and one of the most difficult to answer without context. Two jib cranes with the same 1-ton capacity rating can differ in total installed cost by 30 to 60%, depending on boom length, rotation angle, mounting type, hoist selection, and site conditions.

This guide cuts through that complexity. We provide a complete 2026 price breakdown for every major jib crane type, explain the key cost drivers that most buyers overlook, cover the full installed cost beyond the crane-only price, and give you the framework to evaluate quotes intelligently before committing your capital budget.

Whether you are purchasing your first jib crane for a small fabrication shop or specifying multiple units for a new production facility, this is the cost guide you need before you request a single quote.

Why Jib Crane Prices Vary So Dramatically

Before looking at specific numbers, understanding what actually drives jib crane pricing prevents budget surprises later. The same crane capacity — say, 1 ton — can produce quotes ranging from $3,000 to $18,000 depending on these variables:

Boom length (reach): Longer booms require heavier structural sections to resist the bending moment at the pivot point. A 1-ton crane at 6-meter reach imposes significantly more structural stress than the same crane at 3-meter reach. Boom length is one of the most direct cost multipliers in jib crane pricing — increasing boom length from 4 feet to 12 feet can increase crane cost by 40 to 80% at the same capacity.

Rotation angle: A 180-degree wall-mounted crane is mechanically simpler than a 360-degree floor-mounted unit. The 360-degree configuration requires a full mast, a precision slewing bearing, and a larger concrete foundation — each adding cost. Motorized rotation adds drive components, electrical controls, and limit switches on top of the manual slewing mechanism.

Mounting type: Wall-mounted cranes transfer their loads into the building structure, avoiding the need for a floor foundation. Floor-mounted cranes require a poured concrete foundation sized to the crane’s overturning moment — which can cost $1,000 to $5,000 in concrete and labor alone. The mounting type determines not just the crane’s purchase price but the total site preparation cost.

Hoist selection: The hoist is the heart of the jib crane system and can represent 30 to 50% of the total system cost. A hand chain hoist at $150 and a VFD-controlled electric wire rope hoist at $8,000 can both be mounted on a 1-ton jib crane — producing dramatically different total system prices.

Duty class: A jib crane designed for occasional maintenance lifting (FEM M3 class) uses lighter structural components and lower-rated hoist equipment than a crane serving a high-frequency production station (FEM M5 class) at the same rated capacity. Duty class is the most commonly underspecified variable — and the one most likely to cause premature failure.

Jib Crane Prices by Type: 2026 Reference Ranges

Wall-Mounted Jib Cranes (Crane Structure Only, Without Hoist)

Wall-mounted jib cranes attach directly to a building wall or structural column, eliminating the need for a floor foundation. They provide 180 to 200 degrees of rotation coverage.

  • 500 lb (1/4 ton), 8-foot reach: $1,200 – $2,800
  • 1 ton, 10-foot reach: $2,200 – $5,000
  • 2 ton, 12-foot reach: $4,500 – $9,500
  • 3 ton, 15-foot reach: $8,500 – $17,000
  • 5 ton, 15-foot reach: $16,000 – $30,000

Note: These are crane structure prices only. Add hoist cost separately (see hoist pricing section below). Wall structural analysis by a licensed engineer is required before installation — budget $500 to $1,500 for engineering assessment if not already included in the supplier’s quote.

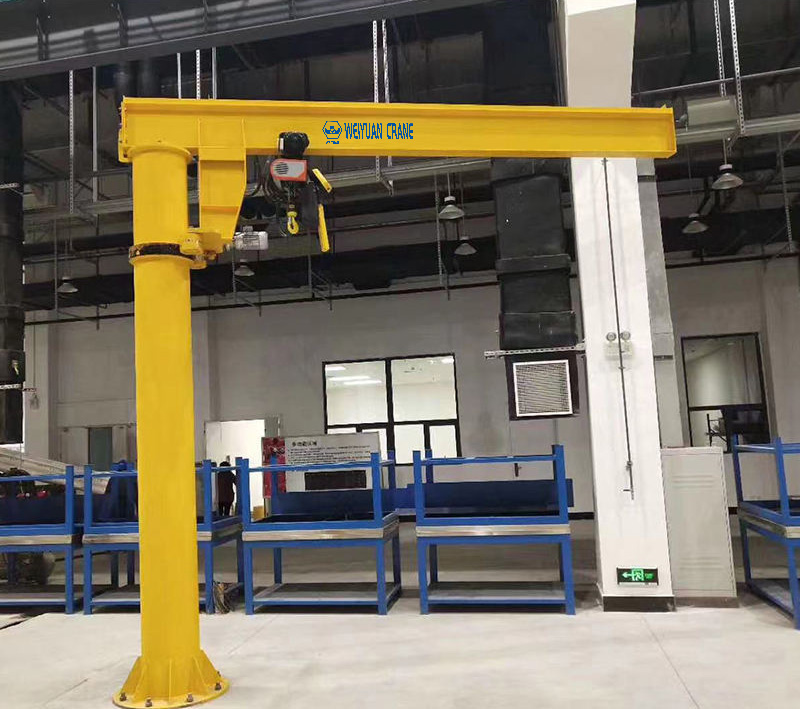

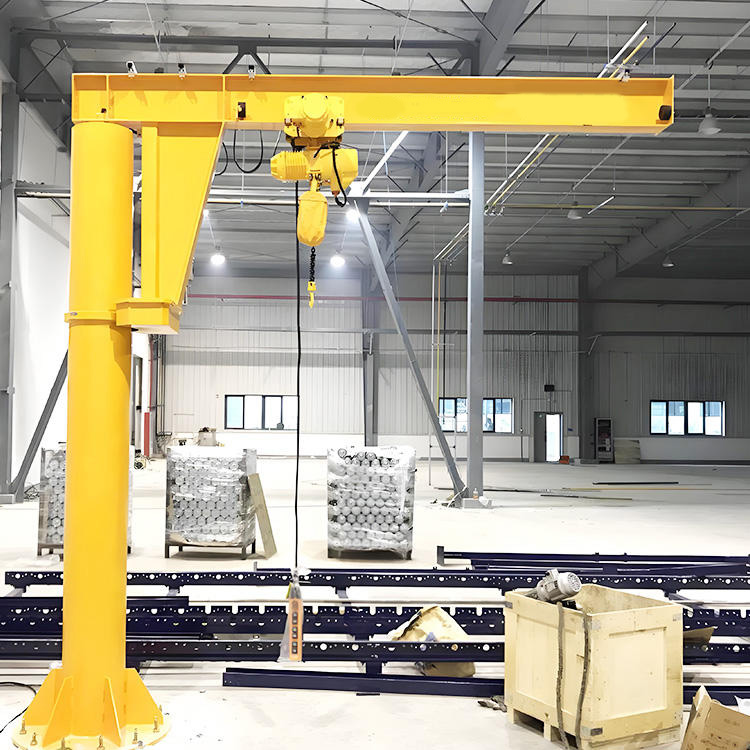

Floor-Mounted Jib Cranes / Pillar Jib Cranes (Crane Structure Only, Without Hoist)

Floor-mounted jib cranes are anchored to a concrete foundation or anchor bolt pattern and provide full 360-degree rotation in open floor areas. They are the most common configuration for production cell applications.

  • 500 lb (1/4 ton), 8-foot reach: $1,800 – $3,500
  • 1 ton, 10-foot reach: $3,000 – $6,500
  • 2 ton, 12-foot reach: $6,000 – $13,000
  • 3 ton, 15-foot reach: $11,000 – $22,000
  • 5 ton, 15-foot reach: $20,000 – $38,000
  • 10 ton, 20-foot reach: $40,000 – $75,000

Mast-Type (Top-Braced) Jib Cranes (Crane Structure Only)

Mast-type cranes use upper and lower brackets against a column or wall, distributing loads more effectively than single-bracket cantilever designs. They typically do not require deep concrete foundations, reducing installation cost significantly.

  • 1 ton, 10-foot reach: $2,500 – $5,500
  • 2 ton, 12-foot reach: $5,000 – $11,000
  • 3 ton, 15-foot reach: $9,000 – $18,000

Articulating (Knuckle Boom) Jib Cranes (Crane Structure Only)

Articulating jib cranes have jointed arms for reaching around obstacles. They cost 25 to 50% more than straight-boom equivalents at the same capacity due to the additional pivot bearings, structural complexity, and control systems.

  • 500 lb articulating, 8-foot combined reach: $3,500 – $7,000
  • 1 ton articulating, 10-foot combined reach: $7,000 – $15,000
  • 2 ton articulating, 12-foot combined reach: $14,000 – $28,000

Hoist Cost: The Variable Most Buyers Underestimate

The hoist is quoted separately in many jib crane purchases, yet it can equal or exceed the crane structure cost at lower capacities. Here is a realistic pricing framework for the most common hoist types used on jib cranes:

Manual chain hoists (hand-operated):

  • 500 lb: $80 – $200
  • 1 ton: $150 – $400
  • 2 ton: $300 – $700
  • 3 ton: $500 – $1,200
    Suitable for infrequent, light-duty lifting where electrical power is unavailable or unnecessary.

Electric chain hoists (single-phase or three-phase):

  • 500 lb electric chain hoist: $400 – $1,000
  • 1 ton electric chain hoist: $700 – $1,800
  • 2 ton electric chain hoist: $1,400 – $3,500
  • 3 ton electric chain hoist: $2,500 – $6,000
  • 5 ton electric chain hoist: $5,000 – $12,000
    Standard choice for most jib crane workstation applications. Add 20 to 35% for VFD-controlled variable-speed models.

Electric wire rope hoists:

  • 1 ton wire rope hoist: $1,500 – $4,000
  • 2 ton wire rope hoist: $3,000 – $7,000
  • 3 ton wire rope hoist: $5,000 – $12,000
  • 5 ton wire rope hoist: $8,000 – $18,000
    Preferred for longer lift heights, higher duty cycles, and capacities above 3 tons.

Installation Cost: What Gets Added to the Crane Price

This is where most jib crane budgets encounter surprises. Here is a complete breakdown of installation cost components:

Foundation (floor-mounted cranes only):
The concrete foundation must be engineered for the crane’s overturning moment — the rotational force at the base when a load is lifted at the full boom reach. Foundation specifications vary by crane capacity and boom length, but typical requirements involve a reinforced concrete pier 18 to 36 inches in diameter and 3 to 6 feet deep.

Foundation costs:

  • Light-duty (500 lb to 1 ton, standard reach): $800 – $2,000
  • Medium-duty (2 to 3 ton): $1,500 – $4,000
  • Heavy-duty (5 ton and above): $3,000 – $8,000+

These costs include excavation, rebar, concrete, and anchor bolt setting. Lead time for foundation curing (28 days for full concrete strength) must be factored into the project schedule — this is one of the most commonly overlooked schedule items in jib crane projects.

Structural wall assessment and potential reinforcement (wall-mounted cranes):
A licensed structural engineer must assess the mounting wall or column capacity before installation. If reinforcement is required, costs vary significantly based on the degree of reinforcement needed:

  • Engineering assessment only: $500 – $1,500
  • Minor reinforcement (additional gussets or through-bolts): $500 – $2,000
  • Major reinforcement (new column, steel plate addition): $2,000 – $10,000+

Electrical service installation:
Electric hoists require a dedicated electrical circuit. For single-phase hoists on existing 115V or 230V circuits nearby, electrical work may be minimal. For three-phase industrial hoists, a new circuit from the main panel is often required:

  • Simple branch circuit addition from nearby panel: $400 – $1,200
  • New three-phase circuit from main panel (longer run): $1,500 – $4,000

Crane assembly and installation labor:
Most jib cranes require professional installation by qualified ironworkers or millwrights:

  • Light-duty wall-mounted unit (1 ton): $500 – $1,500
  • Medium-duty floor-mounted unit (2 to 3 ton): $1,000 – $3,000
  • Heavy-duty floor-mounted unit (5 ton): $2,500 – $6,000

Load test and commissioning:
ASME B30.12 requires a load test at 125% of rated capacity before placing a new jib crane in service. Budget $500 to $1,500 for load test weights rental, witness, and documentation.

Total Installed Cost Examples

Based on the component costs above, here are realistic total installed cost ranges for complete jib crane systems:

1-ton wall-mounted jib crane with electric chain hoist (complete installed):

  • Crane structure: $2,200 – $5,000
  • Electric chain hoist (1 ton): $700 – $1,800
  • Wall structural assessment: $500 – $1,000
  • Electrical: $400 – $1,200
  • Installation labor: $500 – $1,500
  • Load test: $500 – $1,000
    Total installed: $4,800 – $11,500

2-ton floor-mounted jib crane with electric chain hoist (complete installed):

  • Crane structure: $6,000 – $13,000
  • Electric chain hoist (2 ton): $1,400 – $3,500
  • Foundation: $1,500 – $4,000
  • Electrical: $800 – $2,000
  • Installation labor: $1,000 – $3,000
  • Load test: $500 – $1,200
    Total installed: $11,200 – $26,700

5-ton floor-mounted jib crane with wire rope hoist (complete installed):

  • Crane structure: $20,000 – $38,000
  • Wire rope hoist (5 ton): $8,000 – $18,000
  • Foundation: $3,000 – $8,000
  • Electrical: $1,500 – $4,000
  • Installation labor: $2,500 – $6,000
  • Load test: $800 – $1,500
    Total installed: $35,800 – $75,500

New vs. Used Jib Cranes: Is Used Worth It?

Used jib cranes are available at 30 to 50% below new prices in many cases. They are worth considering when:

  • The crane’s previous duty cycle and service history are documented and verifiable
  • A qualified person can inspect the structural integrity, hoist condition, and hook before purchase
  • The crane’s foundation or wall mounting can be adapted to your facility without major modification

Used jib cranes are not a good choice when:

  • Service history is unknown or undocumented
  • The crane lacks a valid load test certificate
  • The hoist is at or beyond its design service life
  • The crane’s structural components show corrosion, deformation, or weld cracking

Always require an inspection by a qualified crane person before purchasing any used jib crane.

Cost-Saving Strategies That Don’t Compromise Safety

Specify honestly for your actual duty cycle: The most common over-expenditure in jib crane purchasing is specifying heavy-duty components for a light-duty application. A maintenance crane that lifts twice per day needs M3 class components, not M5. Right-sizing the duty class can reduce crane and hoist cost by 20 to 35%.

Consider mast-type over floor-mounted where structurally viable: If a suitable column or wall exists for upper and lower bracket mounting, a mast-type jib crane eliminates the foundation cost entirely — saving $1,500 to $5,000 on installation.

Bundle multiple cranes in a single purchase: If your facility requires three or more jib cranes, purchasing them from a single supplier as a package typically yields 10 to 20% savings over individual unit pricing.

Separate the crane structure from the hoist purchase strategically: Sourcing the hoist separately from a specialist hoist supplier and the crane structure from a crane fabricator can produce better pricing on both components versus buying as a bundled package from a single supplier. This requires more project management but often reduces total system cost.

Frequently Asked Questions

Q: Does the jib crane price include the hoist?
A: Not always — and this is one of the most common sources of budget confusion. Always confirm explicitly with the supplier whether the quoted price includes the hoist, controls, and any below-hook devices. Get a line-item breakdown.

Q: How long does a jib crane installation typically take?
A: For wall-mounted units, installation typically takes one to two days after the structural assessment is complete. For floor-mounted units, the timeline is driven by the foundation — concrete must cure for a minimum of 28 days before the mast can be set and loaded. Total project timeline from order to operational crane: 8 to 16 weeks for standard configurations.

Q: What is the annual maintenance cost for a jib crane?
A: For a 1-ton workstation jib crane in light to moderate service, annual maintenance (OSHA-required inspections, lubrication, hoist chain or rope inspection) typically runs $300 to $800. For a 5-ton floor-mounted crane in heavy production service, budget $1,500 to $4,000 per year.

Q: Are there financing options for jib crane purchases?
A: Yes. Most crane suppliers work with equipment financing companies offering lease or loan terms from 36 to 84 months. For smaller purchases under $15,000, some suppliers offer in-house financing. Equipment financing preserves working capital and may offer tax advantages depending on your jurisdiction and accounting method.
