Recently, WEIYUAN successfully delivered and installed a massive 120-ton gantry crane for a new manufacturing facility in Saudi Arabia. This project wasn’t just about moving steel; it was about engineering a solution for extreme desert conditions while ensuring precision handling for heavy industrial components.

Why does this matter to you? Because whether you are looking for a gantry crane 10 ton model for a warehouse in Europe or a heavy-duty container gantry crane for a port in Asia, the engineering principles remain the same: stability, efficiency, and safety.

In this guide, we will break down what makes these machines the backbone of modern industry, moving beyond the “Saudi Success Story” to help you understand how a gantry crane can optimize your own operations.

What is a Gantry Crane? (And Why You Might Need One)

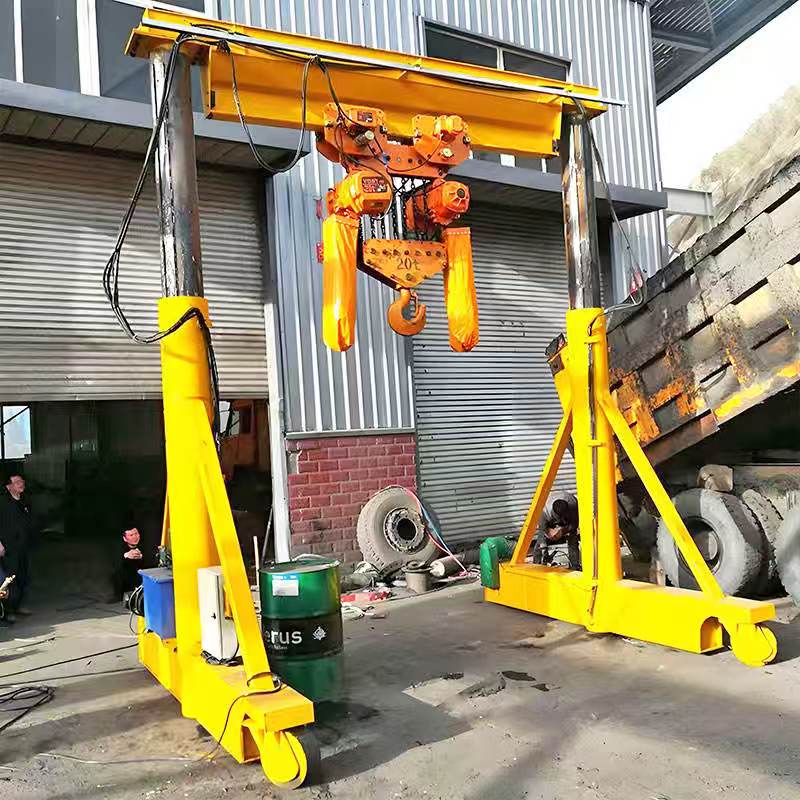

A gantry crane gets its name from its unique “door-frame” steel structure. Unlike an overhead crane that relies on the building’s columns, a gantry system stands on its own legs, straddling the work area. It supports an electric hoist or trolley that travels along the bridge beam.

Core Applications:

• Outdoor Storage: Perfect for steel yards, precast concrete plants, and shipping docks where building a supporting structure is too expensive.
• Indoor Versatility: Used in large assembly halls where the existing building columns cannot support an overhead crane’s load.

Why choose it over other options?

1. Cost-Effective: For long outdoor spans, it is often a cheap gantry crane solution compared to building a new steel structure just to support an overhead crane.
2. High Adaptability: It can be installed virtually anywhere with a solid foundation or rail track.
3. Heavy Capacity: From a small engine gantry crane for mechanics to monsters lifting hundreds of tons, they handle it all.

Key Features & Advantages: Engineering for Durability

When we design a gantry crane bridge, we focus on three things: safety, durability, and control.

1. Robust Steel Structure

Our designs use high-grade Q235/Q345 structural steel. This ensures stability even in harsh weather conditions—like the sandstorms of Saudi Arabia or the humid coasts of Southeast Asia. This reduces downtime caused by structural maintenance.

2. Precision Control (VVVF)

Modern lifting isn’t just about power; it’s about control. We use Variable Frequency Drives (VVVF) to provide smooth starts and stops. This prevents load sway, protecting both the electric hoist gantry crane mechanism and your valuable cargo.

3. Diverse Configurations

We don’t believe in “one size fits all.”

• Cantilever Options: A cantilever gantry crane extends the bridge beyond the legs, allowing you to pick up loads from outside the rail track (great for loading trucks).
• Mobility: Choose from rail-mounted units for fixed paths or rubber-tired gantry cranes for flexible movement across a yard.

Technical Specifications: Knowing Your Numbers

Selecting the right equipment starts with the specs. Here is a general range of what WEIYUAN manufactures:

Specification	Range	Consideration
Capacity (SWL)	5 Ton – 500 Ton	Choose based on your heaviest load.
Span	10m – 50m	Determines the width of your working area.
Lifting Height	6m – 30m	Depends on your stacking requirements.
Duty Class	A5 (Medium) – A8 (Extra Heavy)	Based on frequency of use (ISO Standards).
Power Supply	380V / 50Hz (Customizable)	Matches your local grid.

Note: We also provide specialized drawings showing gantry crane dimensions to help you plan your site layout.

Customization: Tailored to Your Site

Every factory floor is different. That’s why WEIYUAN provides free technical consultation. We don’t just sell you a product; we design a system.

• Structure: Need a floor mounted gantry crane for a workshop or a massive outdoor unit? We adjust the span and height to the millimeter.
• Special Functions: We can integrate anti-sway systems, dual-hoist setups for flipping loads, or even folding gantry crane designs for portable needs.
• Environment: For the Saudi project, we used heat-resistant components. For a chemical plant, we can provide explosion-proof or anti-corrosion protection.

Safety & Compliance: No Compromises

Safety is the first rule of heavy lifting. All our equipment adheres to ISO 9001 quality systems and meets CE certification standards for our European clients.

Standard Safety Features:

• Overload Protection: Automatically cuts power if the load exceeds limits.
• Limit Switches: Prevents the hoist from over-traveling.
• Emergency Stop: Immediate shutdown capability for operator safety.

Case Study: Shipbuilding Efficiency

Project: X Shipyard Heavy Lifting

Challenge: The shipyard needed to move 300-ton hull sections in a high-salt, high-humidity seaside environment.

Solution: WEIYUAN delivered a 300-ton Double Girder Gantry Crane with specialized anti-corrosion marine paint and high-IP rating motors.

Result: The precise VVVF control allowed for millimeter-perfect alignment of hull sections, significantly shortening the ship assembly cycle and boosting the yard’s annual capacity.

Installation & Support

We support you long after the crane leaves our factory.

• Guidance: We provide detailed manuals and video tutorials.
• On-Site: Our engineers can fly to your site (just like we did for the Saudi customer) to guide installation and train your operators.
• Warranty: 1-year warranty with full spare parts support.

FAQ (Frequently Asked Questions)

Q: Do you offer a gantry crane for sale Alberta?

A: Yes, WEIYUAN exports globally. Whether you are in Alberta, Canada, or searching for gantry crane en español for a project in Mexico, we handle the logistics to your nearest port.

Q: Can I build a DIY gantry crane wood?

A: For very light loads in a home garage, maybe. But for industrial use, NEVER. Wood cannot handle the dynamic stresses. Always trust a professional gantry crane company for certified, safe lifting equipment.

Q: How do I get a quote?

A: Simply contact us via our website. Provide the Capacity, Span, Lifting Height, and Material to be lifted. If you have a specific gantry crane image or drawing, that helps even more!

Q: Can you verify gantry crane manufacturer credentials?

A: Absolutely. We welcome you to visit our factory in China. We will pick you up from the airport and show you our production line firsthand.
