Moving heavy loads in an open yard or a large facility without structural columns often presents a unique engineering challenge. You need power, stability, and reach, but you don’t always have the overhead infrastructure to support a traditional bridge crane. This is where the gantry crane proves its immense value.

Whether you manage a busy shipyard, a rail freight terminal, or a manufacturing plant requiring flexible outdoor lifting, understanding the capabilities of these cranes is the first step toward optimizing your operations.

What is a Gantry Crane?

At its core, a gantry crane is defined by its distinctive door-frame structure. Unlike overhead cranes that rely on the building’s walls or columns for support, a gantry system stands on its own legs, which move along floor-mounted rails or on tires.

This self-supporting design makes them the ideal solution for outdoor environments or large indoor spaces where installing overhead runways would be impractical or too costly. From lifting 1-ton loads in a small workshop to moving massive 500-ton ship sections, these cranes are the workhorses of heavy industry.

Why Choose a Rail Mounted or Mobile Gantry Crane?

For facility managers and engineers, the decision often comes down to adaptability and cost-efficiency.

1. Unmatched Flexibility

One of the primary benefits is versatility. A mobile gantry crane (often rubber-tired) allows you to move freely around a site without being tethered to a fixed path. This is crucial for operations that change layouts frequently or need to service multiple bays. Conversely, rail-mounted options offer precision and high capacity for fixed workflows.

2. Cost-Effective Infrastructure

Building a new facility or reinforcing an existing roof to support a heavy overhead crane is expensive. Because a gantry crane supports its own weight, you eliminate the need for costly building modifications. For outdoor applications, they are often the only viable choice, as constructing a steel structure just to hold a crane is rarely economical.

3. High Load Capacity

Don’t let the standalone structure fool you. These machines are engineered for extreme performance. Heavy-duty models are essential in sectors like shipbuilding, where they handle massive steel blocks with ease. At WEIYUAN, we design systems capable of handling loads ranging from 5 tons up to 500 tons, ensuring even the heaviest industrial tasks are managed safely.

Key Types of Gantry Cranes

Understanding the variations helps you select the right equipment for your specific environment.

Rail Mounted Gantry Cranes (RMG)

Commonly found in rail yards and container terminals, these giants run on fixed tracks. They are perfect for consistent, repetitive lifting paths. Their rigid structure offers excellent stability, making them suitable for high lifting heights and wide spans.

Rubber Tyred Gantry Cranes (RTG)

When mobility is key, the RTG shines. Used heavily in ports as a container gantry crane, they can navigate aisles and turn corners. This flexibility allows operators to maximize yard space by stacking containers higher and denser than with forklifts.

Adjustable and Portable Gantries

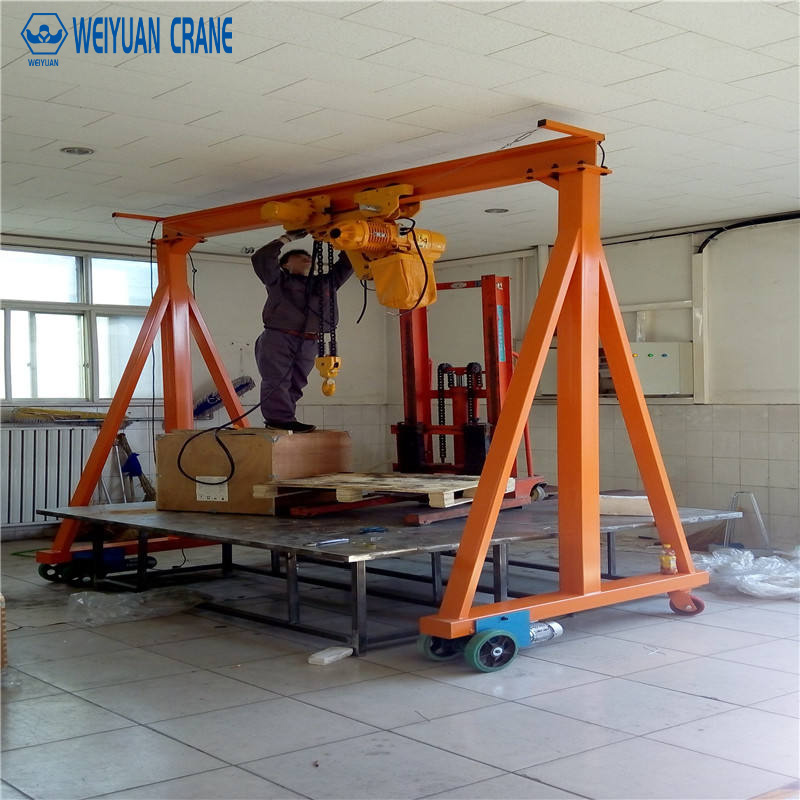

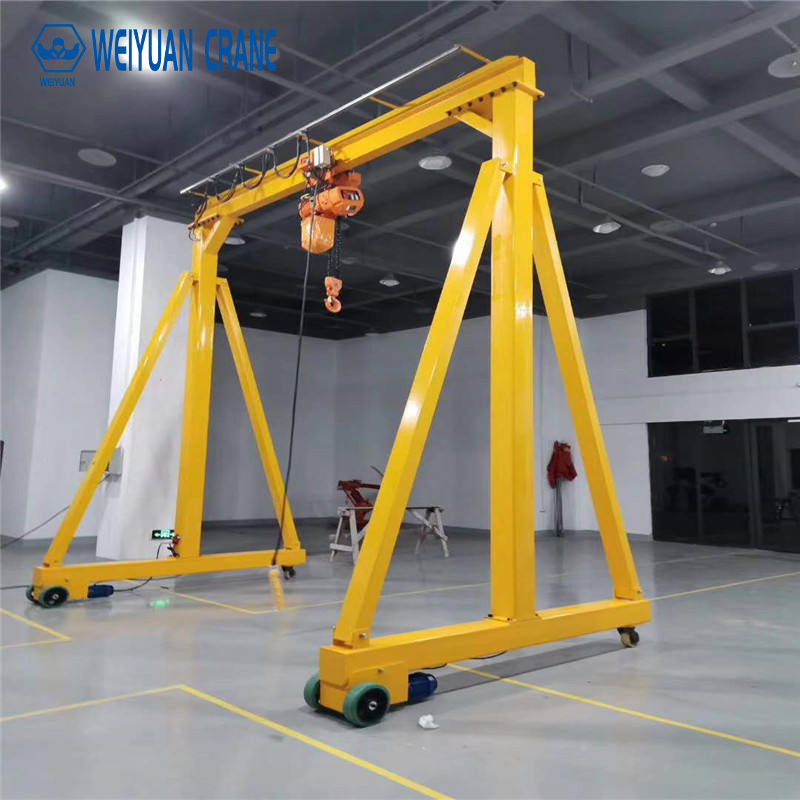

For smaller workshops or maintenance tasks, an adjustable gantry crane—often made of aluminum—provides a lightweight solution. These can be assembled quickly by a small team and adjusted for height and width, making them perfect for HVAC repair, engine pulling, or moving equipment in tight spaces.

Applications Across Industries

The adaptability of these cranes sees them deployed in diverse sectors:

• Shipyards and Ports: This is the natural habitat for heavy-duty gantry systems. They are critical for assembling ship hulls and loading cargo.
• Construction and Precast: Moving concrete beams and steel structures requires the stability that only a gantry system can provide.
• Manufacturing: From steel mills to automotive assembly, they facilitate the movement of raw materials and finished goods.
• Logistics: Efficiently transferring goods between trains and trucks relies heavily on reliable crane operations.

Customization: Tailoring the Crane to the Job

Off-the-shelf solutions rarely fit complex industrial needs perfectly. Customization is where safety meets efficiency.

Professional manufacturers like WEIYUAN offer comprehensive design services to match the equipment to your reality. Customization options often include:

• Span and Height: Tailored to fit your specific yard width or clearance requirements.
• Environment Protection: For coastal areas or shipyards, “weather-resistant” isn’t just a buzzword; it’s a necessity. We apply specialized anti-corrosion coatings and use high-protection class motors to withstand salt, humidity, and wind.
• Control Systems: Modern cranes can be equipped with Variable Frequency Drives (VFD) for smooth, precise movements, or even remote monitoring systems to predict maintenance needs.

Safety and Maintenance Essentials

Operating heavy machinery requires strict adherence to safety protocols. A well-maintained crane is a safe crane.

• Regular Inspections: Routine checks of the hoist, wire ropes, and electrical systems prevent accidents.
• Operator Training: Ensure all operators are certified and understand the specific load charts of the equipment.
• Weather Precautions: For outdoor units, wind locks and storm anchors are vital to prevent the crane from moving unintentionally during high winds.

At WEIYUAN, we integrate advanced safety features into every design, including overload limiters, emergency stop systems, and collision avoidance devices. Our installation teams also provide on-site training to ensure your staff operates the equipment confidently.

Conclusion

Investing in the right lifting equipment is a strategic decision that impacts your facility’s throughput and safety for decades. Whether you need a massive shipyard crane or a versatile mobile gantry crane, prioritizing quality manufacturing and expert design is essential.

By choosing a partner who understands both the engineering challenges and the operational realities, you ensure your project lifts off successfully.

Ready to discuss your lifting requirements? Contact us today for a consultation on custom gantry solutions tailored to your industry.
