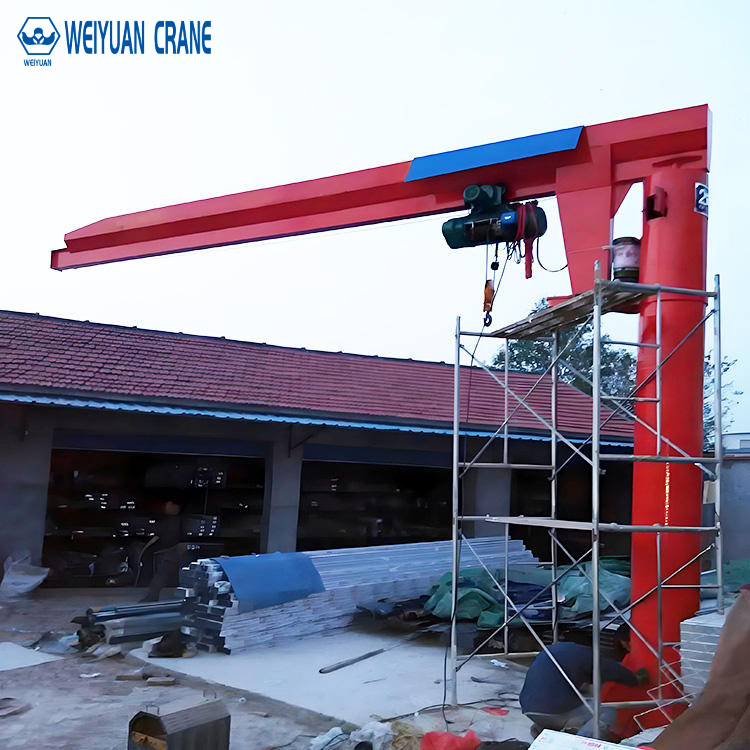

In modern industrial production, the ability to handle localized lifting tasks with high speed and absolute accuracy is a vital component of a successful workflow. WEIYUAN is proud to showcase our latest delivery: a heavy-duty jib crane integrated with the advanced Q5 electric hoist. This combination represents the pinnacle of workstation efficiency, designed to solve the most demanding material handling challenges in factories, shipyards, and logistics hubs.

As a professional manufacturer integrating design, production, sales, and installation, WEIYUAN provides more than just equipment. We deliver a blueprint for optimized workshop space utilization. By implementing a dedicated jib crane, facilities can reduce wait times for the main overhead crane and improve overall material handling efficiency by over 20%, ensuring that large-dimension goods are moved with safety and precision.

Elevating Localized Productivity: Product Description

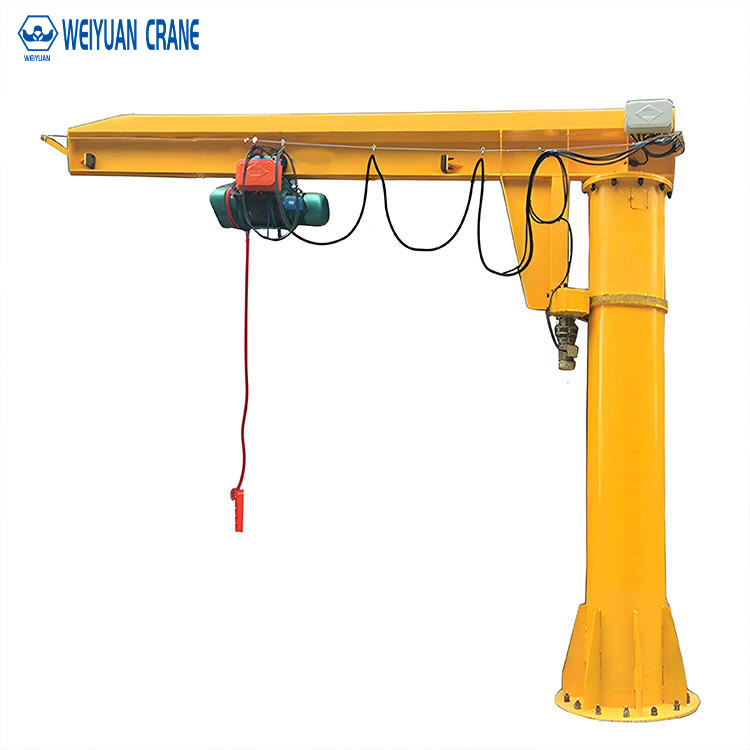

The swing jib crane (often referred to as a jib pole crane) is a versatile lifting solution featuring a horizontal arm (jib) that rotates around a fixed pillar or wall mount. The addition of the Q5 series hoist elevates this system to a professional grade, providing powerful vertical lifting and horizontal transport within a circular or semi-circular work zone.

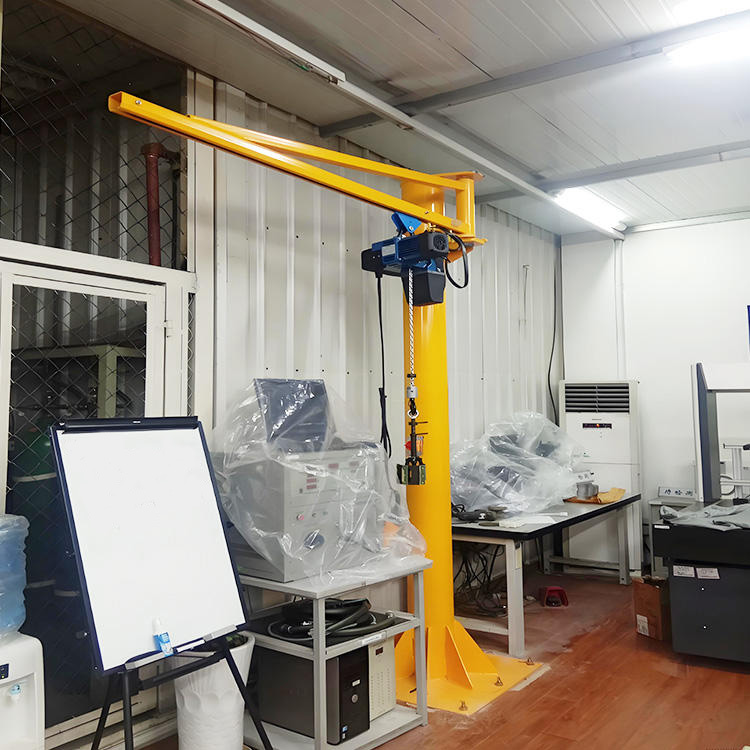

Unlike a broad-reaching overhead crane, a floor mount jib crane is the dedicated “assistant” for individual work cells. It is ideal for loading workpieces into CNC centers, moving heavy engine components in automotive plants, or handling materials in busy shipping docks. Whether you need a jib crane 2 ton for a workshop or a floor jib crane for an assembly line, the Q5 hoist integration ensures a smooth, stable, and ergonomic operation that dramatically reduces worker fatigue.

Key Features and Advantages

Our systems are engineered to stand out in the global jib crane sales market by focusing on durability and operator control.

• ⚡ Q5 Hoist Technology: The heart of this system is the Q5 hoist, offering superior lifting speeds and advanced variable frequency drives (VFD) for “zero-swing” load positioning.
• 🛡️ Structural Integrity: Built using high-tensile structural steel, our custom jib cranes are designed to handle heavy duty cycles (A4/A5) with minimal deflection.
• 🎮 Smart Rotation Control: Featuring high-precision bearings, the swing arm moves with minimal effort, allowing for manual or motorized 180° to 360° rotation.
• 🏗️ Versatile Base Design: The floor mount jib crane utilizes a heavy-duty base plate and high-strength anchor bolts, ensuring stability without the need for additional structural support from the building.
• ⚙️ Low Maintenance: Every component is designed for longevity, making jib crane maintenance simple and cost-effective.

Technical Specifications

The WEIYUAN range of jib and crane solutions covers a wide array of technical needs, tailored to the European, Asian, and African industrial grids.

Specification	Details
Lifting Capacity	0.25 Ton to 5 Tons (Standard), Custom up to 10 Tons
Arm Length (Reach)	2 Meters to 10 Meters (Customizable)
Rotation Angle	180°, 270°, or 360°
Power Supply	220V – 480V, 50-60Hz, 3-Phase AC
Hoist Model	High-Performance Q5 Electric Chain or Wire Rope Hoist
Duty Class	ISO M5 / M6 (A4/A5)

Free Design and Customization Options

WEIYUAN understands that every facility layout is unique. We provide free factory structure analysis and layout optimization design to ensure your equipment fits your specific workflow.

Our customization options include:

• Tailored Dimensions: Precision adjustment of the pillar height and jib arm length to clear existing obstructions.
• Color and Branding: Personalized paint finishes and company logo placement.
• Specialized Attachments: Integration of load cells, safety lighting, or specialized spreaders for different material types.
• Special Applications: We can engineer a jib crane for tractor loading or specialized marine finishes for coastal port operations.

Global Application Fields

Our jib crane systems are the trusted choice for various high-intensity sectors:

• Manufacturing: Precise positioning for engine assembly and mold loading.
• Logistics & Warehousing: Rapid palletizing and container handling in distribution hubs.
• Shipbuilding & Ports: Heavy component lifting in seaside environments.
• Heavy Machinery: Localized assembly of large structural parts.

Safety, Compliance, and Longevity

Safety is the cornerstone of WEIYUAN’s engineering philosophy. Our products strictly comply with international standards, including CE and ISO certifications.

• Weight Limiters: Automatically cuts lifting power if the load exceeds the rated jib crane specifications.
• Limit Switches: Prevents over-travel of the hoist and prevents the jib arm from swinging into walls or machinery.
• Operator Education: We emphasize the importance of jib crane training to ensure all operators handle equipment safely.
• Reliable Support: If you ever require jib crane repair ny or jib crane service nj style technical assistance, our global parts network ensures immediate support.

Case Study: Efficiency in Machine Tooling

The Project: A high-end tool manufacturing plant.

The Challenge: Operators were frequently waiting for the facility’s main bridge crane to load 500kg steel blocks, causing 15 minutes of idle time per hour.

The Solution: WEIYUAN delivered and installed 6 units of our floor mount jib crane with Q5 hoists.

The Result: Idle time was completely eliminated. The plant achieved a 25% increase in throughput. The client noted that the jib crane cost was fully recovered within the first six months due to the massive productivity gains.

Installation, Support, and Training

We support your facility from installation through the entire lifecycle. WEIYUAN provides:

• Technical Guidance: Detailed installation manuals and video tutorials for remote guidance.
• On-Site Teams: Professional technical teams are available to assist with on-site installation and testing.
• Maintenance & Repair: We provide comprehensive guides for jib crane maintenance and ship original spare parts globally for any jib crane repair needs.

Pricing and Quotation

Because our products range from standard workshop units to custom jib cranes, the jib cranes prices are determined by your specific technical requirements.

• How to Quote: Contact us with your required capacity, arm length, and lifting height.
• Response: Our engineers will provide a technical drawing and a personalized proposal within 24 hours.

Optimized Delivery Cycle

• Standard Models: Typically available for shipping within 3 to 5 working days.
• Customized Models: Depending on complexity, delivery is usually between 2 and 4 weeks.

FAQ: Frequently Asked Questions

Q1: What is the difference between a floor jib crane and a wall-mounted one?

A floor-mounted unit offers up to 360-degree rotation and can be placed anywhere in the open workshop, whereas wall-mounted units are restricted to 180 degrees and depend on the strength of your building’s columns.

Q2: How do I handle jib crane repair ny or nj area service?

WEIYUAN provides 24/7 remote technical support. We can guide your local team or recommend certified service partners in your region to ensure your equipment stays compliant with safety standards.

Q3: Is the Q5 hoist better than manual lifting?

Absolutely. The Q5 electric hoist provides consistent power, removes physical strain from the operator, and ensures the safety of the load through controlled, stepless speed regulation.
