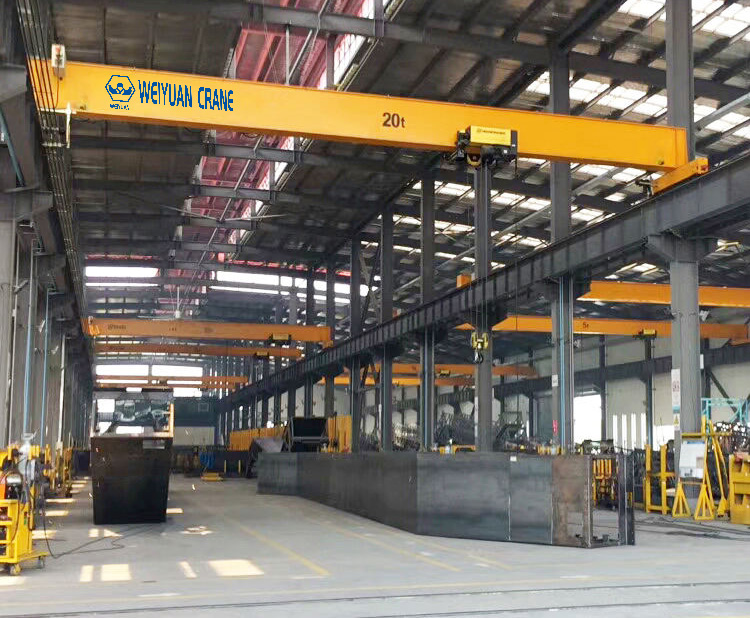

An overhead crane is an essential piece of heavy machinery, the indispensable backbone of modern material handling in virtually every heavy industrial setting. More formally known as an overhead bridge crane or Electric Overhead Travelling (EOT) crane, this equipment is specifically designed for the core function of vertical lifting and precise horizontal transport of heavy or large-sized goods within a defined work area, such as a factory, warehouse, shipyard, or steel plant.

Choosing and implementing the right overhead crane system is a strategic operational decision. Its primary value proposition lies in optimizing workshop space utilization while boosting material handling efficiency by over 20%. By keeping floor space clear and facilitating the accurate movement of items like automotive moulds, steel coils, or heavy machinery components, the crane system guarantees both precision and safety in critical manufacturing processes.

This comprehensive guide explores the structural components, technical superiority, safety protocols, and customization options that define modern overhead crane systems.

1. Structure, Design, and Superior Operating Performance

The power and efficiency of an overhead crane come from its expertly engineered structure and sophisticated control systems.

Modern crane design prioritizes durability, efficiency, and minimal impact on the facility structure:

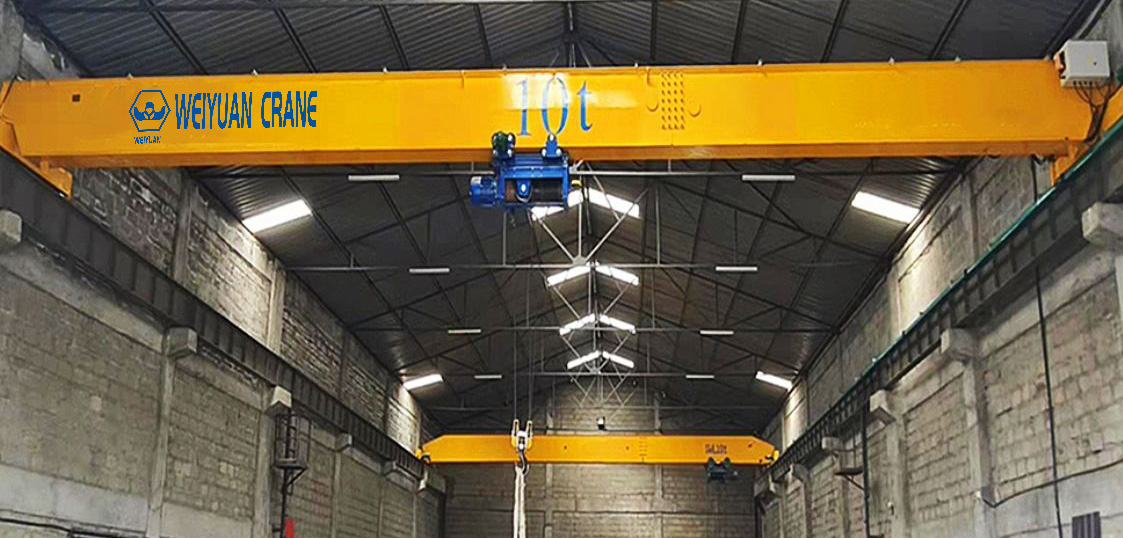

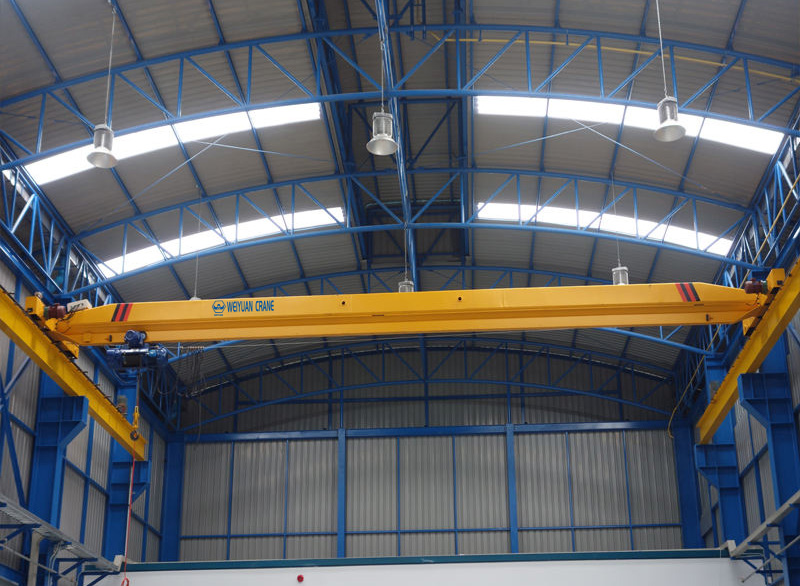

• Structure: Cranes utilize optimized box-type main beams or I-beam girders. This structural design results in a light self-weight and reduced wheel pressure, maximizing space utilization within the building.
• Drive System: The stability and precision of the crane rely on a high-performance drive system, typically a three-in-one reducer which includes a hard-tooth surface gear reducer and a variable-frequency braking motor. This assembly ensures smooth operation and high positioning accuracy.
• Control Technology: Variable Frequency Drive (VFD) control provides stepless speed regulation, which significantly enhances operational efficiency and minimizes mechanical shock on the components, contributing to the system’s longevity.
• Durability Rating: These systems are built for endurance, with a standard working classification (A-class) often reaching A4 or A5, confirming their suitability for medium-to-heavy duty applications.

2. Comprehensive Technical Specifications and Capabilities

The versatility of an overhead crane allows it to be customized for almost any industrial requirement, from small maintenance shops to major manufacturing lines.

Our standard range of overhead crane systems covers most industrial lifting needs, with exceptional capability for custom engineering:

• Standard Capacity: Ranges from 1 ton to 80 tons (standard models).
• Maximum Capacity: Can be customized to handle loads up to 400 tons.
• Standard Span: Ranges from 7.5 meters to 34 meters.
• Lifting Height: Standard range is 6 meters to 50 meters, with specialized heights available upon request.
• Power: Operates on standard three-phase AC industrial power (380V / 400V / 415V, 50-60Hz).
• Control Modes: Operators can select between ground pendant control, wireless remote control, or driver cabin operation.

3. Customization, Application, and Engineering Expertise

Selecting the correct overhead crane solution requires expert analysis of a facility’s unique operating environment. This is where comprehensive manufacturer support becomes invaluable.

WEIYUAN, as a professional manufacturer integrating design, production, sales, and installation, is committed to delivering tailored solutions. We offer complimentary factory structure analysis and crane layout optimization design to perfectly match the system to your facility.

• Customization Options: Our engineering capabilities extend to non-standard capacity, ultra-long spans, unique lifting height requirements, and crucial environmental features like anti-corrosion or explosion-proof design. We also offer dual-trolley configurations and inspection platforms.
• Specialized Lifting: For specific material handling challenges, the crane can be outfitted with special attachments such as grabs or electromagnetic chucks, ensuring 100% suitability for demanding jobs.
• Application Versatility: These robust systems are widely applied across sectors including mechanical manufacturing, steel and metallurgy, mould processing, power generation, and logistics and warehousing centers. They are also used in railway freight yards.

4. Safety, Compliance, and Operational Assurance

Safety is the absolute priority for all overhead lifting equipment. Every quality overhead crane system must meet strict regulatory standards to protect personnel and assets.

All our cranes comply with national and industry safety standards, including stringent regulations such as TSG Q0002-2008.

• Overload Protection: A crucial safety component is the mandatory weight limiter, which automatically cuts off the lifting power if the load exceeds the system’s rated capacity.
• Safety Components: The equipment is comprehensively outfitted with limit switches, an emergency stop switch, a reliable braking system, and a main power cut-off device.
• Operator Safety: For suspended control devices, the control circuit voltage is strictly regulated and must not exceed the 50V safety voltage limit.

Here is a technical snapshot of the standard model range:

Specification	Standard Range	Customization Note
Standard Capacity	1 ton to 80 tons	Maximum customizable up to 400 tons
Span Length	7.5 meters to 34 meters	Non-standard available
Lifting Height	6 meters to 50 meters	Customized upon request
Control Voltage	50v (Suspension control)	Safety standard
Rated Power Supply	380V / 400V / 415V, 50-60Hz, 3-Phase AC	Standard industrial voltage

Operational excellence is supported by reliable installation and aftermarket service.

• Case Study: A notable project involved the deployment of five 10-ton double-girder bridge cranes in a large automotive parts manufacturing factory’s assembly workshop. This integration resulted in an 8% reduction in production line cycle time. Crucially, the cranes have logged over 8,000 hours of safe operation with zero recorded safety accidents.
• Comprehensive Support: We provide full installation and technical support, including detailed manuals, video tutorials, and online guidance for the installation team. Professional teams can also provide on-site technical support for installation and training. All equipment comes with a one-year warranty covering repair and replacement of specified parts.

5. Getting Started: Quotation and Logistics

Understanding the logistics of purchasing and deployment is the final step in securing your overhead crane solution.

• Quotation: Prices for our chain hoist products are dependent on specifications and customization details. You can obtain a tailored quotation by submitting an online demand form or by contacting our customer service hotline for a personalized solution.
• Delivery: Standard models are generally in stock and can be shipped within 3-5 working days. Customized models require a lead time of 2-4 weeks, depending on the complexity of the design and engineering.

Frequently Asked Questions (FAQ)

1. What details should I provide for an inquiry?The more details or drawings you provide, the better. Key information includes: A: Lifting capacity; B: Crane span; C: Lifting height/hook travel; D: Material being lifted; and E: Power source or any special operating requirements.
2. Can the equipment operate in hazardous environments?Yes, absolutely. We can custom-engineer the system with anti-acid or explosion-proof designs to ensure safe operation in dangerous or corrosive environments.
3. What is the warranty period?The warranty period is 12 months, provided the crane is used within standard operational limits.
4. How is installation handled?Our senior engineers can travel to the site to provide installation guidance and training services.
5. Can I visit your factory?Yes, you can. We are happy to pick you up at the train station, high-speed rail station, or airport and assist with hotel reservations.

Would you like to schedule a free factory structure analysis or receive a preliminary quotation for an overhead bridge crane customized to your facility’s needs?
