When planning a workshop layout, the jib crane is often the go-to solution for workstation-level lifting. However, like any industrial tool, it is not a “one size fits all” machine. Understanding the potential limitations—or the disadvantages of a jib crane—is the first step toward making a smart investment. Common concerns include limited coverage area compared to overhead bridges and the significant structural stress placed on floor foundations or building columns.

At WEIYUAN, we don’t just manufacture hardware; we provide engineering solutions. As a professional manufacturer integrating production, sales, design, and installation, we specialize in mitigating these disadvantages through custom jib crane designs. By selecting the right type of hoist and arm configuration, we help facilities improve their material handling efficiency by over 20% while ensuring maximum safety.

Product Description: Solving the Challenges of Localized Lifting

The primary purpose of a jib crane is to provide dedicated lifting power within a specific work cell. While a bridge crane moves across the entire bay, the jib crane focuses on repetitive tasks like loading a CNC machine or assembling heavy parts.

Overcoming the Disadvantages

The most cited disadvantage is the “dead zone” directly around the pillar or the limited reach of a fixed jib crane. We solve this by offering different types of jib cranes, such as cantilever jib cranes that maximize clear head room, or articulating jib cranes that can reach around corners and obstacles. For facilities where floor space is at a premium, a ceiling mounted jib crane or a fully electric wall running jib crane keeps the floor completely clear for forklift traffic and workers.

Key Features and Advantages of WEIYUAN Systems

• ⚡ Precision Lifting: We integrate high-performance electric jib crane hoist units that offer stepless speed regulation, minimizing load sway.

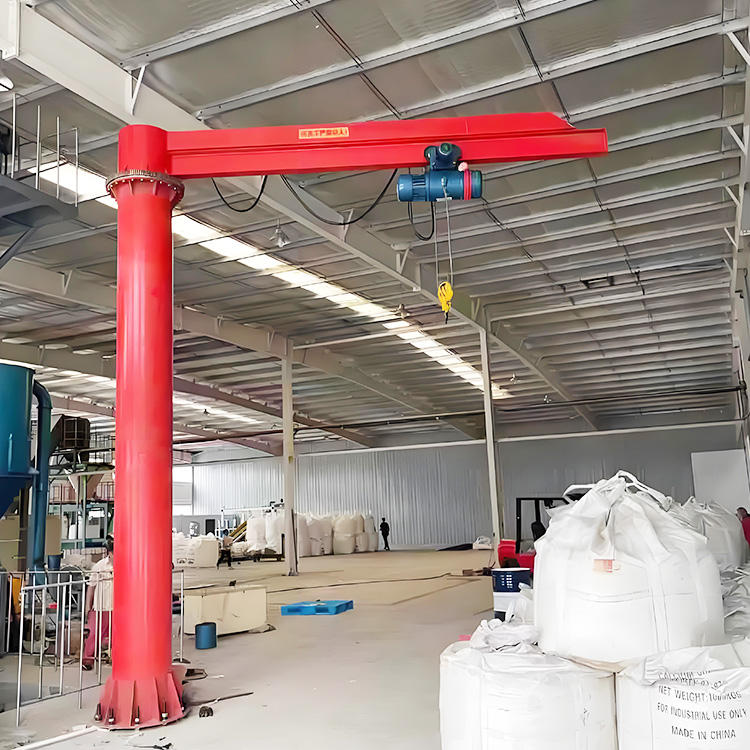

• 🛡️ Structural Innovation: To address foundation concerns, we offer foundationless jib cranes and free standing jib cranes that can be bolted directly to existing 6-inch reinforced concrete floors in many scenarios.

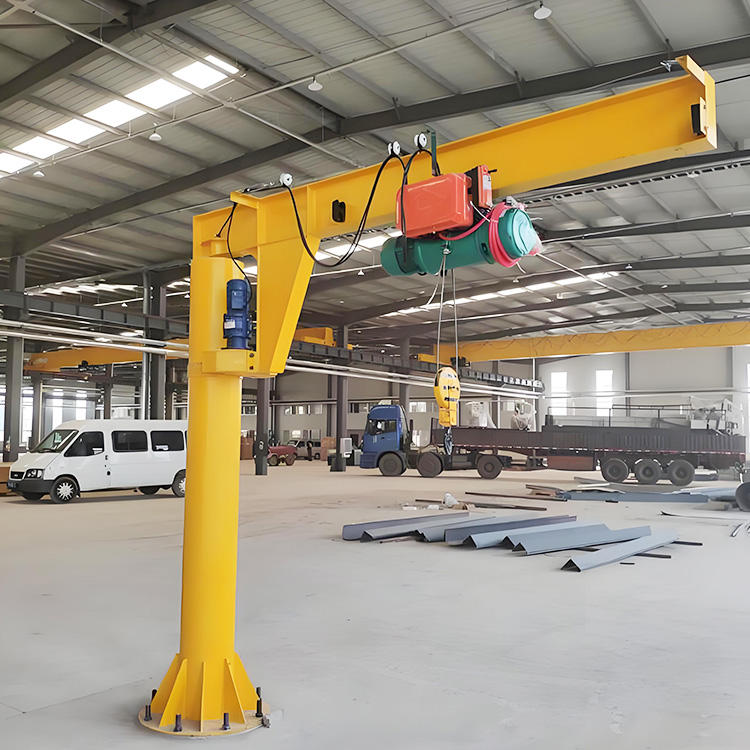

• 🎮 Effortless Rotation: Our electric jib cranes feature motorized rotation options, reducing the physical strain on operators when moving 3 ton jib crane loads or higher.
• ⚙️ Compact Power: For tight spaces, our compact jib crane designs provide maximum lift in the smallest possible footprint.

Technical Specifications for Global Markets

Our engineering team ensures that every hoist and jib crane combination complies with the local power grids of Europe, Asia, and Africa.

Feature	Standard Range	Specialized Options
Lifting Capacity	0.25 Ton to 5 Tons	Custom designs up to 10 Tons
Arm Type	I-Beam / Box / Pipe	Cantilever jib cranes for high lift
Rotation	180°, 270°, or 360°	Manual or Motorized
Mounting	Floor / Wall / Ceiling	Hitch mounted jib crane for vehicles
Power Supply	220V – 480V, 50-60Hz	3-Phase AC (Customized)
Working Duty	ISO M5 / M6	Industrial Heavy-Duty

Personalized Customization and Design Services

One of the biggest advantages of working with WEIYUAN is our free design and factory structure analysis. If your building cannot support a standard crane, we don’t just walk away—we innovate.

• Flexible Mounting: We can provide a ceiling mounted jib crane to save floor space or freestanding jib cranes that don’t require building column support.
• Specialized Reach: We offer forklift telescoping jib boom crane attachments and forklift crane jib attachments to turn your existing fleet into mobile lifting units.
• Aesthetics and Branding: Custom colors, specialized coatings, and company logo placement are standard options.

Global Application Fields: Where Efficiency Matters

Our jib crane solutions are currently optimizing workflows in various sectors:

• Manufacturing & Steel: Repetitive assembly tasks and mold loading.
• Shipyards & Ports: Handling specialized marine components with fixed jib crane stations.
• Logistics & Warehousing: Using compact jib crane units for rapid sorting and palletizing.
• Utilities & Service: Utilizing hitch mounted jib crane setups for field maintenance.

Safety, Compliance, and Longevity

Safety is the baseline for all WEIYUAN engineering. Every system we produce adheres to international standards like CE and ISO.

• Load Monitoring: Integrated sensors prevent lifting beyond the rated capacity of the electric jib crane hoist.
• Stability Testing: Every free standing jib cranes design undergoes rigorous stress analysis to ensure the foundation remains secure.
• Operational Guidance: We emphasize following the gorbel jib crane manual style best practices for maintenance and daily inspections to prevent jib crane accidents.

Case Study: Optimizing a Crowded Assembly Line

The Project: A heavy machinery assembly plant.

The Challenge: The facility had low ceilings and crowded floor space, making standard freestanding jib cranes difficult to install.

The Solution: WEIYUAN designed and installed a series of ceiling mounted jib cranes with electric jib crane hoist units.

Result: The plant reclaimed 15% of its floor space. Loading times were reduced by 30% as operators had dedicated lifting power at every station. The client noted that the “disadvantage” of space was completely solved by the custom ceiling-mount design.

Installation, Training, and Support

We ensure your equipment is safe and your team is ready. WEIYUAN provides:

• Technical Guidance: Detailed manuals and 3D video tutorials for remote installation.
• On-Site Teams: Our professional technical teams are available for on-site installation, testing, and operator training.
• Lifelong Service: We offer a one-year warranty and global shipping for all replacement parts.

Pricing and Quotation

Because our products range from compact jib crane units to fully electric wall running jib cranes, pricing is tailored to your specific technical needs.

• How to Quote: Contact us with your required capacity, reach, and building height.
• Fast Response: Our engineers will provide a technical drawing and a personalized quote within 24 hours.

Optimized Delivery Cycle

• Standard Models: Typically ready for shipment within 3 to 5 working days.
• Customized Models: Depending on design complexity, delivery is usually between 2 and 4 weeks.

FAQ: Frequently Asked Questions

Q1: Is the coverage area of a jib crane too small?

While a jib crane has a circular coverage area, WEIYUAN can mitigate this by using an articulating arm or a wall-traveling design that moves along a rail to cover a much longer workstation.

Q2: Can I install a jib crane without a massive foundation?

Yes. Our foundationless jib cranes can often be mounted to standard industrial concrete floors using high-strength chemical anchors, provided the concrete meets our minimum thickness requirements.

Q3: Can I rent a camera jib?

We focus on industrial material handling. If you are looking for camera jib crane rental or a diy camera jib crane for filming, we recommend specialized professional cinema equipment providers. Our focus is on heavy-duty industrial electric jib cranes.
