1. Product Description: Defining the Jib Crane Solution

A jib crane is a vital piece of material handling equipment designed to assist with the transfer of goods within a localized area. Unlike large overhead bridge cranes that span entire bays, a jib crane provides dedicated lifting support for a specific workstation or manufacturing cell. The core concept revolves around a horizontal beam (the “jib” or “boom”) that supports a moveable hoist. This beam is fixed to a wall or a floor-mounted pillar, allowing for rotation and precise load positioning.

The question “what is a crane jib” refers specifically to this horizontal arm that does the heavy lifting work. In modern industry, these systems are indispensable for reducing the wait times associated with overhead cranes and reducing worker fatigue. WEIYUAN specializes in engineering these systems to act as the ultimate shop jib crane, providing high-efficiency lifting solutions for shipyards, assembly lines, and heavy machinery maintenance. Whether you require a robust floor mount jib crane for heavy casting or a telescoping jib crane for variable reach, understanding the three primary classifications is the first step toward optimizing your facility.

The Three Main Types of Jib Cranes

To select the right equipment, you must distinguish between the three fundamental designs:

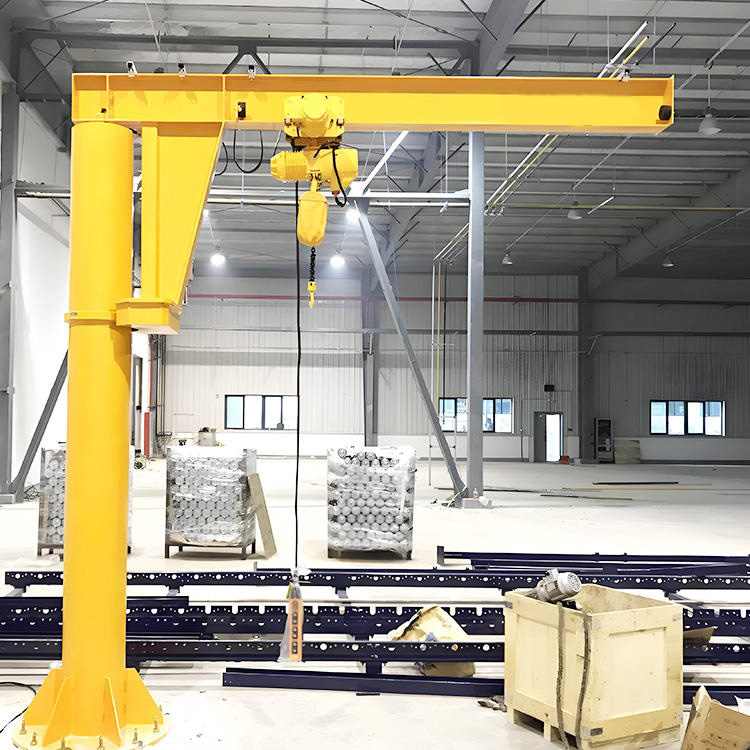

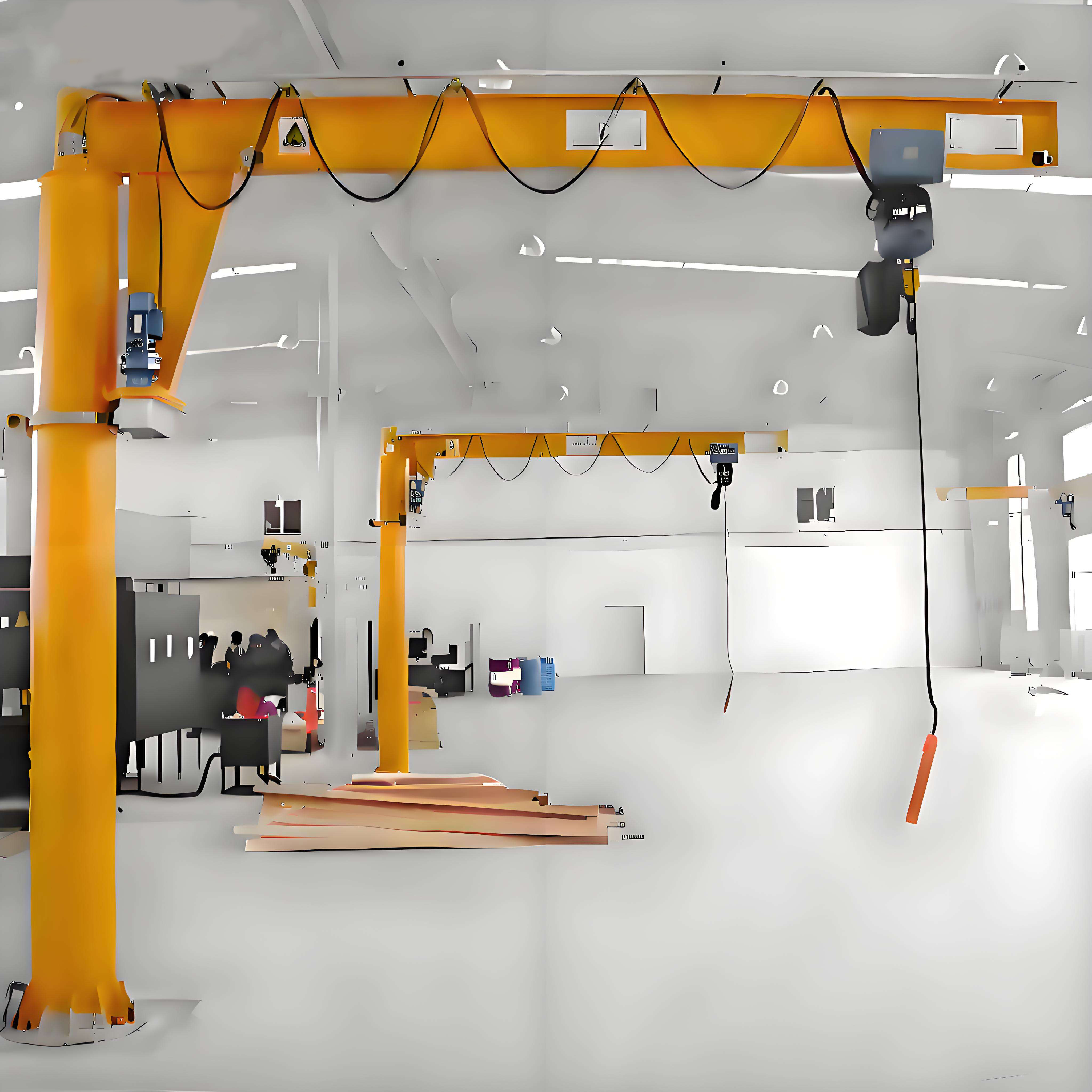

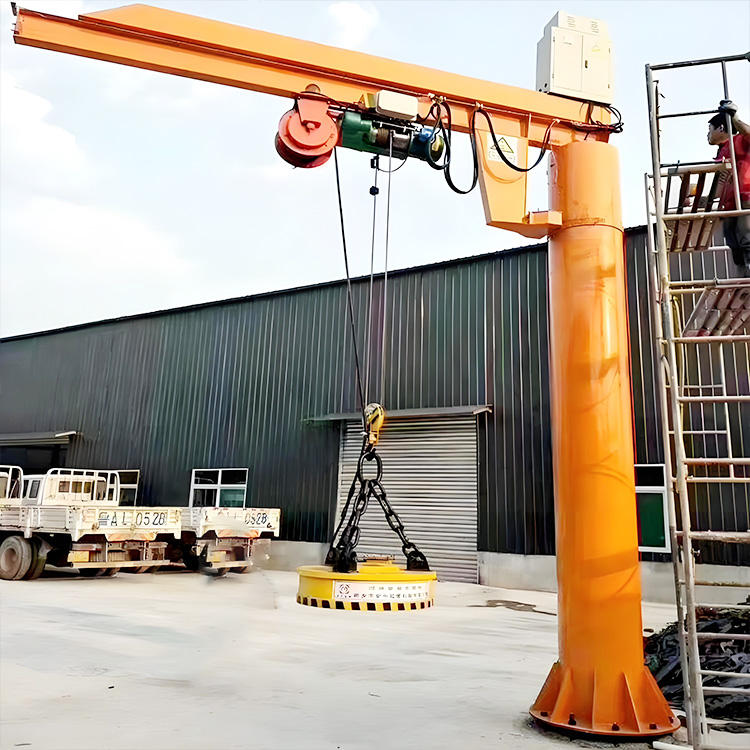

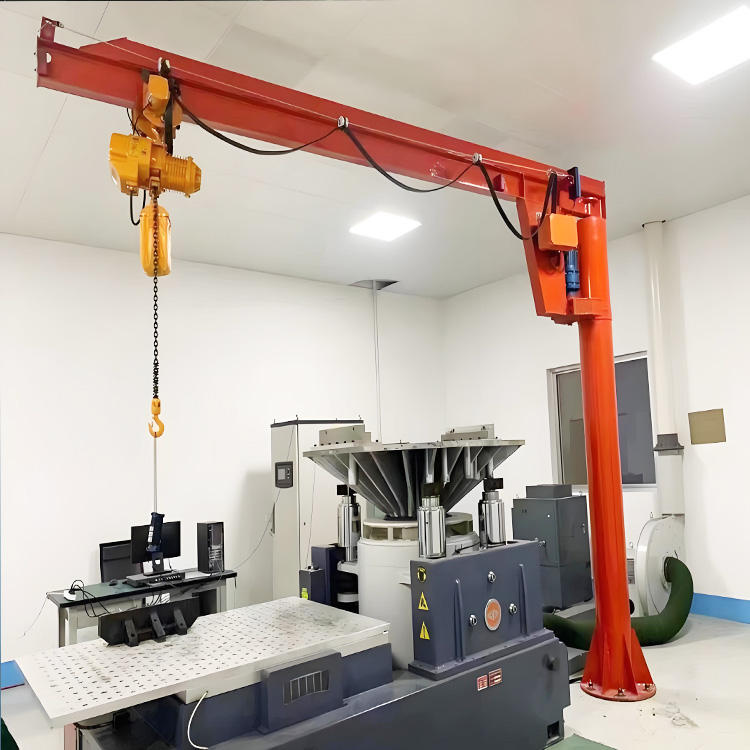

1. Free-Standing (Pillar) Jib Cranes: These are the most versatile, mounted on a solid concrete foundation, offering 360-degree rotation.
2. Wall-Mounted (Cantilever) Jib Cranes: These attach to existing building columns, offering 180-200 degrees of rotation without taking up floor space.
3. Wall-Traveling Jib Cranes: These run along a rail system on the wall, providing longitudinal movement along the entire length of a building bay.

2. Features and Advantages: Engineering for Efficiency

The primary advantage of a jib crane is its ability to increase productivity by creating independent lifting zones. Our cranes are manufactured using high-grade Q235B or Q345B structural steel, ensuring rigidity and minimizing deflection even under maximum load.

Key Performance Indicators

• Localized Efficiency: By installing a 1 2 ton jib crane or a jib crane 1 ton unit at a workstation, you eliminate the need for workers to wait for the main plant crane. This can improve individual worker output by up to 50%.
• Space Optimization: Designs like the cantilever jib crane utilize vertical space effectively, leaving the production floor clear for forklifts and personnel.
• Versatile Rotation: From the full 360-degree coverage of a pillar jib crane to the targeted reach of a bayonet jib crane, we provide the exact range of motion required for your specific tasks.
• Durability: We use specialized coatings and materials suitable for harsh environments, such as marine applications where a boat jib crane might be exposed to saltwater, or dusty foundry settings.

3. Technical Specifications

Understanding the technical parameters is crucial for ensuring the jib crane installation meets your operational requirements. Below are the specifications for our standard industrial ranges.

Specification Item	Free-Standing (Pillar)	Wall-Mounted (Cantilever)	Wall-Traveling
Capacity (SWL)	0.25 Ton to 5 ton jib crane (Custom up to 20T)	0.25 Ton to 5 Ton	0.5 Ton to 5 Ton
Span (Arm Length)	2m to 12m	2m to 8m	2m to 10m
Lifting Height	2m to 8m (Customizable)	Depends on building column height	Depends on rail height
Rotation	360Continuous	180 /200	Linear Travel along Bay
Operation Mode	Manual / Motorized	Manual / Motorized	Motorized Travel
Power Supply	220V – 480V, 3-Phase	220V – 480V, 3-Phase	220V – 480V, 3-Phase
Material	High-Strength Alloy Steel	Structural Steel	Structural Steel
Hoisting Mechanism	Electric Chain / Wire Rope	Electric Chain / Wire Rope	Electric Chain / Wire Rope

4. Customization Options: WEIYUAN Personalized Solutions

At WEIYUAN, we understand that a one-size-fits-all approach rarely works in complex industrial environments. We provide comprehensive free design and personalized customization services to meet exact client needs.

• Specialized Designs: Beyond standard models, we engineer complex solutions like the bayonet jib crane fly jib for reaching over obstructions or into machinery.
• Portability: For clients needing flexibility, we can design a what is a portable jib crane solution, often mounted on a heavy baseplate that can be moved via forklift (forklift jib crane attachment style).
• Control Customization: We offer wireless remote controls, specialized pendant stations, and variable frequency drives (VFD) for precision handling of delicate loads.
• Aesthetic and Environment: Custom paint colors for safety or branding, and anti-corrosion treatments for outdoor or chemical plant usage.

5. Application Fields

The adaptability of the jib crane allows it to serve a vast array of industries across Europe, Asia, and Africa.

• Manufacturing & Assembly: Used extensively as a shop jib crane for lifting heavy parts onto CNC machines, lathes, and workbenches.
• Logistics & Warehousing: Facilitates the loading and unloading of trucks and containers at dock doors.
• Marine & Ports: A boat jib crane is essential for lifting tenders, supplies, and equipment on docks and marinas.
• Agriculture & Heavy Repair: A jib crane for tractor maintenance allows mechanics to safely lift engines and transmissions in repair shops.
• Construction: Specialized units like the luffing jib tower crane hire sectors utilize the jib concept for high-rise construction, although our focus remains on industrial factory applications.

6. Safety and Compliance

Safety is the cornerstone of our manufacturing philosophy. Every jib crane we produce adheres to strict international safety standards.

• Certifications: Our products comply with CE, ISO, and can be manufactured to meet UL standards upon request. This ensures they meet the regulatory requirements of global markets.
• Safety Features: All parts of a jib crane are inspected for quality. We include overload limiters, emergency stop buttons, and upper/lower travel limit switches as standard.
• Structural Integrity: For floor mount jib crane installations, we provide detailed foundation drawings to ensure the concrete footing can withstand the overturning moment, preventing tipping accidents.
• Inspection: We recommend regular inspections of the jib on a crane to check for metal fatigue or weld stress, ensuring long-term operational safety.

7. Case Study: Efficiency Transformation in a Machining Plant

Client Profile: A heavy machinery parts manufacturer in Southeast Asia.

Challenge: The facility relied on a single overhead bridge crane. Operators spent approximately 45 minutes per day waiting for the crane to become available to lift 500kg steel castings. This bottleneck severely impacted daily throughput.

The WEIYUAN Solution: We analyzed their workflow and installed six units of 1 ton jib crane (Pillar Type) directly at the machining stations. We utilized high-quality hoists comparable to a harrington jib crane in performance but at a more competitive price point.

Results:

• Zero Wait Time: Machinists gained total independence in lifting.
• Productivity Boost: Daily production output increased by 22%.
• Safety Improved: Reduced manual handling injuries as the jib crane installation allowed for precise positioning without physical strain.

8. Installation and Support

We view the sale as just the beginning of our partnership. WEIYUAN provides comprehensive support to ensure your equipment operates at peak performance.

• Installation Services: We provide detailed installation manuals and video guides. For complex projects, our senior engineers are available for on-site technical assistance and supervision.
• Maintenance: We supply all necessary parts of a jib crane for routine maintenance. Whether you are looking for jib crane sales or aftermarket support, our team is ready.
• Training: Proper operation is key to safety. We offer guidelines and resources to assist with operator training, ensuring your team knows what is a jib on a crane and how to operate it safely.

9. Pricing and Quotation

The cost of a jib crane varies significantly based on capacity, span, and customization.

• Competitive Pricing: As a direct manufacturer, we offer factory-direct pricing, often more competitive than jib crane manufacturers in india or local distributors.
• Get a Quote: Contact us for a personalized proposal. We need to know your required Safe Working Load (e.g., 5 ton jib crane), the arm length, and the lifting height to provide an accurate price.
• Value: Our quotes include the complete steel structure, hoist, electrics, and necessary mounting hardware.

10. Delivery Cycle

We understand that time is money in industrial operations.

• Standard Models: Standard pillar jib crane and floor mount jib crane units are typically shipped within 10-15 working days.
• Customized Models: Specialized orders, such as a telescoping jib crane or units with special environmental protection, generally require 20-30 working days for engineering and fabrication.
• Logistics: We handle secure packaging and can arrange freight to major ports globally.

11. FAQ: Common Questions

Q: What is a portable jib crane?

A: A what is a portable jib crane refers to a unit that is not permanently fixed to the floor. It is usually mounted on a heavy concrete or steel base that can be moved around the shop floor using a forklift, offering extreme flexibility.

Q: Can I install the crane myself?

A: Jib crane installation requires a proper foundation and expertise. While we provide instructions, we strongly recommend using a qualified professional to pour the foundation and anchor the crane to ensure stability and safety.

Q: Do you sell spare parts?

A: Yes, we stock all essential components. If you are looking for specific replacement parts, even if you are searching for parts of a jib crane generally, we can likely supply compatible components.

Q: What is the difference between a jib crane and a gantry crane?

A: A jib crane has a rotating arm fixed to a single point (wall or pillar). A gantry crane has a beam supported by two or more legs that travel on wheels. Jib cranes are better for specific workstations; gantry cranes are better for covering rectangular areas.

Q: Can you customize the color?

A: Yes, WEIYUAN offers full customization including colors to match your company branding or safety requirements.

Ready to optimize your workflow? Contact WEIYUAN today for a consultation and discover how our jib crane solutions can elevate your operational efficiency.
