The Backbone of Heavy Lifting: Defining the Gantry Crane

In the world of material handling, few machines are as recognizable or essential as the Gantry crane. Often referred to simply as a “gantry,” this robust equipment is defined by its unique “door” or “A-frame” steel structure. Unlike traditional bridge cranes, which rely on the supporting structure of a building, the Gantry crane is self-supporting, with its bridge spanning the work area and running on legs positioned along the ground or fixed rails. This design independence is its biggest advantage.

Why Choose a Gantry Crane? Core Benefits Explained

The appeal of the Gantry crane lies in its ability to perform high-capacity lifting without relying on existing facilities:

• High Adaptability: It can be installed independently in outdoor yards or vast indoor spaces without needing structural support from the factory building.
• Cost Efficiency: For large spans and outdoor applications, the construction cost can often be lower than that of a traditional overhead bridge crane.
• Reliable Performance: Designed to handle loads ranging from several tons up to hundreds of tons, ensuring continuous and heavy-duty workflow.
• Business Impact: It can help enterprises optimize venue layouts, accelerate material turnaround, and significantly reduce operating costs while enhancing overall productivity.

Anatomy of Power: Understanding Gantry Crane Components

The effective operation of any Gantry crane system relies on the synergy of its core structural and mechanical components.

Structure and Travel

• The Bridge (Girder): The horizontal beam that spans the area, supporting the trolley and hoist. This is the main difference between a Single girder gantry crane and a Double girder gantry crane.
• Legs: The vertical supports that give the crane its height and stability.
• Running Gear: The wheels or bogies attached to the legs that allow the crane to travel along its fixed rails or directly on the ground.

Lifting and Control

• Trolley: The assembly that travels along the bridge and carries the hoist.
• Hoist: The mechanism that performs the vertical lifting. This can be an Electric gantry crane hoist for heavy loads or a Manual gantry crane hoist for lighter, more intermittent tasks. The integration of a reliable Gantry crane with hoist is critical for safe operation.

Finding Your Fit: Types and Technical Specifications

Choosing the correct type of Gantry crane is paramount. Whether you need a simple Portable gantry crane for a workshop or a massive, rail-mounted system for a shipyard, the specifications must align perfectly with the environment and load requirements.

Key Gantry Crane Types

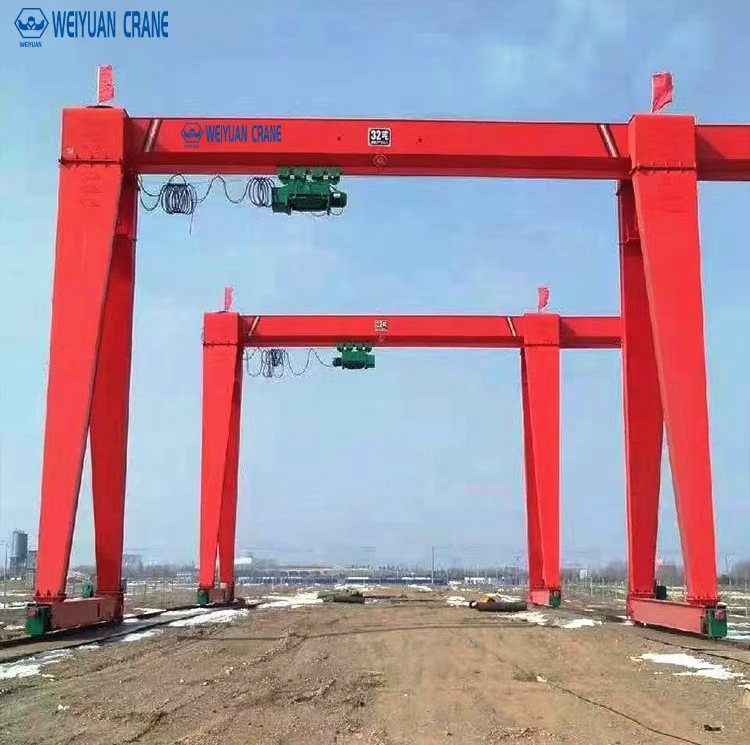

1. Full Gantry: Two legs running on ground-level rails; spans large distances and handles massive loads.
   • Ideal Environment: Gantry crane for shipyards, construction sites, steel mills.
   • Core Keyword: Heavy-duty gantry crane

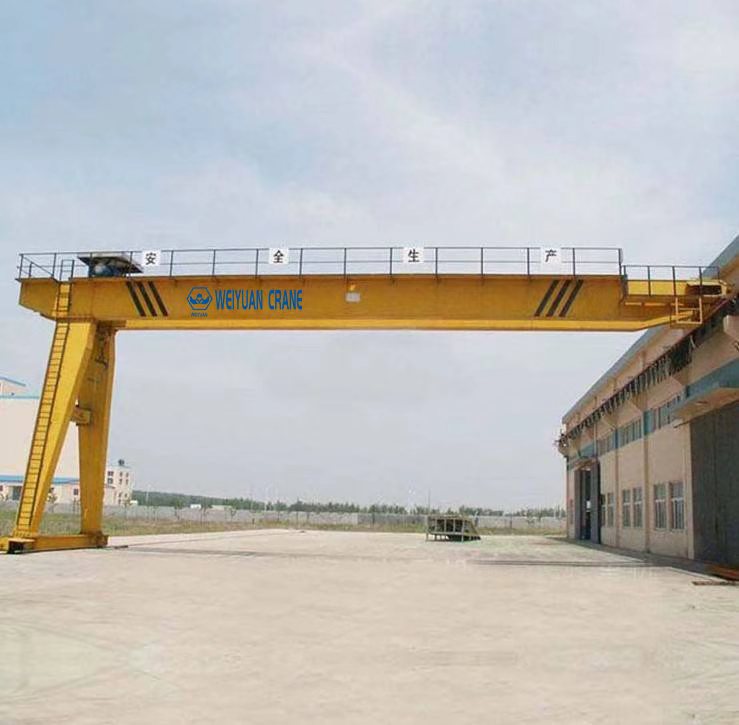

2. Semi-Gantry: One leg runs on a ground rail, the other on a high-level building runway; a space-saving hybrid.
   • Ideal Environment: Factories or Gantry crane for workshops that need combined indoor/outdoor access.

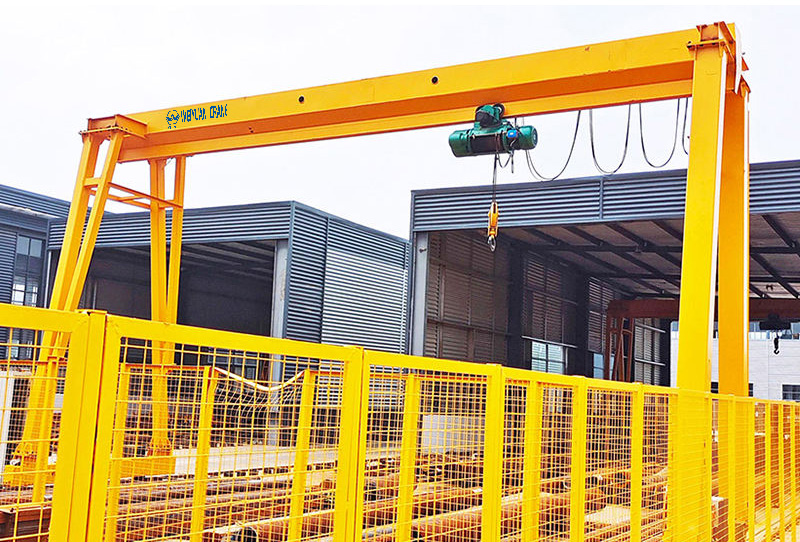

3. Portable Gantry: Often lightweight, adjustable height, and wheel-mounted; highly mobile and flexible.
   • Ideal Environment: Small assembly lines, maintenance areas, Gantry crane for warehouses.

Essential Technical Specifications

Getting these details right is the first step in successful procurement.

Specification Item	Technical Parameter Range	Applicability Consideration
Lifting Capacity (SWL)	5 tons-500 tons or higher	Select based on the maximum weight of the materials being handled.
Span	10 meters- 50 meters	Determines the width of the operational area covered by the crane.
Lifting Height	6 meters – 30 meters	Must account for the required vertical travel within the facility or yard.
Duty Class (A5 to A8)	A5 (Medium) – A8 (Super Heavy)	Dictated by the frequency of daily cycles and the average load factor.
Material	Q235/Q345 Structural Steel	Affects the overall strength and durability of the structure.

Customization, Quality, and Compliance

The complexity of industrial operations means that an off-the-shelf solution rarely achieves peak efficiency. The need for precise integration requires a manufacturer that emphasizes customization and safety.

Tailoring Your Gantry Crane System

A professional Gantry crane manufacturer understands that your business requires a bespoke fit. We provide complimentary technical consultation and design services, ensuring the equipment is perfectly matched to your site conditions.

• Precision Sizing: Precisely tailor the span, cantilever length, and lifting height based on your site layout and track distances.
• Functionality: Customize features like single/double speed drives, Variable Voltage Variable Frequency (VVVF) control for smooth operation, and anti-sway systems.
• Environment: Special modifications for Gantry crane for construction sites, including anti-corrosion treatments, explosion-proofing, or resistance to extreme temperatures.

We take pride in our ability to deliver fully customized solutions. WEIYUAN is a professional production manufacturer integrating production, sales, design, and installation, ensuring every component of your Gantry crane system is engineered for maximum performance and reliability.

Unwavering Commitment to Safety and Compliance

Safety is the absolute priority when dealing with heavy machinery. Our commitment to quality ensures reliability and operational security.

• Quality Assurance: All equipment design and manufacturing strictly adhere to the ISO 9001 Quality Management System.
• Certification: Key components meet international standards such as CE certification (for the European market) and/or comply with North American safety standards.
• Integrated Safety: Products include built-in safety features like overload protection, limit switches, and emergency stop buttons, to protect personnel and assets.

Applications and Success Stories in Heavy Industry

Gantry crane technology is instrumental across various sectors due to its sheer strength and versatility.

• Port & Terminal Operations: Rubber-Tyred (RTG) and Rail-Mounted (RMG) systems are crucial for container handling and stacking.
• Manufacturing and Fabrication: Used in Gantry crane for factories and heavy machinery assembly, metal smelting, and for moving massive components in shipbuilding.
• Construction: Essential for lifting and maneuvering large pre-fabricated concrete beams and steel structures.

Case Study: Precision Lifting in Shipyard Construction

Project: X Shipyard Large Gantry Crane Installation

• The Challenge: The shipyard required an ultra-large gantry to assemble and move massive hull sections weighing hundreds of tons. The environment was demanding: high humidity and high salinity from the sea required the crane to withstand severe corrosion.
• The Solution: We designed and delivered a 300-ton capacity Double girder gantry crane. It featured high-protection-grade motors and electric control systems, anti-corrosion paint, and a high-precision VVVF system to ensure accurate micro-positioning of large hull segments.
• The Result: The client significantly enhanced the speed and accuracy of hull assembly, shortening the overall ship construction cycle and boosting their market competitiveness.

Procurement and Partnership: Next Steps with Your Gantry Crane Supplier

Choosing a Gantry crane supplier is a long-term partnership. Our commitment extends beyond manufacturing to comprehensive support, ensuring the longevity and safe operation of your investment.

Installation, Maintenance, and Support

• Installation Support: We offer comprehensive services, from detailed online installation manuals and video tutorials, to on-site technical assistance by certified senior engineers for guidance and training. This ensures proper Gantry crane installation and adherence to safety protocols.
• After-Sales Service: We provide a standard 12-month warranty (when used within the standard range) and offer specified parts replacement and Gantry crane repair services.
• Maintenance: Routine maintenance is crucial. We provide full technical documentation for routine Gantry crane maintenance, and our senior engineers can provide on-site installation guidance and training.

Requesting a Quote and Getting Started

For transparent Gantry crane pricing, which is always tailored to your specific technical and customization needs, please contact us.

• Initial Inquiry: Providing detailed information or drawings, including lifting capacity, crane span, lifting height, and any special power source or other requirements, will help us provide an accurate solution.
• Delivery: Standard models can be shipped quickly (typically 3-5 working days), while customized models require a lead time of 2-4 weeks, depending on design complexity.
