In industrial facility planning, choosing the right lifting equipment often comes down to one question: Do you need to cover the entire building or just a specific workstation?

The fundamental difference lies in their coverage area. An overhead crane (bridge crane) travels along runways to cover a large rectangular area—essentially the entire factory floor. In contrast, a jib crane consists of a horizontal jib arm crane structure that rotates around a fixed pillar or wall mount, covering a circular or semi-circular area.

While overhead cranes are the “arteries” moving heavy loads across the plant, the jib crane is the “hands” of the operation, serving individual workers at CNC machines, assembly benches, or loading docks.

As a manufacturer integrating design, production, and sales, WEIYUAN helps clients maximize efficiency by often combining both systems. This guide focuses on the specific value of the Jib Crane.

Product Description: The Ultimate Workstation Assistant

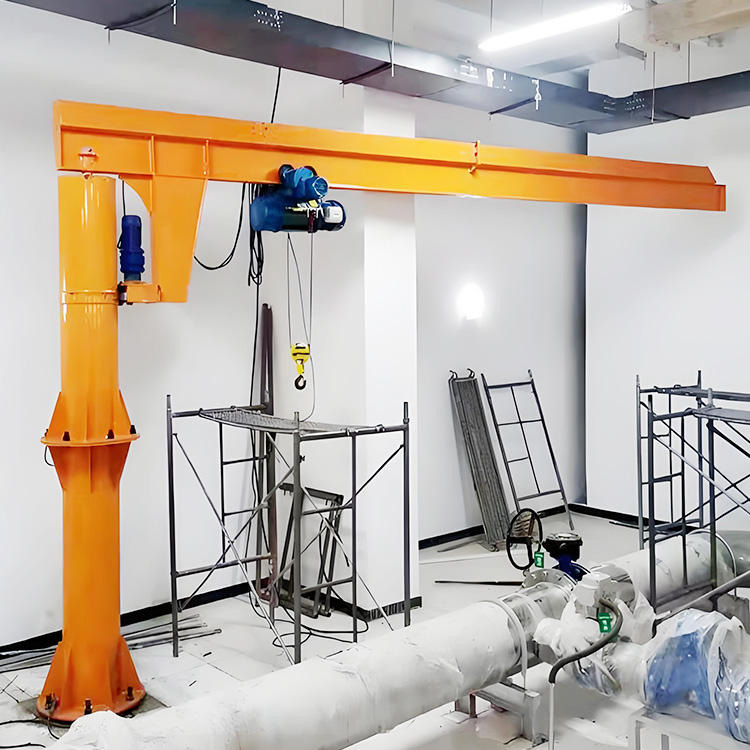

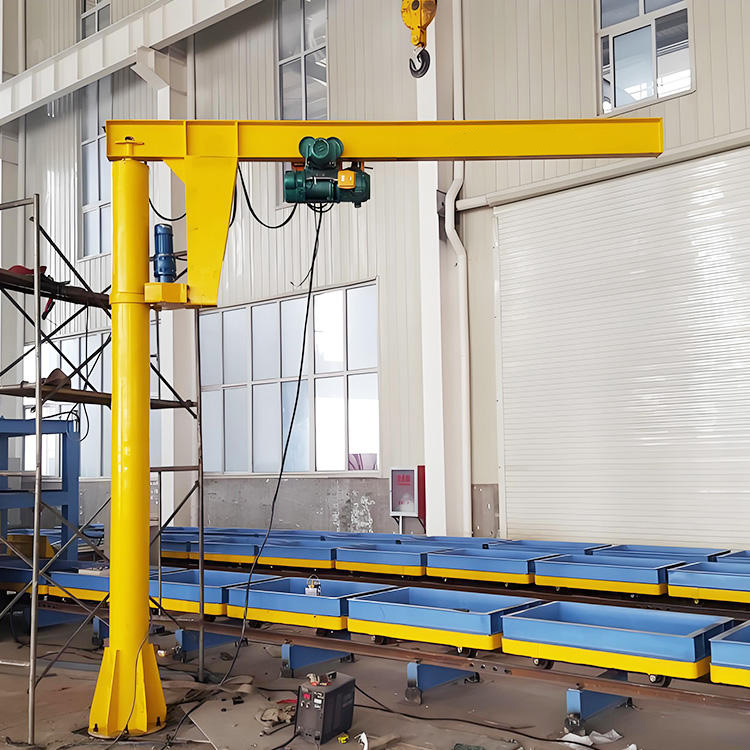

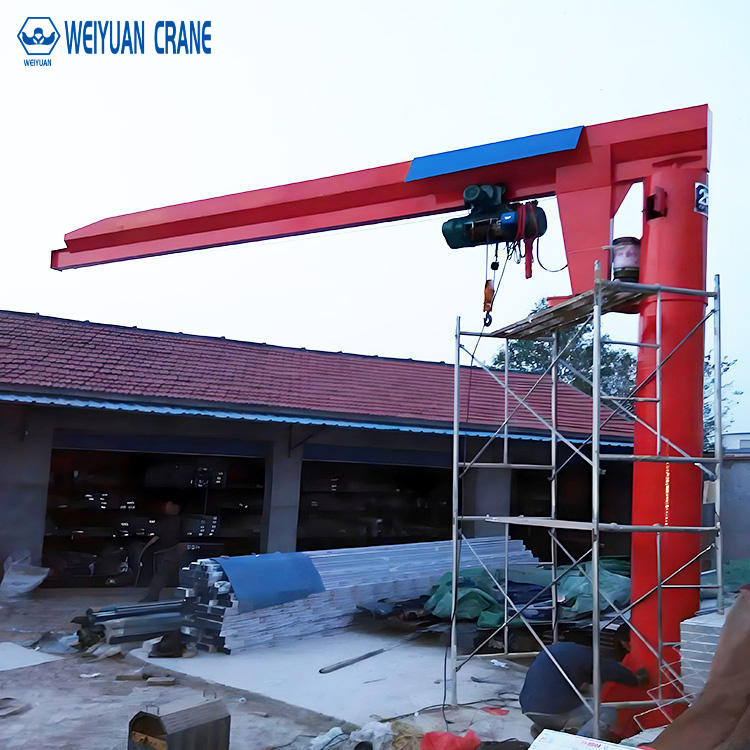

A jib crane is an ergonomic lifting device designed for repetitive lifting tasks within a localized area. Unlike the massive infrastructure required for overhead systems, a jib crane floor mounted unit is self-contained. It features a rotating boom (the jib) that supports a movable hoist, allowing an operator to pick up, swing, and lower loads with precision.

Why choose a Jib Crane?

• Efficiency: It eliminates the wait time for the main overhead crane. A single worker can lift a 500kg part onto a lathe in seconds.
• Agility: Perfect for transferring materials between adjacent workstations.
• Versatility: From a heavy-duty jib crane for truck loading outdoors to a delicate assembly aid indoors.

Features and Advantages

Facility managers in Europe and Asia favor our designs for their robustness and ease of use.

• 360° Rotation: Our pillar-mounted models offer full circular rotation, while wall-mounted units typically offer 180°.
• Smooth Movement: The jib crane hoist trolley glides effortlessly along the boom. We use high-precision rollers to minimize physical effort.
• Robust Materials: Constructed from Q235B or Q345B carbon structural steel, ensuring rigidity even when the arm is fully extended.
• Space Saving: The compact footprint allows installation directly next to machinery without obstructing forklift lanes.

Technical Specifications

Understanding the jib crane definition is one thing; knowing the specs is another. Here is what WEIYUAN offers:

Specification	Technical Details
Capacity	0.25 Ton, 0.5 Ton, 1 Ton, 2 Ton, up to 10 Ton
Arm Length (Span)	2m to 10m (Standard)
Lifting Height	2m to 6m (Under boom clearance)
Rotation	Manual or Motorized (Electric)
Power Supply	220V – 690V, 50/60Hz, 3-Phase
Hoist Type	Electric Chain Hoist or Wire Rope Hoist
Finish	Epoxy paint (Standard) or Hot-dip Galvanized (Outdoor)

Customization Options by WEIYUAN

As a dedicated jib crane manufacturer, we don’t just sell boxes; we engineer solutions. Weiyuan provides free design and layout analysis.

• Dimensional Fit: We can adjust the jib crane arm length to the millimeter to fit between building columns.
• Low Headroom: Special designs to maximize lifting height in buildings with low ceilings.
• Color & Brand: We offer OEM painting (e.g., Safety Yellow, Blue) and logo placement.
• Environment: We customize units for specific conditions, such as explosion-proof motors for chemical plants or galvanized steel for marine ports.

Application Fields

• Manufacturing: Loading workpieces into CNC centers or lathes.
• Warehousing: Moving heavy pallets from packing areas to conveyors.
• Ports & Marinas: Used as a jib crane for truck or boat loading.
• Logistics: Expediting shipping dock operations where overhead cranes cannot reach.

Safety and Compliance

Safety is not optional. Every WEIYUAN jib crane meets strict international standards.

• Certifications: Our products are CE certified for the European market and comply with ISO quality management systems.
• Standards: We adhere to strict jib crane standards for structural stability and electrical safety.
• Safety Features:
  • Limit Switches: Prevent over-travel of the hoist.
  • Rotation Stops: Adjustable mechanical stops to prevent the arm from hitting walls or machinery.
  • Foundation: We provide detailed foundation drawings to ensure the floor anchors can withstand the overturning moment.

Case Study: Efficiency Boost in Machinery Plant

Project: An automotive parts factory in Thailand.

Challenge: Operators were waiting up to 15 minutes for the main overhead crane to lift 200kg engine blocks onto test benches. This bottleneck slowed the entire line.

Solution: WEIYUAN installed 10 units of 0.5-ton floor mounted jib cranes—one at each testing station.

Result:

• Idle time was eliminated.
• Production throughput increased by 18%.
• Worker fatigue was significantly reduced.
• The project manager noted that the jib crane operation was intuitive, requiring minimal training.

Installation and Support

We support you from blueprint to operation.

• Installation Guidance: We provide 3D drawings, foundation templates, and video tutorials.
• Remote Assistance: Our engineers are available online to guide your local team.
• Global Support: Whether you need jib crane repair NJ (USA) parts or service advice in South Africa, our global logistics network ensures fast delivery of spares.

Pricing and Quotation

The jib crane market is competitive, but WEIYUAN offers factory-direct pricing without the middleman markup.

• How to Quote: Contact us with your desired Capacity, Arm Length, and Lifting Height.
• Process: Our team will provide a technical drawing and a quote within 24 hours.

Delivery Cycle

• Standard Units: 10-15 working days.
• Custom Orders: 20-30 working days.

FAQ (Frequently Asked Questions)

Q: Can I build a jib crane DIY?

A: We strongly advise against jib crane DIY projects. The dynamic loads and overturning forces require professional engineering calculations. A homemade crane poses severe safety risks. Always rely on a certified jib crane supplier.

Q: How often is inspection needed?

A: Regular jib crane inspection should be performed annually by a qualified technician, with daily visual checks by the operator for chain wear or unusual noises.

Q: Do you offer rental?

A: We specialize in sales and manufacturing. We do not offer jib crane rental, but our competitive pricing often makes purchasing a permanent asset more cost-effective than long-term renting.

Q: What information do I need for a quote?

A: Tell us the weight of the load, the required reach (arm length), and the available ceiling height.

Q: Can I get manuals in Spanish?

A: Yes, for our global clients, we provide documentation support. If you are searching for jib crane en español, we can provide manuals and support in multiple languages.
