What is a Jib in a Crane? Essential Guide to Jib Crane Systems for Industrial Efficiency
Defining the Jib: The Backbone of Localized Lifting Solutions
When you hear the term jib crane, you’re referring to one of the most versatile and essential pieces of equipment in modern material handling. But what exactly is a jib in a crane?
The jib is the horizontal load-bearing member—often called the boom or arm—that extends outward from the mast (column) or support structure. This arm supports a movable hoist and trolley, allowing workers to lift, lower, and transport loads in a rotational arc across a specific, localized area. Essentially, the jib allows the crane to function as a powerful, dedicated lifting assistant right where the work is happening.
While massive overhead EOT cranes handle factory-wide transport, a strategically placed industrial jib crane excels at repetitive, precise positioning tasks at individual workstations, assembly lines, or machinery service areas. Understanding the types of crane jibs available is the first step toward optimizing your operational flow.
Product Description: WEIYUAN Jib Cranes – Engineered for Precision and Productivity
Our WEIYUAN Jib Crane Systems are designed to fill the critical gap between manual lifting and heavy-duty, factory-wide hoisting. We provide rugged, high-performance lifting solutions that deliver immediate, on-demand lifting power, dramatically reducing strain on workers and streamlining workflow.
A jib hoist crane from WEIYUAN is more than just a piece of metal; it’s an integrated system featuring a robust structural steel arm, a high-efficiency electric hoist (chain or wire rope), and precision controls. The primary goal is simple: to improve the working efficiency of your personnel by providing dedicated lifting capacity at the point of use.
Elevating Worker Efficiency in Key Sectors
Implementing a reliable jib hoist crane (such as a floor mounted jib crane or wall bracket jib crane) directly translates to higher productivity. For sectors like shipbuilding companies, where large components need frequent, precise positioning, a freestanding jib crane is indispensable. In fabrication shops and factories, using a reliable 2 ton jib crane for handling molds, feeding CNC machines, or positioning heavy tooling can increase production throughput by up to 30%. By eliminating the need to wait for larger, shared bridge cranes, our solutions ensure continuity and speed in your most crucial assembly and service areas.
Distinctive Features and Competitive Advantages
As a manufacturer integrating production, sales, design, and installation, WEIYUAN ensures that every jib crane leaves our facility ready to meet the demands of global industrial use.
Core Structural and Performance Characteristics
- Robust Box-Type Fabrication: The jib arm and mast are constructed from high-grade, low-carbon structural steel, providing exceptional stability and minimal deflection.
- Precision Rotation Assembly: Features a high-quality slewing bearing and drive unit, ensuring smooth, controlled rotation—essential for precise load placement.
- Integrated Drive System: The optional electric rotation drive is equipped with a smooth start/stop function, protecting the load and minimizing wear on mechanical components.
- Enhanced Safety Features: Includes overload protection, limit switches for rotation and travel, and emergency stop functionality built into the control pendant.
Advantages Over Common Alternatives
While various brands offer quality, the WEIYUAN advantage lies in customization and value. Unlike some standardized suppliers, we don’t just sell off-the-shelf units.
WEIYUAN is a professional manufacturing entity integrating production, sales, design, and installation. Our deep manufacturing experience allows us to engineer solutions that perfectly balance cost-effectiveness with high performance, making our jib cranes for sale an intelligent long-term investment.
Technical Specifications for Seamless Integration
Selecting the right jib crane for sale requires careful consideration of technical parameters to match your facility’s infrastructure.
Critical Technical Specifications
| Specification | Detail | Applicability Insight |
| Capacity (SWL) | Available from 0.5 Ton up to 10 Ton. Our most popular model is the 2 ton jib crane. | Defines the maximum safe working load. |
| Span (Arm Length) | Up to 12 meters (Max, capacity dependent). | Determines the radius of the working area. |
| Lift Height | Customizable up to 9 meters. | Based on your building’s clear height and ceiling structure. |
| Rotation Angle | Standard 270(Wall-Mounted) or full 360for floor mounted jib crane models | Defines the operational coverage area. |
| Power Requirement | 3-Phase, 380V / 50Hz(Standard) or tailored for 400V, 440V, 60Hz requirements. | Essential for ensuring compatibility in Europe, Asia, and Africa. |
| Jib Type | Freestanding jib crane, Wall bracket jib crane, or Articulating jib crane. | Selection depends on whether you have floor space or load-bearing columns. |
| Hoisting Speed | Single or Dual speed control available, often with Variable Frequency Drives (VFD) for precision. | VFDs are crucial for delicate load positioning. |
Precision Customization Tailored to You
We empower customers by offering FREE design and personalized customization services. Your environment is unique, and your lifting equipment should be too.
- Custom Capacity: We can manufacture specialized tonnage outside of the standard range, ensuring the crane exactly matches the heaviest item you routinely handle.
- Non-Standard Dimensions: If your column spacing or ceiling height is non-standard, we adjust the span, lift height, and column mounting plates accordingly.
- Duty Cycle (FEM/ISO Rating): Customization of the motor and gearbox to achieve a higher duty rating (e.g., A5 or A6) for operations requiring near-continuous use.
- Finish and Color: Options for specialized paint finishes, including corrosive-resistant marine-grade coatings, often needed in port environments.
- Advanced Control Integration: Customizing the control panel for integration with factory management systems or incorporating highly specific safety logic.
For instance, if you require a system similar to the harrington hd freestanding jib crane 2t baseplate, but with an extended arm length for a wider production cell, we design and manufacture that exact bespoke solution.
Versatile Application Fields Across Global Industries
The strategic deployment of a jib crane solves a multitude of logistical challenges, whether you are in an African mining repair shop or an Asian electronics plant.
- Manufacturing and Fabrication: Ideal for dedicated tasks like feeding material into a metal press, holding components during welding, or assisting with tooling changes on CNC machines.
- Shipbuilding and Marine: Critical for handling specialized instruments, assembling pipe sections, or performing localized maintenance onboard ships or at the dockside.
- Warehouses and Logistics: Used for transferring goods from a pallet jack onto an elevated conveyor or for localized loading and unloading of smaller transport vehicles.
- Repair and Maintenance Bays: Perfect for engine removal and replacement in vehicle service centers or lifting heavy components in a machine repair shop.

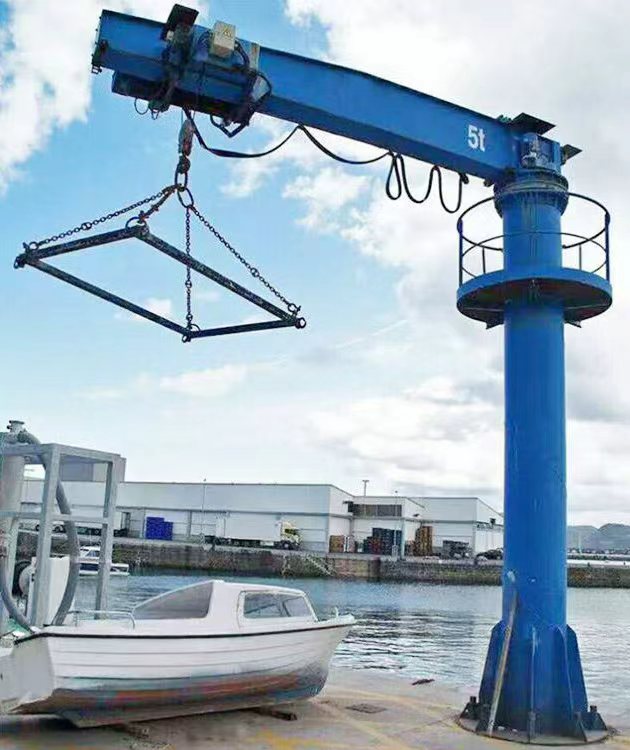

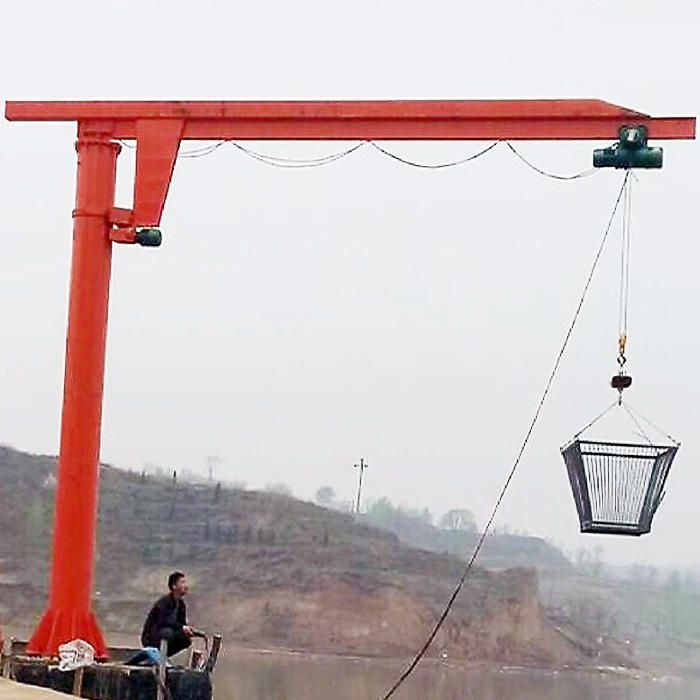

- Outdoor Applications: Specialized pedestal-mounted jib boom cranes are often used outdoors at ports or material storage yards for intermittent loading duties.
For tight, specialized work cells, the articulating jib crane and the smaller portable jib cranes are game-changers, allowing the jib arm to maneuver around obstacles that a straight jib cannot.
Safety, Global Compliance, and Long-Term Reliability
Safety is the cornerstone of all WEIYUAN lifting solutions. Our commitment extends beyond basic functionality to encompass regulatory compliance and long-term operational integrity.
Ensuring International Compliance
All our industrial jib crane systems are manufactured and tested to meet or exceed relevant global safety directives.
- CE Certification: Conformance with European Union health, safety, and environmental protection standards, crucial for our European clientele.
- UL/CSA Equivalent Standards: Ensuring electrical components and overall system safety for North American and other markets.
- Outdoor Operation: For units used outside, we include specialized features to enhance safety and durability, such as:
- IP-rated enclosures for motors and controls.
- Wind-speed monitoring systems (for high-mast outdoor applications).
- Heavy-duty anchoring systems designed to withstand local environmental loads.
Installation and Dedicated After-Sales Support
We ensure a smooth commissioning process:
- Site-Specific Drawings: We provide detailed, certified foundation and assembly drawings for every customized unit, simplifying the pre-installation and construction phases.
- On-site Technical Team: For complex installations, large-capacity units, or international projects, we offer the option of dispatching an experienced site-technical team to assist with assembly, testing, and commissioning.
- Online Guidance Service: For simpler floor mounted jib crane models, we provide comprehensive manuals and online guided installation support via video calls and documentation, ensuring smooth setup regardless of your location.
Case Study: Enhancing African Mining Operations
A recent project involved providing a series of $5T$ freestanding jib cranes to a major mining maintenance facility in Ghana. The challenge was dust, heat, and non-standard voltage. Our team delivered customized units with dust-proof motor enclosures, enhanced cooling fins, and modified electrical systems (e.g., $400V, 50Hz$). The result: a 25% reduction in machinery downtime due to faster component replacement and maintenance, validating the superior value of our tailored solutions.
Pricing, Quotation Process, and Delivery Timelines
How to Obtain a Personalized Quote
Since every jib crane we manufacture is customized to specific span, capacity, and duty cycle requirements, we do not utilize a fixed online price list.
To ensure you receive the most accurate and competitive pricing, we encourage you to contact us with the following details:
- Required Capacity (e.g., $1T, 5T$).
- Required Span (Arm length in meters or feet).
- Desired Type (Freestanding, Wall-Mounted, or Articulating).
- Operational Environment (Indoor, Outdoor, Corrosive).
Upon receiving your requirements, our engineering and sales teams will provide a comprehensive, obligation-free quote within $24$ hours.
Estimated Delivery Cycle
Our commitment to quality means adhering to precise manufacturing schedules.

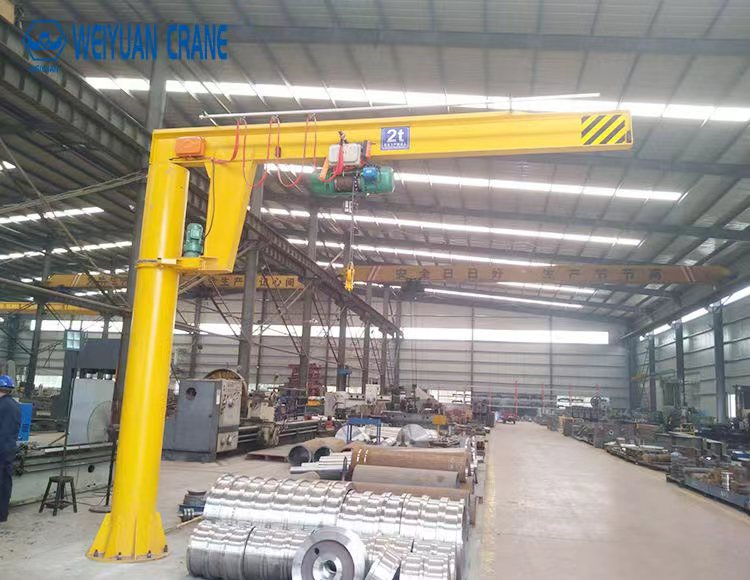

- Standardized Models: For common configurations (e.g., a standard $2T$ floor mounted jib crane), the typical lead time from contract signing to final shipment is approximately $4$ to $6$ weeks.
- Highly Customized Solutions: For large-capacity or complex customized systems, the cycle may extend to $8$ to $12$ weeks to accommodate specialized component procurement and rigorous final testing.
Frequently Asked Questions (FAQ)
What is the difference between a freestanding and a wall-mounted jib crane?

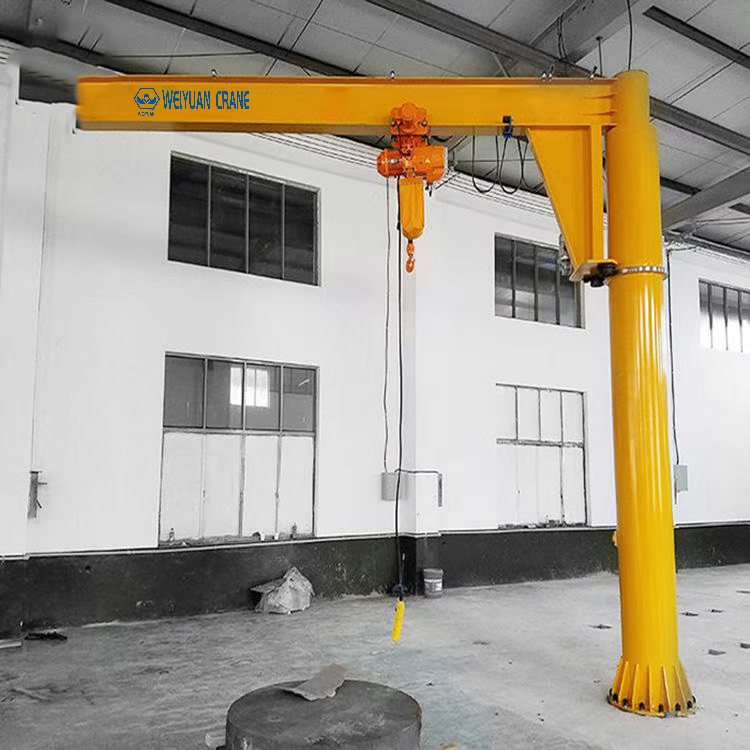

A freestanding jib crane (like the harrington hd freestanding jib crane 2t baseplate or similar models) is bolted to the factory floor and offers 360 rotation. A wall bracket jib crane is secured to a building column and typically offers 200 rotation, saving floor space but relying on the structural strength of the building.
Can I use a jib crane outdoors?
Yes, many models are designed for outdoor use. However, they require specialized weatherproofing, rust-resistant paint, and often dedicated electrical enclosures to ensure long-term reliability and safety.
Do you offer mobile jib crane solutions?
Yes, we manufacture certain specialized models, including mobile jib crane solutions, designed for temporary lifting needs or applications requiring movement between different work cells. Please inquire about our specific models.
