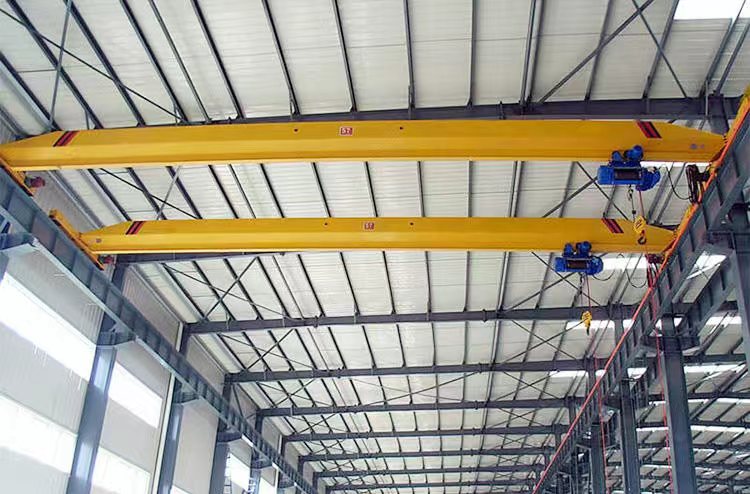

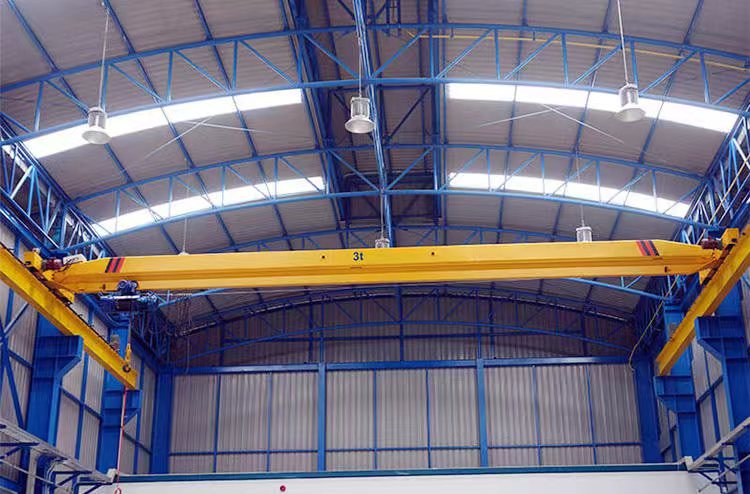

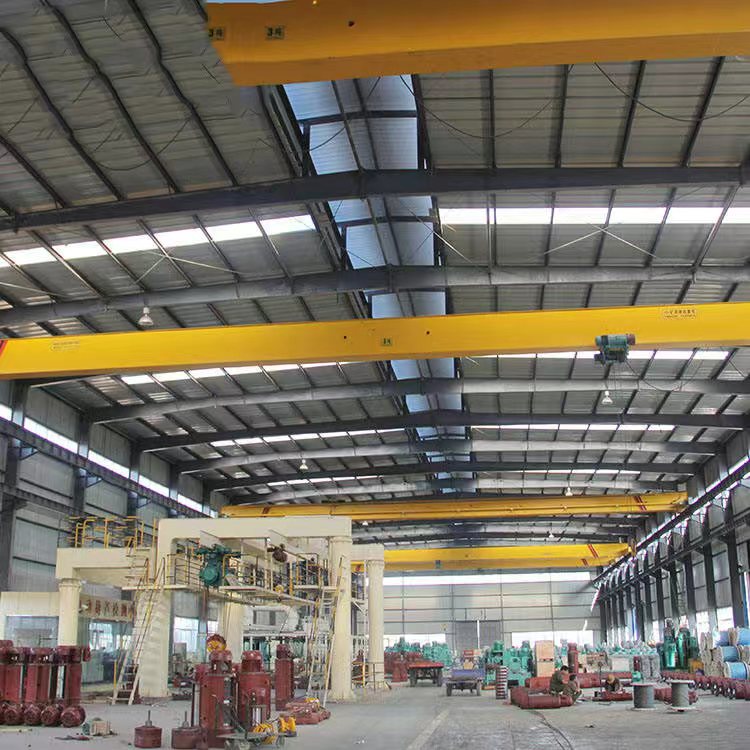

The overhead crane (or bridge crane) is the undisputed king of indoor, high-volume material handling. It maximizes floor space by running on elevated runways, offering efficient, three-dimensional movement. However, installing a permanent overhead crane system isn’t always feasible. Structural limitations of the building, the need for outdoor operation, or the requirement for a flexible, temporary lifting solution often demand an alternative.

When a fixed overhead crane is not the right fit, the primary alternatives are Gantry Cranes, Jib Cranes, and Monorail Systems. Each offers distinct advantages depending on your specific lifting challenges.

This article explores these alternatives, helping you decide which system best matches your operational needs while maintaining the high standards of safety and efficiency set by WEIYUAN, a professional production manufacturer integrating production, sales, design, and installation.

The Gantry Crane: The Most Versatile Alternative

The most direct and robust alternative to an overhead crane is the gantry crane. While structurally similar in lifting mechanics, the gantry crane stands on its own legs rather than relying on the building’s columns.

Why Choose a Gantry Over an Overhead Crane?

• Independence: Gantry cranes run on floor-mounted rails or wheels. This eliminates the need for expensive runway structures and building reinforcements, making them ideal for rented facilities or outdoor yards where no ceiling exists.
• Mobility: A 5 ton overhead gantry crane (often referring to a portable gantry) can be moved to different workstations, offering flexibility that a fixed bridge crane cannot match.
• Cost-Effectiveness: For long outdoor spans or temporary setups, the overhead crane cost of building a runway structure can be prohibitive. A gantry crane avoids this infrastructure expense.

Types of Gantry Alternatives

• Full Gantry: Runs on rails, handling heavy loads (10 to hundreds of tons) similar to a double girder overhead crane.
• Semi-Gantry: One leg runs on the floor, the other on an elevated runway. This saves floor space while utilizing existing building strength.
• Portable Gantry: A smaller, often A-frame structure on casters, perfect for maintenance or light assembly where a permanent crane is overkill.

Jib Cranes and Monorails: Targeted Lifting Solutions

For localized or linear lifting tasks, a full overhead crane system might be excessive.

Jib Cranes for Workstation Efficiency

• Function: A horizontal arm mounted to a wall or floor pillar.
• Use Case: Ideal for individual workstations where an operator needs to lift heavy parts into a machine (e.g., CNC loading). It frees up the main overhead bridge crane for larger plant-wide movements.
• Limitation: Coverage is limited to the arc of the arm, unlike the full rectangular coverage of a bridge crane.

Monorail Systems for Production Lines

• Function: A hoist travels along a single fixed beam (straight or curved).
• Use Case: Perfect for assembly lines or painting processes where materials follow a fixed path. It is simpler and cheaper than a full bridge crane.

Core Technology and WEIYUAN Quality

Regardless of whether you choose an overhead crane or an alternative, the core technology driving the lift must be reliable.

Features of WEIYUAN Lifting Solutions

• Drive System: We utilize a three-in-one reducer system (hard-tooth gear reducer, variable frequency braking motor) across our crane types. This ensures stable operation and high positioning accuracy.
• Control Mode: Variable Frequency Drive (VFD) technology is standard, providing stepless speed regulation. This improves efficiency and reduces mechanical shock to overhead crane hoist parts, extending equipment life.
• Durability: Our systems are designed for rigorous use, with working duty classes typically reaching A4 to A5 (Medium to Heavy)².

Technical Specifications: Comparing Capabilities

Selecting an alternative requires understanding the trade-offs in capacity and span.

Specification Item	Overhead Crane (Standard)	Gantry Crane (Alternative)
Standard Capacity	1 ton to 80 tons (up to 400 customized)	1 ton to hundreds of tons
Span Length	7.5 meters – 34 meters	10 meters $\sim$ 50 meters (Wider outdoor spans possible)
Lifting Height	6 meters – 50 meters	Similar range, defined by leg height
Installation	Requires building runways	Requires floor rails or concrete path

Customization and Safety Compliance

Whether it is an overhead crane or a gantry, safety and fit are paramount.

Customization Services

WEIYUAN offers free factory structure analysis to determine if an overhead or gantry system is best.

• Customization: We design non-standard capacities, anti-explosion units, and specialized attachments like electromagnetic chucks.
• Design Flexibility: We can engineer a double girder overhead crane or a specialized gantry to meet 100% of your working conditions.

Safety and Compliance

• Standards: All equipment strictly complies with national and industry standards (e.g., TSG Q0002-2008).
• Safety Devices: Mandatory weight limiters, emergency stop switches, and limit switches are integrated into every system.
• Control Safety: Control circuit voltages for suspended devices do not exceed the 50V safety limit.

Case Study and Procurement

Case Study: Enhancing Flexibility

• Project: A steel distribution yard needed to expand storage outdoors.
• Challenge: Extending the indoor overhead bridge crane runways outside was too costly.
• Solution: WEIYUAN installed a 10 ton overhead crane style gantry system on rails.
• Result: The gantry provided the same lifting power as the indoor bridge crane but saved 40% on infrastructure costs. It has operated safely for over 8000 hours with zero accidents.

Installation and Support

• Guidance: We provide online installation manuals and video tutorials.
• On-Site Support: Professional teams assist with installation and commissioning.
• After-Sales: One-year warranty and support for overhead crane maintenance and parts.

Next Steps: Are you unsure if your building can support an overhead crane? Contact us for a structural analysis and a quote on overhead gantry cranes for sale.
