In the diverse world of terminology, confusion often arises between the language of cinematography and the language of heavy industry. A frequent query we encounter involves the distinction between a “crane” and a “jib shot.” To clarify immediately: in filmmaking, a “jib shot” describes a sweeping, vertical, or horizontal camera movement achieved by a counterweighted arm. In the industrial sector, however, a jib crane is a robust, stationary lifting machine designed to handle heavy loads within a specific radius.

While a camera operator might look for a lightweight jib camera crane to capture a scene, a facility manager looks for an industrial jib crane to optimize production. This guide moves beyond the lens and focuses on the engineering marvel that is the industrial jib crane. We will explore its critical role in factories, warehouses, and ports, and how WEIYUAN, as a professional production manufacturer integrating production, sales, design, and installation, delivers customized lifting solutions to global markets.

1. Product Description: The Industrial Jib Crane Defined

The industrial jib crane is defined by its structural simplicity and operational effectiveness. It consists of a horizontal beam (the jib or boom) that supports a movable electric hoist or trolley. This beam is essentially a cantilevered arm, fixed to a vertical mast (pillar) or a wall bracket.

Product Purpose:

Unlike massive overhead bridge cranes that span the entire width of a factory bay, the jib crane is the champion of localized lifting. Its purpose is to create an independent, high-speed lifting cell. Whether used as a column mounted jib crane next to a CNC machine or a wall mount jib crane in a shipping bay, it handles high-frequency lifts within a specific circular or semi-circular area. This equipment allows individual workers to lift heavy components—such as engines, steel coils, or pallets—without waiting for the main plant crane.

Advantage and Attraction:

The core attraction of this equipment is “decentralized lifting.” By placing a free standing jib crane directly at the point of need, you eliminate the bottleneck caused by waiting for a shared overhead system. It bridges the gap between manual handling and heavy-duty automated systems, significantly reducing worker fatigue and injury risk while boosting throughput. For facilities requiring flexibility, portable jib cranes offer the ability to move the lifting point to different areas of the shop floor using a forklift.

2. Features and Advantages: Engineering for Performance

Our industrial cranes are engineered for durability, precision, and ease of use, distinct from the lightweight structures found in camera cranes and jibs.

Robust Materials:

We utilize high-grade structural steel (Q235B/Q345B) for the pillar and boom. This ensures rigidity and minimizes deflection even under maximum loads. Unlike a homemade jib crane, our engineered beams prevent “drift,” where gravity causes the trolley to roll unintentionally, ensuring precise load placement.

Versatile Configurations:

• Freestanding Jib Crane: Anchored to the floor, offering 360-degree continuous rotation.
• Wall Mount Jib Crane: Attached to building columns, offering 180 to 200 degrees of rotation while saving floor space.
• Articulated Jib Crane: Features a two-part folding arm that can reach around obstacles, perfect for complex machinery environments.

Efficiency Gains:

Implementing a jib boom crane tailored to your workflow typically increases individual worker output by 30 to 50 percent. It transforms a two-person lifting job into a one-person, safe operation, allowing the main overhead crane to remain focused on heavy transport duties.

3. Technical Specifications

Selecting the correct specifications is vital for safety and performance. While you might find a harbor freight jib crane for light hobbyist work, industrial applications require certified engineering.

Lifting Capacity (SWL):

Our standard industrial range covers the most common needs, including the 1/2 ton jib crane, 1 ton, and 2 ton jib crane. Custom heavy-duty models are engineered up to 20 Tons.

Span (Arm Length):

Standard lengths range from 2 meters to 12 meters. The effective reach depends on the specific jib crane design.

Lifting Height:

Standard 3 meters to 6 meters, but this is fully customizable to your facility’s ceiling clearance and lift requirements.

Rotation:

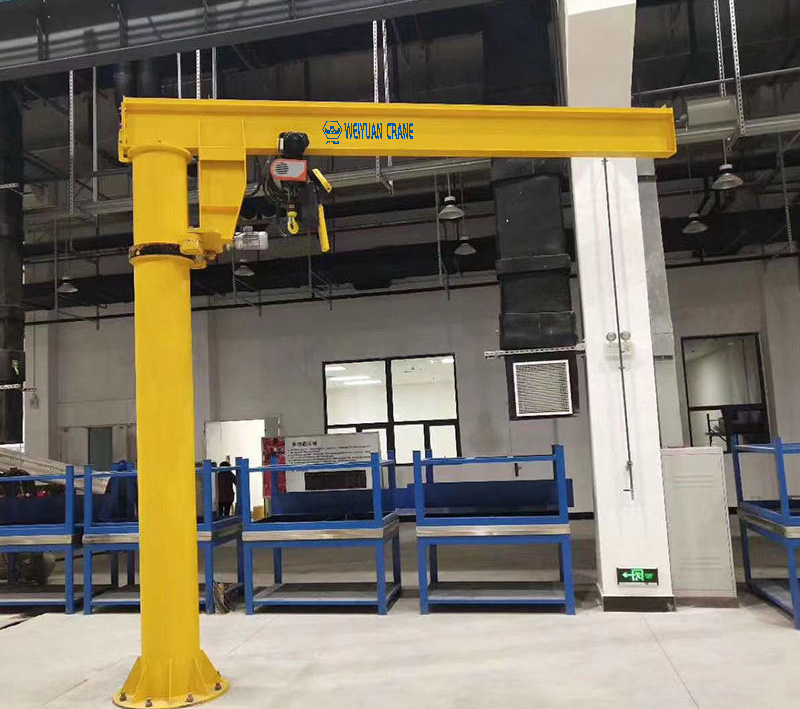

• Column mounted jib crane: 360 degrees continuous rotation.
• Wall mounted: 180 to 200 degrees rotation.
• Articulated: Variable rotation based on knuckle design.

Operation:

• Manual: Push/pull rotation for lighter loads (ergonomically designed for low friction).
• Motorized: Electric rotation for heavy loads or long arms to reduce operator strain.

Power Supply:

220V – 480V, 3-Phase, 50/60Hz. We customize the electrical system to match local grids in Europe, Asia, or Africa.

4. Customization Options: WEIYUAN Personalized Solutions

One size rarely fits all in industrial environments. WEIYUAN provides complimentary design and personalized customization services to ensure the equipment fits your specific operational constraints.

Structural Customization:

We can adjust the mounting brackets for a wall mount jib crane to fit specific building column widths or design a low-headroom boom for facilities with limited vertical space.

Specialized Reach:

For complex environments where a straight boom cannot reach, we engineer the articulated jib crane. This “knuckle boom” design allows the arm to fold in on itself, reaching around corners, columns, or into machine openings.

Mobility Solutions:

For clients needing flexibility across multiple bays, we manufacture portable jib cranes. These units sit on a heavy, counterweighted base and can be moved via forklift, offering a versatile lifting point anywhere in the shop without requiring a permanent foundation.

Environment Adaptation:

For outdoor or marine environments, we offer specialized anti-corrosion coatings and IP65-rated electrical components to withstand moisture and salt spray.

Branding:

We can apply your company’s color scheme and logo to the finished unit, ensuring visual consistency within your facility.

5. Application Fields

The adaptability of the jib crane makes it a staple across numerous industries.

Manufacturing and Machining:

Used for loading heavy workpieces into CNC machines, lathes, and mills. A column mounted jib crane is standard in these environments to keep the spindle turning and reduce setup time.

Warehousing and Logistics:

Facilitates the loading and unloading of trucks at bay doors using a jib boom crane.

Automotive and Heavy Repair:

Mechanics use the 2 ton jib crane for engine removal or transmission repairs.

Ports and Marinas:

Used for lifting tenders, jet skis, and supplies on docks and vessels.

Construction Support:

While distinct from a tower crane, smaller jib cranes handle materials in precast yards and fabrication shops.

6. Safety and Compliance

Safety is the non-negotiable standard of our manufacturing process. Buying a crane jib for sale from a reputable manufacturer ensures you are getting a certified piece of equipment, avoiding the immense liability risks associated with a homemade jib crane.

Certifications:

Our products comply with CE, ISO, and can be built to meet UL standards. This ensures regulatory compliance in your region.

Safety Features:

Every unit includes overload protection, emergency stop buttons, and travel limit switches. The trolley is equipped with bumpers to prevent impact damage.

Structural Integrity:

We provide detailed foundation calculations for freestanding jib crane installations. The concrete footing must be sufficient to counteract the overturning moment generated by the load at the tip of the boom.

Inspection:

WEIYUAN advises regular inspection of the jib boom crane welds and pivot points to ensure long-term structural health.

7. Case Study: Efficiency Transformation in a Foundry

Client Profile: A metal casting foundry in Central Europe.

The Challenge: The foundry relied on a single overhead bridge crane to service 15 grinding stations. Workers spent an average of 40 minutes per day simply waiting for the overhead crane to become available to lift 800kg castings. This bottleneck was costing the company significant production time.

The WEIYUAN Solution: We designed and installed eight units of 1 ton jib crane systems (Pillar Mounted), placing one between every two workstations. We utilized high-durability finishes to withstand the dusty environment.

The Results:

• Eliminated Wait Time: Operators had immediate access to lifting power.
• Increased Throughput: Daily production of finished castings increased by 22 percent.
• Enhanced Safety: The localized lifting allowed for precise positioning of heavy castings onto workbenches, reducing hand injuries. The investment was recovered in less than six months due to efficiency gains.

8. Installation and Support

We view the sale as the beginning of a long-term partnership. WEIYUAN provides comprehensive support to ensure your equipment is installed safely.

Installation Guidance:

We supply detailed foundation drawings, electrical schematics, and video tutorials. For complex industrial jib cranes, our senior engineers are available for remote video guidance or on-site supervision.

Maintenance Support:

We advise on lubrication and bolt tightening schedules. We also stock replacement parts to minimize downtime.

Training:

We provide operator manuals and safety guidelines to ensure your team understands the specific operation of the jib boom crane, preventing misuse.

9. Pricing and Quotation

The price of a jib crane varies based on capacity, span, and features.

Pricing Factors:

Costs are driven by the amount of steel (height/span), the sophistication of the hoist (electric vs. manual), and the rotation mechanism. A manual 1/2 ton jib crane will be significantly lower in cost compared to a fully motorized 2 ton jib crane.

Get a Quote:

Contact us for a personalized proposal. WEIYUAN offers factory-direct pricing, eliminating dealer markups. We provide transparent quotes that include the hoist, electrics, and mounting hardware.

10. Delivery Cycle

We understand that industrial projects run on tight schedules.

Standard Models:

Standard free standing jib crane and wall mount jib crane units are typically shipped within 7 to 10 working days.

Customized Models:

Specialized orders, such as articulated jib crane models or those with custom dimensions, generally require 15 to 25 working days for engineering and fabrication.

Logistics:

We handle professional packaging and can arrange freight to major ports globally.

11. FAQ: Common Questions

Q: Can I build a homemade jib crane?

A: We strongly advise against a homemade jib crane for industrial loads. The engineering required to calculate stress loads, moment forces, and welding integrity is complex. A failure can be catastrophic. Certified manufactured cranes come with load tests and warranties that DIY projects lack.

Q: What is the difference between Gorbel jib cranes and WEIYUAN?

A: While Gorbel jib cranes are a well-known brand, WEIYUAN offers comparable industrial quality and durability at a more competitive price point due to our integrated manufacturing capabilities. We offer full customization and direct factory support.

Q: Do I need a foundation for a freestanding jib crane?

A: Yes, a freestanding jib crane requires a reinforced concrete foundation to prevent tipping. We provide the specific engineering drawings for the anchor bolts and concrete depth required based on the crane’s capacity.

Q: Can I attach a jib to my forklift?

A: Yes, we offer forklift attachments, but for permanent workstations, a dedicated industrial jib crane is safer and more efficient than tying up a forklift for lifting tasks.

Q: What is an articulated jib crane?

A: An articulated jib crane has a pivot point in the middle of the arm, allowing it to fold like an elbow. This allows the crane to reach around columns or obstacles that a straight boom could not access.

Q: Do you offer camera cranes?

A: No, we specialize in heavy-duty industrial jib cranes for lifting materials. If you are looking for a jib camera crane for photography, you require lightweight equipment designed for cameras, not tons of steel.

Ready to elevate your operational efficiency? Contact WEIYUAN today for a professional consultation and quote on your industrial jib crane solution. Let us help you optimize your workflow with a dedicated lifting system.
