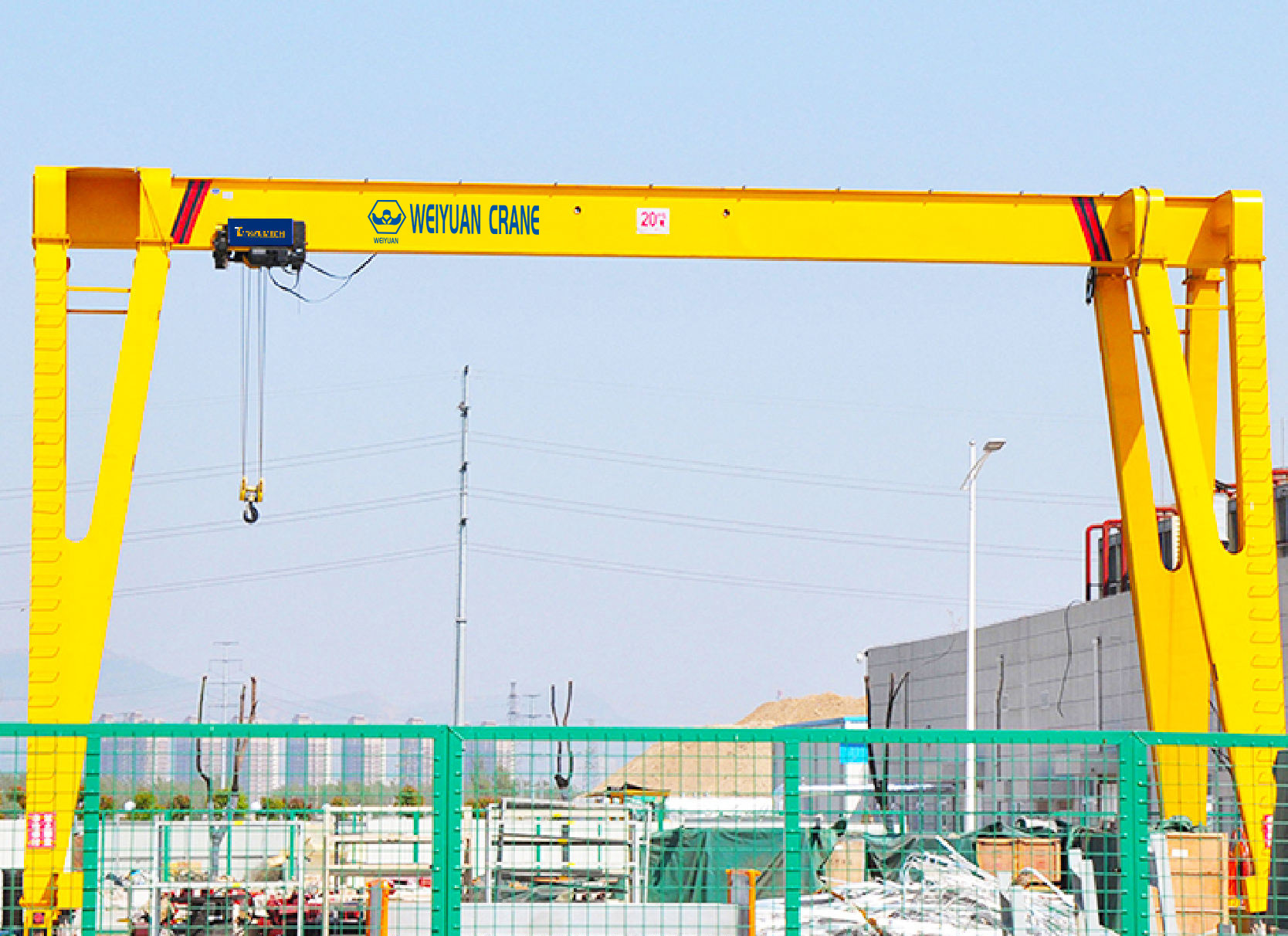

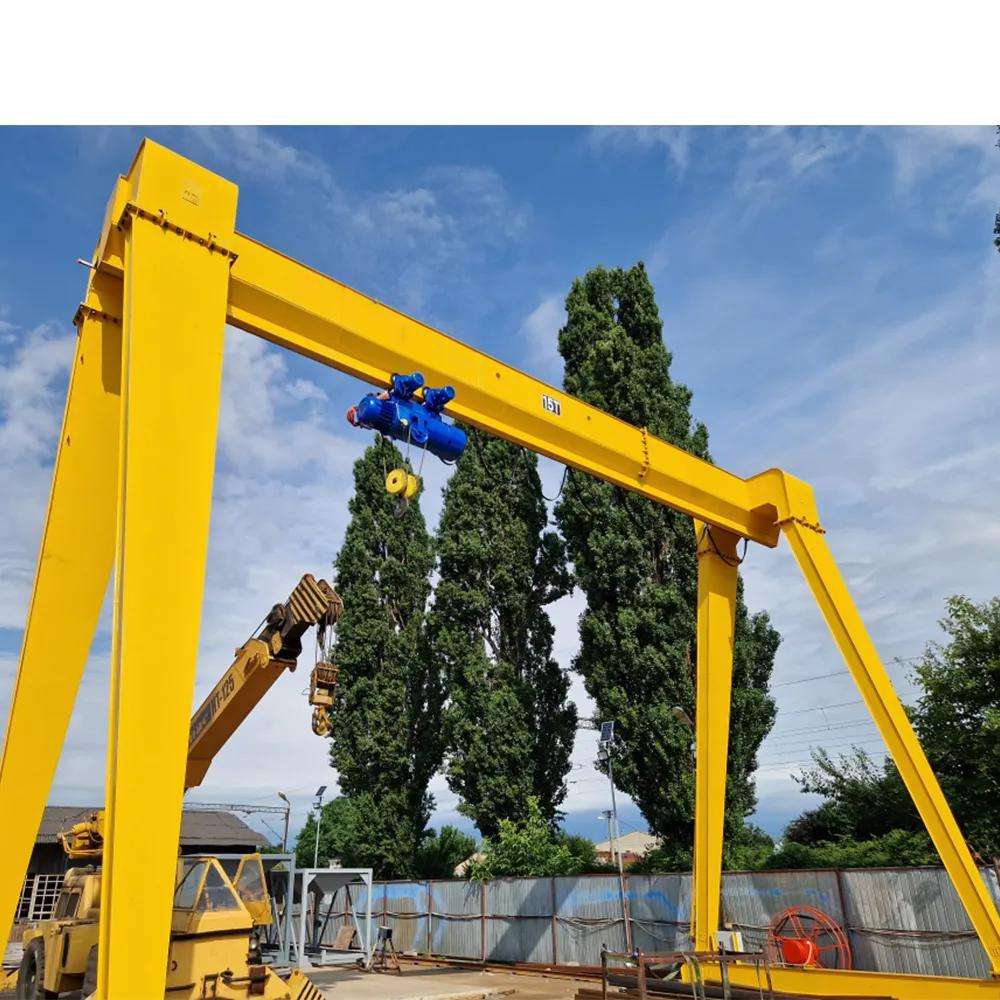

When evaluating material handling solutions for a new industrial project, the term “gantry” often comes up as a primary point of discussion. But what is the purpose of the gantry? In the world of heavy lifting, a gantry refers to the bridge-like overhead structure that straddles a work area. The purpose of a gantry crane is to provide a versatile, self-supporting framework that allows for the vertical lifting and horizontal movement of heavy loads without relying on a building’s structural columns.

At WEIYUAN, a manufacturer integrating design, production, sales, and installation, we specialize in maximizing the utility of the gantry crane. Whether you are looking to design gantry crane systems for a high-output factory or need a small gantry crane for localized tasks, understanding its purpose is the first step toward significant productivity gains.

The Versatile Purpose of the Gantry Crane: Beyond Basic Lifting

The core purpose of a gantry crane is to solve the limitations of traditional overhead systems. While an overhead crane gantry crane comparison often focuses on the structural setup, the real-world value lies in its high adaptability.

Why Use a Gantry System?

• Independence from Buildings: Unlike bridge cranes, overhead and gantry cranes of this type do not need to be attached to the workshop’s support beams. This makes them ideal for outdoor yards, docks, and rented spaces.
• Cost-Efficiency: For large-span or outdoor applications, the construction cost of a gantry system is often lower than building a massive bridge crane runway.
• Operational Flow: It helps enterprises optimize site layouts and accelerate material turnover, directly reducing operating costs and enhancing overall productivity.

Key Features and Benefits: Built for Efficiency

Our gantry crane and hoist systems are engineered with a focus on safety, durability, and high performance.

Feature	Industrial Benefit
Robust Steel Design	Ensures structural stability and long service life under high loads and harsh weather.
VVVF Speed Control	Provides smooth starts, runs, and stops, ensuring precise load positioning and protecting the mechanism.
Flexible Configurations	Available as rail-mounted, rubber tyred gantry crane (RTG), or semi-gantry models to suit any site.
Remote Monitoring	Real-time status monitoring and early fault warning for efficient management and troubleshooting.

Technical Specifications: Finding the Right Fit

Technical parameters are essential to ensuring the crane meets your specific workload. We provide a wide range of options, from a 1 ton gantry crane for light workshops to heavy-duty 5 ton gantry crane or even 500-ton massive machines.

• Lifting Capacity (SWL): 5 Tons to 500+ Tons (Standard)
• Span Length: 10 Meters to 50 Meters
• Lifting Height: 6 Meters to 30 Meters
• Duty Class: ISO M5 to M8 (A5 to A8)
• Materials: Q235/Q345 Structural Steel
• Power Supply: 380V/50Hz (Customizable to local standards)

Tailored Customization and Design Services

Industrial environments are unique, which is why WEIYUAN provides free technical consultation and design services to ensure your equipment is a perfect match for your site.

• Precision Sizing: We customize the span, cantilever length, and height based on your existing rails.
• Functional Config: Choose from single or double girder structures, single or dual speeds, and advanced anti-sway systems.
• Specialized Adaptability: We can engineer an aluminium gantry crane for weight-sensitive areas or provide explosion-proof/anti-corrosion units for extreme temperatures.

Application Fields: Where Gantry Cranes Power Industry

From the heavy lifting required for a pittsburgh gantry crane style industrial yard to modern shipping ports, these cranes excel across sectors:

• Ports and Terminals: Rail-mounted and rubber tyred gantry crane units are the heart of container yard operations.
• Construction & Precast: Moving large steel structures and precast concrete beams.
• Manufacturing & Shipbuilding: Heavy component assembly in shipyards and metallurgy plants.
• Logistics & Railways: Efficient loading and transshipment of rail freight.

Safety and Global Compliance

Safety is our baseline. Every gantry crane hoist we produce strictly adheres to international safety standards.

• Quality Systems: Design and manufacturing governed by ISO 9001.
• Global Certification: Critical components are CE certified for the European market and meet North American safety requirements.
• Standard Safety Devices: Integrated overload protection, limit switches, and emergency stop buttons.
• Expert Installation: All commissioning is performed by our team of professional, certified engineers.

Case Study: Heavy Hull Section Handling

The Project: X Shipbuilding Yard Large Gantry Crane Installation.

The Challenge: The shipyard needed to move hull segments weighing hundreds of tons in a high-salinity, high-humidity seaside environment.

The Solution: WEIYUAN delivered a 300-ton double-girder rail-mounted gantry crane. It featured high-protection motors and anti-corrosion coatings, along with a high-precision VVVF system for perfect alignment during hull docking.

The Result: The project significantly shortened the ship construction cycle, enhancing the shipyard’s global market competitiveness.

Installation, Support, and Training

We ensure a seamless experience from delivery to operation:

• Online Guidance: Detailed manuals and 3D video tutorials for your local teams.
• Field Support: Our professional technical team can be dispatched for on-site assistance.
• After-Sales Service: One-year warranty and global shipping for original replacement parts.

Pricing, Quotation, and Delivery

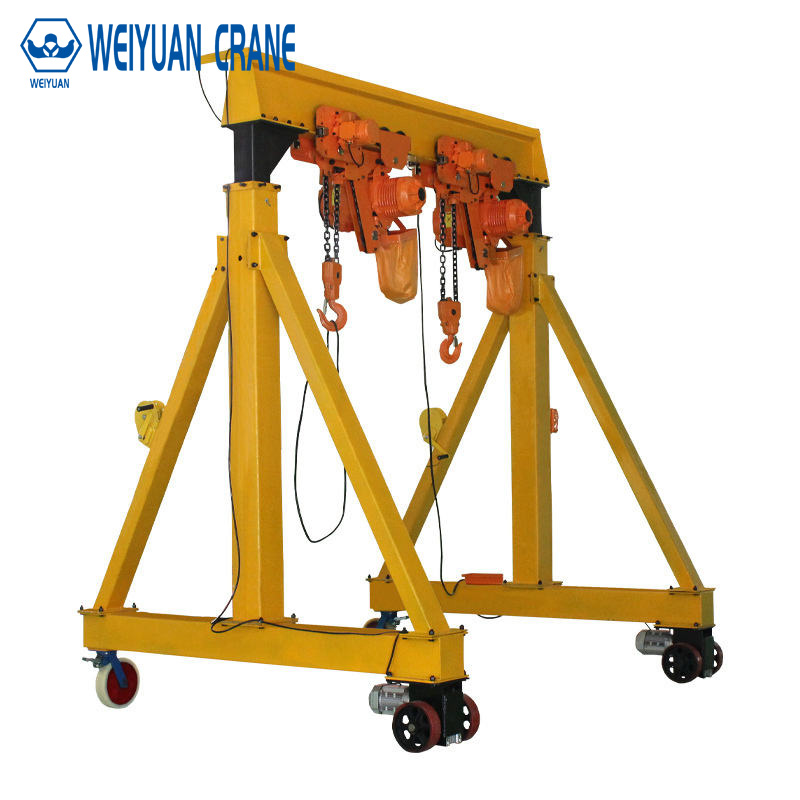

Pricing for a gantry crane for sale or a specialized portable gantry crane with electric hoist depends on your technical requirements.

• Quote Process: Contact us with your capacity, span, and power source details.
• Standard Models: Ships within 3–5 working days.
• Custom Models: Typically 2–4 weeks depending on complexity.

FAQ: Frequently Asked Questions

Q1: What information should I provide for a quote?

The more detail, the better. Please provide your required capacity (e.g., gantry crane 2 ton or 3 ton gantry crane), span, lifting height, material being lifted, and your local power source.

Q2: How many operation methods are available?

Standard options include a handheld pendant with buttons or a wireless remote control. We can also provide cabin operation for larger systems.

Q3: Can these cranes work in dangerous environments?

Absolutely. We can customize acid-proof or explosion-proof designs to suit chemical or high-temperature metallurgical sites.

Q4: How do I choose between a steel or aluminium gantry crane?

An aluminum gantry cranes setup is perfect for portability and light lifting where weight is a factor. For heavy industrial tasks, a steel rail gantry crane provides the necessary strength.

Q5: What if I am looking for a used gantry crane for sale?

While a used gantry crane for sale or a retail option like a pittsburgh gantry crane / vestil gantry crane might seem cheaper upfront, a new WEIYUAN unit provides modern safety compliance, a full warranty, and a significantly longer industrial service life.
