The Gantry crane is one of the most visible and indispensable pieces of equipment in the modern industrial landscape. Its unique, self-supporting “door-like” structure allows it to operate independently of a building’s existing columns, making it the preferred choice for massive, heavy-duty lifting tasks in expansive areas. The versatility of the Gantry crane means its presence is central to global trade, manufacturing, and large-scale infrastructure projects.

This article details the primary environments where you will find the Gantry crane, underscoring the vital role it plays in managing material flow and productivity.

1. Product Description: The Defining Feature of a Gantry Crane

The Gantry crane gets its name from its distinctive “door-like” steel structure. This structure crosses the work area and supports an electric hoist or small car.

• Product Purpose: The primary function of the Gantry crane is the vertical lifting and horizontal movement of heavy loads along a fixed track or area. It is ideal for outdoor or indoor spaces lacking pillar constraints.
• Core Advantages: The structural independence offers significant benefits:
  • High Adaptability: It can be installed independently in outdoor yards without needing factory building support.
  • Cost Efficiency: In some large-span outdoor applications, the construction cost is lower than that of traditional bridge cranes.
  • Reliability: It handles super-heavy loads, often tens to hundreds of tons, ensuring continuous process flow.
• Attraction: The Gantry crane helps enterprises optimize layout, accelerate material turnover, and subsequently reduce operating costs while boosting overall productivity.

2. Key Applications: The Gantry Crane’s Most Common Habitats

The Gantry crane is widely applied due to its high strength and flexibility. Its primary areas of use are defined by the need for massive lifting capacity over wide spans, often outdoors.

Ports and Docks: The Spine of Global Trade

Container terminals are the single most common location for large, specialized Gantry cranes.

• Rubber Tired Gantry Crane (RTG): These mobile cranes use rubber tires and are essential for handling containers and yard stacking.
• Rail Gantry Crane (RMG): These cranes run on rails and are used for stacking and moving containers within the terminal yard.
• Wholesale Ship to Shore Gantry Cranes: These massive systems manage the transfer of containers directly between the ship and the shore/dockside rail.

Manufacturing and Fabrication Yards

Heavy industries utilize Gantry cranes to manage the most massive components before final assembly.

• Shipbuilding: Cranes are used to hoist and position massive pre-fabricated hull sections.
• Steel Mills and Foundries: Used to move heavy metal coils, molten ladles, and finished steel products.
• Precast Concrete Yards: Double girder gantry crane systems are used to lift and maneuver large concrete beams, pipes, and segments used in bridge and construction projects.

Logistics and Rail Yards

• Railway Freight Yards: The cranes are crucial for transloading and handling rail cargo.

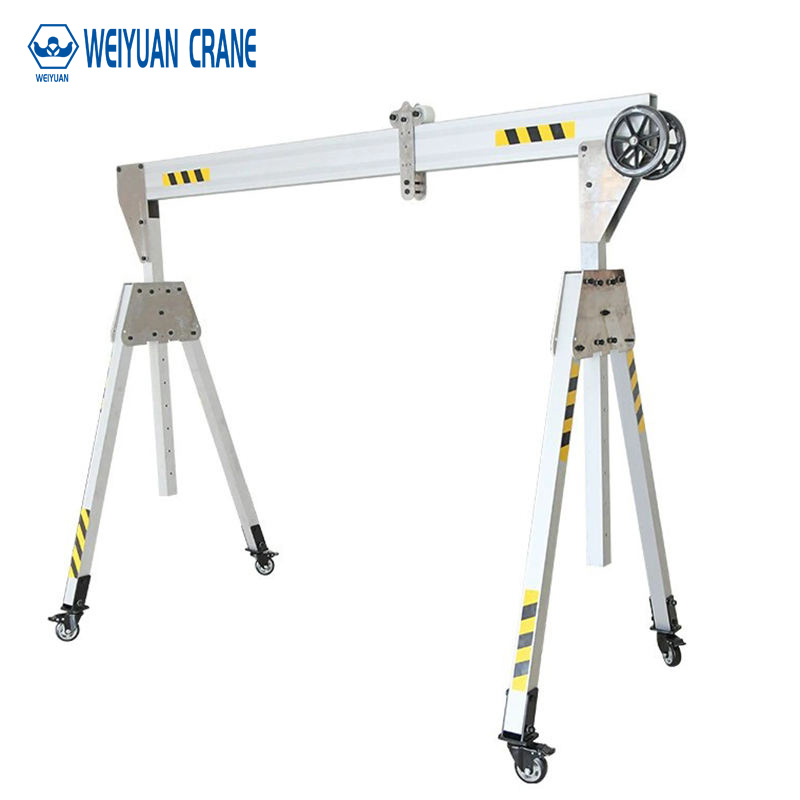

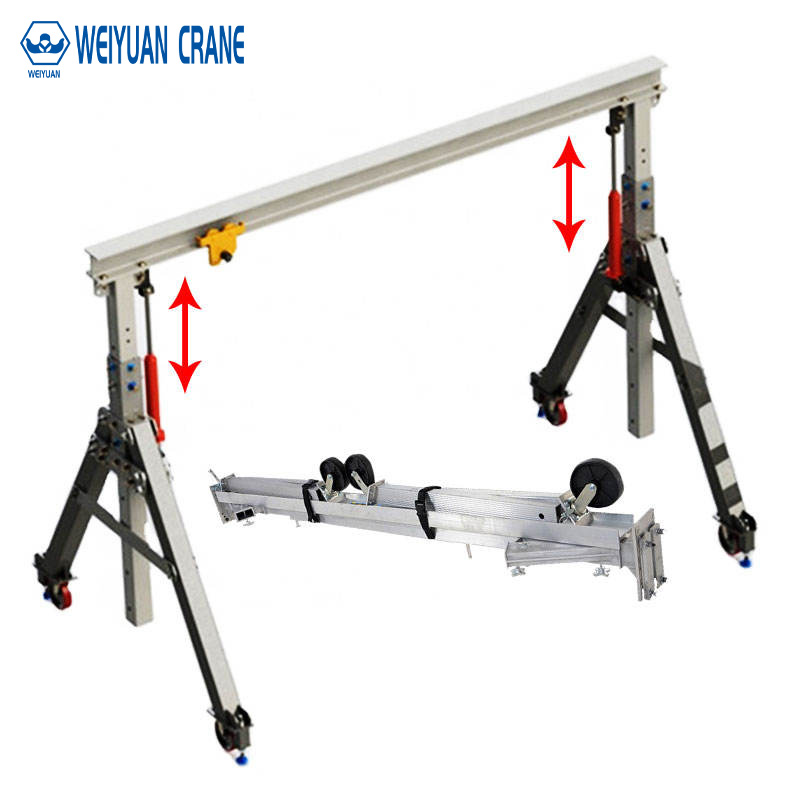

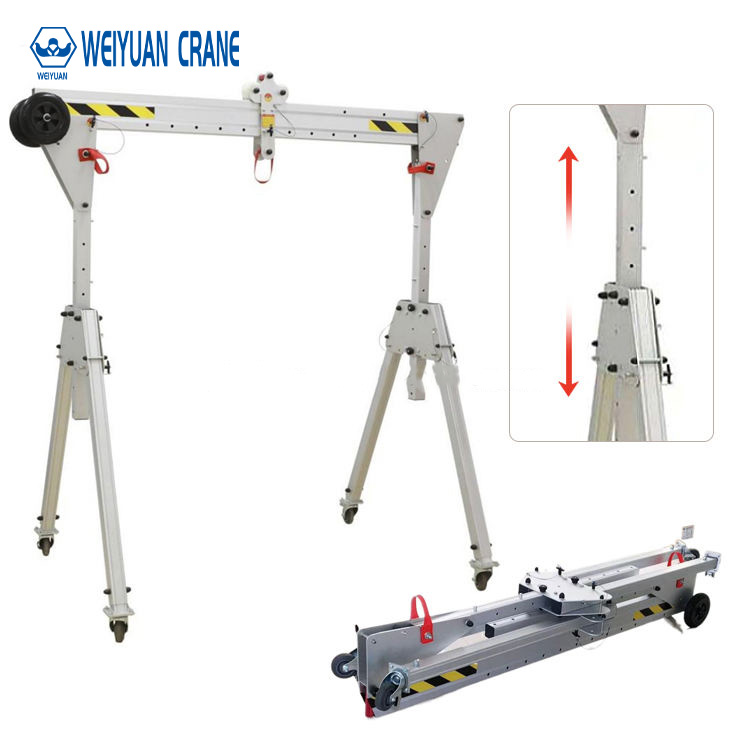

• Warehousing and Workshops: Lighter, often single girder gantry crane or china workshop gantry crane quotes are used for heavy internal material handling and maintenance where overhead bridge systems are impractical. Portable aluminum gantry crane models are often used for light maintenance in these areas.

3. Customization and Technology: Tailoring the Crane to the Site

The diversity of application demands that Gantry crane manufacturers offer highly customized solutions.

Key Features Enabling Diverse Use

• VVVF Control: Provides smooth operation and precise positioning required for delicate assembly tasks, a feature important in manufacturing.
• Multiple Configurations: The availability of various models, including tracked, rubber-tyred, and semi gantry crane models, allows the crane to be precisely adapted to different terrain and spatial needs.
• Remote Monitoring: Essential for fault prediction and management in isolated locations like remote rail yards.

WEIYUAN is a professional production manufacturer integrating production, sales, design, and installation, offering specialized technical consulting and design services to ensure the equipment perfectly matches unique site requirements.

Technical Specifications Driving Application Suitability

Specification Item	Range	Application Relevance
Lifting Capacity (SWL)	5 tons – 500 tons or higher.	Determines use in general logistics (low tonnage) vs. shipyard/port (high tonnage).
Span	10 meters – 50 meters.	Allows the crane to span wide yards and dock areas.
Duty Class (A5 $\sim$ A8)	A5 (Medium) -A8 (Super Heavy).	High duty cycles (A7/A8) are required for continuous port or mill operations.
Environmental Customization	Anti-corrosion, anti-explosion.	Essential for chemical plants or seaside environments where the crane is commonly used.

4. Safety and Compliance: A Universal Requirement

Regardless of the location, adherence to stringent safety standards is non-negotiable for all Gantry crane suppliers.

• Compliance: All products strictly follow international and regional safety standards. Key components meet standards like CE certification (Europe).
• Safety Devices: Products are built with integrated safety features, including overload protection and limit switches.
• Installation: All installations and debugging are performed by professional certified engineer teams.

5. Case Study: Maximizing Efficiency in a Coastal Environment

Case: X Shipyard Large Gantry Crane Installation

• Project Challenge: X Shipyard needed a massive gantry to move and assemble large hull sections in a high-salinity, corrosive seaside environment.
• The Solution: We delivered a 300-ton double-main girder track-mounted Gantry crane. It featured high-protection-grade motors and electric control systems and anti-corrosion paint. The precision VVVF system ensured accurate micro-positioning needed for ship assembly.
• Client Benefits: The intervention significantly boosted the speed and precision of hull assembly, shortening the shipbuilding cycle.

Installation and Procurement Details

• Installation and Support: We provide comprehensive documentation, video guidance, and technical teams available for on-site assistance. We offer a standard one-year warranty.
• Pricing and Delivery: Gantry crane pricing is customized based on specifications. Standard models ship in 3–5 working days; custom models typically require 2–4 weeks.
