The Definitive Name: A Visual Description

The name Gantry crane is derived directly from its defining visual feature: its structure is shaped like a gantry, which is an open, frame-like structure that straddles an area. A gantry is architecturally defined as a framework—like a door or a large portal—that spans over a space, typically used to support a machine or provide access. This design is what sets the Gantry crane apart from all other lifting mechanisms.

The physical anatomy of the Gantry crane consists of two or more rigid legs supporting a horizontal girder (or bridge) that runs between them. This girder carries the trolley and electric hoist. This “door” shape allows the crane to stand independently on the ground or on a runway, completely eliminating the need for complex, load-bearing support structures built into a factory building’s walls or ceiling. This makes the Gantry crane an engineering marvel for flexible material handling.

Core Structural Advantages of the Gantry System

The gantry structure provides foundational benefits over other crane types:

• High Adaptability and Independence: Gantry cranes require no existing factory structure for support, making it ideal for independent installation in vast indoor or outdoor spaces, rail yards, and any environment lacking internal building columns.
• Cost-Effectiveness in Open Areas: For large-span applications and outdoor installations, the construction cost of a complete Gantry crane system is often more cost-effective than building extensive, load-bearing infrastructure for a traditional bridge crane.
• Efficient and Reliable Lifting: Gantry systems are inherently stable and robust, engineered to handle super-heavy loads, often ranging from tens to hundreds of tons, ensuring the continuity of production processes.
• Operational Optimization: By providing heavy-duty, freestanding lifting capability, the gantry system helps enterprises optimize their site layout, accelerate material turnover, and significantly reduce operational costs while boosting overall productivity.

Versatility in Motion: Different Types of Gantry Systems

The foundational gantry structure is adapted into numerous configurations to suit different environments, from sprawling ports to compact workshops.

Fixed and Rail-Mounted Gantry Crane Systems

These are the titans of the lifting world, used for high-volume, continuous work over a fixed path.

• Ports and Shipyards: Massive Rail-Mounted Gantry (RMG) and Rubber-Tired Gantry (RTG) cranes are the core equipment for loading, unloading, and stacking containers in terminals. They efficiently manage the rapid material turnover required at maritime docks.
• Infrastructure Projects: They are critical for handling immense materials in large construction projects, such as moving pre-fabricated concrete beams, large steel structures, and tunnel segments.
• Heavy Manufacturing: In sectors like shipbuilding and large machinery manufacturing, these cranes are vital for the assembly and transport of multi-ton components.
• Railroad Freight Yards: Used for efficiently loading and trans-shipping rail cargo.

Portable and Wheeled Gantry Crane Solutions

For smaller enterprises and flexible workshops, the wheeled gantry crane offers convenience and maneuverability without the high cost of a fixed installation.

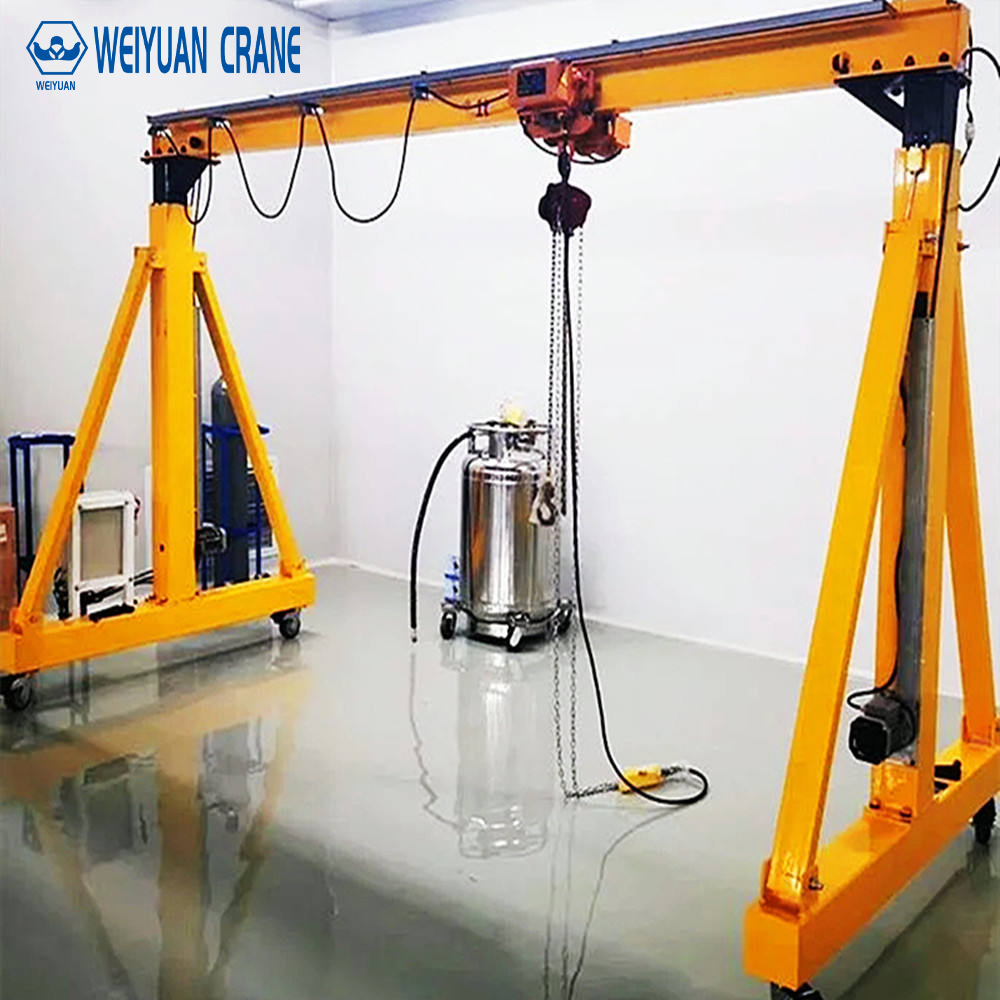

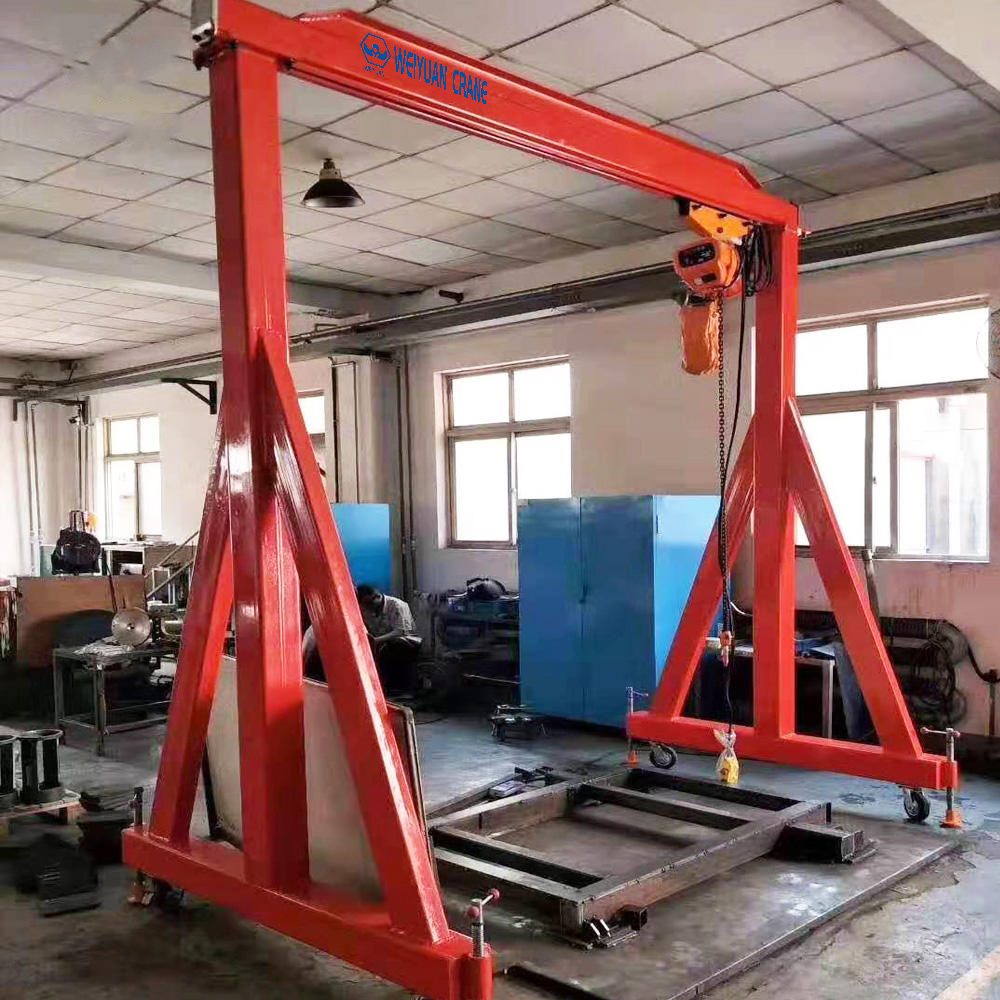

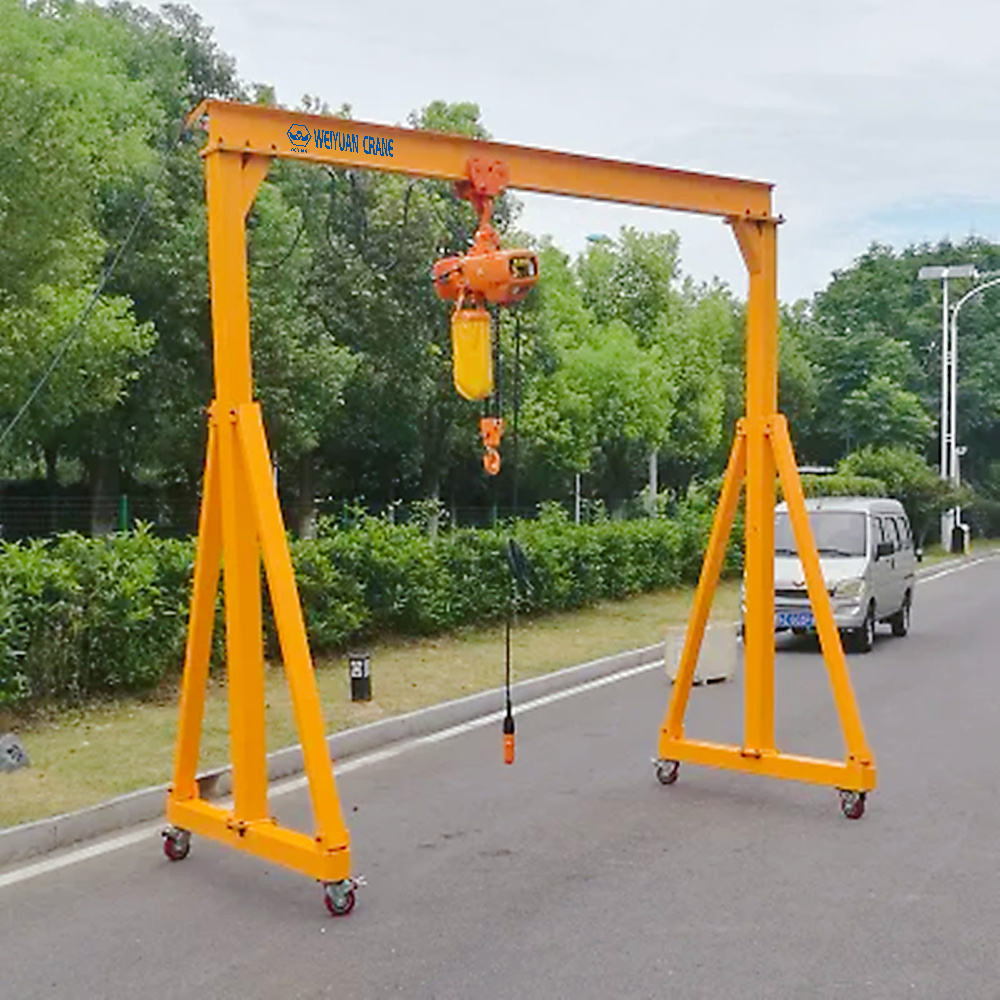

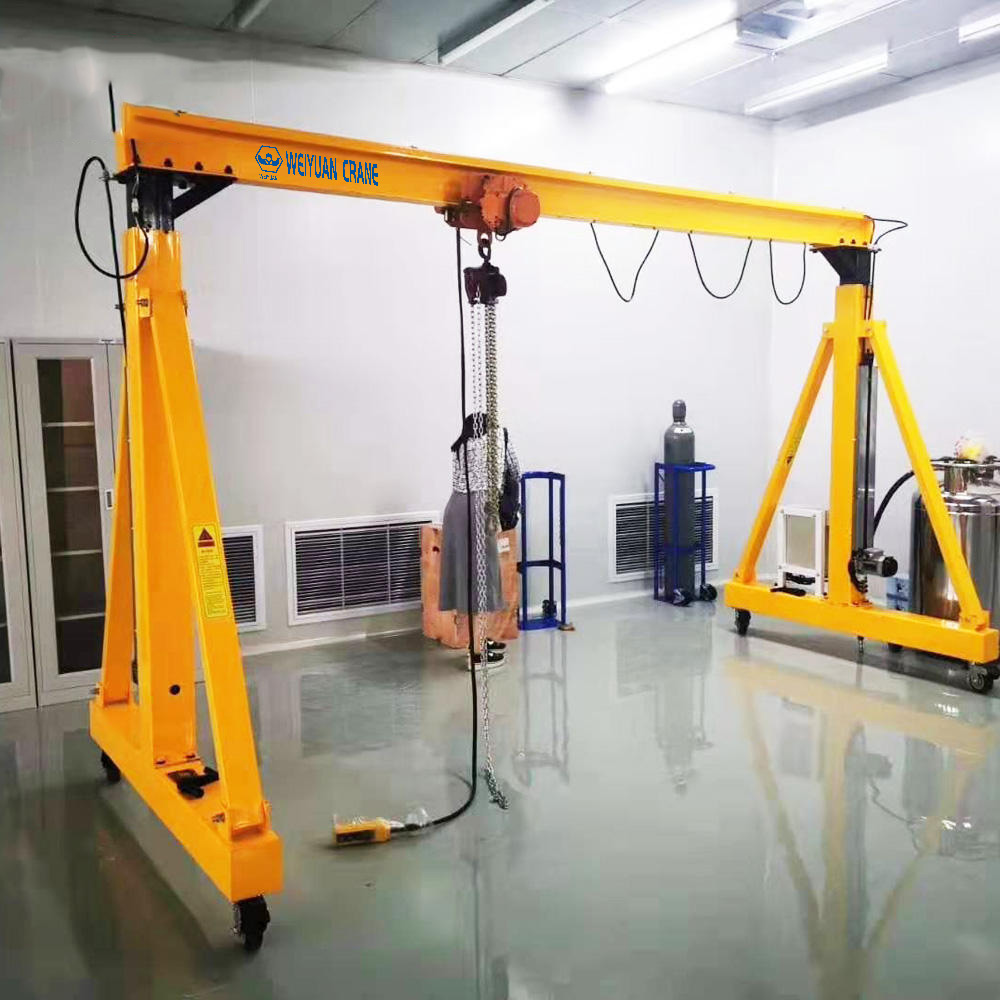

• Workshops and Garages: A 2 ton portable gantry crane or smaller units like an adjustable height gantry crane are ideal for engine removal, servicing heavy machinery, or moving specialized tooling. They offer immediate lifting capability without any permanent structural changes. This mobility is clearly illustrated by the various colors and designs seen in workshop settings, providing lifting capability right where it’s needed .
• Temporary Sites: They are easily disassembled—sometimes purchased as a simple gantry crane kit—and moved between different sites, perfect for short-term construction or assembly needs.
• Accessory Integration: Many portable units integrate an electric hoist for gantry crane use, transforming manual lifting into a quick, motorized process.

WEIYUAN Engineering: Features Designed for Longevity and Safety

WEIYUAN Gantry crane systems are designed with safety, durability, and high efficiency at their core. We integrate key technological features to maximize the crane’s service life and operational reliability.

Structural Integrity and Control Technology

• Robust Steel Design: Our cranes utilize high-grade structural steel (Q235/Q345) in their design, which ensures structural stability and extended lifespan, even under high-load conditions and adverse outdoor weather.
• Precision Control (VVVF): We incorporate Variable Frequency Drive (VVVF) technology to guarantee smooth starting, running, and stopping. This precision allows for accurate load positioning and control, which protects both the crane mechanism and the lifted material, enhancing overall safety.
• Model Diversity: We offer a variety of configurations, including rail-mounted, tire-mounted (RTG), and semi-gantry models, to flexibly meet diverse site and application needs.
• Proactive Monitoring: An optional remote monitoring and diagnostic system provides real-time equipment status checks and early warnings, facilitating efficient management and troubleshooting.

Technical Specifications and Customization

Technical specifications are paramount for ensuring the Gantry crane meets the demands of your specific workload and environment.

Key Technical Parameters

Specification Item	Technical Parameter Range	Applicability Consideration
Lifting Capacity (SWL)	5 Ton – 500 Ton or higher	Select based on the maximum weight of the load.
Span	10 Meters – 50 Meters	Determines the width of the covered working area.
Lifting Height	6 Meters – 30 Meters	Must account for the vertical height of the facility or stacking yard.
Duty Class	A5 (Medium) -A8 (Super Heavy)	Determined by daily work cycles and load rates (e.g., ISO M5 $\sim$ M8).
Power Requirement	380 V / 50 Hz or local standard	Must comply with the facility’s power grid configuration.
Material	Q235/Q345 Structural Steel	Impacts the equipment’s strength and durability.

Customization: Perfecting the Fit for Your Site

WEIYUAN offers FREE technical consultation and design services to ensure your equipment is precisely matched to your site conditions.

• Size and Span: Customization includes precise adjustment of span, cantilever length, and lifting height based on existing site tracks and facility structures. This is especially crucial for steel gantry crane structures operating on fixed rails.
• Functional Configuration: We offer choices between single/double girder structures, variable speed control, and specialized functions like anti-sway systems based on application demands.
• Environmental Needs: Customization is available for special environments, including anti-corrosion, explosion-proof, or systems adapted for high/low temperatures. For units like the mobile gantry crane for sale that are used outdoors, special weatherproofing is essential.

Safety, Compliance, and Support Commitment

Safety is the paramount standard for all lifting equipment. Our manufacturing process ensures strict adherence to the highest international and regional safety protocols.

Safety and Quality Assurance

• Quality System: All equipment design and manufacturing strictly adhere to the ISO 9001 Quality Management System.
• Certifications: Key components comply with international standards, including CE certification (essential for the European market).
• Safety Devices: Products include multiple built-in safety mechanisms such as overload protection, limit switches, and emergency stop buttons, to protect operators and the equipment.
• Hazardous Environments: We can customize Gantry crane units to be acid-proof or explosion-proof to work safely in hazardous environments.
• Installation and Commissioning: All installation and commissioning work is executed by professionally certified engineer teams.

Installation, Training, and After-Sales Support

WEIYUAN provides comprehensive support throughout the equipment’s life cycle:

• Installation Guidance: We offer detailed installation manuals, video tutorials, and online guidance to support installation teams.
• On-site Support: Our professional team can provide on-site technical assistance for installation and commissioning. Our senior engineers can visit the site to provide installation guidance and training services.
• Warranty: We provide a 12-month warranty, covering use within the standard scope.

Case Study: Shipyard Segment Handling

Project Profile: Optimizing Super-Heavy Shipyard Lifting

• The Challenge: A large shipyard needed an ultra-large Gantry crane to lift and assemble massive ship hull sections, some weighing several hundred tons. The crane also had to operate reliably long-term in a high-salinity, high-humidity coastal environment.
• WEIYUAN Solution: We delivered a custom 300-ton double-girder rail-mounted Gantry crane, equipped with high-protection motors and electrical control systems, anti-corrosion paint and coatings, and a high-precision VVVF control system for micro-motion precision.
• Client Outcome: The crane significantly improved the speed and accuracy of hull section assembly, shortened the ship construction cycle, and substantially enhanced the shipyard’s production capacity.

Pricing, Quotation, and Acquisition

Obtaining a Personalized Quotation

The price of a Gantry crane is highly variable, depending on its specific capacity, span, duty class, and level of customization. Therefore, we encourage direct consultation to obtain an accurate quote.

To receive an accurate and personalized quote, please provide the following details:

• Lifting capacity, crane arm length, and lifting height.
• Details on the material being lifted.
• Power source requirements or any other special operational needs.

Delivery and Operational Timeline

• Standard Models: Standard models that require minimal modification are often available ex-stock, with dispatch occurring within 3-5 working days.
• Customized Models: The delivery cycle for custom models varies from 2-4 weeks, depending on the design complexity.

Frequently Asked Questions (FAQ)

What information should I provide when asking for a quote?

Details or drawings are highly beneficial. You should specify: lifting capacity, crane arm length (span), lifting height (or hook travel), material to be lifted, power source, or any other special requirements.

What operating methods are available for the Gantry crane?

Standard operating methods include a handheld controller with buttons and a wireless remote controller with buttons. You can select either option based on your requirements.

Can this type of equipment work in hazardous environments?

Yes, it can. We can customize the crane to be acid-proof or explosion-proof, no problem.

How is the Gantry crane installed?

Our senior engineers can visit the site to provide installation guidance and training services.

Can I visit your factory?

Yes, you can. We can arrange to meet you at the train station, high-speed rail station, or airport and assist with your hotel booking.
