Crane Gearbox Reducers
Product Overview

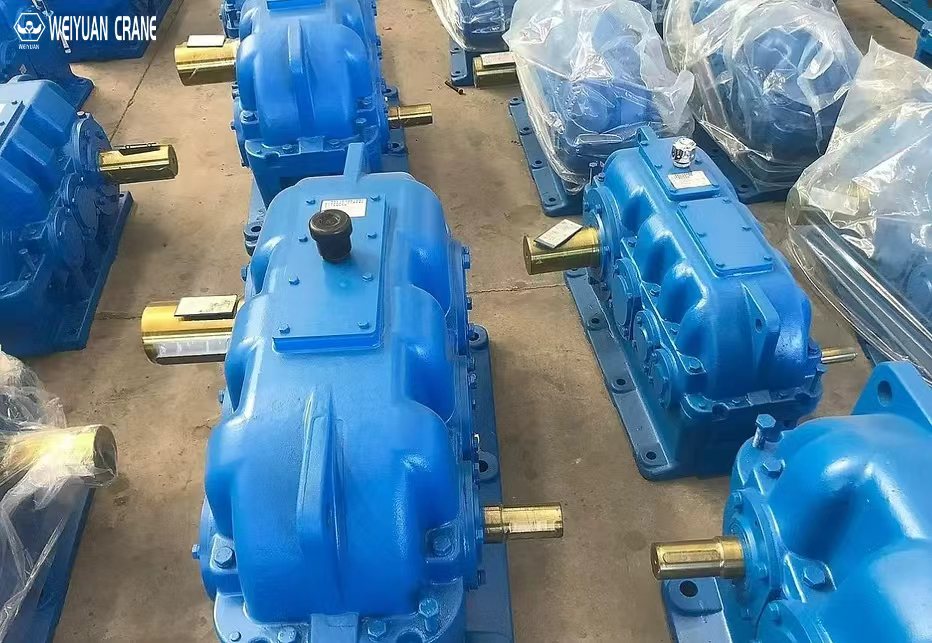

Crane gearbox reducers are essential transmission components designed for bridge cranes, gantry cranes, suspension cranes, electric hoists, jib cranes, and port cranes. These precision-engineered systems provide speed reduction and torque multiplication for critical crane operations including traveling, trolley movement, hoisting, and jib rotation. Our comprehensive range includes both standard and non-standard reducers from leading manufacturers and world-renowned brands such as Siemens and SEW. The QY series reducers feature advanced hard tooth surface technology with QYS (three fulcrum) and QYD (base type) configurations, offering three-level, four-level, and combination options to meet diverse industrial requirements.
Product Advantages
Superior Load-Bearing Capacity
Features high-quality low-carbon alloy steel gears with carburized and quenched tooth surfaces, processed by precision grinding for significantly enhanced load capacity compared to soft and medium hard tooth surface alternatives.
Compact and Lightweight Design
Advanced hard tooth surface technology enables 2-4 machine seat size reductions compared to equivalent soft tooth surface reducers, delivering substantial space and weight savings.
High Efficiency Performance
Precision gear grinding achieves 0.98 comprehensive efficiency per gear level with dramatically reduced vibration and noise through advanced edge trimming techniques.
Versatile Installation Options
Three-point reducer design supports vertical, horizontal, or angled installation configurations, providing exceptional mounting flexibility for various crane applications.
Extensive Product Range
Comprehensive selection of 17 reducer series including specialized planetary gear systems, worm gear reducers, and European standard gear motors with maximum transmission ratios reaching 400:1.
Application Scenarios
Bridge and Overhead Cranes
Essential for main hoist mechanisms, trolley travel systems, and long travel drives in manufacturing facilities, warehouses, and industrial workshops requiring precise load positioning.
Gantry Crane Operations
Ideal for container handling, shipyard operations, and heavy-duty material handling applications where robust transmission systems ensure reliable performance.
Mining and Metallurgy
Engineered for demanding applications in mining, metallurgical, chemical, building material, and light industry transmission equipment operating under harsh conditions.
Port and Marine Applications
Specialized reducers for port cranes and marine lifting equipment requiring exceptional reliability and performance in challenging maritime environments.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Gear Circumferential Speed | ≤20m/s maximum operating speed |
| High-Speed Shaft Speed | ≤1500 r/min maximum input speed |
| Operating Temperature | -40°C to +45°C ambient conditions |
| Rotation Direction | Bidirectional (forward and reverse) |
| Maximum Transmission Ratio | Up to 400:1 for slow-speed applications |
| Gear Surface Treatment | Carburized, quenched, and ground finish |
| Installation Types | Vertical, horizontal, and angular mounting |
| Casing Material | Steel plate welded with stress relief treatment |
Features at a Glance
✓ Comprehensive Model Selection: 17 distinct reducer series including QY crane reducers, planetary systems, and worm gear configurations
✓ Advanced Manufacturing: Steel plate welded casings with annealing and stress relief treatment ensuring dimensional stability
✓ Multiple Configuration Levels: Three-level, four-level, and combination arrangements optimizing speed reduction and torque
✓ Industry Compliance: Manufactured according to JB/T standards including crane-specific hard tooth reducer specifications
✓ Mechanism Versatility: Supports lifting, traveling, rotating, and amplitude mechanisms across all crane types
✓ Premium Brand Options: Available from leading Chinese manufacturers and international brands like Siemens and SEW
FAQ
Q: What advantages do hard tooth surface reducers offer over soft tooth alternatives?
A: Hard tooth surface reducers provide significantly higher load-bearing capacity through carburized and quenched gear surfaces while being more compact and lightweight. They achieve 98% efficiency per gear level with reduced noise and vibration compared to soft tooth systems.
Q: How do I select the appropriate reducer series for my crane application?
A: Selection depends on specific requirements: QY series for general crane applications, planetary reducers for compact high-torque needs, and worm gear reducers for precise positioning. Our technical team provides expert recommendations based on your crane specifications and operational requirements.
Q: What installation flexibility is available with three-point reducers?
A: Three-point reducers offer exceptional mounting versatility, supporting vertical, horizontal, or various angled installations to accommodate different crane configurations and space constraints while maintaining optimal performance.
Q: Can these reducers handle bidirectional operation?
A: Yes, all crane reducers are designed for bidirectional operation, supporting both forward and reverse rotation as required for crane lifting, lowering, and directional movements with consistent performance in both directions.
Q: What is the maximum transmission ratio available for specialized applications?
A: Our reducers achieve maximum nominal transmission ratios up to 400:1, making them ideal for slow-speed crane applications requiring high torque output and precise control capabilities.
