Introduction

A car plant has three major manufacturing zones. Each one has a completely different crane specification. The press shop handles dies weighing up to 80 tonnes with millimeter precision. The body shop handles delicate sheet metal assemblies weighing a few hundred kilograms with zero tolerance for surface damage. The paint shop operates in a classified explosive atmosphere with strict anti-static requirements.

One standard crane catalog cannot serve all three. Buying the same crane type for all three zones is a common mistake. It produces a crane that over-serves one zone, under-serves another, and creates safety or quality problems in the third.

This guide provides the complete crane specification framework for each of the three major automotive manufacturing zones. We also cover the emerging EV-specific requirements that are changing what automotive factory cranes need to do. And we address the reliability and documentation requirements that automotive OEMs increasingly impose on equipment suppliers.

Part 1: The Three-Zone Challenge

Why Automotive Plants Require Three Different Crane Specifications

Press shop cranes lift at high capacity. Body shop cranes lift at low capacity but require precision. Paint shop cranes operate in hazardous atmospheres. These three requirements — heavy capacity, precision light handling, and explosion-proof design — pull in different directions. No single crane configuration satisfies all three well.

Understanding this is the starting point. Specify each zone’s crane based on that zone’s specific requirements. Do not default to a single “automotive factory” specification applied uniformly.

JIT Production and Crane Reliability

Automotive manufacturing runs on just-in-time production. Every station in the production sequence depends on the previous station’s output. A crane failure stops the station it serves. That station’s failure quickly stops the stations downstream. In a modern vehicle assembly plant producing 1,000 vehicles per day, a 2-hour crane outage at a bottleneck station can cost $200,000 to $500,000 in lost production.

This production consequence profile drives the reliability requirements that differentiate automotive factory cranes from standard industrial cranes. Mean Time Between Failures (MTBF) targets, Mean Time To Repair (MTTR) limits, and spare parts stocking requirements are part of the crane specification — not afterthoughts.

EV Factory vs Traditional Factory

Electric vehicle manufacturing creates crane demands that traditional factories do not have. Battery module and pack assembly requires handling components that cannot tolerate electrostatic discharge or metallic contamination. Large-format aluminum castings from gigapress machines weigh 3 to 8 tonnes — a new weight class for body shop cranes. Electric drive unit assembly requires precise positioning that traditional powertrain cranes did not need.

These EV-specific requirements are addressed in Part 5. They apply equally to dedicated EV factories and to traditional plants being converted for EV production.

Part 2: Press Shop Cranes — Die Handling

Why the Press Shop Is the Most Demanding Zone for Crane Capacity

Stamping dies are among the heaviest single items moved regularly in any manufacturing facility. A complete large progressive die set for an exterior body panel can weigh 60 to 80 tonnes. Die changes happen on every major press multiple times per shift during high-mix production.

This combination — heavy loads plus frequent handling plus precision placement requirements — defines press shop crane specifications more than any single factor alone.

Typical Press Shop Crane Configuration

The standard press shop crane is a double-girder overhead bridge crane with the following specifications:

Capacity: 20 to 80 tonnes depending on the heaviest die set in the press shop.
Duty class: CMAA Class D minimum for presses with multiple die changes per shift.
Span: matches the press shop bay width — typically 18 to 30 metres.
VFD control: mandatory on all three motions (hoist, bridge travel, trolley travel).
Anti-sway control: mandatory for die weights above 20 tonnes.
Positioning system: encoder-feedback minimum; laser positioning for precision die landing.

Die Change Cycle and Crane Speed Requirements

Press die changes follow a defined sequence. The crane lifts the outgoing die from the press bolster. It travels to the die storage area. It deposits the die on a storage pallet or shuttle car. It returns for the incoming die. It positions the incoming die into the press bed within ±5mm of the target position.

The time allowed for this complete cycle is set by the production schedule — typically 15 to 30 minutes for a complete die change on a medium-size press. The crane’s travel speed, acceleration profile, and positioning time must fit within this window.

Calculate the required crane travel speed: available travel time (minutes) × travel speed (m/min) must equal or exceed the required travel distance plus positioning time. For a 40-metre press-to-storage travel distance with 5 minutes of available travel time: required average speed = 40m ÷ 5 min = 8 m/min minimum. Specify 12 m/min to provide adequate margin.

Anti-Sway for Die Positioning

A 50-tonne die suspended from a 10-metre hoist rope has a natural pendulum period of approximately 6.3 seconds (period = 2π × √(L/g)). After a standard bridge travel and stop, the die oscillates at this frequency. The operator must wait for the oscillation to damp before attempting the precision ±5mm die landing.

Without anti-sway control: typical wait time 20 to 40 seconds per die change cycle.
With active anti-sway control: residual swing reduced to under ±20mm within 3 to 5 seconds of travel stop.

For a press line performing 4 die changes per shift: anti-sway control saves 2 to 5 minutes per die change × 4 changes = 8 to 20 minutes per shift. Over 250 working days: 33 to 83 production hours saved per year. For a press producing $1,000 per hour output, the anti-sway ROI is $33,000 to $83,000 per year in recovered production time.

Part 3: Body Shop Cranes — Welding and Assembly

The Body Shop’s Different Challenge

The body shop (BIW — Body in White) assembles the vehicle’s structural steel skeleton from stamped components. Individual parts are light — typically 5 to 500 kg. Subassemblies are heavier — 100 kg to 2 tonnes. But compared to press shop dies, body shop lifting capacities are modest.

The challenge in the body shop is not capacity. It is precision, speed, density, and the hostile environment of automated welding.

Welding Smoke and Electromagnetic Interference

Robotic MIG welding generates dense smoke containing metal oxides and flux particles. This smoke settles on surfaces — including electrical enclosures. It is conductive. Standard IP54 enclosures are inadequate. IP65 is the minimum for body shop cranes operating in active welding zones.

Resistance spot welding systems operate at high currents — 8,000 to 15,000 amperes. These currents create strong electromagnetic fields that can interfere with crane control electronics. Specify: shielded control cables, filtered power supplies, and EMC-compliant control system design for all body shop overhead cranes.

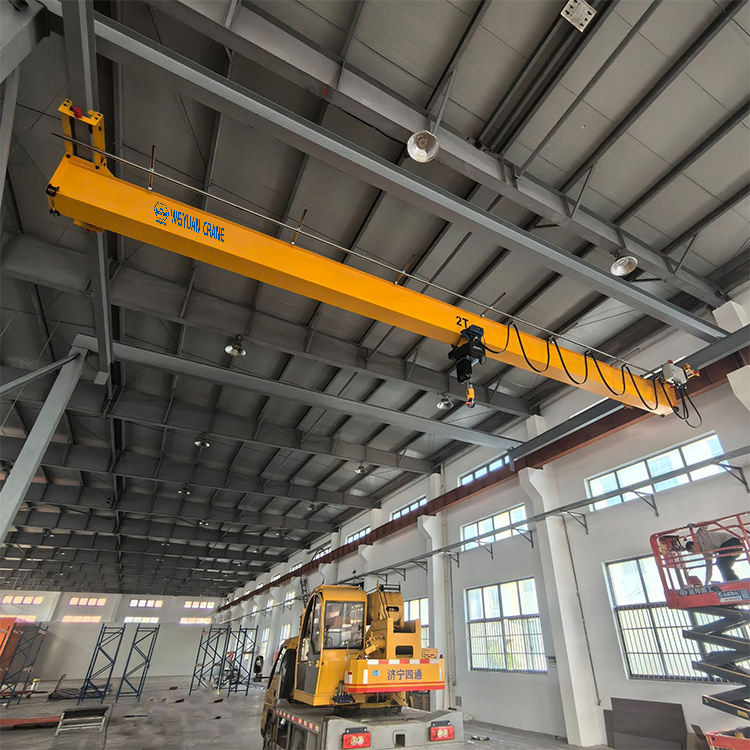

Jib Cranes and KBK Systems in the Body Shop

Body shop workstations are dense. Cranes serve individual welding stations or small groups of stations. A full overhead bridge crane serving a single welding station is oversized and expensive. Two crane types serve body shop workstations efficiently:

Jib cranes: A pillar-mounted or wall-mounted jib crane with 100 to 500 kg capacity serves a single welding station. The operator reaches across the workspace with the crane to position a component onto a fixture. Rotation: 270° to 360° to cover all fixture positions. Electric chain hoist with wireless remote: standard specification.

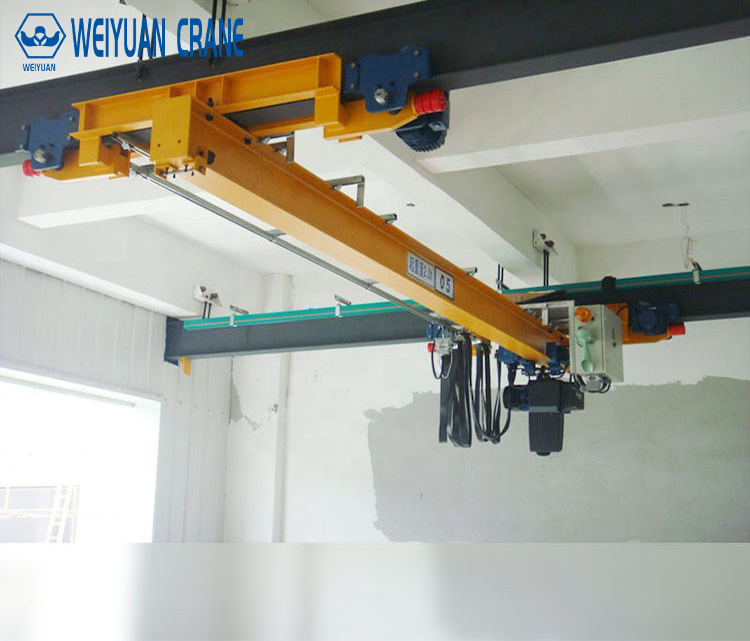

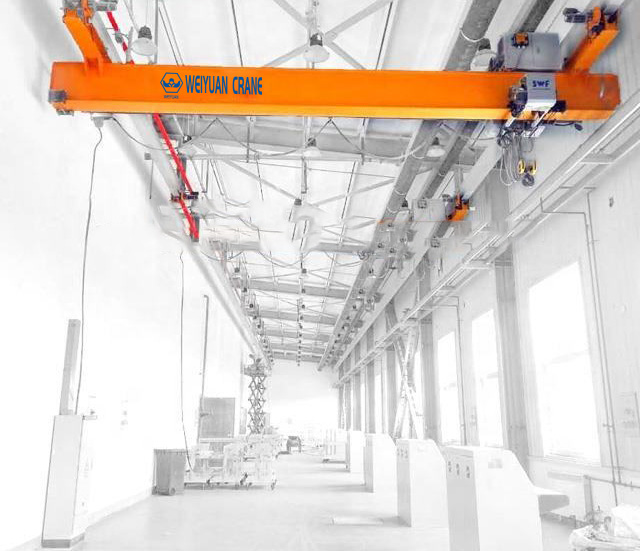

KBK light crane systems: Modular light rail systems that connect multiple workstations along a production line. A single electric hoist travels on a KBK rail network, serving multiple stations sequentially. Maximum capacity: typically 1,000 to 2,000 kg. The KBK system’s enclosed rail profile provides cleaner operation than open I-beam monorails in the particulate-heavy body shop environment.

Automation Integration Requirements

Modern body shops operate at high levels of automation. Robots perform welding. Automated guided vehicles (AGVs) transport components between stations. Automated conveyor systems move bodies through the production sequence.

Cranes in automated body shops must integrate with the production control system. This means: OPC-UA or PROFINET interface to the production PLC, position reporting to the MES system, safety-rated interfaces for collision avoidance with AGVs, and programmable automatic positioning to defined station coordinates.

A crane that requires full manual positioning in an otherwise automated cell is a bottleneck. It limits the cell’s throughput to the operator’s cycle time rather than the automated system’s cycle time.

Part 4: Paint Shop Cranes — Explosion-Proof Requirements

Why the Paint Shop Is the Most Safety-Critical Zone for Cranes

Automotive paint shops use large quantities of organic solvent-based primers, base coats, and clear coats. These materials evaporate continuously in the spray booth and oven areas. The resulting vapor-air mixture is flammable over a defined concentration range.

An ignition source in this environment — a spark, an overheated surface, static discharge — can ignite the mixture. The consequences range from fire to explosion. This is not a theoretical risk. Solvent ignition incidents in paint facilities cause multiple fatalities and facility losses each year globally.

Every piece of electrical equipment in a classified paint shop zone must be incapable of providing an ignition source. This is the ATEX (European) or NEC Class I Division 1/Division 2 (North American) requirement.

ATEX Zone Classification in Paint Shops

ATEX classifies hazardous atmospheres by the likelihood and duration of flammable vapor presence:

Zone 0: Flammable atmosphere present continuously or for long periods. Spray booth interior during active spraying. Requires ATEX Category 1 equipment (Ex ia — intrinsically safe).

Zone 1: Flammable atmosphere likely during normal operation. Areas immediately adjacent to spray booths, inside ovens. Requires ATEX Category 2 equipment (Ex d — flameproof, or Ex e — increased safety).

Zone 2: Flammable atmosphere only present in abnormal conditions. General paint shop area outside booths and ovens. Requires ATEX Category 3 equipment (Ex nA — non-sparking).

Overhead cranes in paint shops typically operate in Zone 1 or Zone 2. Zone 1 requires fully flameproof (Ex d) electrical equipment. Zone 2 permits non-sparking (Ex nA) equipment, which is less expensive than full flameproof but still significantly more costly than standard industrial equipment.

Anti-Static Requirements

Even ATEX-certified electrical equipment cannot generate static electricity that causes a discharge. Paint shop cranes must provide a continuous electrical ground path from the suspended load through the hoist, bridge, and runway to earth ground. This prevents static charge buildup on the crane and the suspended load.

Verify continuity of the ground path: measure resistance from hook to building ground. The target is less than 1 ohm. Resistance above 1 ohm indicates a break in the bonding chain that must be located and repaired.

Paint and Coating Contamination Control

The paint shop requires the crane structure itself to be particle-free. Paint chips, rust particles, and grease droplets from the crane that fall onto a vehicle body being processed below create defects in the paint surface. These defects are detected at final quality inspection. They require rework — sanding and repainting.

Paint shop cranes require: smooth painted surfaces with no loose scale or flaking, sealed cable conduits with no exposed wires that collect paint overspray, and drip pans under all gearboxes and hoist mechanisms.

Part 5: EV Factory Specific Requirements

Battery Module and Pack Handling

EV battery assembly is the fastest-growing new overhead crane application in automotive manufacturing. Battery modules weigh 20 to 80 kg each. Battery packs (complete assemblies of modules) weigh 300 to 700 kg for passenger vehicles, up to 1,500 kg for commercial vehicles.

Battery cells and modules are sensitive to electrostatic discharge (ESD). A static discharge can damage the battery management circuitry. Cranes handling battery components in the assembly area require: full ESD protection (anti-static crane structure grounding, anti-static below-hook tooling, ESD-protective flooring in the handling zone).

Battery components are also sensitive to metallic contamination. A metal particle embedded in a cell separator can cause an internal short circuit. Crane structures and tooling in battery assembly areas must be free of loose metallic debris. Enclosed track systems (KBK with enclosed rail) are preferred over open I-beam monorails for this reason.

Gigapress Casting Handling

Several major EV manufacturers use large die-casting machines (gigapresses) that produce single-piece aluminum structural castings — replacing assemblies of 70 to 100 stamped and welded components. These castings weigh 3 to 8 tonnes for front and rear underbody sections.

This weight range is new for body shop operations. Traditional body shop cranes at 500 kg to 2-tonne capacity cannot handle gigapress castings. New gigapress installations require overhead cranes at 5 to 10-tonne capacity — essentially press shop crane specifications applied to body shop locations.

Electric Drive Unit Assembly

EV powertrain assembly involves electric motors, inverters, and gear reducers that require precise positioning during installation — similar to traditional engine installation but with stricter alignment tolerances due to the higher rotational speeds of electric motors.

Cranes serving EV powertrain assembly stations require: VFD micro-speed control (0.2 to 0.5 m/min) for the final positioning phase, anti-sway control for consistent positioning without operator-dependent swing management, and load cells to confirm the suspended weight during each installation (ensuring the correct component is being installed).

Part 6: Reliability and Documentation Requirements

MTBF and MTTR Targets

Automotive OEMs and Tier-1 suppliers increasingly specify quantitative reliability targets for production equipment — including cranes. Common targets for press shop cranes:

MTBF (Mean Time Between Failures): minimum 2,000 hours. This means no more than one failure per 2,000 hours of operation. At 4,000 operating hours per year, this allows approximately 2 failures per year maximum.

MTTR (Mean Time To Repair): maximum 2 hours for standard failures (electrical faults, brake adjustment). This requires: spare parts stocked on-site for all common failure modes, documented repair procedures readily accessible, and maintenance personnel trained on the specific crane model.

Confirm that the crane supplier can provide MTBF data from comparable existing installations. Accept performance claims only with documentary evidence.

IATF 16949 Compatibility

IATF 16949 (the automotive sector quality management system standard) requires that equipment used in automotive manufacturing processes be controlled within the facility’s quality management system. For cranes, this means: preventive maintenance records, calibration records for load-measuring devices, operator qualification records, and equipment failure history documentation.

The crane supplier does not need to be IATF 16949 certified. But the crane must be able to be incorporated into the buyer’s IATF 16949 quality management system. Documentation packages must include: complete maintenance procedures, calibration specifications for load cells and positioning systems, and recommended spare parts lists with manufacturer part numbers.

Frequently Asked Questions

Q: Can I use a standard overhead crane in a paint shop if I add explosion-proof motors?
A: No. ATEX certification requires that the entire electrical system — motors, contactors, limit switches, pendant controls, electrical cabinets, and wiring — be certified as a complete system for the classified zone. Replacing only the motors in a standard crane does not produce an ATEX-compliant system. The crane must be designed, built, and certified as an ATEX product by the manufacturer.

Q: Does a press shop die change crane need a different runway design from a standard production crane?
A: Yes. Press shop cranes in heavy die change service (CMAA Class D, 50 to 80-tonne capacity) impose higher wheel loads and more frequent lateral forces from anti-sway acceleration than standard production cranes of the same capacity. AISC Design Guide 7 impact factors for CMAA Class D (1.20 times wheel load) must be applied to the runway beam design. The anti-sway drive system’s lateral acceleration forces must also be included in the top flange lateral stiffness design — a requirement that is absent for cranes without active anti-sway.

Q: How do I specify the right jib crane capacity for a body shop welding workstation?
A: Start with the heaviest single component the workstation handles — not the heaviest assembly. Measure the actual weight including all below-hook tooling (fixture, spreader beam, vacuum cup). Add 15% margin. Round up to the next standard jib crane capacity. Verify that this capacity, with the required boom length for workstation coverage, does not exceed the structural capacity of the wall or column where the crane will be mounted — a structural engineer assessment is required before any wall-mounted jib crane installation.
