Introduction

Your overhead crane’s power supply system is not glamorous. It does not appear in the crane’s rated capacity or speed specification. It does not affect the hoist’s lifting force. But it determines whether the crane runs reliably at year 15 — or starts causing expensive downtime at year 5.

The two dominant power supply systems for overhead bridge cranes are conductor bars (also called busbar systems or electrified monorails) and festoon cable systems (also called cable festoons or cable drag chains). Each has been in service for decades. Each is well-understood by the industry. And each is clearly superior in specific applications — and clearly inferior in others.

This guide explains exactly what separates them. We cover the mechanical principles, five-dimension comparison, environmental suitability, automation compatibility, and the cost analysis that determines the correct choice for your facility.

---

Part 1: How Each System Works

Conductor Bar System

A conductor bar system consists of electrified metal rails mounted along the crane runway and a set of spring-loaded current collectors on the crane bridge. The current collectors make continuous sliding contact with the conductor bars as the crane travels.

The conductor bars carry the electrical supply — power phases and any control signals. The current collectors pick up the electricity and deliver it to the crane’s drive systems without any flexible cable that moves with the crane.

Three main conductor bar designs:

Open conductor bar (C-rail): a C-shaped steel or copper rail mounted on insulators along the runway. Current collectors with carbon or copper contact shoes slide along the inner surface of the C-rail. Simple, inexpensive, widely used for indoor applications. Exposed contact surface — not suitable for environments with conductive dust or where accidental contact is a risk.

Enclosed conductor bar (insulated busbar): the conductor rails are enclosed within an insulated housing. Only the contact shoe of the current collector is exposed during travel. Provides protection against accidental contact and against dust and moisture ingress. Required for environments with conductive dust, outdoor installations, and applications where personnel could inadvertently contact the conductor.

Copper C-rail with shoe collectors: standard specification for most industrial bridge cranes. Available in current capacities from 40A to 2,000A per bar.

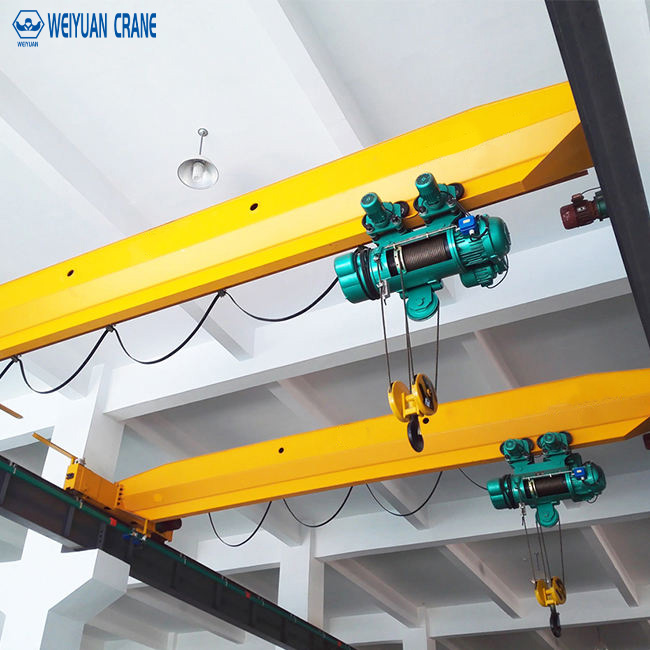

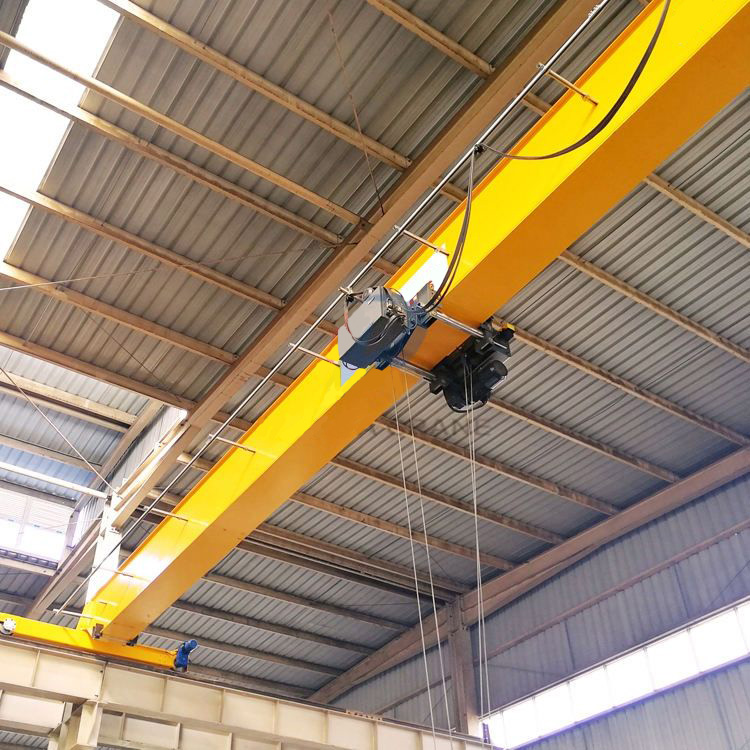

Festoon Cable System

A festoon cable system suspends the power cable in a series of loops (festoons) from cable trolleys that travel on a festoon rail parallel to the crane runway. As the crane travels, the trolleys compress the loops or extend them — accommodating the crane’s travel without the cable dragging on the ground.

The cable connects to the crane’s electrical panel at one end (the stationary end at the festoon rail’s connection point) and to the crane bridge at the other end (through a cable carrier or strain relief).

Cable types used in festoon systems:
Standard multi-conductor power cable: for cranes with modest control system requirements.
Hybrid cable (power + data): for cranes with encoder feedback, safety bus communication, or remote diagnostics.
Flexible PUR jacket cable: the standard for festoon applications — PUR (polyurethane) jacket resists the repeated bending and uncoiling that festoon service demands. Standard PVC jacket cable fatigues rapidly in festoon service and should not be used.

---

Part 2: Five-Dimension Comparison

Dimension 1: Travel Distance and Runway Length

Conductor bar: can serve runways of any length. The conductor bar extends the full runway length. There is no maximum distance limitation. Long runways with multiple cranes are the natural home of conductor bar systems — each crane picks up power independently from the same set of bars.

Festoon cable: practical runway length is limited by the cable length. Longer runways require longer cables. Beyond approximately 200 to 300 metres for standard festoon systems, cable weight and management become significant challenges. Very long runway festoon systems require intermediate cable support systems — adding cost and maintenance complexity.

Winner for long runways: Conductor bar — decisively.

Dimension 2: Environmental Suitability

Conductor bar (open C-rail): suitable for clean, dry indoor environments. Not suitable for: environments with conductive dust (steel filings, carbon black, graphite powder), outdoor locations with rain and weather exposure, or wet process areas.

Conductor bar (enclosed insulated): suitable for most industrial environments including conductive dust, outdoor, and wet areas. IP54 to IP65 protection depending on the housing design.

Festoon cable: the cable and trolleys travel through the operating environment on every crane cycle. The cable’s PUR jacket is resistant to most industrial chemicals, moderate UV exposure, and temperature ranges of -40°C to +80°C. Festoon systems are generally more tolerant of harsh environments than open conductor bar systems — and less expensive to implement than enclosed conductor bar in many harsh-environment applications.

Winner for harsh environments: Enclosed conductor bar or festoon (roughly equivalent) — both are suitable. Open conductor bar is not suitable for harsh environments.

Dimension 3: Maintenance Requirements

Conductor bar:
Carbon contact shoe wear: current collector contact shoes wear from continuous sliding contact. Replacement interval: 6 to 18 months depending on shoe material and travel intensity. Worn shoes reduce contact pressure — causing arc damage to the conductor rail surface.
Conductor rail surface inspection: check for arc pitting, corrosion, and debris accumulation at the annual inspection.
Insulator inspection (for insulated systems): check for cracking or tracking from contamination at semi-annual inspection.

Annual maintenance cost reference: $500 to $2,000 per runway for standard industrial systems.

Festoon cable:
Cable jacket inspection: check for cracking, abrasion, and kinking at monthly inspection intervals.
Cable trolley wheel wear: check trolley wheels at annual inspection. Worn wheels allow the cable loops to drop and potentially contact the floor or moving equipment below.
Cable connection inspection: check festoon rail end connection and bridge cable entry for secure connection and adequate strain relief.

Annual maintenance cost reference: $300 to $1,500 per runway for standard festoon systems.

No clear winner — both require similar maintenance effort. Conductor bar contact shoe replacement is more frequent but predictable. Festoon cable failure is less predictable but less frequent.

Dimension 4: Automation and Data Integration

Conductor bar: conductor bar systems can carry data signals as well as power — using dedicated data conductor bars alongside the power bars. This allows encoder position data, safety bus signals, and control system communication to travel through the same conductor bar infrastructure as the power supply.

For automated cranes with absolute position measurement, anti-sway control, and TCS integration: conductor bar systems provide the cleanest integration. No cable management complexity. No cable length limitations. Signal integrity is consistent regardless of crane position.

Festoon cable with hybrid cable: hybrid festoon cables carry both power and data conductors in the same cable assembly. They are widely used for semi-automated cranes. However, cable signal integrity can be affected by: cable bending at tight festoon loop radii, cable connector degradation at the moving end, and EMI pickup from the power conductors in the same cable.

For full automation at Level 3 and above: conductor bar systems are the preferred specification. For Level 1 and Level 2 automation: festoon with hybrid cable is adequate and less expensive.

Winner for automation: Conductor bar — clear advantage for high-automation applications.

Dimension 5: Installation and Capital Cost

Conductor bar: requires mounting brackets, conductor rail sections, end caps, and feed point assemblies along the full runway length. Installation cost for a standard indoor open conductor bar system: $80 to $200 per runway metre (both sides of the runway, all phases, plus control conductors). Enclosed insulated conductor bar: $150 to $400 per runway metre.

For a 50-metre runway with 3-phase power plus 2 control conductors:
Open conductor bar: $4,000 to $10,000 for the conductor infrastructure.
Enclosed conductor bar: $7,500 to $20,000.

Festoon cable: requires festoon rail, cable trolleys, cable assembly, and end connections. Installation cost: $60 to $180 per runway metre for a standard 3-phase plus control cable festoon system.

For the same 50-metre runway:
Festoon system: $3,000 to $9,000.

Winner for capital cost: Festoon cable — lower upfront installation cost for most standard applications.

---

Part 3: When Each System Is the Clear Choice

Choose Conductor Bar When:

Runway length exceeds 150 to 200 metres. Beyond this length, festoon cable management becomes complex and the conductor bar’s unlimited length advantage is decisive.

Multiple cranes share the same runway. Conductor bars serve all cranes simultaneously from the same infrastructure. Festoon systems require separate cable and trolley infrastructure for each crane.

Full automation is planned now or in the future. The data integration and cable-free operation of conductor bar systems suits automated crane applications better than festoon.

The environment involves conductive dust. Use enclosed conductor bar for any application with steel dust, graphite, carbon black, or other conductive particles. Open conductor bar is not acceptable. Festoon cable can be used but requires careful cable routing to avoid abrasion.

High current requirements above 400A. Large motors require large cable cross-sections. Festoon cables above 400A become heavy, stiff, and difficult to manage in the festoon loop configuration. Conductor bars handle high currents more elegantly.

Choose Festoon Cable When:

Runway length is below 100 metres and a single crane serves the runway. The festoon system’s lower capital cost is not offset by any performance advantage of the conductor bar at short distances.

The facility cannot justify the conductor bar infrastructure cost. Smaller operations with limited capital budgets benefit from the festoon system’s lower upfront cost.

Frequent runway layout changes are anticipated. Festoon rail is easier to relocate than conductor bar. If the crane runway position may change in the next 5 years, the festoon system’s simpler installation and relocation is an advantage.

The power requirement is modest. Single-phase cranes, light-duty bridge cranes below 5 tonnes, and cranes operating at low cycle frequency are all well-served by festoon systems.

---

Part 4: Hybrid Approaches

Conductor Bar for Power + Festoon for Data

Some installations use conductor bars for the high-current power supply and a separate light-duty festoon cable for data communication. This hybrid approach provides:

The mechanical simplicity of conductor bars for the power phases (where cable management is most challenging at high currents).
The flexibility of festoon cable for the data conductors (where cable type changes are common as automation systems are upgraded).

This approach is particularly common in retrofit automation projects — where the original crane has a festoon power system and the automation upgrade adds a conductor data rail alongside the existing festoon.

2026 Price Reference

Open conductor bar system (3-phase + 2 control bars, per 10 metres of runway):
$800 to $2,000 for hardware. $300 to $600 for installation.

Enclosed insulated conductor bar (per 10 metres):
$1,500 to $4,000 for hardware. $500 to $1,000 for installation.

Festoon cable system (3-phase + control conductors, per 10 metres):
$600 to $1,800 for hardware. $250 to $500 for installation.

Current collector replacement (per crane, annual):
Conductor bar shoes: $150 to $600 depending on shoe count and material.
No equivalent for festoon (cable inspection only until cable replacement).

Festoon cable replacement (full replacement, per 50-metre runway):
$800 to $3,000 depending on cable cross-section and conductor count.
Replacement interval: 5 to 10 years for PUR festoon cable in normal service.

---

Frequently Asked Questions

Q: Can I retrofit a conductor bar system onto an existing crane with a festoon cable?
A: Yes. Conductor bar retrofit is a standard project. It requires: removing the festoon cable and trolleys, installing conductor bar mounting brackets along the runway, installing conductor rail sections, mounting current collectors on the crane bridge, and connecting the current collectors to the crane’s electrical panel. The crane’s internal wiring typically does not need modification — only the power entry point changes from the festoon cable connection to the current collector output. Retrofit cost for a standard 50-metre runway: $5,000 to $15,000 including hardware and installation.

Q: What is the maximum speed for festoon cable systems?
A: Standard festoon systems accommodate bridge travel speeds up to approximately 80 to 100 m/min without special provisions. Above this speed, the cable loops do not compress and extend fast enough to keep pace with the crane, creating dynamic stress in the cable and trolley system. For bridge cranes traveling above 80 m/min: specify conductor bars. High-speed festoon systems (up to 160 to 200 m/min) exist with enhanced trolley and cable designs but at significantly higher cost — at which point conductor bars are typically more cost-effective.

Q: Which system lasts longer?
A: Conductor bar infrastructure (the rail itself): 20 to 30+ years with minimal maintenance beyond contact shoe replacement. Festoon cable: 8 to 15 years before jacket fatigue or conductor work-hardening requires replacement. However, festoon cable replacement is straightforward and inexpensive relative to the crane’s total value. Conductor bar infrastructure replacement is rare — the bars outlast most cranes. Total lifecycle cost favors conductor bars at runway lengths above 100 metres due to the multiple festoon cable replacement cycles over the conductor bar’s service life.
