Introduction

The industrial gantry crane is undergoing its most significant technological transformation since the replacement of steam power with electric drive a century ago. The combination of mature variable frequency drive technology, affordable industrial IoT sensors, advanced machine vision and positioning systems, and cloud-based data analytics has made gantry crane automation a commercially viable and rapidly adopted technology across a wide range of industrial sectors — not just the large container terminal operations where crane automation first demonstrated its value.

The drivers are compelling and consistent across industries: labor cost pressure, 24/7 operational demands that exceed the availability of skilled crane operators, safety improvement goals that reduce the risk of operator error in high-consequence lifting operations, and productivity requirements that demand faster, more consistent cycle times than human operators can reliably deliver across a full shift.

This guide provides the complete technical reference for gantry crane automation and remote operation technologies: the spectrum of automation levels from basic assists to full unmanned operation, the key enabling technologies — anti-sway systems, machine vision positioning, IoT monitoring, and predictive maintenance — how each technology delivers operational value, the implementation pathway for industrial facilities that want to move from manual to automated crane operations, and the realistic cost and ROI framework for automation investment decisions.

---

Part 1: The Automation Spectrum — Four Levels of Gantry Crane Automation

Gantry crane automation is not a binary choice between fully manual and fully autonomous. It exists on a spectrum with four distinct levels, each delivering measurable value and serving as the foundation for the next level.

Level 1: Operator Assist (Semi-Manual)

The operator controls all crane motions, but automated systems assist with the most demanding aspects of crane operation. Operator assist features include:

Anti-sway: The drive system applies calculated counter-motions that cancel load pendulum oscillation during and after travel motions. The operator drives the crane normally; the anti-sway algorithm suppresses the swing that would otherwise occur. This is the most universally valuable and lowest-cost automation feature for any gantry crane.

Auto-landing: The crane approaches the target position under operator control, but the final landing phase — precise positioning and controlled lowering onto the target — is completed automatically by a position sensor and VFD control system. The operator positions to approximately ±100mm of target; the auto-landing system closes the remaining gap.

Load monitoring with overload prevention: Real-time load cell monitoring with automatic cutout if lift force exceeds rated capacity. Prevents overloading regardless of operator error. Standard on all modern automated cranes and increasingly specified as a retrofit on existing cranes.

Level 1 automation requires no changes to the crane’s travel path or the facility layout. It operates within the existing workflow with a human operator at the controls throughout. Implementation cost: $15,000 to $50,000 per crane depending on features selected.

Level 2: Semi-Automated (Programmed Sequences)

Specific crane motions are automated as programmed sequences that the operator initiates with a single command. The operator remains in the loop for non-routine situations but is relieved of the routine repetitive positioning work that drives fatigue and inconsistency in manual operation.

Automated travel to position: The operator selects a destination from a menu (storage position, discharge point, maintenance area), and the crane travels automatically to the programmed coordinates — with anti-sway active during transit and automatic positioning at the destination. The operator confirms the final landing.

Automated load cycle sequencing: For structured production environments where the same sequence of motions is repeated many times per shift, the complete cycle (pickup → travel → land → return) is programmed as a single executable routine. The operator monitors and can intervene, but the cycle runs automatically.

Level 2 automation requires encoder feedback on all drive axes for position tracking, a PLC with trajectory planning capability, and position verification sensors at key positions. Implementation cost: $40,000 to $120,000 per crane.

Level 3: Supervised Automation (Remote Operation)

The crane operates autonomously for standard operations, with a remote operator in a control room monitoring multiple cranes simultaneously and intervening for exception handling — unusual situations, fault conditions, or non-standard load configurations that the automation cannot handle independently.

In this configuration, one remote operator can supervise 3 to 6 cranes simultaneously — a 3 to 6× improvement in labor productivity compared to one operator per crane in the cab or at the pendant. The operator focuses on exception handling and approval of non-routine lifts rather than executing routine cycle motions.

Remote operation infrastructure requires: camera systems providing the operator with adequate situational awareness (typically 3 to 6 cameras per crane for full environment visibility), reliable network connectivity between the crane and the control room (fiber or industrial wireless with redundancy), ergonomic operator workstation with joystick controls and multi-screen display, and automated safety systems that halt crane motion if sensor coverage detects a safety zone incursion.

Implementation cost: $80,000 to $250,000 per crane for the crane automation package; $50,000 to $150,000 for control room infrastructure (shared across the crane fleet).

Level 4: Full Automation (Unmanned Operation)

The crane operates without any human operator involvement for all standard operations. All crane motions — from load identification and pickup sequencing to travel, anti-collision, and precise landing — are executed by the automation system. Human oversight is provided by a facility-level supervisor who monitors system status and approves non-standard operations.

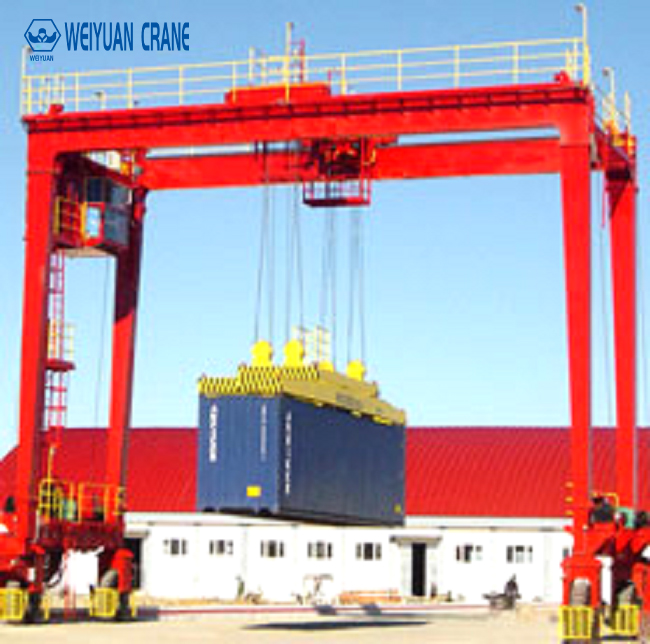

Full automation is operationally proven at major container terminals, steel service center coil storage bays, and large automated warehouses. It is commercially viable for high-throughput, high-cycle-rate applications where the operational pattern is sufficiently structured and consistent for the automation system to handle without human decision-making at each cycle.

Implementation cost: $200,000 to $600,000+ per crane for the complete automation package including all sensors, machine vision, fleet management software, and integration with warehouse management or production control systems.

---

Part 2: Key Enabling Technologies

Anti-Sway Control Systems

Anti-sway is the most universally applicable and cost-effective automation technology for any gantry crane, regardless of automation level. All higher automation levels depend on effective anti-sway as their foundation — a crane with uncontrolled load swing cannot execute automated travel-to-position sequences reliably.

How modern anti-sway works: The control system continuously calculates the natural pendulum frequency of the suspended load based on rope length (measured by encoder) and applies travel velocity profiles that cancel the pendulum oscillation. As the crane accelerates, the anti-sway profile accelerates slightly faster and then back to nominal, creating a counter-pendulum that cancels the forward swing. As the crane decelerates to stop, the profile applies a calculated position correction that leaves the load stationary at the stop point.

Active vs. input shaping anti-sway: Input shaping (also called command shaping) pre-shapes the velocity command to the drive to prevent swing from developing. Active feedback anti-sway uses sensors (accelerometers or laser/camera load position tracking) to measure actual swing and apply corrective commands. Active feedback systems handle variable rope length and unstructured disturbances (wind, human contact) better than input shaping; input shaping systems are simpler and lower cost.

Productivity impact of anti-sway: In production applications where load swing currently forces operators to wait 5 to 15 seconds after each travel stop before positioning, effective anti-sway eliminates this wait time entirely. For a crane making 20 cycles per hour with an average 8-second swing-damping wait, anti-sway saves 160 seconds per hour — nearly 3% more productive time available for actual lifting.

Machine Vision and Positioning Systems

Automated crane positioning requires sensors that tell the control system where the crane is, where the load is, and where the target position is — with the accuracy needed for safe, reliable automated operation.

Encoder-based position tracking: Incremental or absolute encoders on all drive shafts provide precise position feedback from a known reference point. Encoders are the foundation of all crane positioning systems — they track how far the crane has traveled but do not detect obstacles or verify absolute position.

Laser distance sensors: Provide absolute distance measurement to fixed targets (end stops, position reference markers) that calibrate the encoder position tracking and compensate for wheel slip and mechanical play. Essential for automated systems that must maintain ±10mm or better position accuracy over long travel distances.

3D LiDAR (laser scanning): Scanners mounted on the crane bridge create real-time 3D maps of the space below and around the crane. Used for: collision avoidance with obstacles and personnel in the work area, container or coil position detection for automated pickup sequencing, and height profile measurement for safe travel above stacked loads.

Machine vision (camera-based): AI-powered camera systems identify load targets, read RFID or barcode labels, and verify load identity before pickup. In container terminals, machine vision identifies container numbers and positions for inventory tracking. In coil storage, vision systems identify coil inner diameter position for automated C-hook engagement.

IoT Monitoring and Predictive Maintenance

The combination of modern sensor technology and cloud-based analytics enables gantry cranes to continuously report their own health status — identifying developing problems before they cause failures.

Standard IoT monitoring parameters:

• Motor current and temperature: Trending motor current above baseline indicates mechanical load increase from bearing wear, gear wear, or alignment deterioration. Motor temperature trending above normal indicates thermal performance degradation.
• Vibration: Accelerometers on the hoist gearbox and travel drives detect bearing defects and gear tooth damage through characteristic vibration signatures at frequencies specific to each component.
• Load spectrum recording: Every lift logged with weight, position, and timestamp. Cumulative load spectrum data feeds fatigue life consumption calculations that predict structural inspection intervals far more accurately than time-based schedules alone.
• Brake performance: Brake engagement time and deceleration rate logged for each stop — degrading brake performance is visible in the data before it becomes a safety issue.
• Rope spooling: Camera systems monitoring the rope drum detect improper spooling that will eventually cause rope wear or jamming.

Cloud-based analytics: The sensor data streams are processed by analytics platforms (either crane manufacturer’s proprietary platforms or third-party industrial IoT platforms) that apply machine learning models to distinguish normal variation from abnormal trends. Facilities receive alerts when a parameter trends toward a threshold that historical data associates with component failure — typically 2 to 6 weeks before the actual failure would occur, providing adequate time for planned maintenance rather than emergency repair.

---

Part 3: Implementation Pathway for Industrial Gantry Crane Automation

Phase 1: Foundation (Months 1-6)

Install the enabling infrastructure that all higher automation levels require:

• Replace relay-contactor controls with PLC-based system
• Install VFD drives on all hoist and travel axes with encoder feedback
• Install anti-sway (input shaping) on the hoist and travel drives
• Install load monitoring with overload cutout
• Baseline the crane’s mechanical condition and repair any deficiencies

Cost: $40,000 to $100,000 per crane. Delivers immediate productivity and safety improvement from anti-sway and VFD control.

Phase 2: Semi-Automation (Months 6-18)

Add the positioning and sequencing capabilities that enable semi-automated operation:

• Install absolute position system (laser distance sensors + encoder integration)
• Program automated travel-to-position routines for the 5 to 10 most common destinations
• Install auto-landing at key positions (discharge points, processing line feed positions)
• Connect to warehouse management or production control system for work order integration

Cost: $60,000 to $150,000 per crane. Delivers operator workload reduction, cycle time consistency, and the data foundation for Phase 3.

Phase 3: Remote Operation or Full Automation (Months 18-36)

Add the camera and sensor coverage for remote or full autonomous operation:

• Install 3D LiDAR and camera systems for environmental mapping and obstacle detection
• Build or equip remote operations control room
• Implement fleet management software for multi-crane coordination
• Complete operator training for remote operations center procedures

Cost: $100,000 to $400,000 per crane. Delivers the full labor and productivity benefits of automation.

---

Part 4: ROI Framework for Gantry Crane Automation

Labor Cost Savings

In facilities where each crane requires a dedicated operator for all operating hours, automation’s most direct financial benefit is labor cost reduction. At Level 3 supervision (one operator per 4 cranes), a facility operating 4 cranes × 2 shifts × 250 days saves:

3 operators per shift × 2 shifts × $65,000 annual loaded labor cost = $390,000 per year in direct labor savings.

At $200,000 per crane for Level 3 automation ($800,000 total for 4 cranes), the simple payback is 800,000 / 390,000 = 2.1 years. After payback, the system generates positive ROI for 15 to 20+ years.

Productivity Improvement

Anti-sway and auto-landing alone typically improve gross cycle rate by 15 to 25% compared to manual operation, as documented in operational studies at facilities that have implemented these features. For a production crane currently achieving 18 cycles per hour, a 20% improvement adds 3.6 additional productive cycles per hour — measurable throughput increase without additional labor.

Safety Cost Reduction

Crane-related incidents — property damage from load strikes, equipment damage from rough handling, and personal injury — create costs that are difficult to quantify in advance but significant in practice. Facilities with automated cranes consistently report reductions in load damage and near-miss incidents from the combination of controlled motion, automated safety zones, and the elimination of operator fatigue as a contributing factor to incidents.

---

Frequently Asked Questions

Q: Does crane automation eliminate crane maintenance requirements?
A: No — automation changes the nature of maintenance more than it reduces the total maintenance requirement. Automated cranes operate at higher utilization rates than manually operated cranes, which can accelerate wear on mechanical components if maintenance intervals are not adjusted accordingly. IoT-based predictive maintenance helps optimize maintenance timing, but does not reduce the fundamental maintenance needs of the crane’s mechanical systems.

Q: Can existing gantry cranes be automated, or does automation require new cranes?
A: Existing structurally sound cranes can be automated through the phased retrofit pathway described in this guide. The foundation phase — PLC controls, VFDs, encoders, anti-sway — is a retrofit that most existing cranes can accept without mechanical modification. Higher automation levels require additional sensors and software but not structural changes. Full automation of an existing crane is technically feasible and is often more cost-effective than purchasing a new crane where the existing structure has significant remaining life.

Q: What connectivity infrastructure is required for IoT crane monitoring?
A: At minimum, a reliable industrial wireless network (Wi-Fi 6 or industrial 4G/5G) covering the crane’s full travel range, with adequate bandwidth for continuous sensor data streaming. For remote operation, higher-bandwidth, lower-latency connectivity (fiber preferred, industrial 5G acceptable) is required for video feeds. All connectivity infrastructure should have redundancy — a single network failure should not halt crane operation or remote visibility.
