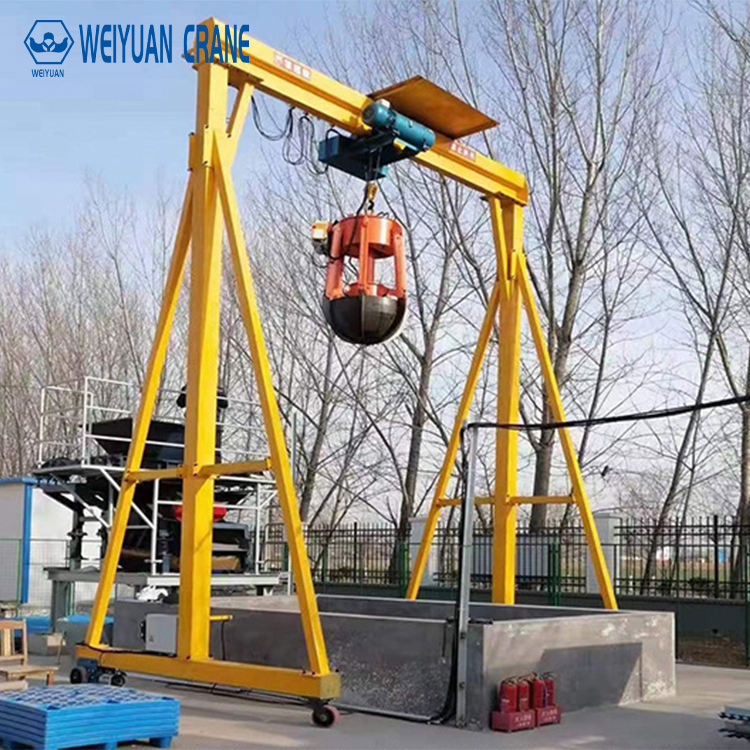

Gantry Crane Maintenance Schedule: 5 Critical Checks That Prevent Costly Breakdowns
Introduction
A gantry crane failure during production does not just stop one workstation. It stops everything the crane serves. A production line waiting for a crane to come back online loses $500 to $50,000 per hour depending on the facility’s throughput value.
Most gantry crane failures are not sudden. They develop over weeks or months. Warning signs appear during routine inspections. The wheel that is developing a flat spot. The rail clip that has loosened and allowed the rail to shift 2mm. The hoist gearbox oil that has turned dark grey from metal contamination. The VFD cooling fan that has slowed slightly from dust accumulation.
Each of these signs, caught in time, is a $200 to $2,000 repair scheduled during planned maintenance. Missed, each becomes a $5,000 to $50,000 emergency repair plus production downtime.
This guide provides the complete gantry crane maintenance schedule. We cover the five most critical periodic checks, their correct intervals, the specific measurements to take, and the threshold values that require action. The schedule is based on CMAA Specification No. 70, FEM 1.001, and ASME B30.2.
Part 1: Why Gantry Crane Maintenance Differs from Bridge Crane Maintenance

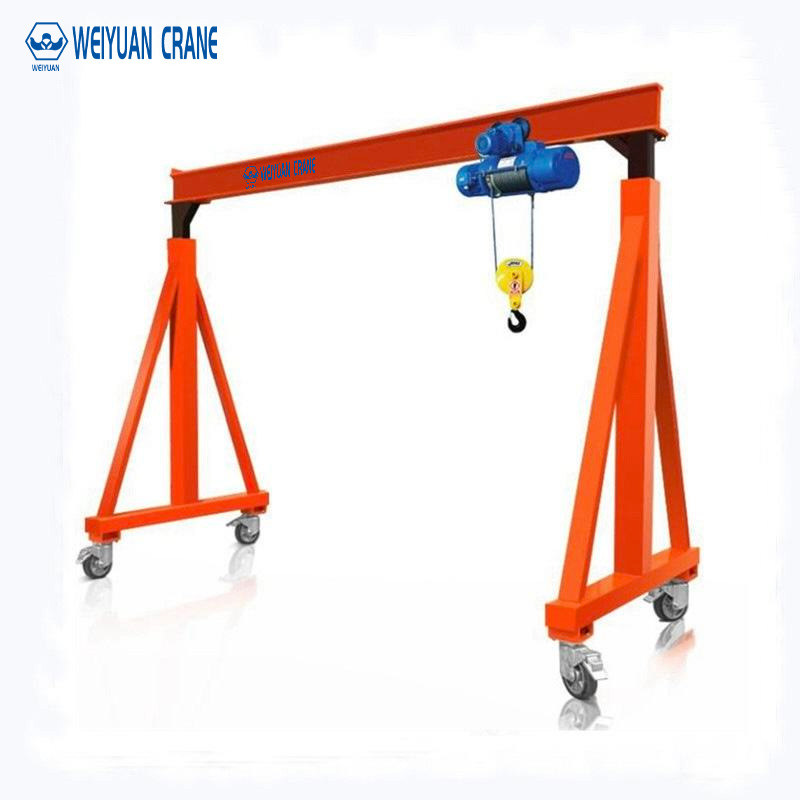

A gantry crane has elements that a standard bridge crane does not. Understanding these unique elements explains why the gantry crane maintenance program must address items that bridge crane programs omit.
Travel wheels and rails: a gantry crane travels on ground-level rails on its own legs — not on elevated runway beams like a bridge crane. The travel wheel condition and rail alignment directly affect the crane’s structural integrity. Misaligned ground rails create the same damage as misaligned runway rails in a bridge crane — but the consequences are amplified because the gantry crane’s legs are structural load-carrying members.
Leg structure: the gantry crane’s legs are vertical structural columns that carry the full bridge load plus lateral wind loads. The leg-to-bridge connection is a high-stress structural joint. It requires inspection for fatigue and corrosion separately from the bridge girder inspection.
Outdoor exposure: most gantry cranes are installed outdoors or in semi-enclosed environments. Outdoor exposure accelerates corrosion, lubricant degradation, and electrical component weathering at rates that indoor bridge cranes never experience.
Wind loading: outdoor gantry cranes are designed for specific maximum operating and storm wind speeds. The anti-derailment provisions — rail clamps, storm anchors — are critical safety systems that have no equivalent in indoor bridge cranes.
Part 2: The Five Critical Maintenance Checks

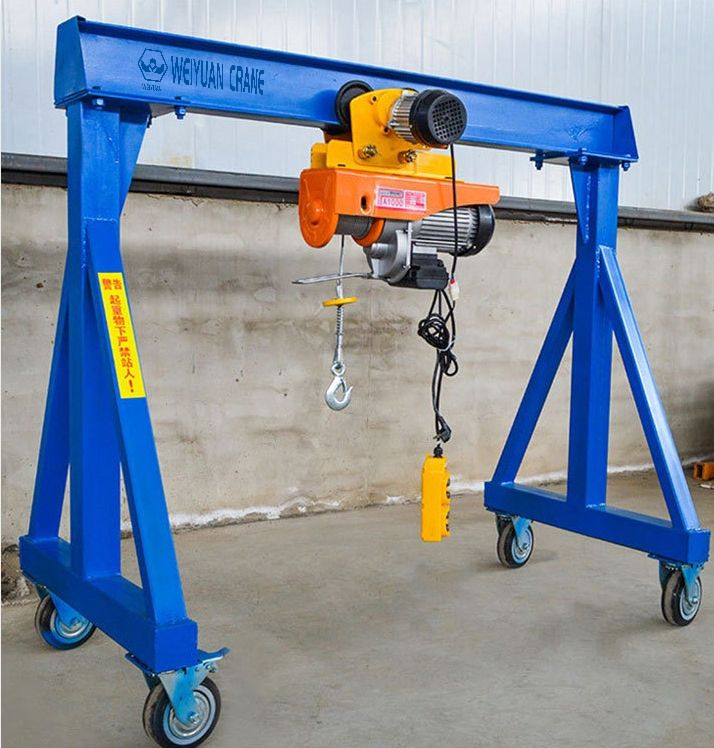

Critical Check 1: Travel Wheel and Rail Condition
Why it is critical: travel wheel failures are the most common cause of gantry crane operational disruptions outside of hoist mechanism failures. A flat-spotted wheel creates a periodic impact load on the rail at every wheel revolution. The impact accelerates both wheel wear and rail damage exponentially. A wheel with a 3mm flat spot that is ignored for 3 months will require full wheel replacement plus rail grinding — rather than the simple wheel replacement that early detection would have enabled.
What to inspect:
Wheel tread surface: look for flat spots (areas of reduced diameter from skidding), tread scoring (parallel grooves from rail surface defects or contamination), and flange wear (material loss from wheel flange-to-rail side contact).
Wheel flange thickness: measure with calipers. Compare to the manufacturer’s rejection criterion — typically 70 to 75% of original flange thickness.
Tread diameter uniformity: measure the tread diameter at multiple positions around the circumference. A variation above 0.5mm indicates a developing flat spot.
Rail surface condition: inspect for spalling (surface fatigue pitting), scoring, and corrosion on the running surface.
Rail alignment: check that the rail has not shifted laterally from its design position. A rail shifted more than 3mm from design position (CMAA tolerance) is creating misalignment loads on the crane leg structure.
Inspection frequency: monthly visual check. Annual dimensional measurement.
Action threshold: flat spot depth above 1mm — plan replacement at next maintenance window. Above 2mm — replace before next production shift.
Critical Check 2: Structural Connections — Leg-to-Bridge Joints
Why it is critical: the connection between the gantry crane’s legs and the bridge girder is the highest-stress structural joint in the crane. It carries combined vertical, horizontal, and torsional loads from every lift and every travel movement. Fatigue cracks at this connection can progress rapidly — a 5mm crack detected in February can be 25mm by August.
What to inspect:
Weld condition at leg-to-bridge connection: use a flashlight and inspect the full weld perimeter at both ends of both legs. Look for: transverse cracks perpendicular to the weld (fatigue cracks), longitudinal cracks parallel to the weld (hydrogen cracking or underbead cracking), and any area of disbonded paint or rust staining that may indicate a crack beneath the paint surface.
High-strength bolted connections (if applicable): check bolt head markings are undamaged, look for evidence of bolt rotation (a paint crack ring around the bolt head indicates the bolt has rotated — the clamping force has been lost).
Leg base plate and anchor bolt condition: check for concrete cracking at the foundation around the anchor bolt zone, and verify anchor bolt condition where accessible.
Inspection frequency: annual visual inspection. NDT (magnetic particle or dye penetrant) when any visual crack indication is found, or when the crane has consumed 70% of its design fatigue life.
Action threshold: any visual crack indication requires immediate NDT before continued crane operation.
Critical Check 3: Hoist Mechanism — Gearbox, Brake, and Rope/Chain
Why it is critical: hoist mechanism failure directly causes dropped loads — the most serious safety consequence of any crane failure. The brake is the last line of defense against a dropped load. If the brake fails, there is no backup.
Gearbox check:
Oil level: check through the sight glass or dipstick at every monthly inspection. Low oil level indicates a leak that must be located and repaired.
Oil condition: drain a 100ml sample at each annual inspection. Send for laboratory analysis (viscosity, TAN, metal particles). Dark grey or black oil indicates metal contamination — the gearbox is self-destructing internally.
Oil leakage: check gaskets and seals for drips. A gearbox dripping oil is contaminating the brake disc and the wire rope.
Brake check:
Brake lining thickness: measure at each quarterly inspection. Manufacturer’s minimum thickness is typically 50% of original thickness. Replace before reaching minimum.
Brake disc surface: inspect for oil contamination (shiny, wet appearance) and scoring (parallel circumferential grooves). Oil contamination requires replacing the brake lining and finding and repairing the oil source.
Brake drift test: raise the rated load 300mm above the floor. Release the hoist control. Observe for 10 minutes. Zero drift is required. Any downward movement — tag out immediately.
Wire rope or load chain check: apply ASME B30.2 rejection criteria. Replace at calendar intervals (2 to 4 years for CMAA Class D hoists) in addition to condition-based replacement.
Inspection frequency: monthly visual and brake drift test. Quarterly lining measurement. Annual oil analysis.
Critical Check 4: Electrical System — VFD, Contactors, and Limit Switches
Why it is critical: electrical failures are the most frequent cause of unplanned gantry crane downtime in production facilities. VFD failures are expensive ($3,000 to $25,000 per unit). But most VFD failures are preceded by weeks of thermal stress from inadequate cooling — detectable before failure.
VFD cooling system check:
Cooling fan condition: spin the fan blade by hand (with power isolated). It should rotate freely without roughness. A fan that resists turning or makes grinding sounds is failing.
Air filter condition: remove and inspect the filter element. A filter clogged with dust restricts airflow. The VFD overheats. Check the VFD’s heat sink temperature during operation — above 70°C ambient at the heat sink indicates inadequate cooling.
VFD display: check for any stored fault codes. Modern VFDs log every fault event with a timestamp. A history of thermal fault codes indicates an overheating problem developing before the VFD fails completely.
Limit switch check:
Upper travel limit: raise the empty hook to the limit. The hoist must stop before the hook block contacts the hoist body.
Lower travel limit (if fitted): lower to the limit. Hoist must stop before the rope runs out.
Bridge and trolley travel limits: travel the bridge/trolley to each end stop. The limit switch must stop travel before the crane contacts the mechanical end stop.
Contactor panel check:
Contact wear: inspect contactor contact faces for pitting, burning, and material loss. Heavily pitted contacts have high resistance — they generate heat during operation and eventually fail to close.
Connection tightness: torque check all bus bar and cable connections at annual inspection. Loose connections arc during operation, creating resistance and heat damage.
Inspection frequency: monthly visual and functional test of all limit switches. Annual detailed VFD and contactor inspection.
Critical Check 5: Anti-Derailment and Storm-Securing Systems
Why it is critical: a gantry crane that derails or is blown over by wind is a catastrophic incident — not a maintenance event. Anti-derailment provisions prevent the crane from jumping off its rails during overload or collision events. Storm-securing systems prevent the crane from being moved by wind when it is parked and unattended.
Rail clamp check:
Clamp engagement: manually test each rail clamp by engaging and releasing it. The clamp must grip the rail firmly when engaged and release cleanly.
Clamp contact surface: inspect the clamp jaw contact faces for wear. A worn jaw surface concentrates the grip force on a smaller area — reducing the clamp’s holding force below its design value.
Clamp actuator: test the actuating mechanism (manual lever, hydraulic cylinder, or spring mechanism) for free operation. A clamp that is difficult to engage has accumulated corrosion or debris in its mechanism.
Anti-derailment guide check:
Clearance to rail: anti-derailment guides (also called derailment guards) maintain a defined clearance above the rail head — typically 5 to 10mm. If a wheel lifts off the rail, the guide contacts the rail and prevents complete derailment. Check the clearance with a feeler gauge. Clearance outside the design range (too large: reduced effectiveness; too small: contact during normal operation creating wear) requires adjustment.
Storm anchor check (for outdoor cranes equipped with ground anchors):
Anchor pin engagement: verify that the anchor pin fully engages its socket.
Anchor socket condition: inspect the socket for corrosion, debris, and structural integrity at its mounting.
Test: attempt to travel the crane 100mm with all storm anchors engaged. The crane must not move.
Inspection frequency: monthly engagement test. Annual detailed inspection of contact surfaces and clearances.
Part 3: Complete Maintenance Schedule Summary
The following schedule integrates all five critical checks with standard lubrication and documentation requirements.
Daily (Pre-Shift)
Visual check of all four travel wheels — no obvious flat spots or derailment.
Hook and safety latch — functional.
Wire rope or chain — no obvious kinks, broken wires, or distortion.
Hoist brake drift test — zero drift with rated load.
All limit switches functional — test at start of each shift.
No unusual sounds during travel and hoisting.
Monthly
All daily checks plus:
Travel wheel flange and tread dimensional check.
Rail alignment visual check — no obvious lateral shift.
Hoist gearbox oil level and visual condition check.
Brake lining thickness measurement and recording.
VFD cooling fan rotation check and filter inspection.
All limit switch function tests — including end-of-travel limits.
Rail clamp engagement test — all four clamps.
Anti-derailment guide clearance check.
Lubrication: all grease points per the lubrication chart.
Documentation: complete monthly inspection record with all measurements.
Quarterly
All monthly checks plus:
Travel wheel diameter measurement — compare to monthly baseline.
Detailed structural visual inspection at leg-to-bridge connections.
VFD fault history review — download and review log.
Gearbox external temperature measurement during operation.
Hoist rope or chain complete length inspection.
Annual
All quarterly checks plus:
Complete structural inspection including NDT if indicated.
Gearbox oil sampling and laboratory analysis.
Complete electrical inspection — contactor contact measurement, bus bar torque check.
Rail alignment dimensional survey (gauge, elevation, straightness).
Anti-derailment guide clearance measurement — record and compare to design specification.
Load test at 125% rated capacity — required after any significant repair.
Complete annual inspection report with all measurements, findings, and corrective actions.
Part 4: Maintenance Records and Documentation
Why Records Matter Beyond Compliance
CMAA Specification No. 70 and ASME B30.2 require written maintenance records. OSHA 1910.179 requires records to be retained. But the most compelling reason for maintenance records is not compliance — it is trend analysis.
A single measurement tells you the current condition. A series of measurements over time tells you the rate of deterioration — and when the component will need replacement.
A travel wheel measured at 300mm diameter in January, 299.2mm in April, 298.5mm in July, and 297.8mm in October is wearing at 2.2mm per year. If the replacement threshold is 285mm, replacement is approximately 6 years away. This data enables planned replacement during a scheduled maintenance window instead of an emergency replacement when the wheel fails.
Keep records of every measurement, every finding, and every corrective action. Retain records for the life of the crane.
Frequently Asked Questions
Q: How do I know if my gantry crane’s maintenance interval is appropriate for its actual use intensity?
A: The intervals in this guide are baseline recommendations for CMAA Class D service. If your crane operates more intensively — CMAA Class E or F, more than 2 shifts per day, in a corrosive outdoor environment — reduce all intervals by 30 to 50%. If the crane is in light service (CMAA Class B or C, indoor, clean environment) — extend intervals by up to 50% with management approval. The key indicator: if you are regularly finding components at or near rejection criteria between scheduled inspections, the inspection interval is too long.
Q: After how many years of service should a comprehensive structural NDT inspection be performed regardless of visual condition?
A: For CMAA Class D gantry cranes: a comprehensive NDT inspection at 10 years of service is best practice, regardless of visual condition. For CMAA Class E and above: 7 years. For outdoor cranes in C4 or C5 corrosion environments: 7 years regardless of duty class. These intervals reflect the point at which fatigue crack initiation at primary weld connections becomes statistically probable — before cracks are likely to be visible at the surface.
Q: Is the 125% load test really required every year?
A: No. ASME B30.2 requires a 125% load test after installation of a new crane, after relocation to a new site, and after significant repairs. It does not require annual load tests. Annual inspections by a qualified person are required. The load test is triggered by specific events — not by the calendar. However, some industries (nuclear, aerospace, pharmaceutical) impose more frequent load testing requirements through their own quality management systems or regulatory frameworks.
