Introduction

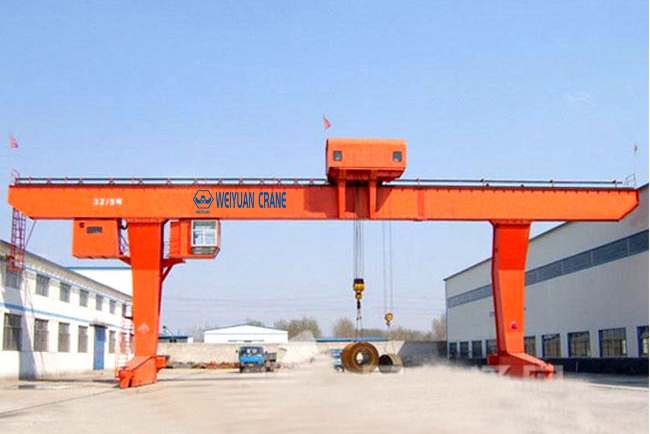

The global installed base of industrial gantry cranes includes millions of units that are 15, 20, 25, and 30 or more years old. Many of these cranes are structurally sound — the steel bridge girders, end trucks, and legs that form the crane’s skeleton have substantial remaining fatigue life — but their electrical systems, control technology, and mechanical components belong to a previous generation of engineering. Relay-based control panels that have not been manufactured for 20 years. DC hoist motors that run on obsolete speed control technology. Pendant controls with failed buttons that operators have learned to work around. Brakes that have been adjusted and re-adjusted until they are operating outside the original design specification.

These cranes present their owners with a consequential decision: invest in modernization and retrofit to extend the service life and improve performance, or replace the crane entirely with a new unit. Both paths have legitimate justifications in different circumstances, and the wrong choice — replacing a structurally sound crane unnecessarily, or investing in modernization of a crane that is not worth the expenditure — wastes significant capital.

This guide provides the complete framework for gantry crane modernization and retrofit decisions: the assessment methodology that identifies whether modernization is the right choice, the component systems that are most commonly upgraded and what those upgrades deliver, a realistic cost guide for the most common modernization scopes, the situations where replacement is the correct decision despite modernization’s lower upfront cost, and the return on investment calculation that justifies the modernization investment to facility management.

---

Part 1: The Modernization vs. Replacement Decision Framework

The decision to modernize or replace a gantry crane is fundamentally a total cost of ownership question. It should be made on the basis of a structured assessment, not on the intuition that an old crane “needs to be replaced” or that a repair is “too expensive.”

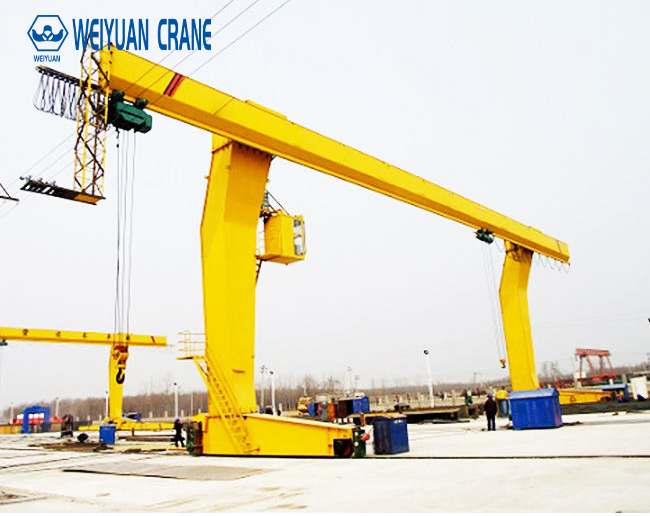

Step 1: Structural Assessment

The crane’s structural steel is the most expensive component to replace and the one that most clearly determines whether the crane has remaining value. A structural assessment by a qualified crane inspector evaluates:

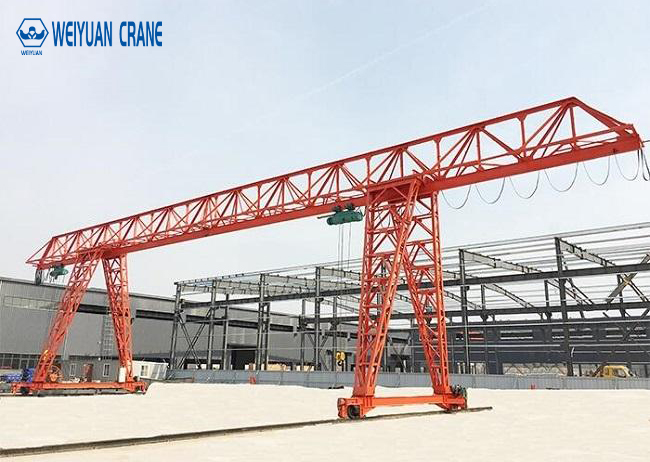

Bridge girder condition: Measure the bottom flange camber (upward bow) of each bridge girder under no load. Compare to the original design camber. If the girder has deflected permanently downward from its original position — a sign of structural yielding from overloading or fatigue — the girder may require replacement regardless of the crane’s age.

Weld inspection at critical connections: All connections between the main girder and end trucks, end truck frames and wheel mounts, and leg-to-bridge connections (for gantry cranes) must be inspected for fatigue cracks using dye penetrant or magnetic particle testing. A single repaired fatigue crack in a non-critical location is not a disqualifying finding. Multiple cracks at multiple locations, or any crack at a highly stressed primary connection, changes the calculation fundamentally.

Rail and wheel wear: Measure crane rail wear profiles and wheel flange dimensions. Excessive wheel flange wear indicates runway misalignment that may have imposed lateral fatigue cycles on the bridge and end truck connections beyond what normal operation would create.

If the structural assessment reveals: no significant yield deflection, no unrepaired fatigue cracks at primary connections, and rail and wheel wear within acceptable limits — the structure has remaining service life and modernization is the appropriate path. If any of these conditions is not met, the structural repair cost must be factored into the modernization vs. replacement comparison.

Step 2: Mechanical Component Assessment

Major mechanical components have defined replacement cycles based on duty class and hours of service. Assess the remaining life of:

Hoist gearbox: Inspect for noise (grinding indicates gear wear), oil condition (metal particles indicate gear or bearing wear), and seal condition. A gearbox with clean oil, normal noise, and intact seals has significant remaining life. A gearbox showing metal contamination in the oil should be disassembled for inspection.

Hoist brake: Measure remaining lining thickness. Compare to rejection criteria. A brake with 30% or less of original lining thickness remaining is at end-of-life.

Wire rope or load chain: Inspect per ASME B30.16 rejection criteria. A rope or chain at or approaching rejection is due for replacement regardless of other modernization decisions.

Travel wheels: Measure tread diameter and flange thickness. Wheels worn to rejection limit require replacement.

Step 3: Electrical and Control System Assessment

The electrical and control system is typically the primary driver of modernization in cranes that are structurally and mechanically sound. Assess:

Age and availability of spare parts: Relay-based control systems from the 1980s and 1990s are no longer supported by the original manufacturers. When a relay fails, the facility may not be able to source a replacement, creating an indefinite outage. PLC-based control systems from the early 2000s are entering a similar obsolescence cycle. The inability to source spare parts is a strong modernization trigger.

Safety system compliance: Does the existing crane control system meet current OSHA and ASME requirements? Older cranes may lack overload protection devices, functional upper and lower limit switches, or properly rated contactors. Bringing the crane into compliance may require control system modernization regardless of other factors.

Energy efficiency: Relay-contactor control with across-the-line starting consumes significantly more energy per lift cycle than VFD-controlled systems. In high-cycle production applications, the energy cost difference over a 10-year period can be substantial.

---

Part 2: The Most Common Modernization Scopes and Their Costs

Electrical Control System Modernization (Most Common Retrofit)

Replacing the original relay-contactor panel with a modern PLC-based control system is the single most common gantry crane modernization. The new system provides:

• PLC control with touchscreen diagnostic interface
• Fault logging and remote diagnostic capability
• Integration with facility SCADA or maintenance management systems
• Safety relay modules meeting current EN/IEC safety standards
• Compatible interface for VFD drives (typically installed simultaneously)

Typical cost for control system modernization (5 to 20-ton gantry crane):

• Engineering and design: $3,000 to $8,000
• PLC hardware, I/O modules, and safety relays: $4,000 to $12,000
• Panel fabrication and wiring: $5,000 to $15,000
• Installation, commissioning, and operator training: $4,000 to $10,000
• Total: $16,000 to $45,000 depending on crane complexity

VFD Drive Retrofit

Adding variable frequency drives to the hoist and travel motors provides the smooth acceleration and precise positioning control described throughout this guide. VFD retrofit is typically performed simultaneously with control system modernization.

Typical VFD retrofit costs (per drive):

• 5 to 15 kW hoist VFD (1 to 5-ton crane): $1,500 to $3,500 per drive installed
• 15 to 45 kW hoist VFD (5 to 20-ton crane): $3,000 to $7,000 per drive installed
• 45 to 110 kW hoist VFD (20 to 50-ton crane): $6,000 to $15,000 per drive installed

A complete VFD retrofit for a 10-ton gantry crane (hoist + two travel drives) typically costs $12,000 to $28,000 installed.

Wireless Remote Control Retrofit

Adding a wireless radio remote control system to replace or supplement a wired pendant:

• Transmitter/receiver kit for standard industrial crane: $1,500 to $3,500 installed
• Heavy-duty industrial wireless system with encoder feedback: $3,000 to $6,500 installed

Hoist Replacement

Replacing the existing hoist unit with a new modern unit (new motor, gearbox, drum, rope, limit switches, and brake) while retaining the crane bridge structure:

• 5-ton wire rope hoist replacement: $8,000 to $18,000 installed
• 10-ton wire rope hoist replacement: $14,000 to $28,000 installed
• 20-ton wire rope hoist replacement: $22,000 to $45,000 installed

Hoist replacement is appropriate when the gearbox or motor has failed beyond economical repair, when the existing hoist is not certifiable to current safety standards, or when a capacity upgrade is being undertaken simultaneously.

Structural Repair and Reinforcement

When the structural assessment identifies repairable conditions — weld repairs, section reinforcement at worn wheel contact points, girder camber restoration — these can be included in the modernization scope:

• Weld repair at end truck connections: $2,000 to $6,000 per location
• Girder bottom flange plate reinforcement: $5,000 to $15,000 per girder
• Rail replacement (both runways, 60-meter runway): $8,000 to $18,000
• Complete runway realignment and leveling: $5,000 to $12,000

---

Part 3: When Replacement Is the Right Decision

Modernization is not always the correct answer. Replacement is the better investment when:

Structural condition is poor: Multiple fatigue cracks at primary connections, permanent downward deflection exceeding design limits, or corrosion section loss greater than 20% of original steel thickness. The cost of structural repair in these cases approaches or exceeds the cost of a new crane while delivering a shorter remaining service life.

Capacity is fundamentally inadequate: The existing crane’s rated capacity is below what the current and future application requires by more than 20 to 30%, and no hoist replacement can close this gap because the bridge structure and runway are sized for the original, lower capacity.

Configuration is wrong for current needs: The existing crane’s span, hook height, or travel length does not serve the current facility layout, and the structural cost of reconfiguration exceeds the cost of a new crane correctly configured for the current needs.

Age exceeds 25 to 30 years with heavy service history: A crane that has operated at CMAA Class D or E duty for 25 or more years has consumed most of its original design fatigue life. Even a structurally sound-appearing crane at this age has limited remaining fatigue life in its welded connections — life that cannot be measured by visual inspection alone without detailed fatigue analysis.

Total modernization cost exceeds 50 to 60% of new crane cost: When the comprehensive modernization scope (controls + VFDs + hoist replacement + structural repairs) approaches this threshold, the total cost of ownership over the next 10 to 15 years typically favors a new crane with full warranty and known remaining design life.

---

Part 4: ROI Calculation for Gantry Crane Modernization

A modernization investment must be justified on financial grounds. The return on investment comes from three sources:

Avoided replacement cost: The capital cost of a replacement crane — purchase price plus runway work plus installation — that modernization defers. For a 10-ton gantry crane, replacement cost is typically $80,000 to $150,000. Modernization for $35,000 to $50,000 that extends service life by 10 to 15 years defers this replacement cost and its capital allocation impact.

Reduced maintenance cost: Modern PLC controls, VFD drives, and new hoist components typically reduce annual maintenance cost by 40 to 60% compared to an aged relay-contactor system with worn mechanical components. For a crane currently costing $12,000 per year in maintenance, modernization reducing this to $5,000 saves $70,000 over 10 years.

Productivity improvement: VFD control reduces cycle time and load damage, as quantified in the VFD retrofit guide. For production cranes, even a 10% improvement in cycle time has measurable throughput value.

Simple ROI calculation example:

• Modernization cost: $45,000
• Annual maintenance savings: $7,000
• Annual productivity value (conservative): $3,000
• Total annual benefit: $10,000
• Simple payback period: 4.5 years
• 10-year net benefit (after payback): $55,000

This is a compelling return even before accounting for the avoided replacement cost. The combination typically produces ROI that justifies modernization for any structurally sound crane with more than 8 to 10 years of remaining structural life.

---

Frequently Asked Questions

Q: Does modernizing a crane void its ASME or CMAA certification?
A: A comprehensive modernization that includes new hoist, new controls, and structural repairs essentially constitutes a new crane in terms of its performance and safety characteristics. ASME B30.2 requires that any significantly modified crane undergo a complete inspection and load test before returning to service. Many facilities treat a major modernization as the equivalent of a new installation for documentation and certification purposes — which is the conservative and defensible approach.

Q: How long does a typical gantry crane modernization project take?
A: For a 5 to 20-ton gantry crane modernization involving control system replacement, VFD retrofit, and hoist inspection/service, the project typically takes 3 to 6 weeks from design approval to completed commissioning. Planning time (assessment, scope definition, engineering) adds 4 to 8 weeks before work starts. The crane is typically out of service for 1 to 3 weeks during the active installation phase. Scheduling the outage during a planned maintenance shutdown or low-production period minimizes production impact.

Q: Can I modernize the controls only and defer the hoist and mechanical work?
A: Yes — phased modernization is a common approach. A controls-only modernization (PLC + VFDs) in year one, followed by hoist refurbishment in year three when budget allows, is a valid strategy. The sequence matters: install VFDs first because the new controls can accept VFD integration from day one, and the VFD retrofit is more complex if added after a controls-only installation. Confirm with the modernization contractor that the controls design accommodates the planned subsequent phases before committing to the first phase.
