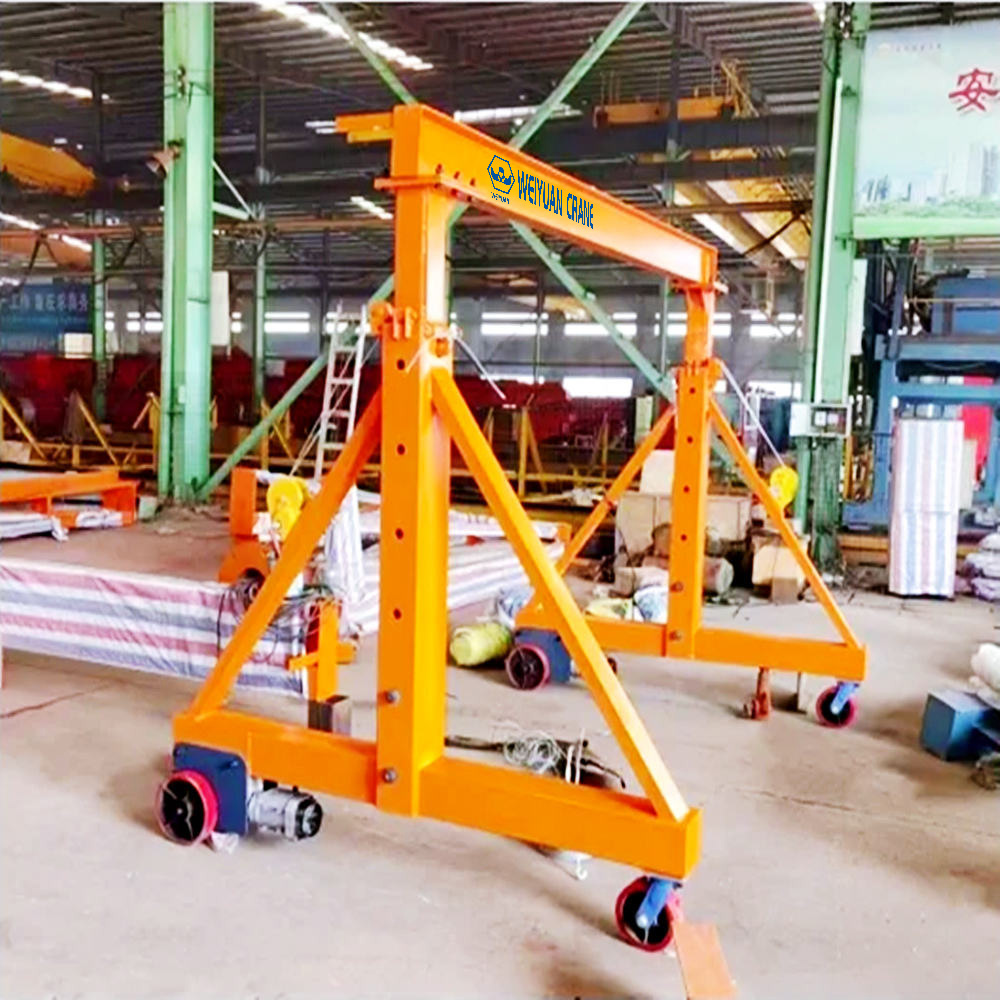

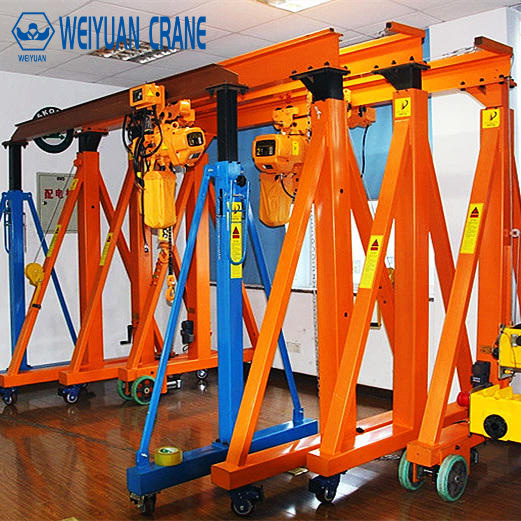

Gantry Crane Safety Guide: Load Limit Signs.
Introduction
Gantry crane accidents are rarely caused by structural failure of correctly specified and maintained equipment. They are caused by operating the crane outside its design conditions. Overloading. Traveling in wind speeds above the operating limit. Running two cranes into each other on a shared runway. Operating without qualified, trained personnel.
Every one of these causes is preventable. The prevention is not technically complex. It requires knowing the limits, having the systems to enforce them, and ensuring the operators know what those limits mean in practice.
This guide provides the complete gantry crane safety framework: the regulatory standards that define requirements, the load limit identification system, wind speed operating limits and shutdown procedures, anti-collision provisions for multi-crane operations, lightning and grounding requirements, and the operator certification requirements that different markets impose.
Part 1: Regulatory Framework — Which Standards Apply
OSHA 29 CFR 1910.179
The U.S. Occupational Safety and Health Administration’s 1910.179 regulation covers overhead and gantry cranes in general industry. It directly applies to “overhead and gantry cranes, including semi-gantry, cantilever gantry, wall cranes, storage bridge cranes, and others having the same fundamental characteristics.”
Key 1910.179 safety requirements for gantry cranes:
Load rating: every crane must be marked with its rated load. The marking must be legible from the ground at the operator’s normal working position.
Inspection: frequent inspection (daily to monthly depending on service) and periodic inspection (annual) are mandatory. Records must be retained.
Operator qualifications: operators must be physically qualified and trained for the specific equipment. Medical fitness requirements apply.
Safety devices: hook latches, limit switches (upper travel), overload protection, and travel limit devices are all required.
ASME B30.2
ASME B30.2 (Overhead and Gantry Cranes, Top Running Bridge, Single or Multiple Girder) is the technical standard that defines the engineering content behind OSHA’s regulatory requirements. Courts and OSHA inspectors use B30.2 as the standard of care for crane installation, operation, inspection, and maintenance.
ASME B30.2 covers: structural and mechanical design requirements, load ratings and marking, operating practices, inspection intervals and criteria, and maintenance requirements. It applies to all top-running bridge cranes and gantry cranes in industrial use.
EN 13001 (European)
EN 13001 (Cranes — General Design) is the European framework standard for crane structural and mechanical design. It covers load combinations, safety factors, fatigue design, and limit state design methodology. For gantry cranes sold in the EU market, CE marking under the Machinery Directive requires compliance with EN 13001 and related EN standards.
GB 6067 (China)
GB 6067 (Safety Rules for Lifting Appliances) is China’s national crane safety standard. It covers design, manufacture, installation, inspection, and operation requirements. All cranes manufactured and used in China must comply with GB 6067. The standard aligns broadly with international practice (ILO, ISO) but has specific requirements for operator certification and inspection that differ from Western standards.
Part 2: Load Limit Identification and Marking
Mandatory Rating Plate Requirements

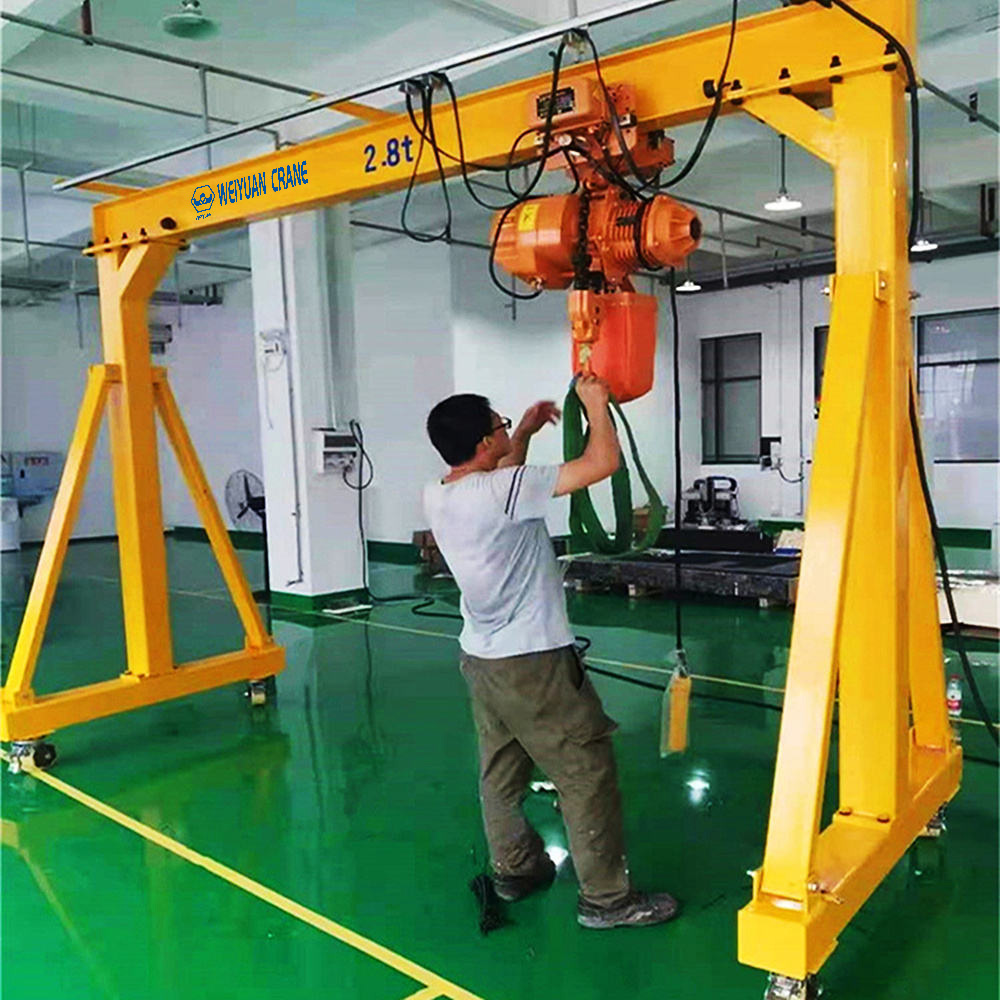

Every gantry crane must have a permanently attached, legible load rating plate. The plate must be visible to the operator from the normal operating position — which for cab-operated cranes means visible from the cab, and for pendant-operated cranes means visible from the floor level operating position.
ASME B30.2 requires the rating plate to show: rated load capacity in clearly legible characters, the crane’s identification number, the manufacturer’s name, and the year of manufacture.
The rating plate must be made of durable material. Painted markings on structural steel are not adequate — they fade and become illegible over time. The rating plate must be a separate, permanently fastened plate that cannot be inadvertently removed.
Cantilever Zone Capacity Reduction
If the gantry crane has a cantilever section — where the bridge girder extends beyond the supporting leg — the rated capacity in the cantilever zone is different from the rated capacity over the main span. This reduced cantilever capacity must be clearly marked.
The most effective cantilever capacity marking: a separate capacity plate mounted at the leg, clearly visible to the operator when the trolley is in the cantilever zone. The plate shows: “CANTILEVER ZONE — RATED CAPACITY: [value] tonnes.”
Failure to mark cantilever capacity reductions is one of the most common gantry crane specification and marking errors. An operator who does not know the cantilever capacity is reduced may apply the main span rated capacity to a cantilever lift — creating an overload condition.
Outdoor Gantry Crane Wind Speed Limit Marking
Outdoor gantry cranes must display their operating wind speed limit at the operator’s control station. The display should show: the maximum wind speed for continued operation, the action required when the limit is reached (cease operation, travel to parking position, engage clamps), and the emergency contact for wind speed monitoring.
The wind speed limit is not a general guideline. It is an engineering limit derived from the crane’s structural design. Operating above this limit exposes the crane structure to loads it was not designed to carry.
Part 3: Wind Speed Operating Limits
Why Wind Is the Critical Outdoor Safety Factor
An outdoor gantry crane handling a 50-tonne load in 15 m/s wind is not simply handling a 50-tonne load. The wind applies a horizontal force to the load, the crane structure, and the crane bridge simultaneously. This lateral wind force creates an overturning moment on the crane structure that adds to the overturning moment from the vertical load.
At the operating wind speed limit, the combined overturning moment from load plus wind is at the maximum the crane structure was designed to resist. Above the operating limit, the structure is being loaded beyond its design capacity.
The risk is not simply structural collapse — which would require significantly exceeding the limit. The risk is: the crane begins to travel on the runway under wind force rather than staying at the operator-intended position, the load swings uncontrollably under wind pressure making placement impossible, and the lateral wind force on the load exceeds the horizontal braking capacity of the travel drives.
Operating Wind Speed Limits by Crane Class
These limits are typical values. Always use the specific value from the crane manufacturer’s documentation for the specific crane.
Light-duty industrial gantry cranes (up to 10 tonnes): operating limit typically 10 to 12 m/s (Beaufort Scale 5 to 6, fresh to strong breeze). Stop operations and secure the crane.
Medium-duty industrial gantry cranes (10 to 50 tonnes): operating limit typically 12 to 15 m/s (Beaufort Scale 6 to 7). Stop, travel to parking position, engage rail clamps.
Heavy-duty industrial and construction gantry cranes (50 tonnes and above): operating limit typically 14 to 16 m/s. In some designs, 20 m/s is achievable with specific wind load design. Stop, travel to storm parking position, engage all securing devices.
Port container RTG cranes: operating limits are specified by the terminal operator based on the crane’s design. Typically 15 to 20 m/s for container handling operations.
Wind Speed Stop Procedure
When the anemometer alarm activates (wind speed at or above operating limit):
Step 1: Complete the current lift only if the load is already hoisted and the deposit position is immediately accessible. Do not start a new lift.
Step 2: Lower the suspended load to the ground immediately.
Step 3: Travel the crane to the designated storm parking position (usually at one end of the runway, away from areas with overhead obstructions or personnel).
Step 4: Lower the hook block to within 1 metre of the ground and secure the rope against flailing.
Step 5: Engage all four rail clamps firmly. Verify engagement visually.
Step 6: Engage storm anchors if the crane is equipped with them. Storm anchors are separate from rail clamps — they are structural connections to fixed ground anchors.
Step 7: Isolate electrical power to all crane drives. Leave storm lighting (if fitted) energized.
Step 8: Document the action: time, wind speed reading, crane position, securing devices engaged, and operator name.
Do not leave a secured crane unattended until the wind speed returns below operating limits and the crane has been inspected before restart.
Part 4: Anti-Collision Systems for Multi-Crane Operations
Why Anti-Collision Is Critical
Two gantry cranes on the same runway can collide if travel controls are not coordinated. The collision is not a low-speed bump — cranes traveling at 20 to 40 m/min with 50 to 200-tonne structures behind them carry substantial kinetic energy. A collision between two large gantry cranes causes structural damage that requires weeks of repair and complete re-inspection of both cranes before return to service.
Collisions between overhead cranes are among the most frequently cited OSHA crane violations. They are entirely preventable.
Minimum Separation Requirements
ASME B30.2 and most international crane standards require a minimum clear distance between the closest approaching structural elements of two cranes operating on the same runway. The minimum is typically 300mm clear distance (not center-to-center — clear gap) between the closest structural elements.
In practice, the minimum separation is enforced by travel limit switches set at a position that stops the advancing crane before the 300mm minimum gap is breached. The limit switches must be set conservatively — accounting for the crane’s stopping distance from full travel speed.
Types of Anti-Collision Systems
Mechanical end stops: Fixed structural bumpers at the minimum separation position. The advancing crane physically contacts the end stop. This is the least sophisticated approach — it prevents collision but only after contact. Not acceptable as the primary anti-collision method for cranes traveling at full speed.
Travel limit switches: Adjustable cams or targets on the runway activate a limit switch on the approaching crane at a set distance from the second crane’s rest position. The limit switch cuts travel power. This prevents contact but relies on the second crane remaining stationary at the assumed position.
Radar or laser distance sensors: Active sensors on each crane measure the distance to the other crane continuously. When the distance drops below the alarm threshold, the approaching crane automatically reduces speed. When the distance drops below the stop threshold, travel power is cut. This is the most reliable anti-collision system because it measures actual distance rather than assumed position.
Zone control (interlocked runway sections): The runway is divided into sections that are electrically interlocked — only one crane can be in any given section at a time. The second crane must wait at the section boundary until the first crane clears the section. This approach is more restrictive than distance-based systems but provides absolute collision prevention in applications where the production workflow permits section-based operation.
Collision Documentation and Investigation
Any contact between two cranes — even a low-speed contact with cushioned end stops — must be treated as a safety incident. Both cranes must be taken out of service immediately. A qualified inspector must inspect both cranes for structural damage before either crane returns to service. The incident must be documented, investigated, and a corrective action implemented to prevent recurrence.
Part 5: Lightning Protection and Grounding
Why Grounding Matters for Outdoor Cranes
An outdoor gantry crane is an elevated metal structure. During an electrical storm, it is a lightning attractor — particularly for cranes with tall legs in open areas. A lightning strike to the crane structure can: injure or kill the operator, damage electrical components, and ignite fires from the arc discharge.
Lightning protection for outdoor cranes requires two independent provisions: a lightning protection system (lightning rod connected to earth through a dedicated ground conductor), and an equipment grounding system (the crane’s electrical system bonded to earth to protect against electrical fault current).
Grounding Requirements
All metallic crane structure components must be continuously bonded to earth. The continuity of the grounding path must be maintained through: structural bolted connections (supplemented with bonding conductors if bolted connections are not reliable conductors), the crane-to-runway rail interface (typically through the wheel-to-rail contact), and the runway-to-building structure connection.
The grounding system must achieve a measured earth resistance of 4 ohms or less at the crane’s most distant structural point from the building ground. Test the earth resistance annually with a calibrated earth resistance tester. Document the test results.
Thunderstorm Shutdown Procedure
When a thunderstorm approaches (lightning visible within 10 kilometres or thunder audible):
Step 1: Lower the suspended load to the ground immediately. Do not wait for the storm to arrive.
Step 2: Travel the crane to the parking position.
Step 3: Lower the hook to its minimum height.
Step 4: Evacuate the operator from the crane. The operator must not remain in the crane cab or at the pendant control position during a thunderstorm.
Step 5: Isolate power to the crane.
Step 6: The crane may not be restarted until 30 minutes after the last lightning strike or thunder is detected in the immediate area.
Part 6: Operator Certification Requirements
United States — OSHA Requirements
OSHA 29 CFR 1910.179 requires that crane operators be “physically qualified” — the regulation uses this term but does not specify a formal certification program. The practical standard is set by ASME B30.2, which requires operators to be trained and evaluated by a qualified person on the specific crane equipment.
NCCCO (National Commission for the Certification of Crane Operators) certification is the most widely recognized voluntary certification in the U.S. for overhead and gantry crane operators. NCCCO certification demonstrates training and evaluation against defined competency standards.
China — Special Equipment Operator Certificate
In China, gantry crane operators must hold a valid Special Equipment Operator Certificate (特种设备操作证) issued by the State Administration for Market Regulation (SAMR). For gantry cranes: G1 certificate covers bridge cranes and gantry cranes up to rated capacity; G2 covers portal cranes and shipyard cranes.
Certificate requirements: minimum age 18, completion of approved training program, written examination, practical skills assessment, physical health certificate. Renewal: every 4 years by re-examination or continued education verification.
European Union — Member State Variation
The EU does not have a single crane operator certification standard. Requirements vary by member state. Common frameworks:
UK: No single mandatory certification, but CPCS (Construction Plant Competence Scheme) card for construction crane operators and LEEA (Lifting Equipment Engineers Association) training are widely required by contractors.
Germany: DGUV rules require employer-designated crane operators with documented training and appointment letter.
Netherlands: VCA (Safety, Health and Environment Checklist Contractors) requirements typically include crane operator qualification.
For operations in any EU country: verify the specific national requirement before starting crane operations.
Training Content Requirements
Regardless of the certification framework, effective crane operator training must cover:
Equipment-specific knowledge: rated capacity and cantilever reductions, all control functions and their locations, all safety device locations and test procedures.
Pre-shift inspection: the five-item pre-shift check procedure for the specific crane model.
Load handling: signal communication with riggers, prohibited lift conditions (overloading, wind limits, personnel under load), emergency procedures.
Wind speed management: how to read the anemometer, what the operating limit is, and the complete shutdown procedure.
Emergency response: how to respond to a hoist brake failure, a travel drive failure, a load dropped from height, and a crane-to-crane near-miss.
Part 7: Seven Golden Safety Rules
Rule 1: Never Exceed Rated Capacity
Weigh or calculate every load before lifting. Do not estimate. Include all rigging and below-hook hardware in the total lifted weight. If the total approaches the rated capacity, weigh with a calibrated load cell.
Rule 2: No Personnel Under Suspended Loads
This is absolute. No exceptions. Not for “just a second.” Not for “it’s only 100kg.” A suspended load of any weight represents a potential dropped load hazard. OSHA 1910.179 explicitly prohibits personnel under suspended loads.
Rule 3: Stop at the Wind Speed Limit
The operating wind speed limit is an engineering limit. When the anemometer reads at or above the limit: stop the lift, lower the load, travel to the parking position, engage the clamps. This procedure takes approximately 5 minutes. A wind-related crane accident takes much longer to recover from.
Rule 4: Complete Pre-Shift Inspection Before Every Shift
Five items, five minutes. Rotation check. Hook and latch check. Rope or chain visual check. Brake test. Limit switch test. Any failed item means out-of-service tag. No exceptions.
Rule 5: Tag Out Immediately on Any Abnormal Condition
Unusual noise. Unexpected resistance. Vibration that wasn’t there yesterday. Brake drift that passes the test but feels different. Any of these is a signal. Tag the crane out. Investigate. The production pressure to keep the crane running is never worth the consequence of a structural or mechanical failure during a lift.
Rule 6: Verify Clear Travel Path Before Moving
Before any crane travel: confirm no personnel are in the travel path, no equipment is within the crane’s structural clearance envelope, and (for multi-crane runways) the anti-collision system is active and functioning.
Rule 7: Secure the Crane Completely at End of Every Shift
End-of-shift procedure: lower the hook to the minimum height. Travel the crane to the designated parking position. Engage the rail clamps. Isolate electrical power. For outdoor cranes: verify the wind speed is within acceptable limits for an unsupervised secured crane.
A crane left unsecured overnight — with the hook raised, the clamps disengaged, and power live — is a crane that a windstorm, an unauthorized person, or an electrical fault can turn into a serious incident before the next shift starts.
Frequently Asked Questions
Q: Is OSHA 29 CFR 1910.179 the only U.S. regulation that applies to gantry cranes?
A: No. 1910.179 covers general industry. Construction sites use OSHA 29 CFR 1926.1400 series (Cranes and Derricks in Construction), which has different and generally more detailed requirements. Maritime operations use OSHA 1915 and 1918. The applicable standard depends on the industry sector and the type of work being performed. If your gantry crane is used on a construction site, verify whether 1910.179 or 1926 applies to your specific operation.
Q: How often should the wind speed operating limit be re-evaluated?
A: The operating wind speed limit is set by the crane manufacturer based on the crane’s structural design. It does not change with time unless the crane is structurally modified. However, if the crane is relocated to a site with significantly different exposure conditions — from a sheltered indoor position to an exposed outdoor coastal site, for example — the manufacturer should evaluate whether the original wind limit remains appropriate for the new exposure conditions.
Q: Can operators use the same crane operator certificate for different crane types?
A: Not in most certification frameworks. Gantry crane operation requires equipment-specific training and evaluation, even for operators who are certified for other crane types. The control system, rated capacity marking, anti-collision provisions, and emergency procedures are specific to the gantry crane type and model. A certified tower crane operator is not automatically qualified to operate a gantry crane — they require specific gantry crane training and evaluation.
