Introduction

A cracked bridge girder rarely announces itself. It does not squeal like a worn brake or trip an overload like a struggling motor. It sits there — a hairline the width of a hair, tucked into the corner of a weld you cannot see from the floor — growing a fraction of a millimetre with every lift. By the time it is visible to a casual glance, it has often been growing for months, and the cheap fix has already passed.

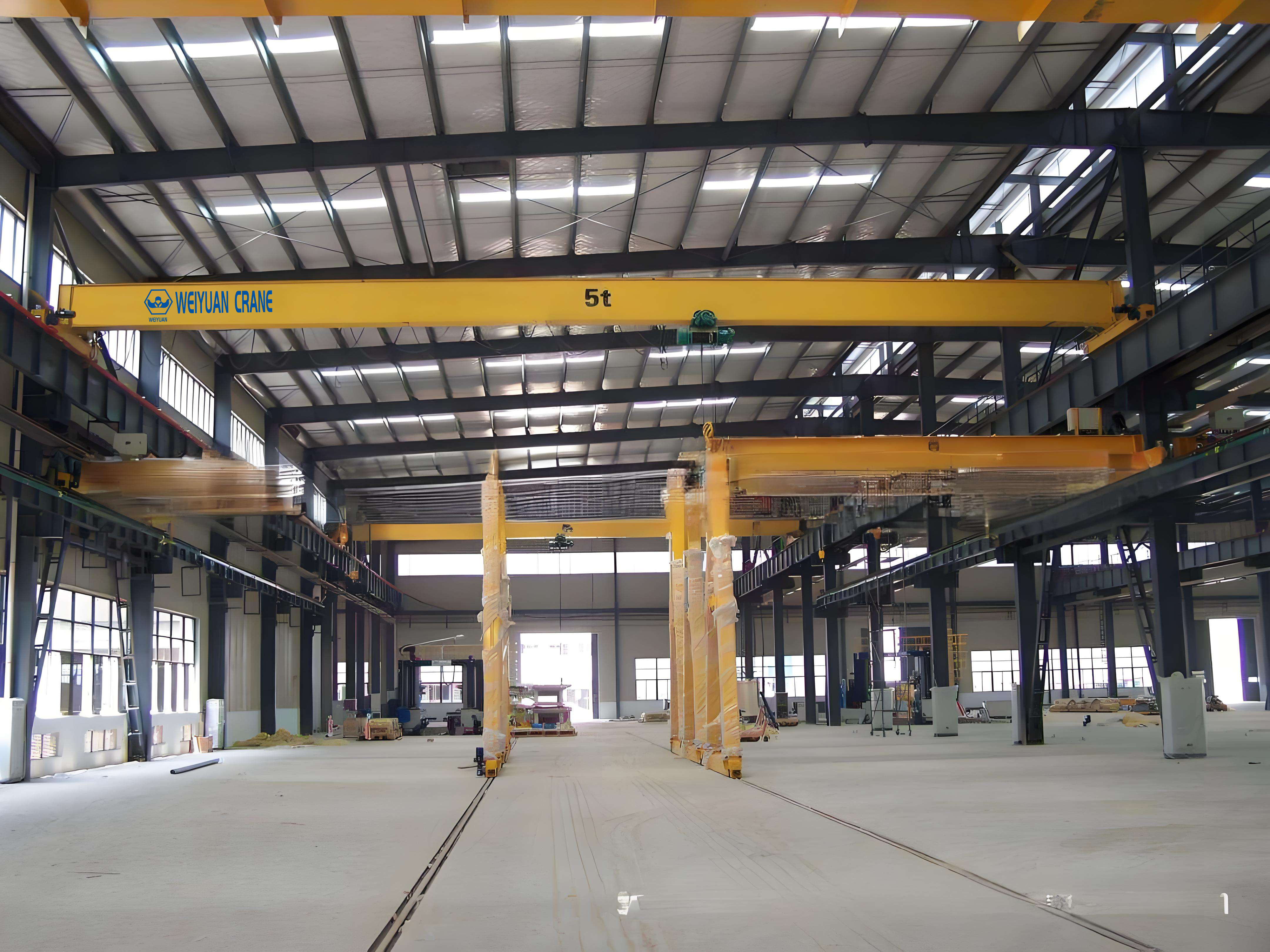

The bridge girder is the main horizontal beam that carries the load across the bay. It is the single most important structural component on the crane — and, for a procurement or facilities manager, one of the most expensive things that can go wrong. A cracked girder does not mean a wheel swap or a brake re-line. It means a crane grounded for safety, a production line stopped, an emergency structural repair, and in the worst case a girder replacement that costs more than half a new crane. The bill is large precisely because the warning was small and nobody was looking for it.

Here is what this guide will give you:

• Why fatigue cracks form in bridge girders — and why they stay hidden until they are expensive.
• How to read the warning signs and inspect for cracks using the right methods before a crack grounds the crane.
• What correction costs, and how to decide between repairing a girder and replacing it.

By the end, you will know how to catch a structural problem while it is still a monitored weld or a minor repair — and protect equipment uptime and worker safety for a fraction of the cost of an emergency grounding.

---

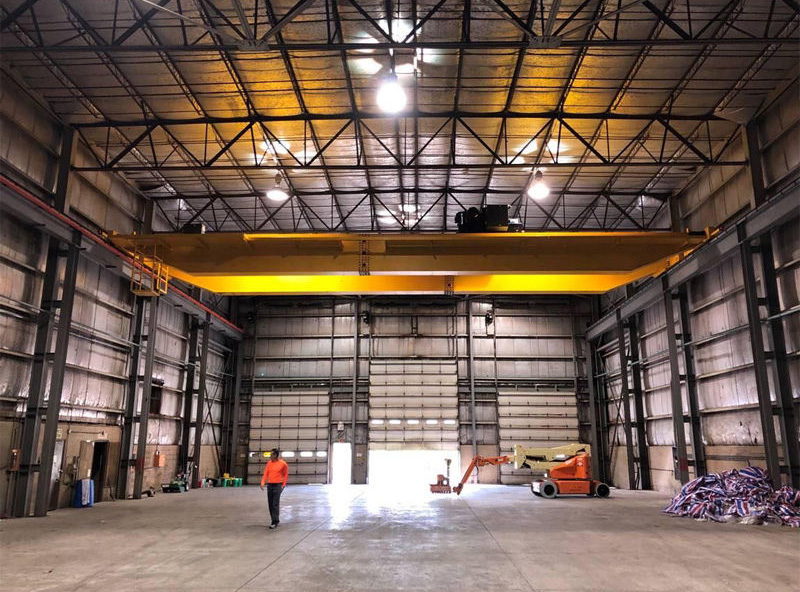

Part 1: How Bridge Girder Fatigue Cracks Develop

The girder does not usually fail from one overload. It fails from millions of small load cycles, each flexing the steel a little, until a crack starts at the point where stress concentrates most — and then grows. Understanding this process is what tells you where to look and how often.

Load Cycles and Metal Fatigue

Every lift stresses the girder. The load goes on, the beam bends slightly, the load comes off, and the beam relaxes. That single cycle does no harm. Repeat it hundreds of thousands of times, and the steel begins to fatigue — a gradual weakening at the microscopic level that eventually seeds a crack, even though the crane has never once been overloaded.

This is why cycle count matters as much as load weight. A crane making 40 lifts per shift accumulates fatigue far faster than one making five, at the same capacity. It is also why a girder can crack while every single lift stayed comfortably within its rated capacity — fatigue is driven by the number of cycles, not by any one lift exceeding the limit.

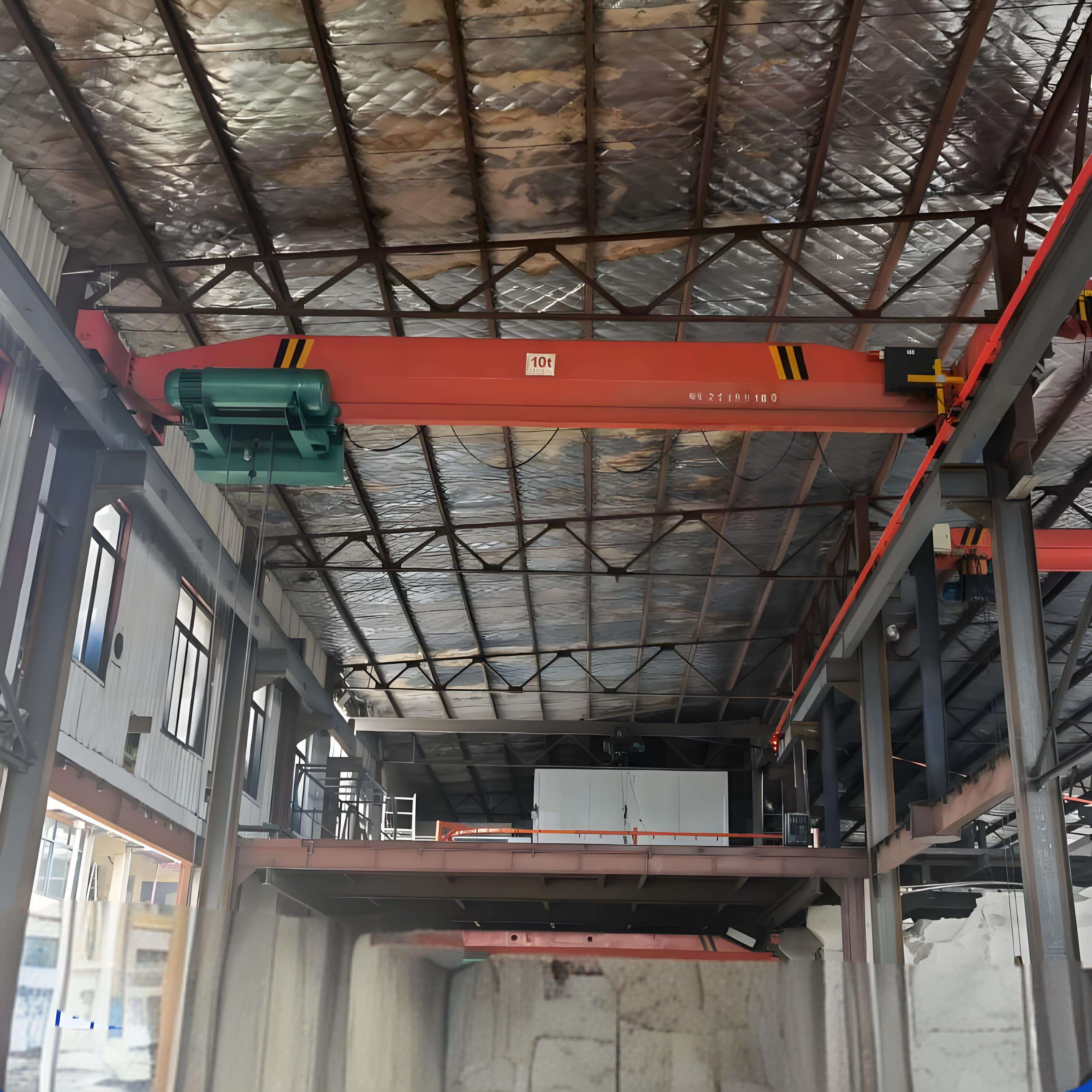

Stress Concentrations at Welds

Fatigue cracks almost never start in the middle of a clean plate. They start where the stress concentrates — and on a welded box girder, that means the welds.

A weld toe (the edge where the weld metal meets the parent plate), a bolt hole, a bracket attachment, and any abrupt change in section all crowd the internal stress into a small area. That local stress can be several times the average stress in the surrounding steel. So even when the girder as a whole is nowhere near its limit, the stress right at a weld toe can be high enough to seed a fatigue crack over time.

The high-risk locations to know:

• The main girder-to-end-truck connection welds, where the bridge meets the running gear and side-thrust loads concentrate.
• The web-to-flange welds along the length of the box girder.
• Any attachment weld — walkway brackets, festoon supports, stiffener connections — where something is welded onto the main structure.
• Repair welds from previous work, which are frequently the first place a new crack appears if the earlier repair was not detailed for fatigue.

Dynamic Effects Multiply the Damage

The load on a girder is not the static weight alone. A moving crane adds dynamic effects that push the real stress higher than the nameplate load suggests:

• Hoisting impact: snatching a load off the ground applies a shock that can add 10 to 25% to the effective load, depending on hoist speed and duty.
• Travel and braking forces: starting, stopping, and skewing feed side-thrust and twisting loads into the girder and its connections.
• Vibration: repeated small oscillations from travel and load swing add cycles the operator never notices.

These dynamic effects are exactly why contactor-controlled cranes — which snap loads into motion and slam them to a stop — fatigue their girders faster than VFD-controlled cranes that start and stop smoothly. The gentler the operation, the fewer damaging cycles the steel absorbs.

Key takeaway: girder fatigue is driven by cycle count, concentrated at welds, and amplified by dynamic shock. A crane can crack a girder without ever being overloaded — which is precisely why you cannot rely on load records alone to tell you the girder is safe. You have to look.

---

Part 2: Symptoms and Visual Warning Signs

A fatigue crack gives warning before it becomes critical — but the signs are subtle, and they are easy to miss or dismiss. Learning to read them turns a catastrophic surprise into a planned repair. The trick is knowing that several of these symptoms show up long before the crack itself is obvious.

Rust Streaks and Weeping from Welds

The most reliable early sign of a working crack is a rust stain weeping from a weld line or a joint. As a crack opens and closes with each load cycle, it pumps moisture and fine corrosion product out of the gap, leaving a brown streak running down the steel from a point that should be sealed.

• What you see: a rust streak originating from a weld toe, a bracket, or a joint — often against otherwise sound paint.
• What it means: the joint is moving. A sealed, sound weld does not weep. Treat any rust line coming from a weld as a suspected crack until proven otherwise.

Paint Cracking and Flaking Along a Line

Paint is rigid. When the steel beneath it flexes at a developing crack, the paint cannot follow — it cracks and flakes in a straight line that follows the crack underneath.

• What you see: a fine line of cracked or lifted paint, usually at a weld toe or along a stress concentration, distinct from the random flaking of general weathering.
• What it means: the surface is moving in a line, which is the signature of a crack propagating beneath the coating.

Visible Deflection or Sag

A girder that has lost stiffness — through a significant crack or accumulated fatigue — may begin to sag more than it used to under the same load.

• What you see: the trolley appearing to roll slightly toward mid-span, a visible dip in the girder under load, or an operator reporting the crane “feels different.”
• What it means: the structure is deflecting beyond its normal elastic range, which warrants immediate measured inspection before further use.

Unusual Noise Under Load

A structural crack can produce sound as its faces rub or as the load redistributes across the weakened section.

• What you hear: a creak, crack, or groan from the girder under load that was not there before — distinct from the familiar sounds of the hoist and travel gear.
• What it means: stop and inspect. New structural noise is never routine.

Distortion at Connections

At the girder-to-end-truck connections and other bolted joints, watch for bright rub marks, gaps opening, or bolts backing out — signs the connection is working loose and shifting load onto welds that were never meant to carry it alone.

Key takeaway: rust weeping from a weld, a straight line of cracked paint, increased sag, new noise, and loosening connections are the language a girder uses to warn you. None of them should be dismissed as cosmetic. When you see one, the next step is measurement and testing — not a repaint.

---

Part 3: Inspection Checklist — What to Inspect and Measure

Reading symptoms tells you where to look. Proper inspection tells you what is actually there and what to do about it. A girder inspection has three layers: what you can see, what you can measure, and what you can only find with the right crack-detection method. Skip the third layer and you will miss the cracks that matter most — the ones still too fine to see.

Layer 1: Visual Inspection

The starting point, and the layer that guides the rest. A trained visual inspection covers:

• All accessible welds, especially the high-risk connection welds identified in Part 1, checked for rust weeping, paint cracking, and any visible line.
• The full length of the box girder for dents, buckles, or distortion from impact or overload.
• Corrosion, particularly on outdoor cranes and in washdown or corrosive atmospheres, where section loss weakens the steel and seeds cracks.
• Previous repair welds, treated as high-priority zones because they crack again more readily than original steel.

Do this first: clean the suspect area back to bare metal before judging it. Paint and grime hide fine cracks, and a rust streak means little until you can see the weld beneath it.

Layer 2: Non-Destructive Testing (NDT) — Finding the Invisible Cracks

Visual inspection catches cracks you can see. The dangerous ones are still too fine for the eye. Non-destructive testing (NDT) — methods that find cracks without cutting the steel — is how you find them. Two methods cover most crane girder work:

• Dye-penetrant testing (DPT): a coloured dye is applied to a cleaned weld, drawn into any surface crack by capillary action, then wiped off and revealed by a developer that pulls the dye back out as a visible line. It finds surface-breaking cracks on any accessible weld, is low-cost, and needs no power — the practical workhorse for routine crane girder checks.
• Magnetic-particle testing (MPT): the steel is magnetized and fine iron particles are dusted over it; the particles gather at a crack, where the magnetic field leaks, marking it clearly. It finds surface and slightly sub-surface cracks and is faster than dye-penetrant over large weld areas, making it the choice for the critical connection welds.

For the highest-stress connections on severe-duty cranes, ultrasonic testing (UT) — using sound waves to probe deep inside the weld — can find cracks buried below the surface that neither DPT nor MPT will reveal.

The practical rule: apply NDT to the high-risk welds from Part 1 at every scheduled structural inspection, and to any location where a visual symptom appeared. You cannot dye-test the whole crane every time — target the welds that fatigue first.

Layer 3: Deflection Measurement

Deflection is how much the girder sags at mid-span under a known load. It is a direct measure of the girder’s stiffness, and a change over time is a warning that the structure is weakening.

• How to measure it: position a known test load at mid-span and measure the vertical drop of the girder centre against an unloaded reference, using a laser level, a surveyor’s instrument, or a taut wire.
• What is normal: crane standards cap deflection at a fraction of the span — commonly around span ÷ 750 to span ÷ 1000 for the rated load, per the crane’s design specification.
• What to watch: an increase in measured deflection over successive inspections, even within the limit, signals a loss of stiffness worth investigating before it becomes a crack.

Trend the Results — Don’t Just Pass or Fail

A single inspection tells you the girder is sound today. A series tells you whether it is staying sound. Record every NDT result, deflection reading, and the location and length of any crack found, so you can watch for change.

Do this first: photograph and log every suspect weld with a reference mark, so the next inspector measures the same spot. A crack that grows 2 mm between inspections is a clear signal — but only if you know where it was last time.

---

Part 4: Correction Methods

Once inspection finds a crack or a weakened section, the fix depends entirely on what you found — and the choice between repair and replacement can be the difference between a planned shutdown and a capital purchase. Any structural repair on a load-bearing girder must be designed and signed off by a qualified crane structural engineer; this is not a fix to improvise. Here are the options, from the lightest to the most involved.

Weld Repair

The most common correction for a contained fatigue crack. The crack is ground out completely, the cavity is re-welded to a proper procedure, and the repair is re-tested with NDT to confirm it is sound.

• Best for: a single, contained crack in an accessible weld, on a girder that is otherwise sound.
• The critical detail: the repair must remove the entire crack and be detailed to resist fatigue, or it becomes the first place the next crack appears. A patch weld over an un-ground crack is worse than no repair — it hides the problem while it keeps growing.
• What it restores: the local strength of the joint, at the lowest cost, usually within a planned shutdown.

Stiffener Reinforcement

The next step up, used when a section needs more strength or stiffness — often because cracking has revealed an under-designed detail, or because a heavier duty now runs on the crane. Additional steel is welded to the girder — cover plates, web stiffeners, or a strengthening section — to lower the stress at the problem area and raise the girder’s resistance to both bending and fatigue.

• Best for: a recurring crack that signals an under-strength detail, or a girder being brought up to a higher duty.
• What it restores: reduced stress at the concentration point, extending fatigue life — and, where needed, added stiffness against deflection.
• A note on scope: this is engineering-intensive and must be designed and verified, but on a sound girder it costs far less than replacement.

Girder Replacement

The most involved option, reserved for when the girder itself is beyond economical repair. If cracking is widespread, if the steel has lost significant section to corrosion, or if the girder has been distorted by a serious overload or impact, no local repair will restore it reliably.

• Best for: widespread cracking, major corrosion section loss, or a distorted girder.
• The decision rule: when the cumulative repair and reinforcement cost approaches roughly 50–60% of a new girder — or when a structural engineer judges the fatigue life largely spent — replace it. On a double-girder crane, assess both girders together, since they have shared the same duty.
• What it restores: a new fatigue clock on the crane’s most critical component.

Verify After Correction

After any repair, re-test the corrected area with NDT and re-measure deflection to confirm the girder is back within specification — and record the result as a fresh baseline for future trending. Then load-test to the standard before returning the crane to service.

Key takeaway: a contained crack on a sound girder is a weld repair; a recurring or under-strength detail calls for reinforcement; widespread cracking, corrosion, or distortion tips toward replacement. Put an engineer and real numbers on the decision — a girder repair is a safety-critical job, not a cost-cutting exercise.

---

Part 5: Inspection Intervals by CMAA Duty Class

Girder inspection is inexpensive when scheduled and ruinous when skipped. The right frequency depends on how hard the crane works, measured by its CMAA duty class — a rating of load severity and cycle count running from light Class A–B up to severe Class E–F. Because fatigue is driven by cycle count, a higher duty class needs far more frequent structural inspection.

Inspection Frequency by Duty Class

Task	Class A–C (light)	Class D (heavy)	Class E–F (severe)
Visual girder and weld check	Every 6 months	Quarterly	Monthly
NDT of high-risk connection welds	Every 3–5 years	Every 2 years	Annually
Deflection measurement	Every 3 years	Every 2 years	Annually
Full structural condition assessment	Every 5 years	Every 3 years	Every 1–2 years

These align with the periodic inspection required under ASME B30.2, with harsher duty pushing every interval toward the more frequent end. Bring any inspection forward the moment a visual warning sign appears — a rust streak from a weld, a line of cracked paint, increased sag, or new noise under load all justify an immediate NDT check regardless of the schedule.

Key takeaway: the entire inspection program above costs a small fraction of one emergency girder repair and grounding. Under-spending on structural inspection is not a saving — it is a catastrophic bill deferred to the worst possible moment, and a safety risk you cannot insure away.

---

Part 6: 2026 Price Reference — Inspection and Repair

Use these indicative 2026 figures to budget girder inspection and repair. Actual costs vary with crane capacity, girder length, access, and downtime constraints — but the relationships between them are what drive the repair-versus-replace decision, and they make the case for prevention plain.

Inspection and Diagnosis

Service	Scope	Indicative 2026 cost (USD)
Visual structural inspection	Girder and weld condition check with report	$500 – $1,800
Dye-penetrant NDT (per campaign)	Surface crack testing at key welds	$1,000 – $4,500
Magnetic-particle NDT (per campaign)	Faster crack testing over larger weld areas	$1,500 – $5,500
Ultrasonic testing (per campaign)	Sub-surface crack detection at critical welds	$2,500 – $8,000
Deflection measurement	Load test with laser/level measurement	$1,200 – $4,000
Full structural condition assessment	Combined survey with repair/replace recommendation	$4,000 – $12,000

Correction Work (indicative)

Correction	Scope	Indicative 2026 cost (USD)
Single weld crack repair	Grind out, re-weld, re-test	$2,000 – $8,000
Multiple weld repairs	Several cracks addressed in one shutdown	$6,000 – $20,000
Stiffener / cover-plate reinforcement	Engineered added steel, welded and tested	$8,000 – $35,000
Single girder replacement (light–medium crane)	New girder, installed and load-tested	$25,000 – $90,000
Double girder replacement (heavy crane)	Both girders, installed and load-tested	$70,000 – $220,000

Budget Notes for Procurement

• Inspection is the cheapest line in the table and prevents the most expensive. A full NDT campaign costs a fraction of one girder replacement — and a tiny fraction of the downtime a surprise grounding causes.
• Early weld repair delivers the best return. A contained crack caught early is a few thousand dollars in a planned shutdown; the same crack ignored becomes a girder replacement plus an emergency line stoppage.
• Cost the downtime, not just the parts. A girder failure does not just cost the repair — it grounds the crane on safety grounds, and for a crane serving a production line that can mean tens of thousands per day in lost output.
• Never defer structural inspection to save budget. Of every maintenance line item, this is the one where a skipped check carries both the largest financial exposure and a genuine safety risk to your people.

---

Frequently Asked Questions

Q: How do I know if a crack in my crane girder is serious, or just surface paint cracking?

A: You cannot tell reliably by eye alone, which is exactly why the surface must be cleaned and tested rather than judged from the floor. Start by cleaning the suspect area back to bare metal — general weathering flakes paint randomly, but a fatigue crack shows a straight line of cracked paint following a weld toe or stress line, often with a rust streak weeping from it. Once the metal is exposed, apply dye-penetrant or magnetic-particle testing: these draw out any actual crack in the steel as a clear line, distinguishing a real structural crack from harmless surface coating damage. If a crack is confirmed, have a qualified crane structural engineer assess its length, location, and depth against the girder’s design, because a short crack at a low-stress point behaves very differently from one at a main connection weld. The safe rule for a procurement or facilities manager is simple: treat any suspected girder crack as serious until NDT and an engineer prove otherwise, and keep the crane out of service until you know. Structural cracks are the one crane fault where guessing wrong carries a safety cost, not just a financial one.

Q: Can a cracked bridge girder be repaired, or do I always need a new crane?

A: In most cases a cracked girder can be repaired without buying a new crane — provided the crack is caught early and the rest of the girder is sound. A single, contained fatigue crack in an accessible weld is typically ground out, re-welded to a proper fatigue-resistant procedure, and re-tested with NDT, all within a planned shutdown for a few thousand dollars. A recurring crack that points to an under-strength detail can be addressed with engineered stiffener or cover-plate reinforcement that both fixes the problem and extends the girder’s fatigue life. Full girder replacement is only necessary when cracking is widespread, corrosion has removed significant steel section, or the girder has been distorted by a serious overload or impact — and even then you replace the girder, not always the whole crane. The deciding factor is the condition of the base steel and how much fatigue life remains, which a structural engineer assesses. As a budget rule, when the cumulative repair and reinforcement cost approaches 50–60% of a new girder, replacement becomes the better value. Catching cracks early is what keeps you in the cheap-repair range instead of the replacement range.

Q: How often should I have my crane’s bridge girder professionally inspected for cracks?

A: Match the frequency to your crane’s CMAA duty class, because fatigue is driven by cycle count. For light-duty cranes (Class A–C), a visual structural inspection every six months and NDT crack testing of the high-risk welds every three to five years is usually sufficient. For heavy production duty (Class D), step up to quarterly visual checks and NDT every two years. For severe, near-continuous duty (Class E–F), inspect visually every month and run NDT on the critical connection welds annually, with a full structural assessment every one to two years. These intervals align with the periodic inspection already required under ASME B30.2. Critically, bring any inspection forward the moment a warning sign appears between scheduled dates — a rust streak weeping from a weld, a straight line of cracked paint, more sag than usual under load, or a new creak or groan from the girder all justify an immediate NDT check regardless of the calendar. Recording each inspection so you can trend the results turns the schedule from a compliance box into a genuine early-warning system that catches a crack while it is still a cheap repair.
