Overhead Crane End Truck Guide: How to Catch Misalignment Before It Destroys Your Wheels
Introduction
When a crane starts eating through wheels every eighteen months, most maintenance teams replace the wheels and move on. The wheels were only the symptom. The cause was sitting at each corner of the bridge the whole time — the end trucks.
The end trucks are the two assemblies at the ends of the bridge that carry the wheels and ride the runway rails. They are the least glamorous part of an overhead crane, and for a procurement or facilities manager they are one of the easiest to overlook. Nobody specifies a crane by its end trucks. Yet a misaligned end truck quietly grinds down wheels, wears rails, overloads the travel drive, and — left long enough — fatigues the bridge structure and the runway beneath it. It hides behind a “wheel replacement” line on the maintenance report and never gets named as the real culprit.
Here is what this guide will give you:
- Why end truck misalignment causes premature wheel, rail, and structural wear — and why it stays hidden.
- How to read the warning signs and measure the problem before it becomes expensive.
- What it costs to correct, and how to decide between repair and replacement.
By the end, you will know how to break the cycle of replacing wheels that were never the problem — and protect equipment uptime for a fraction of the cost of doing nothing.

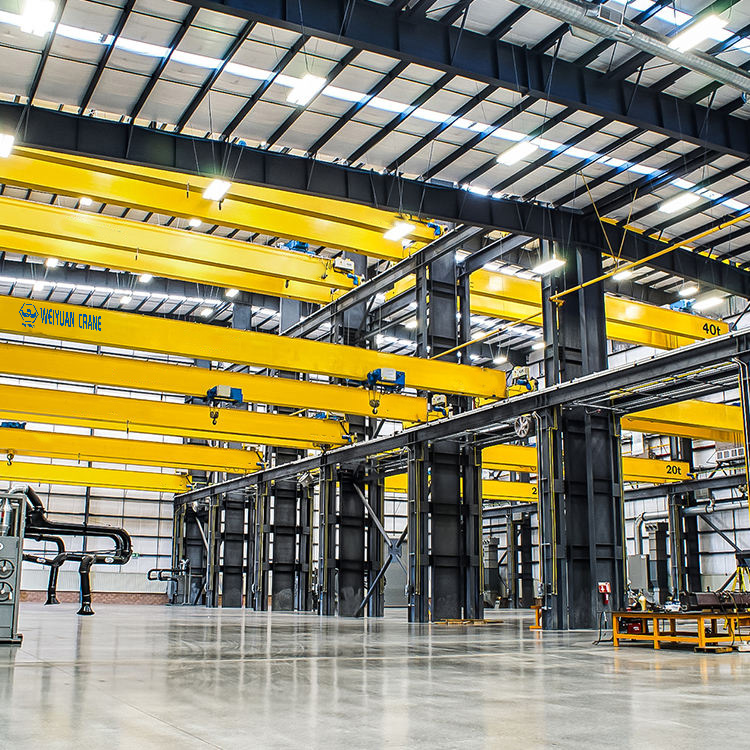

Part 1: How End Trucks Work and What Causes Misalignment
The end truck is a rigid steel frame — usually a welded or bolted box section — mounted at each end of the crane bridge. It houses the travel wheels, their bearings, and often the travel drive motor and gearbox. The two end trucks together carry the entire crane and its load down onto four (or more) wheels running on the two runway rails.
For the crane to run straight and true, one condition must hold: all the wheels must be square, parallel, and correctly spaced. When they are, each wheel rolls cleanly along its rail, sharing the load evenly and tracking straight. When they are not, the wheels fight the rails on every pass. That fight is the source of nearly every end truck problem below.
Skew — The Root Problem
Skew is when the crane bridge no longer runs perpendicular to the rails — one end truck leads or lags the other, so the bridge crabs diagonally down the runway instead of square. A skewed crane forces its wheel flanges hard against the rail to stay on track, and that constant side pressure is what wears flanges, rails, and drives prematurely.
Skew develops from several sources: uneven travel drive wear between the two ends, a loosened end truck-to-bridge connection, foundation or runway drift, or wheels that are no longer square in their housings.
Wheel Taper Wear
Crane wheel treads are often machined with a slight taper or crown to help the wheel self-center on the rail. Over thousands of cycles, that profile wears — and rarely evenly. When one wheel’s tread wears more than the others, its effective rolling diameter changes. A wheel with a smaller diameter travels slower for the same rotation, so that corner of the bridge falls behind, introducing skew. The skew then accelerates the taper wear further, a self-feeding loop that gets worse the longer it runs.
Bearing Failure
Each wheel turns on bearings inside the end truck. When a bearing wears, roughens, or seizes, two things happen. First, the wheel no longer turns freely, so the travel drive has to work harder and the wheel drags. Second, a worn bearing lets the wheel shift slightly out of square, tilting it relative to the rail. A tilted wheel rides on one edge of its tread, concentrating contact stress and driving both flange and tread wear.
Key takeaway: almost every end truck problem traces back to wheels that are no longer square, parallel, and correctly spaced. Skew, taper wear, and bearing failure all feed each other — which is why catching one early stops the others from compounding.
Part 2: Symptoms of End Truck Problems
End truck trouble announces itself long before it forces a shutdown — if you know the signs. The tricky part is that several of these symptoms are usually blamed on the wheels or the runway, when the end truck is the actual source. Learn to read them together and you diagnose the real cause instead of chasing the wrong repair.
Flanging — Flange Contact and Wear
The clearest early warning is flanging: the wheel flanges rubbing hard against the sides of the rail as the crane travels. You often hear it before you see it — a squeal or a grinding sound as the crane runs the length of the bay.
- What you see: bright, polished wear on the inner faces of the wheel flanges, and matching shine on the rail sides.
- What it means: the crane is skewing, forcing the flanges to do the guiding work the wheel tread should be doing. Flange wear that outpaces tread wear is a skew signal, not normal aging.
Rail Wear Patterns
The rail records how the crane is running. Read it like a logbook:
- A wear band centered on the rail head is healthy tracking.
- A band pushed to one side, or flange contact marks on the rail’s inner face, means the crane is running off-square.
- Uneven wear between the two rails points to a bridge that is skewed rather than a single bad wheel.
Crabbing
Crabbing is skew you can see — the bridge visibly angling across the runway as it travels, one end leading the other, rather than running square. If an operator reports the crane “pulling to one side” or “walking crooked,” that is crabbing, and it is a direct sign of end truck misalignment or unequal drive wear.
Drive Overload
When wheels drag or fight the rails, the travel motors work harder. Watch for:
- A travel motor running hot or tripping its overload protection.
- Rising energy draw on the travel drive that can be trended over time.
- The crane struggling to start or accelerate smoothly along the runway.
A drive labouring harder than it should is a measurable, early warning worth logging.
Key takeaway: flanging, one-sided rail wear, crabbing, and drive overload rarely have separate causes — they are usually the same skew problem seen from different angles. Do not reorder wheels until you have confirmed whether the end trucks are square.
Part 3: Inspection Checklist — What to Measure
Reading symptoms tells you where to look. Measurement tells you what to do. An end truck inspection turns “the crane seems to be skewing” into numbers you can act on — and record, so you can trend the readings over time. Split every inspection into what you can measure and what you can feel.
The Four Measurements That Matter
- Wheel gauge (span between wheels on each rail): measure the distance between the leading and trailing wheels on the same rail. Both end trucks should match within a tight tolerance — commonly within ±1.5 to ±3 mm, per the crane manufacturer’s specification. A gauge difference between the two ends is a direct cause of skew.
- Wheel squareness (alignment to the rail): each wheel should sit parallel to the rail and perpendicular to the bridge. Measure the toe-in/toe-out and the tilt of each wheel against the manufacturer’s limits — often within about 1 mm per metre of wheel diameter. An out-of-square wheel rides on one tread edge and wears fast.
- Diagonal measurement (the squareness check): measure the two diagonals of the rectangle formed by the four wheels — corner to opposite corner, both ways. On a square, correctly aligned crane, the two diagonals are equal. A difference between them is the single clearest quantified proof of skew. A deviation beyond roughly span ÷ 1000 (and no more than a few millimetres) warrants correction.
- Bearing condition: check each wheel bearing for roughness, play, and heat. Spin the wheel (where safe and accessible) and feel for grinding; check for radial play that lets the wheel shift; and log running temperature, since a bearing running hot is failing.
What to Feel and Listen For
Alongside the measurements, a trained inspection catches:
- Grinding or notchiness when a wheel is turned by hand.
- Detectable play when a wheel is levered — it should be firm in its housing.
- Excessive heat at a bearing housing after a run cycle.
Trend the Readings — Don’t Just Pass or Fail
A single measurement tells you the condition today. A series tells you the rate of drift — and the rate is what lets you plan a correction into a shutdown instead of reacting to a failure. Record gauge, squareness, diagonals, and bearing temperatures at every inspection.
Do this first: always check the runway alignment on the same visit. Because end truck skew and runway misalignment produce nearly identical wear, measuring both together is the only reliable way to know which one is actually at fault.
Part 4: Correction Methods
Once the measurements identify the problem, the fix depends on what you found — and the right choice can be the difference between a modest planned repair and a costly replacement. Here are the options, from the lightest to the most involved.
Wheel Realignment
The most common correction. Where the end truck design allows it, the wheels are re-squared and re-gauged within their mountings — adjusting the wheel housings or shimming the bearing blocks until gauge, squareness, and diagonals all fall back within tolerance.
- Best for: skew from wheels that have drifted out of square, with the end truck frame still sound.
- What it restores: straight tracking, even load sharing, and slower flange and rail wear.
Bearing Replacement
When the inspection finds worn, rough, or seized bearings, replace them — and re-check wheel squareness afterward, since a fresh bearing that seats the wheel differently can change the alignment.
- Best for: dragging wheels, drive overload, or wheels sitting out of square from bearing play.
- A note on scope: replace bearings in matched sets on an axle where practical, so wear stays balanced across the truck.
End Truck Rebuild
The heavier repair. The end truck is stripped down and its worn components — wheels, bearings, axles, and housings — are renewed, while the main structural frame is retained and re-certified. This restores a tired but structurally sound end truck to near-new running condition.
- Best for: an end truck with multiple worn components but a sound frame, where piecemeal repair no longer makes sense.
- What it restores: the full running assembly, at well below replacement cost.
End Truck Replacement
The most involved option, reserved for when the frame itself is compromised. If the box-section structure has cracked, corroded through, or been distorted by an impact or long-term overload, no realignment will hold — the frame cannot keep the wheels square. In that case the whole end truck is replaced.
- Best for: cracked, corroded, or distorted end truck frames.
- The decision rule: when the rebuild cost climbs toward roughly 60–70% of a new end truck, replace it. Below that, with a sound frame, rebuild wins on cost.
Verify After Correction
After any correction, re-measure gauge, squareness, and diagonals to confirm the crane is back within tolerance — and record the result as a fresh baseline for future trending.
Key takeaway: sound frame plus worn running gear equals realign, re-bearing, or rebuild. A compromised frame tips toward replacement. Put real numbers to both before deciding — the measurements make it a costed comparison, not a guess.
Part 5: Maintenance Intervals by CMAA Duty Class
End truck maintenance is light and cheap when scheduled, and expensive when ignored. The right frequency depends on how hard the crane works, measured by its CMAA duty class — a rating of load severity and cycle count running from light Class A–B up to severe Class E–F. The harder the duty, the faster wheels and bearings wear, and the more often you need to look.
Inspection Frequency by Duty Class
| Task | Class A–C (light) | Class D (heavy) | Class E–F (severe) |
|---|---|---|---|
| Visual check (flanging, rail wear, crabbing) | Every 6 months | Quarterly | Monthly |
| Measured gauge and squareness | Annually | Every 6 months | Quarterly |
| Diagonal (skew) measurement | Every 2 years | Annually | Every 6 months |
| Bearing condition and temperature | Annually | Every 6 months | Quarterly |
| Drive load / current trend review | Annually | Every 6 months | Quarterly |
These align with the periodic inspection required under ASME B30.2, with harsher duty pushing every interval toward the more frequent end. Bring any inspection forward if warning signs appear between scheduled dates — rising flange wear, a travel motor running hot, or an operator reporting the crane pulling to one side.
Key takeaway: the whole inspection program above costs a small fraction of one unplanned end truck failure. Under-spending on it is not a saving — it is a larger bill deferred to a worse moment.
Part 6: 2026 Price Reference — Repair vs Replacement
Use these indicative 2026 figures to budget end truck work. Actual costs vary with crane capacity, wheel size, access, and downtime constraints — but the relationships between them are what drive the repair-versus-replace decision.
Inspection and Diagnosis
| Service | Scope | Indicative 2026 cost (USD) |
|---|---|---|
| Visual end truck inspection | Condition check with report | $400 – $1,500 |
| Measured alignment survey | Gauge, squareness, diagonal, bearings | $1,200 – $4,000 |
| Combined with runway laser survey | Full end truck + runway diagnosis | $2,500 – $7,500 |
Correction Work (per end truck, indicative)
| Correction | Scope | Indicative 2026 cost (USD) |
|---|---|---|
| Wheel realignment / re-gauging | Re-square and shim wheels | $800 – $3,500 |
| Bearing replacement | Renew wheel bearings, re-check squareness | $600 – $2,800 |
| Single wheel replacement | New wheel matched to rail | $400 – $2,200 per wheel |
| End truck rebuild | Renew wheels, bearings, axles; retain frame | $4,000 – $12,000 |
| Full end truck replacement | New end truck, installed | $8,000 – $28,000 |
Budget Notes for Procurement
- Diagnosis is the cheapest line and prevents the most expensive. A measured alignment survey costs less than one avoidable wheel-set replacement and tells you exactly where you sit on the repair-versus-replace line.
- Realignment and re-bearing deliver the best return. They fix the most common causes at a small fraction of replacement cost and slot neatly into a planned shutdown.
- Cost the downtime, not just the parts. A rebuild staged into planned windows often beats a replacement not because the parts are cheaper, but because the crane keeps earning while the work happens in stages.
- Rebuild until roughly 60–70% of replacement cost. Below that, with a sound frame, rebuild wins; above it, a new end truck resets the clock on the whole running assembly.
Frequently Asked Questions
Q: My crane keeps wearing out wheels quickly. Is the problem the wheels, the end trucks, or the runway?
A: Almost certainly not the wheels themselves — rapid wheel wear is a symptom, and the cause is usually skew coming from either misaligned end trucks or a runway that is out of alignment. Because both produce nearly identical wear patterns, the only reliable way to know which is at fault is to measure both on the same visit. Take the diagonal (skew) measurement across the four wheels and check wheel gauge and squareness on the end trucks, then run a laser survey of the runway for gauge, straightness, and level. If the diagonals are unequal but the runway checks out, the end trucks are the cause. If the runway is out of tolerance, correcting it comes first — new wheels fitted to a crooked runway simply wear the same way. Diagnosing before replacing is what breaks the cycle of buying wheels every eighteen months.
Q: How do I know whether to rebuild an end truck or replace it entirely?
A: The deciding factor is the condition of the structural frame, not the running gear on it. Worn wheels, tired bearings, and worn axles are all renewable in a rebuild that retains the frame — so an end truck with those problems but a sound box-section frame is a rebuild candidate, typically at $4,000–$12,000 versus $8,000–$28,000 for a full replacement. An end truck reaches genuine end of life when the frame itself is compromised: cracked welds, corrosion that has eaten measurable section, or distortion from an impact or sustained overload. A damaged frame cannot hold the wheels square no matter how good the new components are. The practical rule: when the rebuild cost approaches roughly 60–70% of a new end truck, replace it; below that, with a sound frame, rebuild is the better value.
Q: Can end truck problems really damage the bridge and runway, or just the wheels?
A: They can damage far more than the wheels, which is exactly why they are worth catching early. A skewing crane forces its flanges against the rails on every pass, and that constant side-thrust does not stop at the wheel. It loads the end truck-to-bridge connections, feeds fatigue stress into the bridge girder, and drives the same lateral forces into the runway rails, clips, brackets, and support columns. Left uncorrected, a persistent skew can loosen structural connections, accelerate runway rail roll, and in severe cases contribute to fatigue cracking at high-stress connection points — repairs that run into far more than a wheel set. Catching the misalignment while it is still a shim-and-realign job protects the whole structural system, not just the running gear, and is one of the cleanest returns available in crane maintenance.
