Introduction

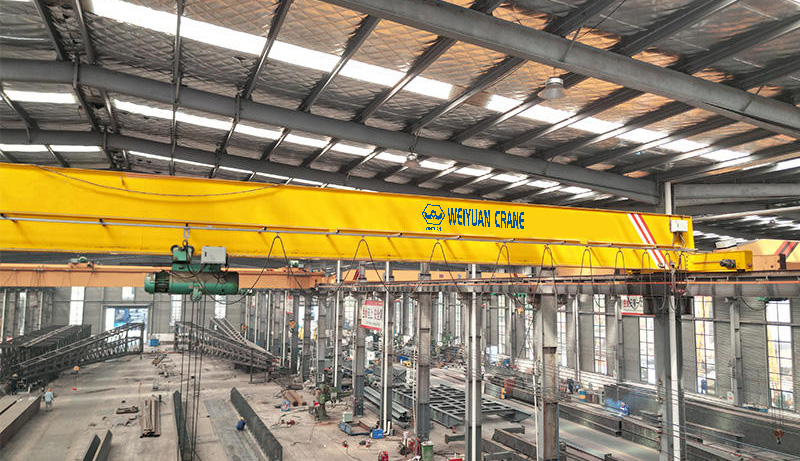

A crane holds together at its joints. The girder, the end trucks, the brackets, and the runway are all separate pieces of steel bolted and welded into one structure — and every one of those connections carries load it was engineered to carry only while it stays tight. Let a joint loosen, and the whole load path quietly changes for the worse.

Bolted joint failures are among the hardest crane problems to spot, because a loose connection looks exactly like a tight one from the floor. A bolt that has lost half its clamping force sits in the same hole, under the same nut, showing the same paint. Nothing sags. Nothing squeals at first. The connection simply starts to move a fraction of a millimetre under each load — and that tiny movement is where the damage begins.

For a procurement or facilities manager, the cost of ignoring this is steep and back-loaded. A joint caught early is a torque wrench and twenty minutes of labour. The same joint ignored elongates its bolt holes, frets its contact faces, cracks the connection welds, and eventually shifts load onto members never meant to carry it — turning a five-dollar fix into a structural repair and a grounded crane. The bill does not rise gradually. It jumps, in steps, each time a loose joint takes the next component down with it.

Here is what this guide will give you:

• Why structural connections loosen and fail — and why the process stays hidden until it is expensive.
• How to inspect, verify torque, and test connection welds before a joint fails.
• What correction costs, and how to decide between repairing a connection and replacing it.

By the end, you will know how to catch a loosening joint while it is still a re-torque job — and protect equipment uptime and worker safety for a fraction of the cost of a structural failure.

---

Part 1: Why Structural Connections Loosen and Fail

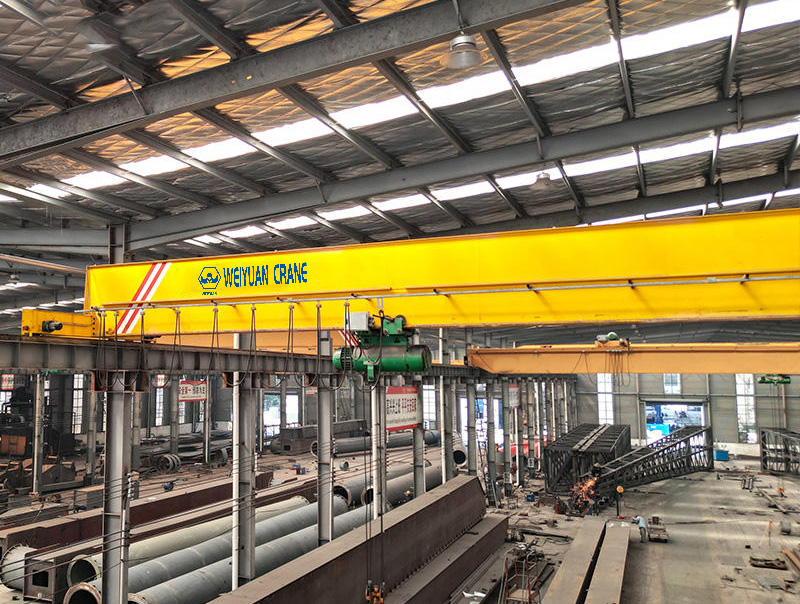

A crane connection does not fail all at once. It degrades through a chain of related mechanisms, each feeding the next. Understanding that chain tells you exactly what to look for and why catching it early matters so much.

Bolt Preload Loss — The Starting Point

A structural bolt does not hold by being a peg in a hole. It holds by clamping force — the tension you build into the bolt when you tighten it, called preload. That preload squeezes the connected plates together so hard that friction between them carries the load, and the bolt itself sees very little movement.

The whole failure story starts when that preload drops. A bolt can lose preload through embedment (the contact surfaces bedding in and settling after installation), through gasket-like relaxation of the joint, or simply because it was never tightened to the correct tension in the first place. Once preload falls, the plates are no longer clamped hard enough, and they begin to move relative to each other under load.

Fretting Wear

That small relative movement is where the real damage begins. Every time the crane lifts, a loosened joint shifts a fraction of a millimetre and then shifts back. Repeated over thousands of cycles, this micro-movement grinds the contact faces against each other — a process called fretting wear.

Fretting elongates bolt holes from round to oval, polishes and then scores the plate faces, and produces a fine reddish-brown debris. Worse, it is self-accelerating: as the faces wear, the joint gets looser, which allows more movement, which causes more wear. A joint that started with a small preload loss can degrade rapidly once fretting takes hold.

Vibration

A crane is a constant source of vibration — travel motors starting and stopping, wheels crossing rail joints, loads swinging and settling. This vibration works bolts loose over time, particularly on connections that see load reversal (where the force direction flips) or high cycle counts. Contactor-controlled cranes, which snap into motion and slam to a stop, transmit far more shock and vibration than smooth VFD-controlled cranes — one more reason variable-frequency drive control protects the whole structure, not just the running gear.

Thermal Cycling

For outdoor cranes and those in facilities with wide temperature swings, the steel expands and contracts with every heating and cooling cycle. A joint that cannot accommodate this movement builds and releases stress on its bolts with each cycle, gradually working them loose over the seasons.

Fatigue at Connection Welds

Many crane connections combine bolts with welds — and once a joint loosens, the load it should have carried through friction gets dumped onto the welds instead. Those welds were never designed to carry it alone. The extra stress concentrates at the weld toes and, over repeated cycles, seeds fatigue cracks exactly where the connection meets the main structure.

Key takeaway: connection failure is a chain — preload loss lets the joint move, movement causes fretting, fretting loosens it further, and the overloaded welds begin to crack. Break the chain at the first link, and you prevent every stage that follows.

---

Part 2: Symptoms and Warning Signs

A loosening connection warns you before it fails — but the signs are subtle, and easy to dismiss as cosmetic. Learn to read them together, and you catch the problem while it is still a torque-wrench fix. Several of these signs appear long before any bolt visibly moves.

Movement Marks and Witness Marks

The clearest early sign is evidence that the joint is moving. On a tight connection, nothing shifts; on a loosening one, the parts rub.

• What you see: bright, polished rub marks around bolt heads and nuts, or fresh metal showing where a plate has shifted against its neighbour. A paint mark applied across a bolt and nut at the last service — a “witness mark” — that no longer lines up is direct proof the fastener has turned.
• What it means: the joint is moving under load. A sound, correctly tensioned connection does not leave rub marks.

Do this first: on your next inspection, apply a torque-check paint line across every critical bolt and its nut. At the following inspection, a broken line instantly shows which fasteners have moved — no measurement required.

Rust Weeping from Joints

• What you see: a reddish-brown stain seeping out from between two plates or from around a bolt, streaking down otherwise sound steel.
• What it means: the joint is working. As the faces fret and move, they pump out fine corrosion debris and moisture. A sealed, clamped joint does not weep. Treat any rust line coming from a connection as a suspected loose or fretting joint until proven otherwise.

Cracked Paint Along a Bolt Line

• What you see: a fine line of cracked or flaking paint running along a row of bolts or across a connection, distinct from the random flaking of general weathering.
• What it means: the steel beneath is flexing along that line because the connection is no longer rigid. Paint is stiff and cannot follow the movement, so it cracks in a line that traces the problem.

Unusual Noise Under Load

• What you hear: a knock, clunk, or creak from a connection as the crane takes up load or changes direction — the sound of a loose joint taking up its slack.
• What it means: stop and inspect. A connection that makes noise under load is moving when it should be rigid.

Drive Overload and Tracking Changes

• What you see: a travel motor running hotter or drawing more current, or the crane’s tracking drifting over time.
• What it means: a loosened end truck or structural connection can let the geometry shift, introducing skew that loads the travel drive. (This overlaps with the alignment symptoms covered in Article 1 — which is exactly why the two inspections belong together.)

Key takeaway: movement marks, rust weeping, cracked paint lines, new noise, and rising drive load are the language a connection uses to warn you. None is cosmetic. When you see one, the next step is torque verification and testing — not a repaint.

---

Part 3: Inspection Checklist — What to Verify and Measure

Reading symptoms tells you where to look. Proper inspection tells you what is actually there and what to do about it. A connection inspection has three layers: torque verification, visual checks, and weld testing. Record every result so you can trend it — a single inspection tells you the condition today, but a series tells you the rate of change, and the rate is what lets you plan.

Layer 1: Torque Verification

The core check. Structural bolts hold by clamping force, so verifying that force is the single most important thing you can measure.

• Check torque against the manufacturer’s specification for each bolt grade and size, using a calibrated torque wrench. Any bolt below its specified value has lost preload and needs attention.
• Use the paint-line method described in Part 2 as a fast visual screen between full torque checks — a broken line flags a moved bolt in seconds.
• Never mix up the units and grades. A high-strength structural bolt (grade 8.8, 10.9, or equivalent) has a specific torque value; applying a lower-grade figure leaves it dangerously under-tensioned.

Do this first: confirm you have the correct torque specification for every critical connection before the inspection. Guessing a torque value is worse than not checking, because it gives false confidence.

Layer 2: Visual Inspection

Alongside torque, a trained visual check covers:

• All accessible connection bolts for movement marks, missing or backed-out nuts, and corrosion.
• The plate faces and edges for fretting debris, elongated (oval) bolt holes, and rust weeping from between plates.
• Locking hardware — split pins, lock washers, lock wire — for anything missing, sheared, or ineffective.

Do this first: clean each suspect connection back to bare metal before judging it. Paint and grime hide fretting debris and hairline movement, and a rust streak means little until you can see the joint beneath it.

Layer 3: NDT at Connection Welds

Where a connection combines bolts and welds — as most main crane connections do — the welds need crack testing, because a loosened bolted joint overloads them (Part 1).

• Dye-penetrant testing (DPT): draws out surface-breaking cracks at accessible connection welds. Low-cost and the practical workhorse for routine checks.
• Magnetic-particle testing (MPT): finds surface and slightly sub-surface cracks, and is faster over the larger, critical connection welds.

Apply NDT to the high-stress connection welds at every scheduled structural inspection, and to any joint where a visual symptom appeared. (For the full method detail, see Article 2.)

Trend the Results — and Check the Runway Too

Record torque readings, the location of any loose bolt, fretting or hole elongation, and any crack found. A joint that loses a little preload between two inspections is telling you something the calendar cannot.

Do this first: always check runway alignment on the same visit. A loosening connection can shift crane geometry and cause skew, and skew in turn loads connections harder — so the two problems feed each other. Measuring both together is the only reliable way to know which is driving the wear.

---

Part 4: Correction Methods

Once inspection identifies the problem, the fix depends on what you found — and the right choice can be the difference between a twenty-minute planned repair and a structural replacement. Any weld repair on a load-bearing connection must be designed and signed off by a qualified crane structural engineer; this is not a fix to improvise. Here are the options, from the lightest to the most involved.

Re-Torquing

The most common and cheapest correction. A bolt that has lost preload but is otherwise sound, in a joint with no fretting damage, is simply re-tensioned to its specified torque with a calibrated wrench.

• Best for: joints caught early, where preload has dropped but the bolts, holes, and faces are undamaged.
• What it restores: full clamping force and load-carrying friction — the connection returns to as-designed.
• A note on scope: re-torque the full bolt group in the correct sequence, not just the loose bolt, so clamping load spreads evenly across the joint.

Bolt Replacement

When bolts are stretched, corroded, or have damaged threads, replace them — with the correct grade, never a lower one.

• Best for: individual bolts that are damaged rather than merely loose.
• The critical detail: replace in matched sets across a connection where practical, and always use the specified grade and locking hardware. A single wrong-grade bolt is a weak link in the whole joint.

Locking Hardware and Lock-Wire

Where bolts keep working loose despite correct torque — common on high-vibration or load-reversal connections — add a positive locking method.

• Options: locking washers, prevailing-torque (nylon-insert or all-metal) nuts, thread-locking compound, or lock-wire on critical fasteners.
• Best for: connections with a history of loosening, where re-torquing alone does not hold.
• What it restores: a joint that stays tight between inspections, breaking the loosen-refret-loosen cycle.

Weld Repair at Connection Welds

When NDT finds a fatigue crack at a connection weld (the consequence of a joint that has been loose and overloading its welds), the crack must be properly repaired.

• Method: grind the crack out completely, re-weld to a fatigue-resistant procedure, and re-test with NDT to confirm.
• The critical detail: the repair must remove the entire crack — a patch weld over an un-ground crack hides the problem while it keeps growing.
• Essential step: fix the cause too. Re-torquing or locking the bolted joint that overloaded the weld is what stops the crack from simply returning.

Connection Plate Replacement

The most involved option, for when the connection plate or bracket itself is compromised — badly elongated bolt holes, fretting through significant section, or cracking through the plate.

• Best for: a plate whose holes or section are too far gone for a bolted joint to clamp reliably.
• The decision rule: when the cumulative repair cost approaches roughly 50–60% of replacing the connection assembly, replace it rather than patch it repeatedly.
• What it restores: a sound, correctly holed connection with a fresh clamping surface.

Verify After Correction

After any correction, re-check torque across the joint, re-test any repaired weld with NDT, and re-measure crane alignment to confirm the geometry is back within tolerance — then record the result as a fresh baseline for trending.

Key takeaway: lost preload on a sound joint is a re-torque; damaged bolts get replaced; persistent loosening needs locking hardware; cracked welds need engineered repair plus fixing the loose joint behind them; a ruined plate gets replaced. Match the fix to the finding, and always treat the cause, not just the symptom.

---

Part 5: Maintenance Intervals by CMAA Duty Class

Connection maintenance is quick and cheap when scheduled, and ruinous when skipped. The right frequency depends on how hard the crane works, measured by its CMAA duty class — a rating of load severity and cycle count running from light Class A–B up to severe Class E–F. More cycles and more load mean faster preload loss and more vibration, so harder duty needs more frequent checks.

Task	Class A–C (light)	Class D (heavy)	Class E–F (severe)
Visual connection check (movement marks, rust weeping, cracked paint)	Every 6 months	Quarterly	Monthly
Torque verification (critical bolts)	Annually	Every 6 months	Quarterly
Full torque check (all structural bolt groups)	Every 2 years	Annually	Every 6 months
NDT of connection welds	Every 3–5 years	Every 2 years	Annually
Locking hardware inspection	Annually	Every 6 months	Quarterly

These align with the periodic inspection required under ASME B30.2, with harsher duty pushing every interval toward the more frequent end. Bring any check forward the moment a warning sign appears — a broken paint line, rust weeping from a joint, a new knock under load, or rising travel-drive current all justify an immediate torque and weld check regardless of the calendar.

Key takeaway: the whole inspection program above costs a small fraction of one connection failure and the grounding it causes. Under-spending on it is not a saving — it is a larger, safety-critical bill deferred to a worse moment.

---

Part 6: 2026 Price Reference — Inspection and Repair

Use these indicative 2026 figures to budget connection maintenance. Actual costs vary with crane capacity, connection type, access, and downtime constraints — but the relationships between them are what drive the repair-versus-replace decision, and they make the case for prevention plain.

Inspection and Diagnosis

Service	Scope	Indicative 2026 cost (USD)
Visual connection inspection	Condition check with report	$400 – $1,500
Torque verification survey	Calibrated check of critical bolt groups	$800 – $3,000
NDT of connection welds (per campaign)	Dye-penetrant / magnetic-particle testing	$1,200 – $5,000
Combined with runway laser survey	Full connection + alignment diagnosis	$2,500 – $7,500

Correction Work (indicative)

Correction	Scope	Indicative 2026 cost (USD)
Re-torque a bolt group	Re-tension to spec, correct sequence	$300 – $1,500
Bolt replacement	New bolts, correct grade and locking	$200 – $1,800 per group
Add locking hardware	Prevailing-torque nuts, lock-wire, thread-lock	$300 – $2,000
Connection weld crack repair	Grind out, re-weld, re-test	$2,000 – $8,000
Connection plate / bracket replacement	New plate, drilled, bolted, tested	$6,000 – $30,000

Budget Notes for Procurement

• Torque verification is the cheapest line and prevents the most expensive. A calibrated torque survey costs less than one avoidable weld repair and tells you exactly which joints need attention.
• Re-torquing delivers the best return of any crane maintenance task. It fixes the root cause — lost preload — at almost no cost, and stops the fretting and weld cracking that follow.
• Cost the downtime, not just the parts. A connection weld crack caught late grounds the crane; for a crane serving a production line, that can mean tens of thousands per day in lost output.
• Never defer structural connection checks to save budget. This is one of the maintenance lines where a skipped check carries both the largest financial exposure and a genuine safety risk to your people.

---

Frequently Asked Questions

Q: How do I know if my crane’s bolts are loose if they look perfectly normal from the ground?

A: You cannot tell by looking — a bolt that has lost half its clamping force sits exactly like a fully tensioned one, which is precisely why loose connections stay hidden until they cause damage. The only reliable way to know is to verify torque with a calibrated wrench against the manufacturer’s specification for each bolt grade and size. Between full torque checks, a simple and cheap early-warning method is to apply a paint line across each critical bolt and its nut at one service; at the next inspection, any bolt that has turned shows a broken line instantly, no tools required. Alongside that, look for the physical evidence a loosening joint leaves behind: bright rub marks around bolt heads, reddish-brown fretting debris or rust weeping from between plates, and a fine line of cracked paint along a bolt row. Any of these means the joint is moving under load and needs a torque check before it frets its holes oval or cracks its welds. For a procurement or facilities manager, the practical rule is to schedule torque verification by duty class rather than waiting for a visible problem — because by the time a loose bolt is obvious, the cheap fix has usually passed.

Q: Is re-torquing enough, or do loose bolts need to be replaced?

A: It depends entirely on the condition of the bolt and the joint, which is why inspection comes before correction. If a bolt has simply lost preload but is otherwise sound — undamaged threads, no stretching, and a joint with no fretting damage to the holes or faces — then re-torquing it to the correct specification fully restores the connection, and it is by far the cheapest fix. Replacement becomes necessary when the bolt itself is damaged: stretched from over-tensioning, corroded, or with damaged threads, and when you replace, always use the specified grade and never a lower one. There is also a third case: if a correctly torqued bolt keeps working loose on a high-vibration or load-reversal connection, the answer is neither re-torquing alone nor replacement, but adding positive locking hardware — prevailing-torque nuts, lock-wire, or thread-locking compound — so the joint stays tight between inspections. And critically, if you find fretting debris or oval bolt holes, re-torquing alone will not hold, because the damaged faces can no longer clamp properly; that joint needs the damaged components addressed. Match the correction to what the inspection actually found rather than defaulting to one approach.

Q: Can a loose bolted connection really damage the rest of the crane, or just the joint itself?

A: It damages far more than the joint, which is exactly why catching it early pays off so heavily. The damage travels in a chain. A loosened connection first frets its own contact faces and elongates its bolt holes. Then, because it can no longer carry load through friction as designed, it dumps that load onto the connection welds, which were never meant to carry it alone — seeding fatigue cracks at the weld toes over repeated cycles. At the same time, a loose structural or end truck connection can shift the crane’s geometry, introducing skew that forces the wheel flanges against the rails, accelerating wheel and rail wear and overloading the travel drive. Left long enough, a persistent loose joint can feed fatigue stress into the main girder and the runway structure itself. So a single un-torqued bolt group is not an isolated problem — it is the first link in a chain that can reach the wheels, the welds, the girder, and the runway, turning a twenty-minute re-torque into a multi-component structural repair. This is why torque verification is one of the highest-return tasks in crane maintenance: it stops the whole chain at the cheapest possible point.
