Introduction

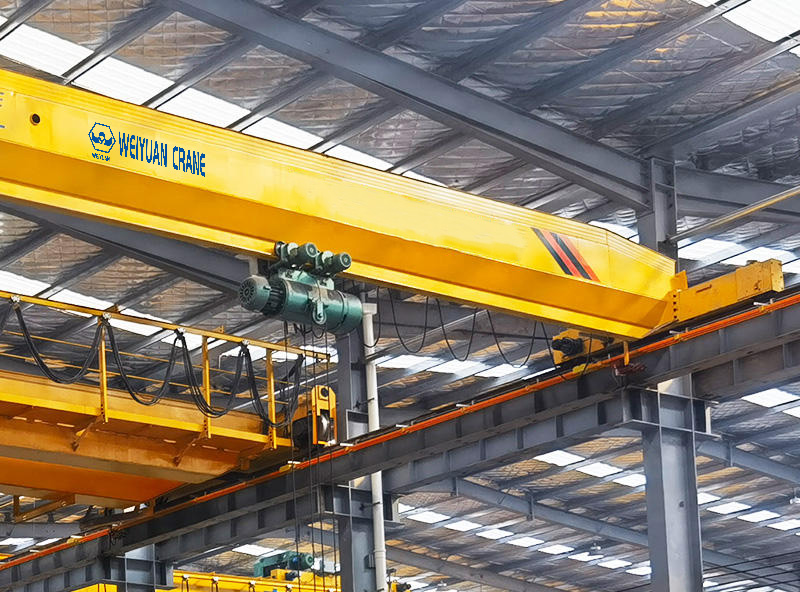

The vast majority of facilities that operate overhead cranes will face the modernization decision at some point — and most will face it underprepared. A crane that has been running reliably for 15 years suddenly develops escalating maintenance costs, fails an annual inspection on control system grounds, or simply becomes unable to source replacement parts for its original relay-contactor panel. The instinctive response — “we need a new crane” — is often the wrong one. The financially and operationally correct answer depends on a structured assessment that most facilities skip.

The modernization versus replacement decision is fundamentally a total cost of ownership question. The crane’s structural steel — the bridge girders, end trucks, and runway — is expensive to replace and may have 15 or more years of remaining structural life. The electrical system, control panel, hoist, and mechanical components are far cheaper to replace than the structure and can restore the crane to like-new performance at 30 to 50 cents on the dollar compared to full crane replacement. Getting this analysis wrong in either direction costs money: replacing a structurally sound crane prematurely wastes significant capital; investing in the modernization of a crane that is structurally compromised creates a false economy that defers rather than eliminates the replacement cost.

This guide provides the complete framework for making this decision correctly: the three-dimensional assessment that identifies the crane’s true condition, the most common modernization modules and their realistic costs, the specific circumstances that make replacement the correct answer, and the ROI calculation methodology that justifies either path to facility management.

Part 1: Evaluating Your Existing Overhead Crane — A Three-Dimensional Framework

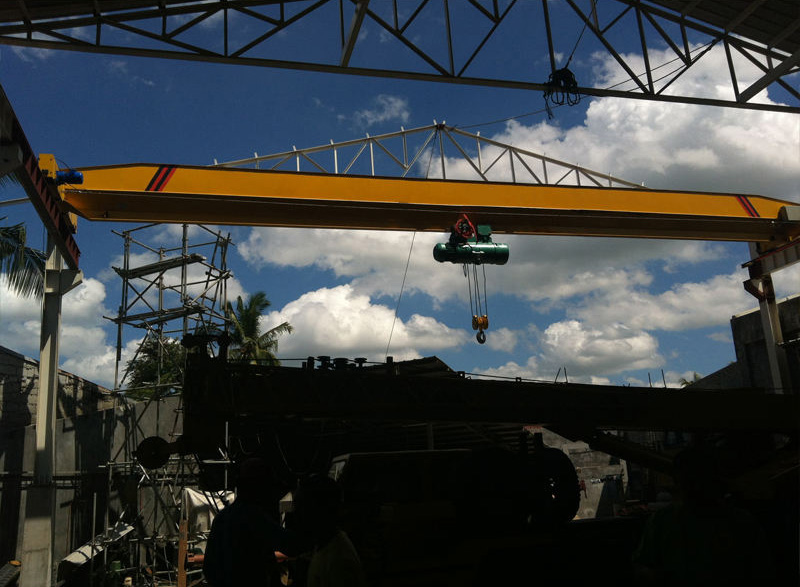

Structural Assessment

The crane’s structural steel is the most expensive element to replace and the one that most clearly determines whether modernization is viable. A qualified crane inspector assesses three structural indicators:

Bridge girder deflection: Measure the bottom flange camber (upward bow) of each bridge girder under no load using a laser level or precision transit. Compare to the original design camber recorded in the crane’s documentation. A girder that has deflected permanently downward — “negative camber” — has experienced structural yielding, indicating the crane has been overloaded or has suffered fatigue damage beyond the design basis. Negative camber is a serious finding that changes the modernization calculus fundamentally.

Weld inspection at critical connections: All primary structural welds — girder-to-end-truck connections, end truck frame and wheel mount welds, and cross-brace connections — must be inspected for fatigue cracks using dye penetrant or magnetic particle testing. A single repaired crack at a non-critical location is not disqualifying. Multiple cracks at primary connections, or any crack at a girder-to-end-truck joint, indicate a structurally compromised crane where modernization investment cannot be recouped from the remaining structural life.

Rail and wheel wear: Measure crane rail wear profiles and wheel flange dimensions and compare to rejection criteria. Excessive wheel flange wear, particularly if asymmetric between the two runway rails, indicates misalignment that has been imposing lateral fatigue loads on the bridge and end truck connections beyond normal design assumptions.

If the structural assessment returns: no significant negative camber, no primary connection cracks, and wheel/rail wear within limits — the structure has remaining life and modernization is the appropriate investigation path.

Mechanical Component Assessment

Major mechanical components have defined replacement cycles based on duty class and operating hours. Assess remaining life in:

Hoist gearbox: Inspect for abnormal noise during operation (grinding indicates gear wear), oil condition through a sample drawn from the drain plug (metal particles indicate gear or bearing deterioration), and seal integrity. A gearbox with clean, metal-free oil and intact seals has remaining life. A gearbox with metal contamination in the oil requires disassembly inspection before any modernization investment is committed.

Hoist brake: Measure remaining brake lining thickness and compare to the manufacturer’s minimum. Compare brake disc surface condition against rejection criteria. A brake with 30% or less of original lining thickness remaining is approaching end-of-life and will require replacement within the modernization scope.

Wire rope: Inspect the full rope length per ASME B30.16 rejection criteria. Rope at or approaching rejection limits requires immediate replacement regardless of other modernization decisions.

Travel wheels: Measure tread diameter and flange thickness. Wheels at the rejection limit for tread diameter or flange thickness require replacement.

Electrical and Control System Assessment

The electrical and control system is the primary driver of modernization in cranes that are structurally and mechanically sound. Three factors trigger electrical modernization:

Parts obsolescence: Relay-contactor control panels from the 1980s and early 1990s are no longer supported by original manufacturers. When a relay or contactor fails, the facility cannot source an exact replacement, creating indefinite production outages. This obsolescence risk alone — the inability to maintain production continuity through routine electrical failures — justifies control system modernization independent of any other assessment finding.

Safety compliance gaps: Older crane control systems may lack devices now required by current OSHA and ASME standards: calibrated overload limiting devices, functional upper and lower limit switches on both bridge travel axes, properly rated contactors for the motor horsepower, and ground fault protection. Bringing these systems into current compliance requires control system modernization regardless of other condition findings.

Energy efficiency: Relay-contactor across-the-line starters consume significantly more energy per lift cycle than VFD-controlled systems, both through inrush current at every start and through energy dissipation in resistor braking systems. In high-cycle production applications, the energy cost difference over a 10-year period is substantial.

Part 2: Most Common Modernization Modules and Realistic Costs

Electrical Control System Replacement (Most Common)

Replacing the original relay-contactor panel with a modern PLC-based control system is the single most common overhead crane modernization. The new system provides PLC control with diagnostic interface, fault history logging, safety relay modules meeting current IEC safety standards, and compatible interfaces for VFD drives typically installed simultaneously.

Realistic cost for control system modernization (5 to 20-ton overhead crane):

• Engineering and design: $3,000 to $8,000
• PLC hardware, I/O modules, and safety relays: $4,000 to $12,000
• Panel fabrication and wiring: $5,000 to $15,000
• Installation, commissioning, and operator training: $4,000 to $10,000
• Total: $16,000 to $45,000 depending on crane complexity and number of drives

Delivery timeline: 6 to 12 weeks from order to installation completion for standard industrial cranes.

VFD Variable Frequency Drive Retrofit

Adding VFDs to the hoist, bridge travel, and trolley travel motors provides smooth acceleration and precise positioning control that reduces mechanical wear, extends motor life, and eliminates the load swing caused by across-the-line starting. VFD retrofit is almost always performed simultaneously with control system replacement.

Realistic VFD retrofit costs (per drive, installed):

• 5 to 15 kW hoist drive (1 to 5-ton crane): $1,500 to $3,500
• 15 to 45 kW hoist drive (5 to 20-ton crane): $3,000 to $7,000
• 45 to 110 kW hoist drive (20 to 50-ton crane): $6,000 to $15,000

A complete VFD retrofit for a 10-ton overhead crane (hoist + two travel drives) typically costs $12,000 to $28,000 installed, in addition to control system costs.

Wireless Radio Remote Retrofit

Adding wireless radio remote control to replace or supplement a wired pendant:

• Standard industrial crane wireless kit: $1,500 to $3,500 installed
• Heavy-duty system with encoder feedback: $3,000 to $6,500 installed

Wireless retrofit is among the highest-ROI individual upgrades available — the improvement in operator safety and positioning freedom is immediate, and the cost is recovered in improved cycle time and reduced pendant maintenance within 12 to 24 months in most production applications.

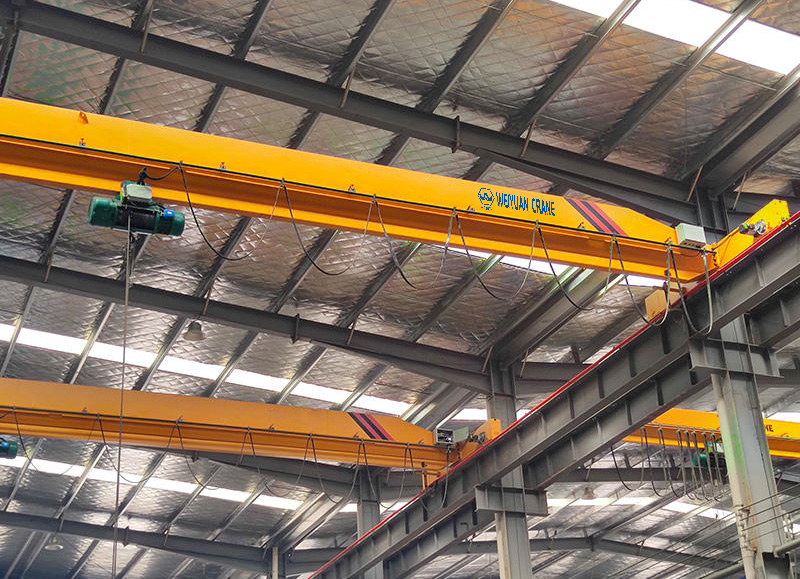

Complete Hoist Unit Replacement

Replacing the existing hoist with a new modern unit — new motor, gearbox, drum, rope, limit switches, and brake — while retaining the crane bridge structure:

• 5-ton wire rope hoist replacement: $8,000 to $18,000 installed
• 10-ton wire rope hoist replacement: $14,000 to $28,000 installed
• 20-ton wire rope hoist replacement: $22,000 to $45,000 installed

Hoist replacement is appropriate when the existing gearbox or motor has failed beyond economical repair, when the hoist is not certifiable to current ASME B30.16 standards, or when a simultaneous capacity upgrade is being implemented.

Structural Repair and Runway Work

When the structural assessment identifies repairable conditions:

• Weld repair at end truck connections: $2,000 to $6,000 per location
• Girder bottom flange reinforcement plate: $5,000 to $15,000 per girder
• Runway rail replacement (both rails, 60-meter runway): $8,000 to $18,000
• Full runway realignment and leveling: $5,000 to $12,000

Part 3: When Replacement Is the Correct Decision

Five specific conditions make complete crane replacement the financially correct choice despite modernization’s lower upfront cost:

Structural condition is poor: Multiple fatigue cracks at primary connections, negative camber (permanent downward deflection) of the bridge girder, or corrosion section loss exceeding 20% of original steel thickness. Structural repair costs in these situations approach or exceed new crane cost while delivering a much shorter remaining structural life.

Capacity is fundamentally inadequate: The existing crane’s rated capacity is below what the current and anticipated future application requires by more than 20 to 30%, and no hoist replacement can close this gap because the bridge structure and runway were designed for the original lower capacity. Structural uprating is rarely cost-effective.

Configuration is wrong for current operations: The existing crane’s span, hook height, or runway length does not serve the current facility layout, and reconfiguring the structure costs more than a new crane correctly sized for current needs.

Age exceeds 25 to 30 years in heavy service: A crane that has operated at CMAA Class D or E duty for 25 or more years has consumed the majority of its original structural fatigue life. Even a structurally sound-appearing crane at this age has limited remaining fatigue life in its welded connections that cannot be quantified by visual inspection without detailed fatigue analysis.

Total modernization cost exceeds 55 to 60% of new crane cost: When the comprehensive modernization scope — controls, VFDs, hoist replacement, and structural repairs — approaches this threshold, the total cost of ownership over the next 10 to 15 years consistently favors a new crane with full warranty, complete documentation, and the entire design service life ahead of it.

Part 4: ROI Calculation Framework

The Three Sources of Modernization Return

Avoided replacement capital: A 10-ton overhead crane replacement — crane purchase, runway work, installation, and commissioning — typically costs $80,000 to $160,000. A modernization for $35,000 to $55,000 that extends service life by 10 to 15 years defers this capital requirement and its allocation impact on the facility budget.

Reduced annual maintenance cost: Modern PLC controls, VFD drives, and new hoist components typically reduce annual maintenance cost by 40 to 60% compared to an aged relay-contactor system with worn mechanical components. For a crane currently requiring $12,000 per year in maintenance, modernization reducing this to $5,000 saves $70,000 over 10 years.

Productivity improvement: VFD control reduces cycle time through faster, smoother motion and eliminates load-swing waiting time. Anti-sway capability (available with VFD + encoder feedback systems) eliminates 5 to 15 seconds of swing-damping wait per cycle. At 25 cycles per hour, eliminating 8 seconds of wait time recovers 3.3 productive minutes per hour — a measurable throughput improvement in continuous production.

10-Year TCO Calculation Example

10-ton overhead crane, CMAA Class C, currently requiring $12,000/year maintenance, 25 cycles per hour, 2 shifts per day:

Modernization path:

• Modernization cost: $48,000 (controls + VFDs + hoist service + runway alignment)
• Annual maintenance after modernization: $5,000
• 10-year maintenance total: $50,000
• 10-year total investment: $98,000

Replacement path:

• New crane cost (installed): $130,000
• Annual maintenance on new crane: $4,500
• 10-year maintenance total: $45,000
• 10-year total investment: $175,000

Net modernization advantage over 10 years: $77,000 — before accounting for the productivity improvement from VFD and anti-sway.

Part 5: ASME B30.2 Compliance Requirements After Modernization

ASME B30.2 Section 2-2.1.3 requires that any crane that has undergone significant repair, modification, or alteration be inspected and load-tested before being returned to service. For overhead crane modernization, the post-modernization compliance requirements include:

Complete inspection: A qualified person must inspect all components and systems — structural, mechanical, and electrical — to the standard of a new crane pre-service inspection. This inspection must be documented with the date, inspector’s name and qualifications, and findings.

Load test at 125% rated capacity: A proof load test at 125% of the crane’s rated capacity must be performed after any significant modification. The test load must be lifted, traveled the full runway length, and held suspended for a minimum of 10 minutes. All safety devices are tested under load.

Updated crane documentation: The crane’s documentation package must be updated to reflect the new component specifications, the modernization scope, and the post-modernization inspection and test results. This updated documentation becomes the new baseline for the crane’s inspection program.

Frequently Asked Questions

Q: How long does a typical overhead crane modernization project take?
A: For a 5 to 20-ton crane with control system replacement, VFD retrofit, and hoist service — the most common modernization scope — the project typically takes 4 to 8 weeks from purchase order to completed commissioning. Planning, assessment, and scope definition add 4 to 6 weeks before the order. The crane is typically out of service for 1 to 3 weeks during active installation. Scheduling the outage during a planned maintenance window or low-production period minimizes operational impact.

Q: Does modernizing an overhead crane void its original certification?
A: Significant modifications — control system replacement, hoist replacement, or structural changes — require a new post-modification inspection and load test per ASME B30.2. The crane is re-certified based on its post-modification condition, not its original specification. This re-certification process is standard and well-documented; a qualified modernization contractor will include it in the project scope. The original manufacturer’s warranty on new components provides coverage from the modernization date forward.

Q: Can modernization increase a crane’s rated capacity?
A: Hoist-only capacity increases are sometimes viable — installing a higher-capacity hoist within the crane’s existing bridge structure and runway capacity envelope. However, structural uprating (increasing the capacity that the bridge and runway are designed for) is rarely cost-effective, as it requires structural re-engineering and modification of the bridge girders, end trucks, runway beams, and foundation connections. When increased capacity is the primary driver, replacement with a correctly sized new crane is almost always the better investment.
