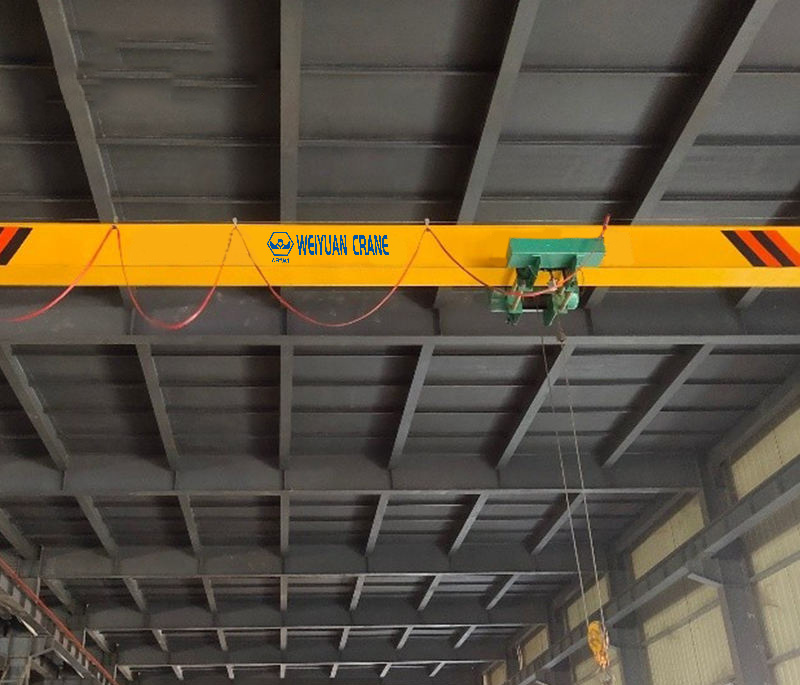

Introduction

Most overhead cranes run on a simple maintenance model. Maintenance is performed on a fixed calendar. Or it happens after something breaks. Neither approach is efficient.

A crane that has run 80,000 lift cycles gets the same annual inspection as one that ran 12,000 cycles. The inspection program does not know the difference. A crane that was regularly overloaded by 15% accumulates fatigue damage invisibly. There is no warning until a structural element fails during production.

Smart crane technology changes this. IoT sensors measure actual crane condition continuously. Analytics platforms process the data and flag problems before they cause failures. The documented result: 35 to 45% less unplanned downtime and 20 to 30% lower maintenance costs.

This guide covers the full technical framework. We explain the four-layer smart crane architecture. We cover load monitoring and fatigue life management. We describe the four core predictive maintenance applications. And we provide an ROI framework to justify the investment.

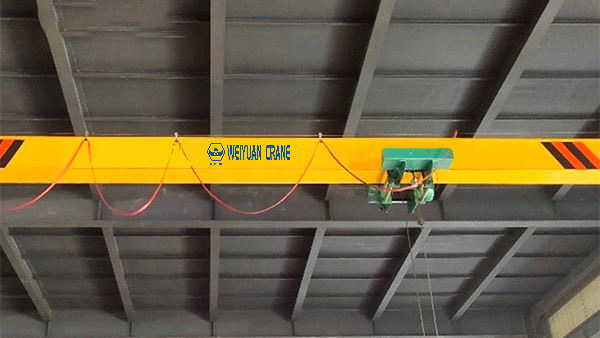

Part 1: Smart Crane Technology — Four Layers

A smart overhead crane system has four functional layers. Each layer has a specific job.

Layer 1: The Sensor Layer

Sensors are the eyes and ears of a smart crane. Each sensor type measures one specific condition.

Load sensors (load cells or strain gauges) mount at the hoist’s load path. They measure every lifted load to within ±0.5% accuracy. They serve three functions. First: real-time overload protection. Second: load spectrum recording for fatigue life calculation. Third: production data reporting (tons lifted, capacity percentage, lift frequency).

Vibration sensors (accelerometers) mount on gearbox housings and motor bodies. They measure vibration signatures in the frequency domain. Every mechanical component has a characteristic vibration frequency. As wear develops, that frequency amplitude increases. Pattern recognition algorithms detect the change weeks before a human inspector can.

Temperature sensors sit in gearbox oil baths, motor windings, and brake assemblies. They detect the thermal signature of abnormal friction or electrical stress. A failing gearbox bearing raises oil temperature before any vibration anomaly appears. A degrading motor insulation raises winding temperature before insulation failure.

Motor current sensors are non-contact devices on supply leads. They measure current draw continuously. Increased average current signals higher mechanical resistance. Current ripple signals phase imbalance. Both indicate developing problems — without any additional mechanical sensors.

Layer 2: Data Acquisition

Raw sensor data must be collected, time-stamped, and processed. Two architectures exist.

Edge computing gateway: A ruggedized industrial computer on the crane bridge processes data locally. It runs pattern recognition algorithms. It compares values against alarm thresholds. It transmits only meaningful events to the cloud. Edge processing handles real-time responses that cannot tolerate cloud round-trip latency. For example: automatic hoist slowdown when a vibration alarm triggers.

Direct cloud upload: Raw data goes straight to a cloud analytics platform. This simplifies the onboard hardware. It works well where reliable industrial network infrastructure exists. It suits applications where real-time crane response to sensor data is not needed.

The practical choice for most facilities: edge computing for real-time safety responses, plus cloud upload for long-term trending and fleet analysis.

Layer 3: Analytics

The analytics layer converts data into maintenance decisions. Two approaches work together.

Rule-based threshold monitoring is simple and immediately deployable. You define alarm thresholds for each parameter. Gearbox oil above 85°C: warning. Above 95°C: automatic shutdown. No data collection period needed. Effective for detecting acute failures. Less effective for gradual degradation patterns.

Machine learning anomaly detection requires a 4 to 12-week baseline period. The system learns the crane’s normal operational signatures across all sensors simultaneously. It then identifies deviations from normal — even when no individual parameter has crossed its threshold. A developing bearing fault may show small simultaneous increases in vibration, oil temperature, and current draw. Each value stays below its alarm threshold. But the combined pattern is a statistically significant anomaly. Machine learning detects it. Rule-based monitoring does not.

Layer 4: Execution

The execution layer delivers analytical results to the people and systems that act on them.

Maintenance team alerts: SMS, email, and mobile app notifications at warning and alarm thresholds. Each alert includes diagnostic context. Which component? What measurement? How far above normal? The maintenance team gets actionable information — not just an alarm number.

Automatic crane responses: At critical alarm levels, the control system imposes operational limits. It can reduce hoist speed during a vibration alarm. It can prevent dynamic overloading beyond a calculated safe limit. It can initiate a controlled shutdown at shutdown-level alarms.

MES/ERP integration: Maintenance work orders, crane utilization data, and remaining life estimates feed into the facility’s CMMS or ERP system. Crane condition data becomes part of the broader maintenance planning process.

Part 2: Real-Time Load Monitoring and Fatigue Life

Load Spectrum Recording

Every overhead crane structure has a defined fatigue life. FEM 1.001 and CMAA specifications define this life in terms of total lift cycles at various load levels relative to rated capacity.

Real-time load monitoring transforms fatigue life from a design assumption into a measured fact. A load sensor records every lift — its weight and timestamp. The analytics system applies the Palmgren-Miner rule (the standard fatigue damage model in EN 13001 and FEM 1.001). It calculates the actual consumed fatigue fraction and the remaining structural life.

This creates practical insights. A crane designed for FEM M5 but actually operated at M3 intensity has consumed less fatigue life than design assumed. Its useful life extends beyond the nominal design life.

Conversely, a crane subjected to frequent shock loading — loads set down hard, hooks applied before the hoist fully stops — consumes fatigue life faster than smooth loading assumed in the design.

Facilities with smart load monitoring consistently discover that some cranes consumed 40 to 60% more fatigue life than expected. Others consumed only 50 to 60% of the expected amount. Calendar-based programs miss both situations entirely.

Overload Protection

Standard ASME B30.2 overload systems cut hoist power at 110 to 125% of rated capacity. Smart systems go further.

A real-time load display shows the operator the current hook load. This reduces unintentional near-overloads that a simple on/off switch does not discourage.

An automatic hoist slowdown engages when the load reaches 90% of rated capacity. The hoist drops to micro-speed. This reduces dynamic impact loading from abrupt starts and stops at heavy loads.

An accumulated overload alert triggers when load spectrum analysis shows consistent overloading beyond design assumptions — even when no single lift exceeded rated capacity.

Part 3: Four Core Predictive Maintenance Applications

Application 1: Gearbox Health Monitoring

The hoist gearbox is the most expensive single replaceable component in most overhead cranes. Replacement costs range from $3,000 for a 1-ton hoist to $45,000 or more for a heavy-duty 20-ton unit.

Gearbox failures have predictable signatures. Gear tooth fatigue, bearing wear, and lubricant degradation all produce measurable vibration patterns. Each fault type has characteristic frequencies. These are calculable from gear tooth count and bearing geometry.

A smart vibration system performs continuous FFT analysis. It tracks fault frequency amplitudes over time. A healthy gearbox shows near-zero amplitude at all fault frequencies. A developing bearing fault shows a gradual amplitude increase over weeks to months.

Typical detection lead time in industrial applications: 4 to 12 weeks before failure. That is enough time to plan a replacement during a scheduled maintenance window — not an emergency repair during production.

Application 2: Brake Wear Monitoring

The hoist brake is safety-critical. Remaining lining thickness determines whether the crane can hold a suspended load safely. Standard practice is to measure lining thickness during periodic inspection. Between inspections, wear is unmonitored.

Smart brake monitoring analyzes motor current during brake engagement and release. As lining wears, the air gap between disc and armature plate increases. The electromagnet requires more current to close the gap. This current change is measurable and trackable over time.

The system provides a continuously updated estimate of remaining lining thickness. It eliminates the “surprise brake failure” — a brake that appeared functional at the last inspection but failed before the next one due to accelerated wear.

Application 3: Wire Rope Monitoring (MRT Technology)

Visual wire rope inspection detects broken surface wires and diameter reduction. It cannot detect internal wire fatigue, internal corrosion, or subsurface breaks. A rope can look serviceable while having lost 20 to 30% of its cross-sectional area.

Magnetic Flux Testing (MFT/MRT) solves this problem. A permanent magnet assembly magnetizes the rope to saturation. Hall effect sensors detect flux variations from wire discontinuities — broken wires, corrosion pits, and cross-section reductions. Internal breaks generate the same flux anomaly as surface breaks.

A smart crane integrates an MFT sensor at the entrance sheave. It scans the rope during every hoist cycle. The system records the full magnetic rope profile and compares successive scans to detect deterioration over time.

Application 4: Wheel and Rail Wear Detection

Travel wheel wear — flat spots, flange wear, tread diameter reduction — is typically caught only at periodic inspection. Between inspections, wear progresses unmonitored.

Smart travel monitoring analyzes motor current during constant-speed travel. A healthy wheel on a good rail produces a smooth current profile. A developing flat spot creates periodic current pulses. Their frequency matches wheel circumference divided by travel speed. Increasing flange-to-rail contact produces elevated average current.

These signatures are detectable weeks before a wheel condition becomes visible to an inspector.

Part 4: Wireless Control and Remote Diagnostics

Wireless Remote Control

Industrial wireless systems for overhead cranes operate in two primary frequency bands.

433 MHz systems provide superior penetration through metal structures, machinery, and forklift traffic. They are more robust for safety-critical basic crane control. They are more susceptible to interference from other 433 MHz devices.

2.4 GHz systems offer higher data bandwidth. This enables proportional speed control, load display on the pendant, and two-way diagnostic data. They require careful assessment of the facility’s WiFi environment.

Both bands must meet EN 60204-32 safety requirements. Key requirements: failsafe stop on signal loss, positive control confirmation before command execution, and emergency stop accessible within 0.5 seconds of intent.

Remote Diagnostics

Smart cranes connected to a cloud platform give engineers full diagnostic access from any location. Key capabilities include:

Real-time sensor dashboard: Live display of all monitored parameters — load, gearbox vibration, brake current, motor temperatures.

Historical trend analysis: Time-series plots of any parameter over any period. Engineers can visualize deterioration trends and project trajectories toward alarm conditions.

Event log with diagnostic context: Every alarm includes full sensor context. Not just “gearbox alarm” but: which component, what measurement value, what operating conditions, what time.

Fleet benchmarking: For facilities with multiple identical cranes, the platform compares each crane’s condition metrics against fleet averages. Outliers that deteriorate faster than peers are flagged automatically.

OPC-UA Integration

OPC-UA is the standard industrial protocol for secure data exchange between crane control systems and facility information systems. A smart crane with OPC-UA connectivity publishes its data as a structured model. The facility’s CMMS or ERP subscribes to that data.

In practice, this means: when predictive analytics generate a maintenance recommendation, the CMMS automatically creates a work order, assigns it to the right technician, orders the spare part from inventory, and schedules the work during the next planned window. No manual data re-entry required.

Part 5: Return on Investment

Quantifying Downtime Cost

The primary financial driver for smart crane investment is preventing unplanned downtime. Three inputs are needed.

First: production line throughput value per hour. A mid-volume automotive line: $50,000 to $200,000 per hour. Second: average duration of an unplanned crane downtime event. Emergency hoist gearbox replacement: 8 to 24 hours. Third: annual frequency of significant unplanned events. Typical heavy-duty production crane: 1 to 3 per year.

Example calculation: A crane on a line generating $100,000 per hour. Average event costs 12 hours. Frequency: 1.5 events per year.

Annual downtime cost = $100,000 × 12 × 1.5 = $1,800,000 per year.

A 40% reduction saves $720,000 annually. Against a smart crane system cost of $15,000 to $40,000 — the payback is immediate.

Smart Crane Investment Cost

Sensor package (load + vibration + temperature + current): $3,000 to $8,000 installed.
Edge computing gateway and software: $4,000 to $10,000.
Wireless remote control upgrade: $2,000 to $5,000.
Cloud analytics platform subscription: $1,500 to $4,000 per year.
Integration engineering (CMMS/MES): $3,000 to $8,000.

Total first-year investment for a 5 to 20-ton production crane: $13,500 to $35,000.

Payback in automotive or high-value production: under one month — if it prevents a single major failure.
Payback in moderate-duty applications: 12 to 24 months through reduced maintenance cost and extended component life.

Part 6: Implementation Roadmap

Phase 1 — Months 1 to 3: Baseline

Install sensors and edge gateway. Begin data collection. Run 4 to 8 weeks of normal operation to establish the baseline before enabling anomaly detection. Set initial alarm thresholds from manufacturer specs. Train the maintenance team on the platform interface.

Phase 2 — Months 3 to 6: Refinement

Review initial alarm performance. Identify and eliminate false positives. Respond to first predictive findings. Compare predicted conditions with actual inspection results to validate sensor accuracy. Connect crane data to the CMMS for automated work order generation.

Phase 3 — Months 6 to 12: Full Operation

Shift from periodic inspection-driven to condition-based maintenance for all monitored components. Track maintenance cost and downtime reduction against the pre-implementation baseline. Validate ROI. Then evaluate fleet expansion — apply learnings to remaining cranes based on downtime impact and ROI.

Frequently Asked Questions

Q: Can smart monitoring be retrofitted to an existing crane?
A: Yes. Sensor packages and edge gateways retrofit to virtually any existing overhead crane. Mounting surfaces exist at every standard hoist, gearbox, motor, and brake location. Retrofit installations typically take 1 to 2 days per crane. No crane disassembly or structural modification is needed. The only requirement: 120/240V auxiliary power on the crane bridge, which virtually all cranes already have.

Q: Does smart monitoring replace ASME B30.2 periodic inspection?
A: No. Periodic inspection remains a legal requirement. Smart monitoring supplements it. It provides continuous condition data between inspections and enables condition-based maintenance planning. Include the smart monitoring alarm history as supplementary evidence in your periodic inspection documentation.

Q: What is the minimum crane size that justifies the investment?
A: At throughput rates above $20,000 per hour, smart monitoring delivers positive ROI for cranes as small as 3 to 5 tons. For lower-throughput applications, assess the crane’s specific production impact. A crane serving the only press in a stamping line has a fundamentally different ROI profile than one serving a single non-critical machine tool.
