Jib Crane Overload Protection: How Load Limiters Prevent Structural Failure and Keep You Compliant
Introduction

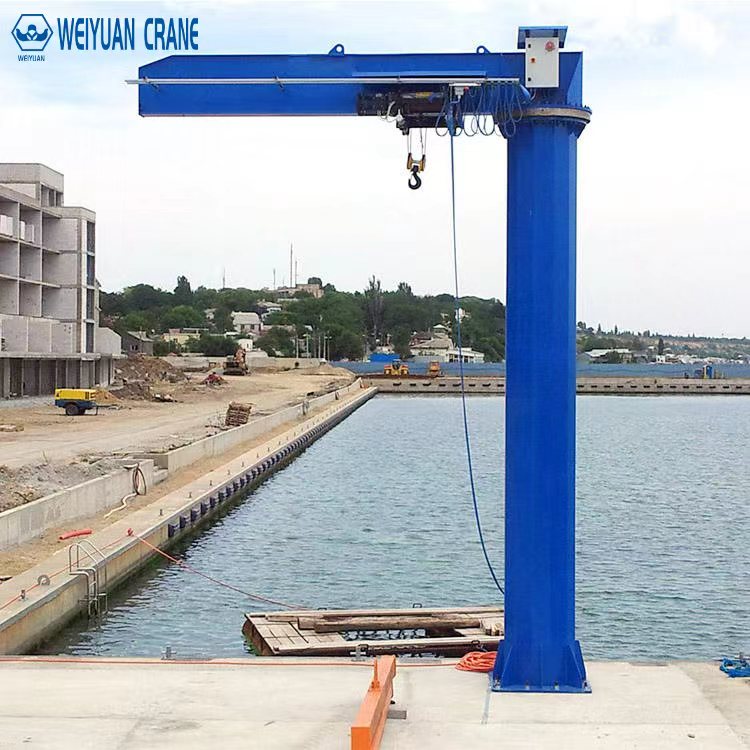

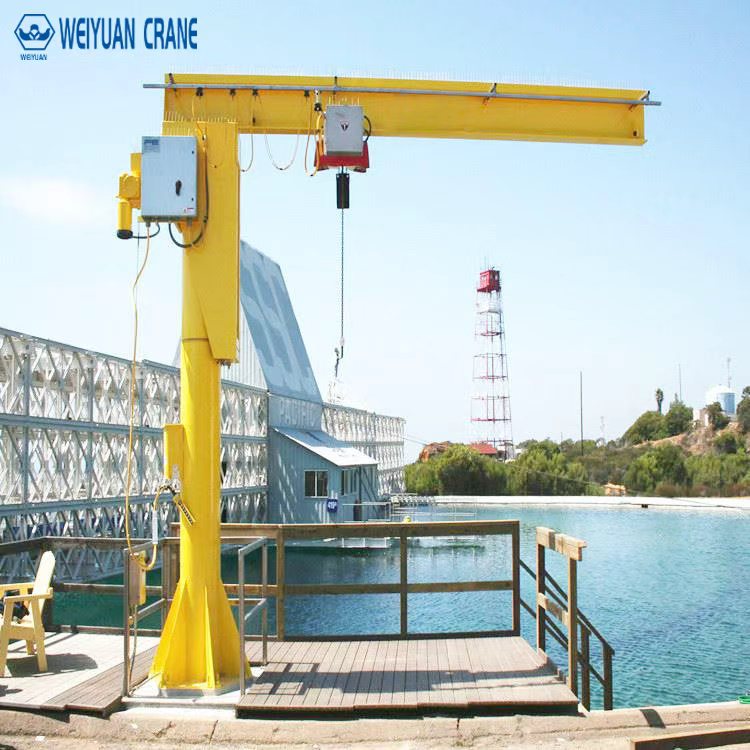

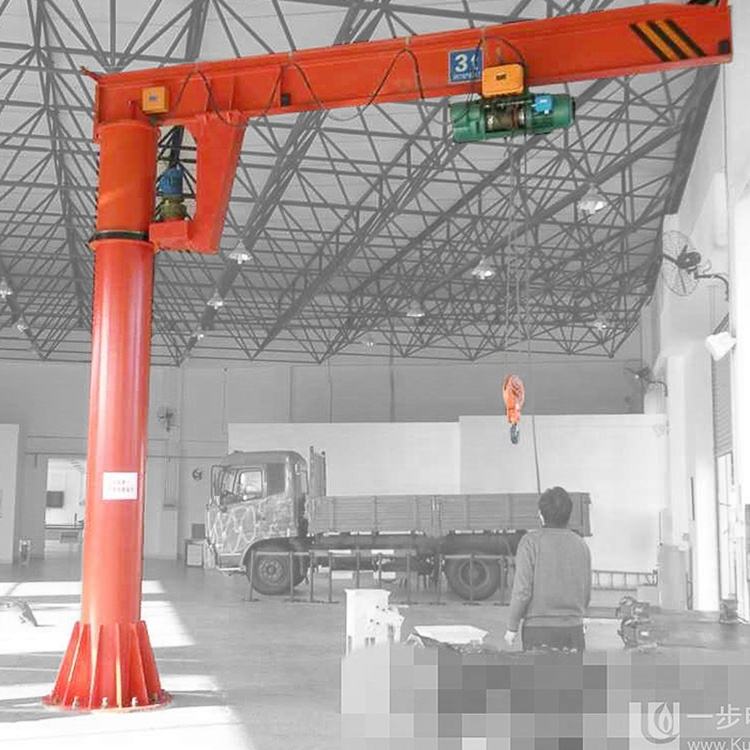

A jib crane’s rated capacity is not a suggestion. It is the structural design limit. Every structural member — the boom, the slewing bearing, the mast, the mounting brackets, and the foundation — was designed for a specific maximum load. Exceed it, and the safety margins built into the design begin to erode.
Occasional overloads may not produce immediate visible failure. But each overload accelerates fatigue at the highest-stress connections — the slewing bearing raceway, the boom-to-mast connection, the upper mounting bracket. These connections develop fatigue cracks over repeated overload cycles. The cracks grow. Eventually, one of them reaches critical length under a load that is within the rated capacity — and the crane fails.
Overload protection devices — load limiters — prevent this chain of events. They detect when the applied load approaches or exceeds the crane’s rated capacity, and they cut power to the hoist before the rated load is exceeded. No overload. No structural damage. No fatigue acceleration.
ASME B30.12 does not mandate load limiters on all jib cranes. But OSHA 1910.179 and 1910.180 require crane operators to know the rated capacity and prohibit operation above it. An organization that operates a jib crane without load limiting measures — relying on operator judgment alone — is accepting the liability for any overload event that results in structural failure.
This guide explains the three types of overload protection available for jib cranes, how each works, what ASME B30.12 requires regarding overload protection, the testing and calibration process, and when each type is the appropriate specification.
Part 1: Why Overloads Happen
Estimation Error
The most common cause of jib crane overloads is simple estimation error. The operator looks at a component and estimates its weight. If the estimate is low by 20%, and the crane’s rated capacity is already close to the component’s actual weight, the lift exceeds the rated capacity.
Weight estimation is notoriously inaccurate for irregular or dense components. A compact steel casting that looks like it weighs 300 kg might actually weigh 450 kg. A pallet of components that “should be” 800 kg based on the production order might be 950 kg because the quantity is higher than expected.
Without a load measurement device, the operator has no information other than the load feeling “heavier than expected” when the hoist picks it up. By that point, the overload has already occurred — the hoist has already applied the overload to the crane structure.
Configuration Changes
The effective capacity of a jib crane is not the same at all positions. At full boom extension, the maximum load the structural design supports may be lower than the nameplate rated capacity — particularly for cranes where the rated capacity applies at a specific trolley position, not throughout the full boom length.
An operator who loads the crane at full extension without knowing this position-dependent capacity may unknowingly impose loads beyond the structural limit for that configuration, even while staying within the nameplate rated capacity.
Load Growth During a Lift
Some lift scenarios involve load growth after the hoist has started raising. A component being separated from another piece may be stuck — the hoist raises against a resistance that exceeds the free-hanging load weight. A mold being extracted from a press may have partial vacuum adhesion. A component being removed from a fixture may be partially jammed.
In these scenarios, the hoist continues pulling after the load exceeds the rated capacity — because the operator does not feel the overload as clearly as they would if they had picked up an unexpectedly heavy component from rest. The crane structure is exposed to potentially severe overloads that cannot be detected by feel alone.
Part 2: Type 1 — Mechanical Load Limiters
How Mechanical Load Limiters Work
A mechanical load limiter is a device installed in the hoist’s load path — typically between the hook suspension and the hoist body. The device contains a compression spring or elastomeric element that deflects proportionally to the applied load.
When the applied load reaches the limiter’s trip point (set at or near the crane’s rated capacity), the deflection of the spring or elastomeric element reaches a defined threshold. This deflection actuates a mechanical switch — either a microswitch or a cam-actuated switch — which interrupts the hoist’s electrical power circuit. The hoist stops.
The trip point is set by adjusting the spring preload during installation. The trip point is verified by a static load test during commissioning.
Advantages of Mechanical Load Limiters
Simplicity: no electronic components. The device consists entirely of mechanical elements — spring, switch, housing. Maintenance is simple and does not require specialized test equipment.
Robustness: mechanical load limiters function in harsh environments — dusty, wet, high-vibration — that can affect electronic sensor reliability.
Cost: mechanical load limiters are the least expensive overload protection option. Typical price range: $200 to $800 depending on capacity and configuration.
Limitations of Mechanical Load Limiters
Accuracy: mechanical load limiters typically have a trip accuracy of ±10 to ±15% of the set point. The device may trip at 90% of rated capacity (allowing less than the full rated load) or at 110% of rated capacity (allowing a 10% overload before tripping) depending on friction, temperature, and wear.
No load display: the mechanical limiter provides no indication of the applied load to the operator — it either trips or it does not. The operator has no warning that the load is approaching the trip point before the hoist cuts out.
No data logging: mechanical limiters provide no record of load events. There is no documentation of how close to the limit the crane has been operated or whether any near-miss overload events have occurred.
Part 3: Type 2 — Electronic Load Cells with Digital Display
How Electronic Load Cells Work
An electronic load cell measures the actual applied load by detecting the strain in a steel element within the load cell body. The strain measurement produces an electrical signal proportional to the load. An electronic controller converts this signal to a digital weight reading, displays it on an operator interface, and compares it to the programmed rated capacity.
When the measured load approaches the programmed trip point, the controller: sounds an audible alarm at a warning threshold (typically 90% of rated capacity) and cuts hoist power at the overload threshold (typically 100 to 110% of rated capacity).
Display and Warning Features
The operator can see the actual applied load on the display before and during each lift. When the load approaches the warning threshold, the visual and audible warning informs the operator before the hoist cuts power — giving the operator the opportunity to set the load down and reassess the lift rather than experiencing an unexpected power cut.
Load cells can also be configured for load-at-percentage-of-rated-capacity display — showing the operator whether they are at 50%, 80%, or 95% of rated capacity, rather than a raw weight reading. This format is useful for operators who work with varied loads throughout the shift.
Data Logging Capability
Electronic load cells with data logging record every load event — time, date, and maximum load — over the data logging period. This data serves multiple purposes:
Maintenance planning: trend analysis of maximum loads over time reveals whether the crane is being operated consistently below rated capacity or whether loads are frequently near the limit (indicating that a higher-capacity crane may be needed before the current crane is operating at its rated limit on a regular basis).
Incident investigation: if a structural concern is identified during inspection, the load data log can confirm whether the crane has been operated within or outside its rated capacity over the preceding period.
Regulatory documentation: in regulated industries (nuclear, aerospace, pharmaceutical), the load event log provides documentary evidence of crane operation within rated capacity — potentially valuable during audits.
2026 Price Reference
Electronic load cell with digital display (no data logging): $800 to $2,500 depending on capacity.
Electronic load cell with digital display and data logging: $1,500 to $4,500.
Wireless load cell with remote display: $2,000 to $5,500.
Part 4: Type 3 — Hoist-Integrated Electronic Load Limiters
Integration with Modern VFD Hoists
Many modern electric hoists with VFD (variable frequency drive) control systems include integrated load monitoring through motor current sensing or integrated load cell measurement.
Motor current sensing: the VFD measures the motor’s current draw — which is proportional to the load the motor is lifting. When the current exceeds the value corresponding to the rated load, the VFD cuts power to the motor.
Advantage: no separate load cell device required in the load path. The measurement uses existing VFD electronics.
Limitation: motor current sensing is less accurate than a dedicated load cell — motor efficiency varies with speed and temperature, and the current-to-load relationship changes as the hoist’s components wear. Accuracy is typically ±10 to ±20%, less accurate than a dedicated load cell’s ±1 to ±3%.
Integrated Load Cell Hoists
Some hoist manufacturers offer hoists with an integrated load cell built into the hoist suspension point — between the hoist body and the crane trolley. The load cell measures the actual total suspended weight and provides both a display and a load limiter trip function through the hoist’s control system.
This integration eliminates the need for a separate below-hook load cell device while providing load cell accuracy (±1 to ±3%) rather than motor current accuracy. The display is typically integrated into the hoist control panel or the operator pendant.
Part 5: ASME B30.12 Requirements
What ASME B30.12 Says About Overload Protection
ASME B30.12 does not explicitly require load limiters on all jib cranes. The standard requires that: the crane be operated within its rated capacity, the rated capacity be clearly marked on the crane, and operators be trained on the crane’s rated capacity and prohibited from exceeding it.
Load limiters are not explicitly mandated as a hardware requirement in ASME B30.12 for standard jib cranes. However, ASME B30.12 does require that any overload protection device installed on the crane be: tested at installation to verify it trips at or before 100% of rated capacity, recalibrated or re-tested after any repair that might affect the limiter’s calibration, and included in the periodic inspection program.
When Load Limiters Are Effectively Mandatory
Although not explicitly mandated for all cranes under ASME B30.12, load limiters are effectively mandatory in several contexts:
Critical lift procedures: ASME B30.2 and facility-specific critical lift plans for lifts at or above 75% of rated capacity typically require load monitoring as a condition of the critical lift permit. A load limiter (or load cell) provides this monitoring.
Regulated industries: aerospace, nuclear, pharmaceutical, and defense contractors typically require load limiters as part of their lifting equipment quality plans regardless of what ASME B30.12 requires.
Insurance requirements: some facilities’ insurance policies require load limiters on cranes above defined capacities as a condition of coverage.
Repeated blind lifts: applications where the operator cannot see the load being picked up (below-floor pits, through hatches, underwater) make load weight estimation impossible by visual means. Load limiters are the only practical method of ensuring the rated capacity is not exceeded in these applications.
Part 6: Calibration and Testing Requirements
Initial Calibration
A load limiter must be calibrated to trip at or before 100% of the crane’s rated capacity — not at the rated capacity as the “nominal” value with some tolerance above it. Calibration requires applying a known test load (using certified test weights or a calibrated load cell and crane scale) and verifying that the limiter trips at or before the rated capacity.
Calibration procedure:
Step 1: hang a test load of 90% of rated capacity. Verify the hoist operates normally (the limiter does not trip at 90% of rated capacity).
Step 2: increase the test load to 100% of rated capacity. Verify the limiter trips before or when the 100% load is applied.
Step 3: if the limiter does not trip at 100%: adjust the trip point and retest. Continue until the limiter consistently trips at 100% or below.
Step 4: document the test: date, test loads, number of test cycles, final trip point setting, and the name and qualification of the person performing the calibration.
Periodic Recalibration
ASME B30.12 and most facility quality programs require periodic recalibration of load limiters. Standard interval: annually, coinciding with the crane’s annual periodic inspection.
Recalibration uses the same procedure as initial calibration — verifying the trip point with known test loads. The annual recalibration confirms that no drift in the mechanical spring preload (for mechanical limiters) or electronic sensor calibration (for load cells) has moved the trip point outside the acceptable range.
Frequently Asked Questions
Q: If my jib crane already has a rated capacity plate, is a load limiter still necessary?
A: The rated capacity plate informs the operator of the limit — it does not enforce it. Whether a load limiter is necessary depends on: the application (blind lifts, blind load weights), regulatory requirements (regulated industries typically require them), the facility’s risk assessment (what is the consequence of a structural failure from overload?), and insurance requirements. For low-cycle maintenance cranes with experienced operators lifting components with known weights: the rated capacity plate plus operator training may be adequate. For production cranes lifting components with variable and sometimes unknown weights, at high cycle rates, operated by multiple operators with varying experience levels: a load limiter is the appropriate control measure.
Q: Can a load limiter prevent all structural damage from overload?
A: A correctly calibrated load limiter prevents overloads above 100% of rated capacity during normal hoist operation. It does not prevent: dynamic overloads from sudden load drops and re-catches (the jerk load when a load that has swung can re-apply load abruptly), lateral overloads from side pulls on the hook (the limiter measures vertical load, not lateral force), or overloads that occur in the brief moment between the load first being applied and the limiter detecting and responding to the overload condition (the limiter has a small response time — typically 0.1 to 0.5 seconds). None of these scenarios makes a load limiter less valuable — it remains the most practical structural overload protection device available. But it is a control measure, not an absolute guarantee.
Q: How often should load limiters be tested in daily production use?
A: ASME B30.12’s frequent inspection (pre-shift or daily) requirement includes checking that all safety devices are functional. For a load limiter, this means verifying visually that the device is in place, properly connected, and shows no visible damage — not a full calibration test at each shift. The full calibration test is performed annually. In between: if the limiter trips during production (the hoist cuts out with a load that the operator believes is within rated capacity), this is a signal to investigate — either the limiter has drifted to trip below rated capacity (requiring recalibration) or the operator’s load weight estimate is incorrect (requiring the load to be weighed).
