Overhead Crane Runway Alignment: Tolerances & Wheel-Rail Guide
Introduction
A plant engineer I worked with once described the sound as “a train braking, but forever.” Every time the overhead crane traveled the length of the bay, the runway shrieked. The crane was barely two years old — a solid Class D machine, correctly specified, properly maintained. Yet the wheels were wearing into a wedge shape, the travel motors kept tripping on overcurrent, and the maintenance log read like a horror story of replaced wheels and reground rail.
The crane wasn’t the problem. The runway was. Somewhere during installation, the two rails had been laid a few millimeters out of parallel, and the building had settled unevenly in the months after. The crane spent every trip fighting its own tracks — skewing sideways, grinding its flanges against the rail, and burning through components it should have kept for a decade. The eventual fix cost more than the survey that would have caught it at commissioning.
That’s the uncomfortable truth of overhead crane ownership: you can buy the right crane and still lose it to the runway it runs on. A runway that’s a few millimeters out of tolerance doesn’t fail loudly on day one. It bleeds you slowly — accelerated wear, higher energy draw, unplanned downtime — for the entire life of the crane. And because the damage compounds, the cost of ignoring it only grows.
This is Part 2 of our three-part overhead crane series. Part 1 covered selection — duty class, load paths, and configuration. Here we get to the part that quietly determines whether all that upfront work pays off: runway beam alignment, the geometric tolerances that govern it, and the wheel-rail contact mechanics that turn small misalignments into big repair bills. Part 3 will close the series on maintenance, inspection, and keeping the crane qualified over its full service life.
What you’ll take away:
- Why an out-of-tolerance runway destroys cranes — and how to spot it before it does
- The exact CMAA / MBMA alignment tolerances you should hold your installer to
- How wheel-rail mechanics turn a few millimeters of error into flange wear and motor overload
- Rail selection, fixing methods, and thermal expansion decisions that affect long-term cost
- The warning signs your team can catch during a normal shift
- 2026 pricing for runway installation and alignment surveys, so the civil work doesn’t ambush your budget
Part 1: Why Runway Alignment Decides Your Crane’s Service Life

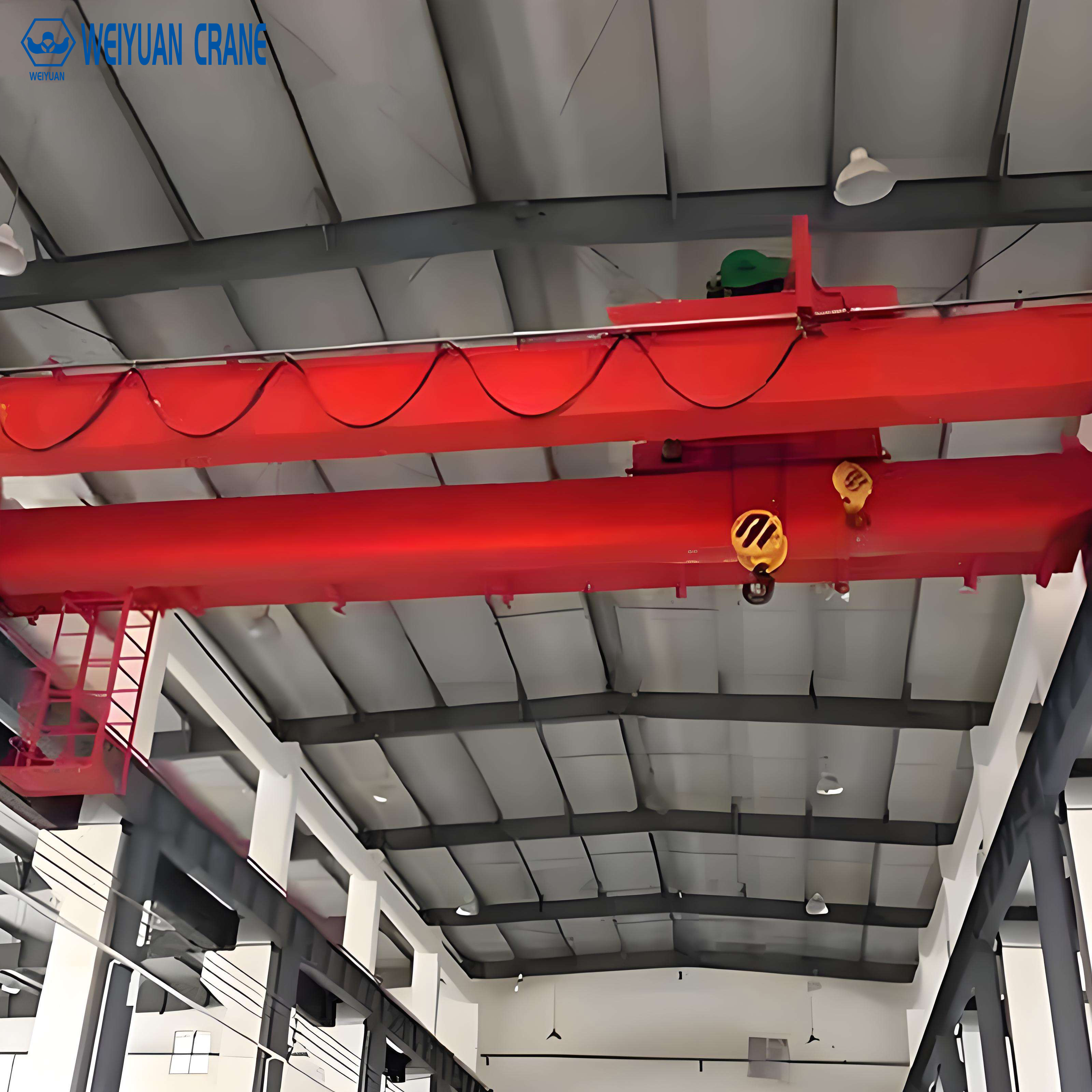

Here’s the mechanism that catches most buyers off guard. An overhead crane wheel is a rigid steel disc running on a rigid steel rail. There’s no rubber, no suspension, no give. When the geometry is right, the wheels roll clean and the crane tracks straight. When the geometry is even slightly off, the wheels have no way to absorb the error — so they fight it, cycle after cycle, for the life of the crane.
That’s the heart of the issue: steel-on-steel contact has almost no tolerance for misalignment. A few millimeters of error in the runway doesn’t get smoothed out. It gets translated directly into wear, heat, and load on the travel drives.
The Slow-Failure Problem
The reason runway alignment gets neglected is that it doesn’t announce itself. A misaligned runway passes its first inspection, runs fine through commissioning, and looks perfect for months. The damage accumulates invisibly:
- The wheels wear unevenly, a fraction of a millimeter at a time.
- The travel motors draw a little more current on every trip, fighting the skew.
- The rail heads round off and the flanges thin, quietly, under normal use.
By the time the symptoms are obvious — the screech, the tripping motors, the wedge-worn wheels — you’re no longer looking at an alignment adjustment. You’re looking at a full set of replacement wheels, a rail regrind, and the downtime around both. The engineer in the introduction learned this the expensive way.
Two Sources of Misalignment
Runways go out of tolerance for two reasons, and you need to guard against both:
- Installation error. The rails were never laid to tolerance in the first place. This is the cheapest problem to prevent — it costs a documented alignment survey at commissioning — and the most expensive to discover two years later.
- Structural settlement. The building moved after installation. Columns settle, foundations shift, and a runway that was perfect at commissioning drifts out of tolerance over time. This is why alignment isn’t a one-time check but a recurring one (more on that in Part 3).
The procurement takeaway: treat the alignment survey as non-negotiable, both at installation and as a periodic check. It is the single cheapest insurance you can buy on a multi-year, high-value asset. Skipping it to save a few thousand dollars is how a fifteen-year crane becomes a three-year liability.
Part 2: The CMAA / MBMA Alignment Tolerances You Must Enforce
You don’t need to run the survey yourself. But you do need to know the numbers, because they’re what you hold your installer to — and what you demand documented proof of before you accept the runway. A supplier who can’t produce a measured alignment report against these tolerances hasn’t finished the job.
Four geometric tolerances govern an overhead crane runway, drawn from CMAA Specification No. 70 and the MBMA (Metal Building Manufacturers Association) crane building guidance most manufacturers reference. Here they are, with what each one actually controls.
The Four Critical Tolerances
| Tolerance | What it controls | Limit |
|---|---|---|
| Runway gauge (G) | Center-to-center distance between the two rails | ±3 mm (±1/8″) for spans under 15 m; ±6 mm (±1/4″) max for spans over 15 m |
| Elevation deviation (ΔE) | Vertical height difference between opposing rails at any cross-section | Max 10 mm (3/8″) total; rate-of-change limit 2 mm per 3 m of runway length |
| Straightness (horizontal) | Lateral deviation of a rail from its theoretical centerline | ±3 mm (±1/8″) over a standard 10 m bay length |
| Rail joint offset | Vertical or horizontal mismatch at rail joints | Max 0.5 mm (1/64″) |
Runway Gauge — Keep the Rails Parallel
Gauge is the distance between the two rails, measured center to center. If the gauge widens or narrows along the runway, the crane’s wheels bind or skew as they travel, because the fixed distance between the end trucks no longer matches the distance between the rails.
Hold gauge to ±3 mm for spans under 15 meters, and ±6 mm maximum for spans over 15 meters. Wider spans get a slightly looser tolerance because the longer bridge has marginally more flex to accommodate it — but don’t read that as permission to be sloppy. Gauge error is one of the most direct causes of skewing.
Elevation Deviation — Keep the Rails Level With Each Other
Elevation deviation (ΔE) is the vertical height difference between the two rails at any point across the runway. If one rail sits higher than the other, the crane runs on a twist, throwing more load onto the low-side wheels and accelerating their wear.
Two limits apply here, and both matter:
- Total difference: no more than 10 mm (3/8″) between the rails.
- Rate of change: no more than 2 mm per 3 meters of runway length.
That second limit is the one people forget. A gradual 10 mm difference spread evenly over a long runway is far kinder to the crane than a sharp 8 mm step over three meters. The rate-of-change limit stops the runway from having abrupt local dips or humps that pound the wheels.
Straightness — Keep Each Rail Running True
Straightness is how much each rail deviates sideways from its theoretical centerline. Hold it to ±3 mm over a standard 10-meter bay. A rail that wanders left and right forces the crane to constantly correct its path, driving lateral load into the wheel flanges and the runway structure.
Rail Joint Offset — The Tightest Tolerance of All
Where rail sections meet, any vertical or horizontal mismatch must not exceed 0.5 mm (1/64″). This is the tightest tolerance on the list, and for good reason: a step at a rail joint is a hammer blow delivered to the wheel on every single pass. That repeated impact — engineers call it dynamic wheel pounding — fatigues the wheel, the rail, and the structure around the joint. Half a millimeter sounds trivial until you multiply it by tens of thousands of crane trips.
In practice, you’ll want to make a documented alignment survey against all four tolerances a condition of acceptance in your purchase order — with final payment tied to it. That single clause protects you from inheriting an out-of-tolerance runway that quietly drains your maintenance budget for a decade.
Part 3: Wheel-Rail Contact Mechanics — How Small Errors Become Big Bills
To understand why those millimeter tolerances matter so much, you have to understand what happens at the point where wheel meets rail. This is where alignment errors get converted into wear, heat, and wasted energy — and knowing the mechanism helps you recognize trouble early.

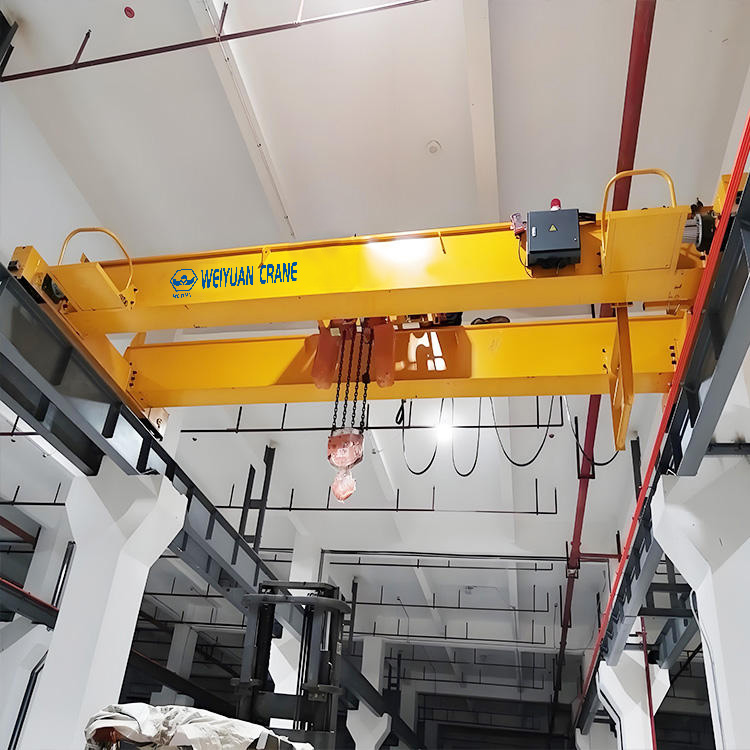

How a Crane Is Supposed to Track
Ideally, a crane wheel rolls along the top of the rail with its flange — the raised lip on the wheel — sitting just clear of the rail’s side. The flange is a guide, not a bearing surface. When everything is aligned, the flanges rarely touch the rail. The wheel simply rolls, and the crane tracks straight down the bay with minimal resistance.
What Misalignment Does
Now introduce a few millimeters of gauge error, or a rail that wanders off straight. The crane can no longer roll cleanly, so it skews — the bridge cocks at a slight angle to the rails as it travels, like a shopping cart with a bad wheel. Once it skews, the mechanics turn destructive fast:
- Flange wear. The skewing crane forces its wheel flanges hard against the sides of the rails. Those flanges — designed only to guide — now carry lateral load and grind against the steel. This is where the wedge-shaped wear pattern comes from, and it’s the classic fingerprint of a misaligned runway.
- Rail wear. The same grinding wears the sides of the rail heads. Now you’re consuming two components at once — wheels and rail.
- Motor overload. A skewing crane is fighting friction the whole way down the bay. The travel motors work harder, draw more current, run hotter, and trip on overcurrent protection. Higher energy consumption on every trip is the quiet cost you pay even before anything fails.
- Structural fatigue. The lateral forces from skewing feed back into the runway beams and building connections, adding cyclic stress the structure wasn’t meant to carry continuously.
Why It Compounds
Here’s the vicious part: misalignment causes uneven wear, and uneven wear worsens the misalignment. A wheel that’s worn into a wedge tracks even more crookedly, which accelerates the wear, which worsens the tracking. Left unaddressed, a small initial error snowballs into a full wheel-set replacement and a rail regrind. Catching it early — while it’s still an alignment adjustment — is dramatically cheaper than catching it late.
Part 4: Rail Selection, Fixing Methods & Thermal Expansion

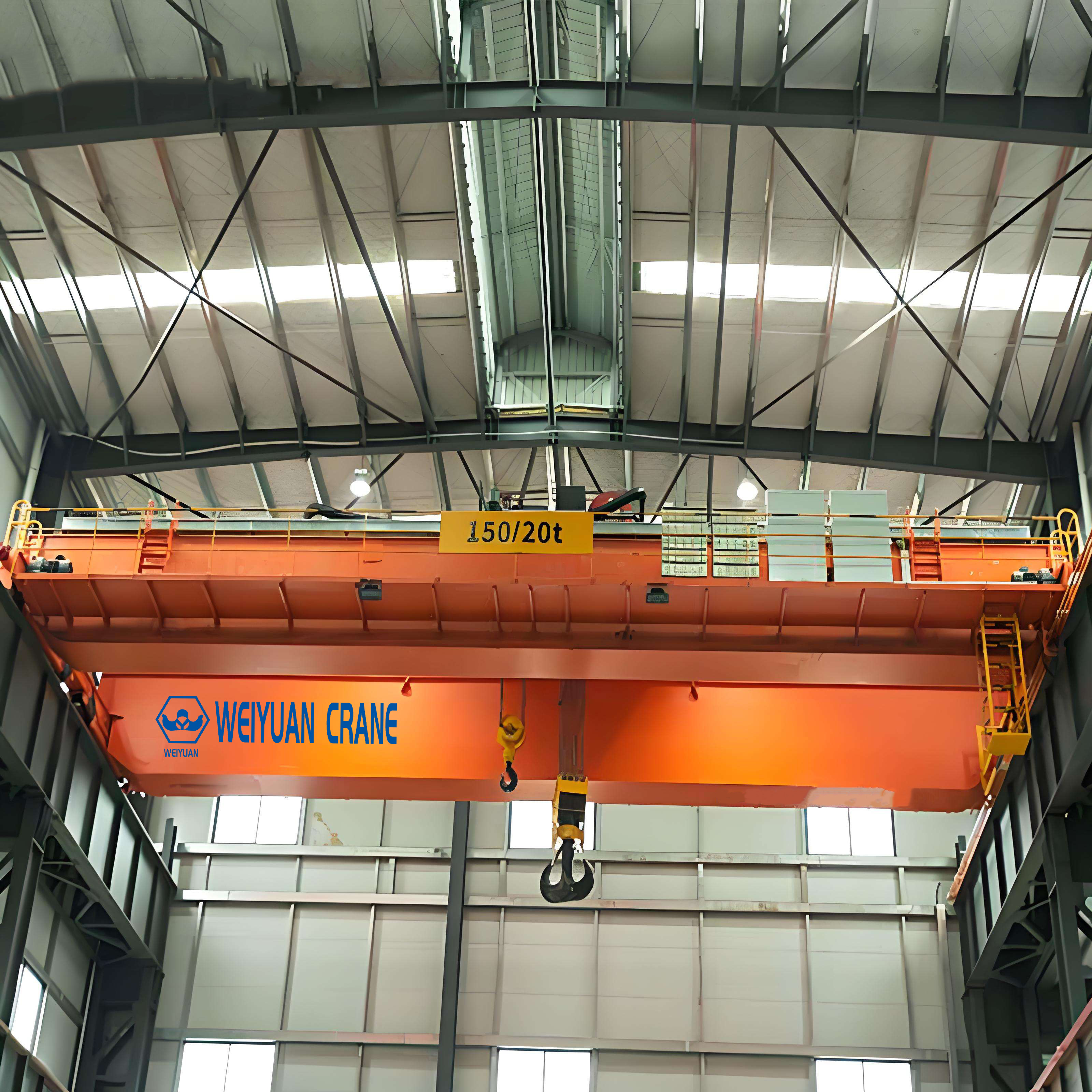

The rail itself is the interface between a multi-tonne moving machine and your building structure. Get the rail specification, its fixing method, and its allowance for thermal movement right, and the runway holds tolerance for years. Get them wrong and you undermine even a perfectly aligned installation.
Choosing the Right Rail Section
Rail size follows the wheel load. A rail that’s under-sized for the crane’s wheel loads deforms, wears quickly, and hammers the supporting structure. Options range from lighter crane rail sections for smaller cranes up to heavy crane rail — or even standard train rail — for the largest, heaviest-duty machines.
Your supplier specifies the rail section to match the wheel loads and wheel diameter from the crane design. The temptation to substitute a lighter, cheaper rail to trim the quote is a false economy: the saving disappears the first time you have to regrind or replace a rail that couldn’t carry the load.
How the Rail Is Fixed Down
The way the rail attaches to the runway beam affects both alignment stability and how easy it is to correct later. Two broad approaches dominate:
- Rail clips on a sole plate. Clips hold the rail down firmly while allowing slight movement along its length for thermal expansion. This is the flexible, maintainable choice — clips can be loosened, the rail re-aligned, and clips re-tightened. Preferred for most installations because it keeps future alignment corrections practical.
- Welded or grouted-in rail. Used where a very rigid, permanent fixing is needed. The trade-off is that it’s far harder to adjust later, so the alignment at installation has to be exact from the start.
Whichever method you use, the rail needs continuous, even support beneath it. A rail bedded on high spots with gaps between concentrates the load onto those points and fails early. Even support spreads the wheel loads as the design intends.
Don’t Ignore Thermal Expansion
Steel rail expands and contracts with temperature. Over a short indoor bay this is minor. Over a long runway — especially one exposed to outdoor temperature swings or wide seasonal shifts — the movement becomes significant. A long rail fixed rigidly with no room to expand will buckle, tear its fixings, or push itself out of alignment.
This is a major reason clipped rail (which permits controlled sliding) is preferred over rigidly grouted rail on long runs. When you review a runway design, confirm the fixing method accounts for thermal movement appropriate to your rail length and environment. It’s an easy detail to overlook and an expensive one to correct.
Part 5: The Warning Signs Your Team Can Catch on a Normal Shift
The best defense against runway damage isn’t a specialist survey — it’s a trained operator who knows what a healthy crane sounds and looks like. Most runway problems announce themselves weeks or months before they force a shutdown, and the signs cost nothing to spot. Teach your team to watch for these.
Listen for the Screech
A healthy crane travels with a low mechanical hum. A loud screeching or squealing during bridge travel is the sound of wheel flanges grinding against the rail sides — the audible signature of skewing. If the crane sounds like metal dragging on metal as it moves down the bay, the flanges are working when they shouldn’t be. That’s a runway alignment problem until proven otherwise.
Look for Metallic Shavings
Walk the runway and inspect the rail webs and the area around the rails. Bright metallic shavings or fine steel filings accumulating along the rail are physical proof of steel grinding against steel. Clean, healthy rolling doesn’t produce shavings. Their presence means the wheels or flanges are cutting into the rail — a direct symptom of misalignment or a skewing crane.
Check the Wheels for Wedge Wear
Inspect the crane wheels for uneven wear across the tread and thinning flanges, especially a wedge-shaped wear pattern. A wheel wearing faster on one side is telling you the crane is running crooked. Wedge wear is the classic fingerprint of a runway that’s drifted out of gauge or straightness tolerance.
Watch for Tripping Travel Motors
If the travel motors are drawing high current or tripping on overload during normal, unloaded travel, the crane is fighting resistance it shouldn’t face. A crane rolling on an aligned runway travels freely. One that trips its travel protection is working against friction — usually from skewing on a misaligned runway.
The Pattern to Teach Your Team
Rule of thumb for the floor: New noise, metallic shavings, wedge-worn wheels, or tripping travel motors all point to the same suspect — runway alignment. Report them early. An alignment check and a re-shim is cheap. A full wheel-set and a rail regrind, the result of ignoring these signs for a year, is not.
Building this awareness into daily operation turns your operators into an early-warning system. It’s the cheapest and most effective runway maintenance investment you can make, and it ties directly into the inspection framework we’ll detail in Part 3.
Part 6: 2026 Price Reference for Runway Installation & Alignment
Use these as planning figures to build a realistic budget. Runway and alignment costs vary with rail length, crane size, building condition, site access, and region — often more than the crane price itself. Always get a site-specific quote, but budget against these ranges so the runway work doesn’t ambush your project.
| Runway / alignment element | Scope | 2026 planning range |
|---|---|---|
| Crane rail supply & installation | Rail, clips, sole plates, fixing (per runway metre) | $200 – $900 per linear metre |
| Runway beam supply & install (per rail line) | Steel runway beam, brackets, connections | $30,000 – $150,000+ |
| Commissioning alignment survey | Professional runway survey to CMAA/MBMA tolerance | $3,000 – $12,000 |
| Periodic alignment re-check | Recurring survey against baseline | $2,500 – $8,000 |
| Runway re-alignment (shim / adjust) | Correcting drifted alignment early | $5,000 – $20,000 |
| Rail regrind or replacement | Late-stage fix after wear damage | $15,000 – $60,000+ |
| Wheel-set replacement (per set) | Wheels + labor + re-alignment | $4,000 – $25,000 |
Two budget realities worth flagging:
- The alignment survey is the cheapest insurance you’ll buy. A commissioning survey at $3,000 to $12,000 protects a multi-year, six-figure asset from the slow, compounding wear that misalignment causes. Skipping it to save the fee is a false economy of the worst kind — the eventual rail regrind and wheel-set replacement cost several times more.
- Early correction beats late repair by a wide margin. Catching drift early and re-shimming sits at the bottom of the cost range. Ignoring it until wheels and rail are both worn puts you at the top — frequently three to five times the cost, plus the downtime around the repair.
Procurement tip: when you compare runway installation quotes, confirm exactly what’s included. A cheap number often excludes the commissioning alignment survey or bundles it as an optional extra. Normalize every quote to the same scope, and make the documented alignment survey a condition of acceptance with payment tied to it. That one clause is the difference between a runway that runs true for fifteen years and one that quietly drains your maintenance budget.
Frequently Asked Questions
Q: How out of tolerance does a runway have to be before it damages the crane?
A: Less than you’d think. Because crane wheels are rigid steel running on rigid steel, they can’t absorb error — a runway just a few millimeters out of gauge or straightness forces the crane to skew, which grinds the wheel flanges against the rail on every pass. The CMAA/MBMA tolerances exist precisely because small deviations cause real damage: hold gauge to ±3 mm under 15 m spans, straightness to ±3 mm per 10 m bay, elevation difference to 10 mm total (and 2 mm per 3 m rate of change), and rail joint offset to just 0.5 mm. Treat these as hard limits, not targets.
Q: What are the early warning signs of a misaligned runway?
A: Four signs your operators can catch during a normal shift. First, a loud screeching or squealing during bridge travel — the sound of flanges grinding the rail. Second, bright metallic shavings accumulating along the rail webs, which is physical proof of steel cutting steel. Third, wedge-shaped wear on the crane wheels, the classic fingerprint of a crooked-running crane. Fourth, travel motors drawing high current or tripping during normal travel, meaning the crane is fighting friction. Any one of these points to runway alignment — catch them early and the fix is cheap.
Q: Why do I need to keep re-checking alignment after installation?
A: Because buildings move. Even a runway laid perfectly at commissioning can drift out of tolerance as columns settle and foundations shift over months and years. Structural settlement is one of the two main causes of misalignment — the other being installation error. A one-time survey at commissioning catches installation problems, but only periodic re-checks catch the slow drift from settlement. Building a recurring alignment survey into your maintenance program (covered in Part 3) protects the crane over its full service life.
Q: What rail fixing method should I specify?
A: For most installations, rail clips on a sole plate are the better choice. They hold the rail firmly while allowing slight movement for thermal expansion, and — importantly — they let you re-align the rail later by loosening, adjusting, and re-tightening the clips. Welded or grouted-in rail gives a more rigid, permanent fixing but is far harder to correct if alignment drifts, so it demands exact installation from the start. On long runs or outdoor runways, clipped rail is strongly preferred because it accommodates the thermal expansion that would otherwise buckle a rigidly fixed rail.
Q: How much should I budget for runway alignment work?
A: Plan for a commissioning alignment survey at $3,000 to $12,000, and a periodic re-check at $2,500 to $8,000 per survey. These are small numbers against the cost of what they prevent: a late-stage rail regrind or replacement runs $15,000 to $60,000-plus, and a wheel-set replacement adds $4,000 to $25,000 — often both at once when misalignment is caught late. The economics strongly favor prevention. Catching drift early with a survey and a re-shim ($5,000 to $20,000) costs a fraction of the full wear-driven repair.
