When a Chain hoist is not the optimal solution—perhaps due to limitations in speed, lift height, or duty cycle—industrial operations need reliable alternatives. While the Chain hoist excels in versatility, low headroom applications, and portability, the primary alternatives generally fall into three categories: Wire Rope Hoists, Air (Pneumatic) Hoists, and specialized heavy-duty cranes. Understanding the trade-offs between these options is crucial for maximizing efficiency and safety in your specific environment.

The Wire Rope Hoist: The Primary Alternative to the Chain Hoist

For applications that demand greater speed, higher lifting heights, and smoother operation, the wire rope hoist is the immediate and most common alternative to the Chain hoist.

Where Wire Rope Excels: Speed and High Lift

Wire rope hoists use a precision-wound steel cable on a drum, offering several mechanical advantages over a traditional Chain hoist:

• Higher Lifting Speeds: Wire rope winds smoothly and quickly onto a drum, allowing for significantly faster lift and descent speeds, which is essential for high-throughput logistics centers and rapid material flow.
• Greater Vertical Reach: Since the cable is wound onto a drum, wire rope hoists can achieve much greater lifting heights (over 30 meters) than a standard Chain hoist, where the chain must be stored in a collection bag or canister.
• Smoother Operation: The continuous winding of the cable provides a smoother lift and more precise micro-positioning than the incremental movement of chain links over a sprocket.

Trade-offs: Portability and Headroom

However, the wire rope hoist system has its own constraints compared to the versatile Chain hoist:

• Increased Headroom: The large winding drum required for the cable usually demands more vertical space, making it unsuitable for low-headroom environments where a compact Chain hoist 1 ton might be used.
• Reduced Portability: Wire rope hoists are generally larger and heavier, making them less suited for flexible or temporary applications where a small, easy-to-deploy Chain hoist 1 ton might be used.

Air Hoists and Specialty Cranes: Alternatives for Unique Environments

For specialized environments where electricity or extreme power are factors, other alternatives come into play.

Air (Pneumatic) Hoists

The air chain hoist (or pneumatic hoist) uses compressed air instead of an electric motor.

• Ideal Application: They are the optimal alternative for highly volatile or explosive environments (e.g., paint booths, chemical plants) where an electric spark would be catastrophic. Air hoists eliminate the risk of explosion by removing electrical components.
• Durability: They are known for extremely high duty cycles and are less susceptible to heat damage than standard electric motors, making them suitable for continuous, intense operation.

Specialty Overhead Cranes (e.g., Gantry Cranes)

For massive capacity or extreme versatility in large yards, the entire lifting system changes:

• Heavy-Duty Needs: For lifting capacities well beyond the scope of a standard Chain hoist (e.g., 50 tons or more), full overhead gantry cranes or bridge cranes are the necessary alternatives.
• System Integration: These solutions often involve a sophisticated hoist system integrated with an air chain hoist or specialized wire rope equipment, along with a chain hoist and trolley system for mobility on the beam.

Core Advantages and Technical Excellence of Modern Chain Hoists

While alternatives exist, the modern Chain hoist is an intelligent lifting system that addresses many historical drawbacks, making it a viable primary choice for many operations.

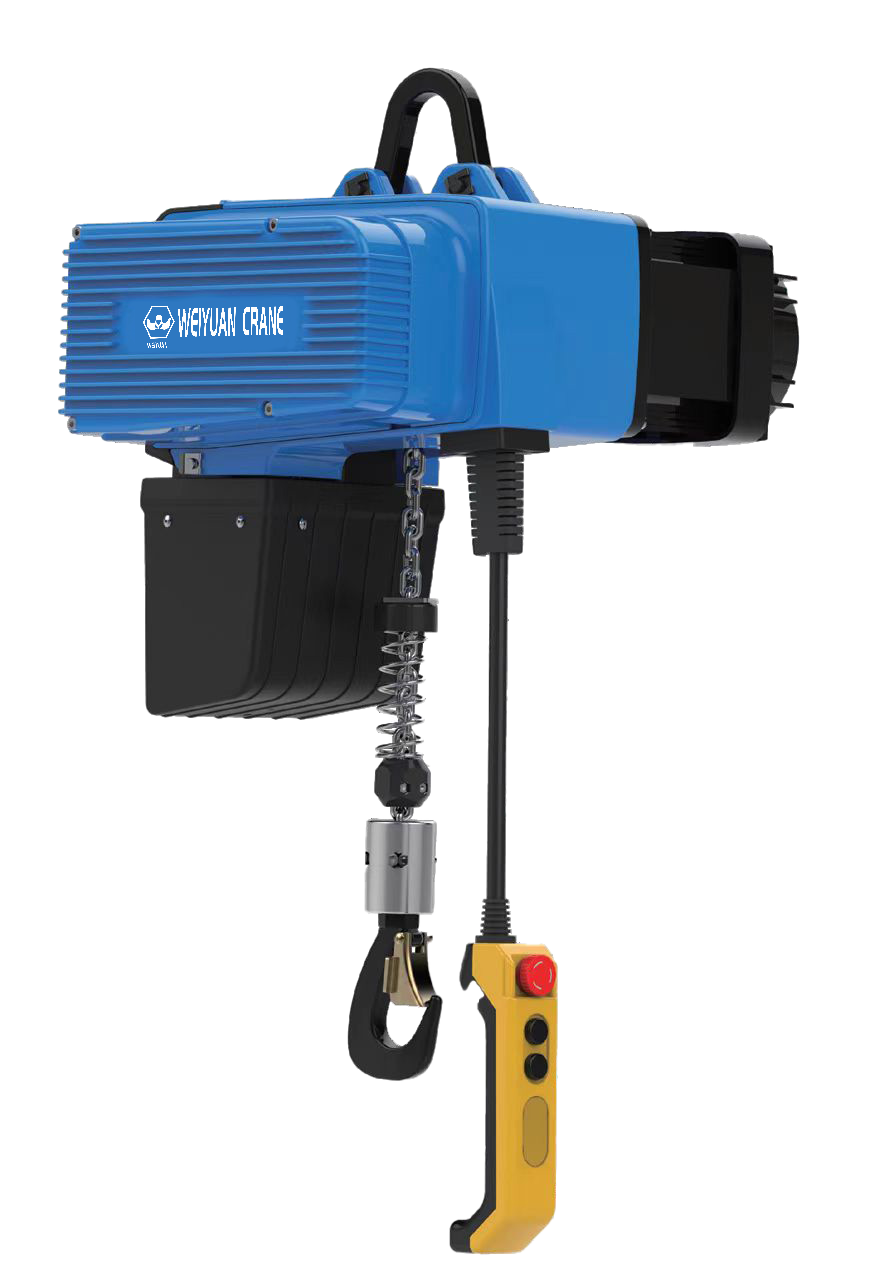

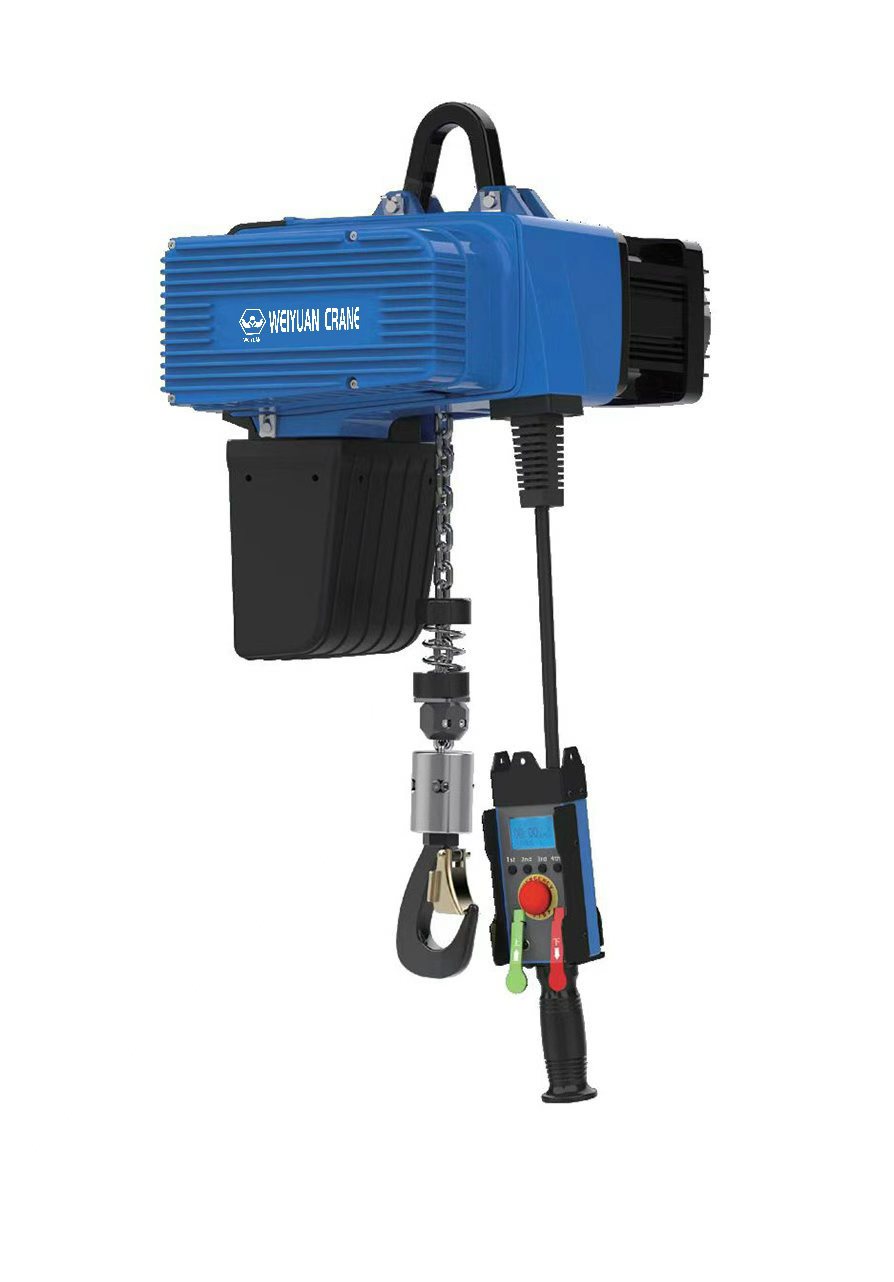

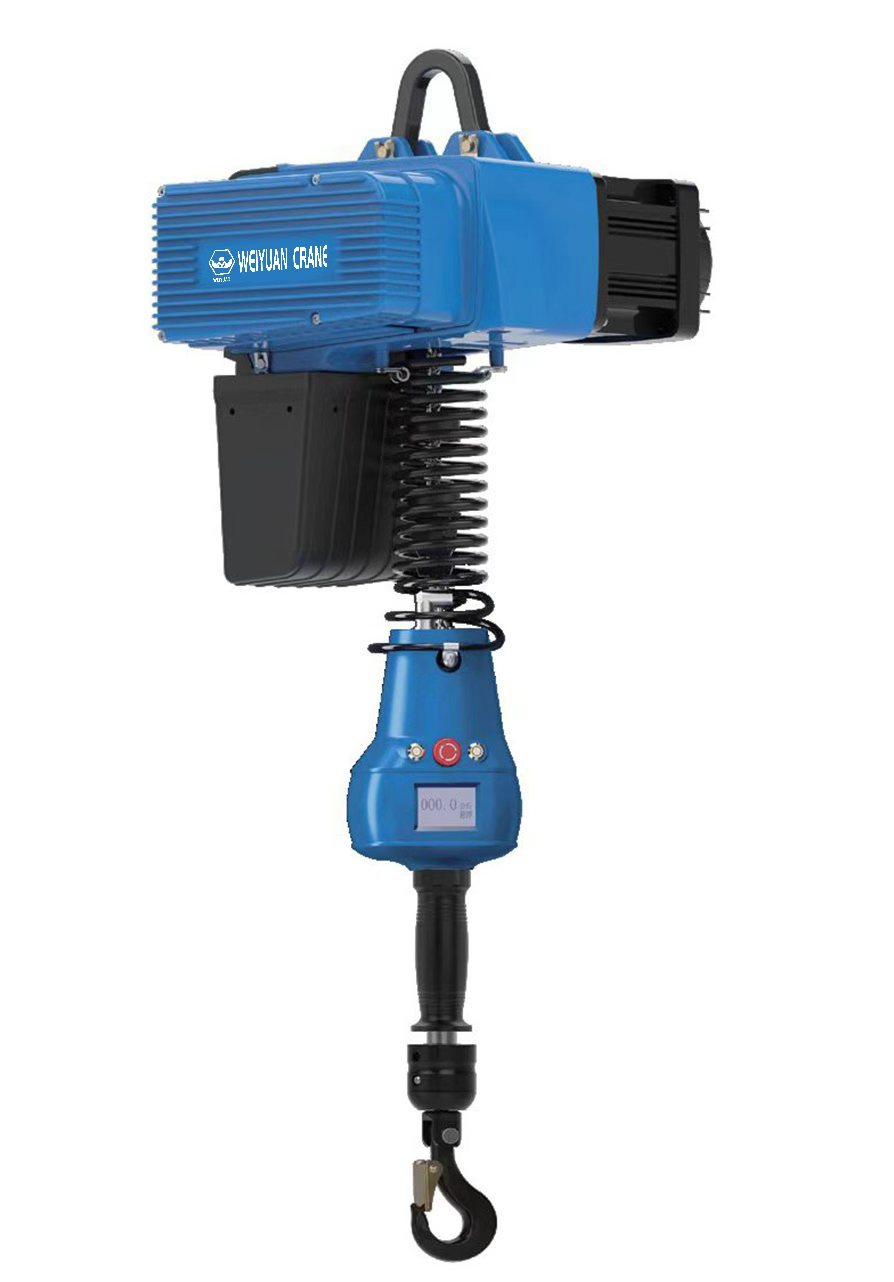

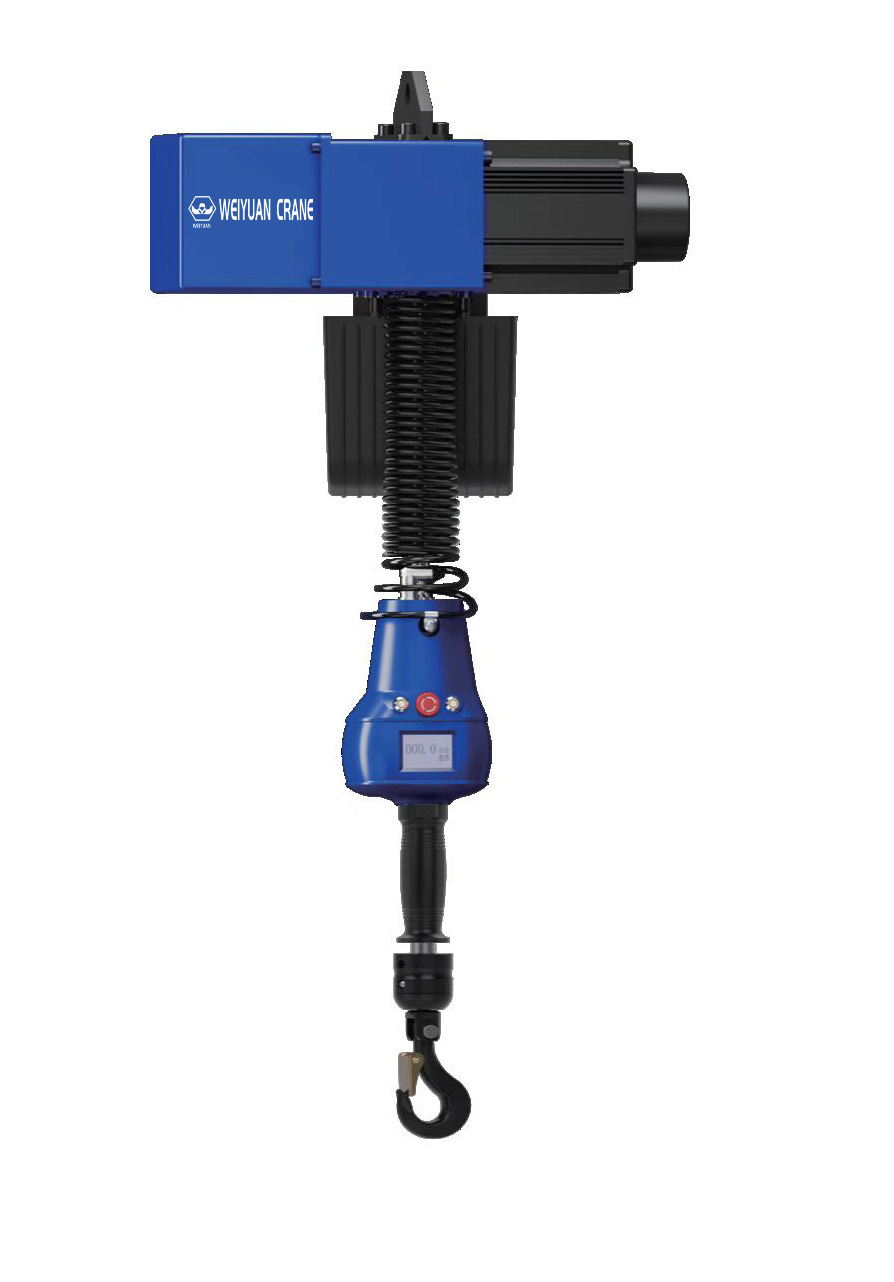

Product Description: The Enduring Value of the Chain Hoist

The Chain hoist is the cornerstone of safe, efficient vertical material handling in modern industry, construction, and logistics. Through precision-engineered chain and gear transmission, the Chain hoist easily manages heavy lifting challenges. Its core appeal lies in the perfect combination of operational simplicity and powerful carrying capacity, providing stable core protection for every lift.

Key Features and Technical Specifications

Feature	Advantage	Value Created
Exceptional Durability	Uses high-strength alloy steel chain, specially heat-treated for superior resistance to wear and corrosion.	Ensures long-term stable operation, even in harsh conditions.
Versatile Capacity	Supports a full range of weight levels, from light duty up to 2000 Kg heavy duty (double rope).	Covers all lifting scenario requirements.
Energy Efficiency	Offers both manual and highly efficient electric drive options (low as 0.75 KW rated power).	Optimizes energy consumption and adapts to environments with or without power, minimizing energy consumption.
High Working Grade	Features M5 or M6 working duty classes and precise overload protection.	Real-time monitoring significantly reduces safety incidents.

Specification Item	D2B100 (1000Kg)	D2B200 (2000Kg Double Rope)
Max Load (Kg)	1000	2000
Lifting Speed (m/min)	1/8	0.5/4
Rated Power (KW)	2.2	2.2
Working Grade (FEM/ISO)	M5	M5
Chain Specification (mm)	7.1	7.1

Customization, Compliance, and Support

To ensure a Chain hoist or its alternative provides maximum value, customized fit and guaranteed safety are essential.

Customization for Optimal Performance

We are committed to providing complimentary design and personalized customization services to perfectly fit your unique operational context:

• Performance Tuning: Precise adjustment of chain length and lifting height.
• Environmental Adaptation: Adding high-level dust and water protection (IP rating) to guarantee stable operation in special, harsh environments.

Our partner, HOLILITE, is a professional production manufacturer integrating production, sales, design, and installation.

Application Fields and Compliance

The versatility of the Chain hoist makes it an efficiency multiplier across various sectors:

• Industrial Manufacturing: Precision installation and maintenance of critical components.
• Logistics & Warehousing: Improving the efficiency of loading, unloading, and stacking.
• Safety Assurance: Products comply with international standards such as CE certification and ISO certification.

Case Study: Chain Hoist Upgrade for Safety and Precision

Case Challenge: A traditional assembly station faced efficiency bottlenecks and high rates of safety incidents due to reliance on old manual lifting devices.

Solution and Results: The client adopted our Chain Hoist intelligent lifting solution. The new equipment features multi-layer electronic safety mechanisms, real-time status monitoring, and support for wireless remote control for precise, millimeter-level positioning.

• Key Value Gains: Efficiency improved by over 30%. Safety improved by 90% due to built-in overload protection and high working duty classes. Guaranteed millimeter-level accuracy for critical assembly tasks.

Installation, Pricing, and FAQ

• Installation and Support: We provide comprehensive documentation, video guidance, and technical teams available for on-site assistance. We offer a standard one-year warranty.
• Pricing and Delivery: Chain hoist pricing is customized based on specifications. Standard models ship in 3–5 working days; custom models typically require 2–4 weeks.
